TREM RETRATIL TRI GEAR ROBART 611HD

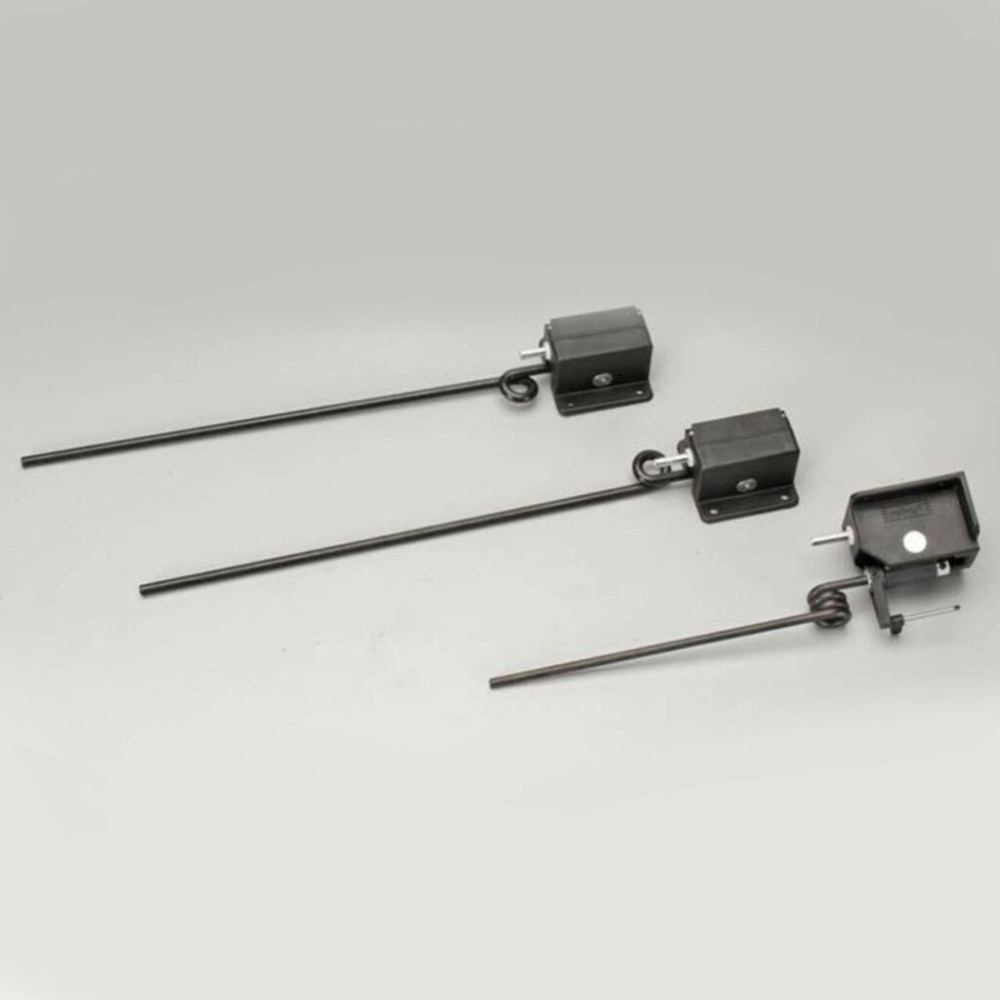

This is the Robart #611 3/16" Wire Tri-Gear Set. Consists of 608HD 90 Deg. Mains & 610 Nose Gear.

FEATURES:

Part # 610 90 Deg.

Nose with 5/32"

Wire Strut

Light durable and compact perfect for up to a 10 pound aircraft

Durable, glass-filled, nylon housing supports an aluminum pivot bearing which secures the tempered steel 5/32 inch wire strut

Positive up-and-down lock and positive tiller arm steering and smooth cam action. A 1/8 inch dia. pushrod is tapped 2-56 on one end for quick servo connection

Also operates with standard or retract servos.

Part # 608H 90 Deg.

with 3/16" dia.

Wire Strut

Constructed from a durable filled nylon chassis, supporting a large aluminum pivot bearing

Supplied with 3/16 dia. strut wires, each unit has positive up and down locks and are designed for aircraft weighing from 5 to 10 lbs

These gears are also designed to operate with standard or retract servos.

INCLUDES:

2 - #608hd Main gear retracts

1 - #610 Nose gear retract

12 - Mounting screws

Instructions for Nose gear and Main retracts

Spare parts list

REQUIRES:

Possible modification to aircraft to fit retracts

Possible modification to wire for wheel

SPECS:

Nose gear: Total length closed: 8-1/8" (206.50mm)  open: 8" (203.20mm)

Base: Width: side to side w/mounting tabs: 1-3/4" (45mm) w/o mounting tabs: 15/16" (23.5mm) front to back w/actuating arm: 2-11/32" (71mm) w/o actuating arm: 1-7/8" (48mm)

actuating arm extends: 1-1/8" (29mm)

Main Gear: Total Length closed: 11-1/4" (286mm) open: 11-1/8" (283mm)

Base: Width: side to side w/mounting tabs: 1-3/4" (45mm) w/o mounting tabs: 15/16" (23.5mm) front to back w/actuating arm: 2-1/4" (57mm) w/o actuating arm: 1-3/4" (45mm accuating arm extends: 1-1/8" (29mm)

COMMENTS:

You will need a 2-56 threaded rod to control actuators.

They thread into the actuating arm and push/pull to activate.
