TR600ESP METAL TAIL PICH ASSEMB H60250T

Instruction:

- Utilizes dual point attachment design for zero play and higher precision control feel.

- Constructed with CNC aluminum alloy, with precision ball bearing at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth.

- 6061-T6 Aluminum alloy material and CNC processed.

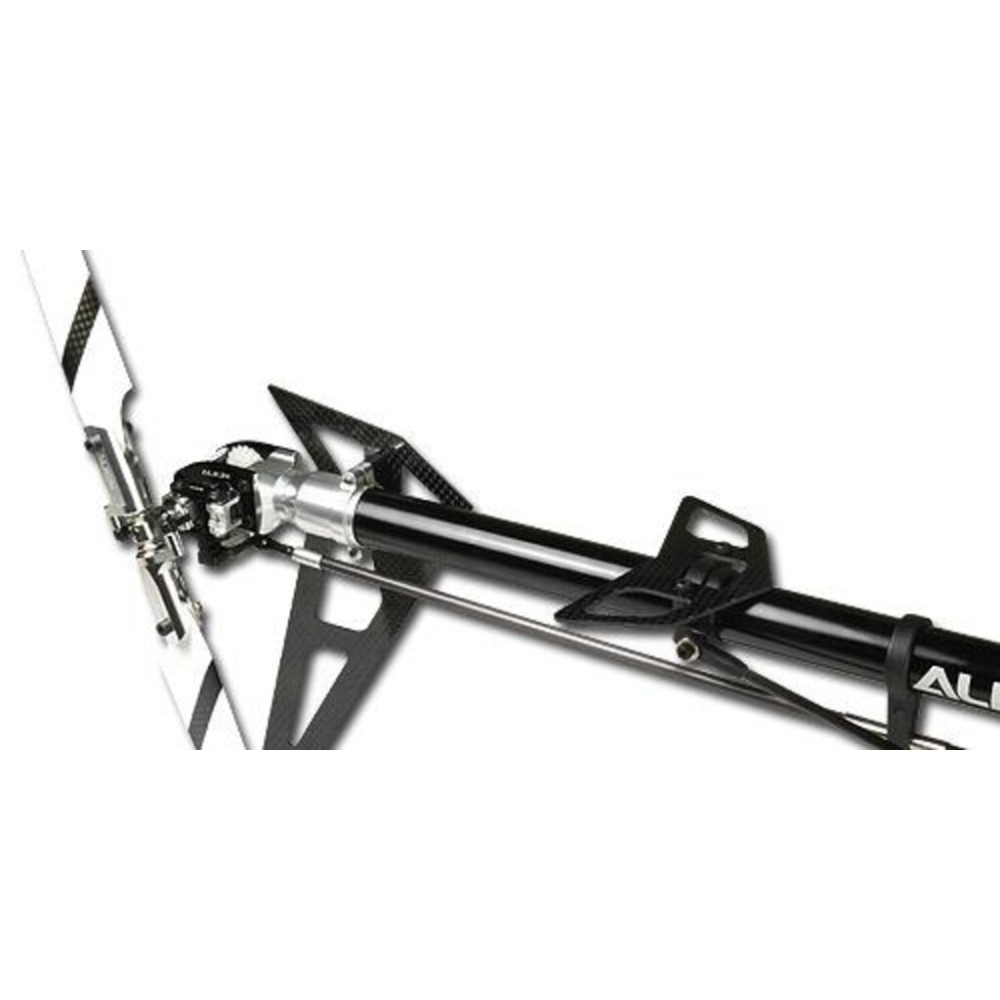

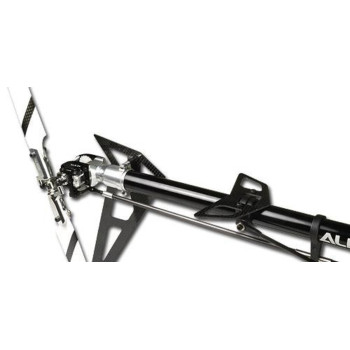

- Use for T-REX 600ESP.

Specification:

- I-shaped Arm x 1

- Mount Link x 1

- Metal plate(R) x 1

- Bearing MR105ZZ x 1(Φ5xΦ10x4mm)

- Bearing holder x 1(13.5x12.5x9.5mm )

- Linkage ball A(M2x3.5) x 1(Φ4.75x8.18mm)

- Tail control arm x 1

- Bearing mount washer x 1(Φ7x Φ8.3x3.5mm)

- Bearing F682XZZ x 6(Φ2.5xΦ7.1xΦ2.6mm)

- Bearing MR117ZZ x 2(Φ7xΦ11xΦ3mm)

- Socket button head screw x 1(M3x5mm)

- Socket button head screw x 6(M2.5x5mm)
