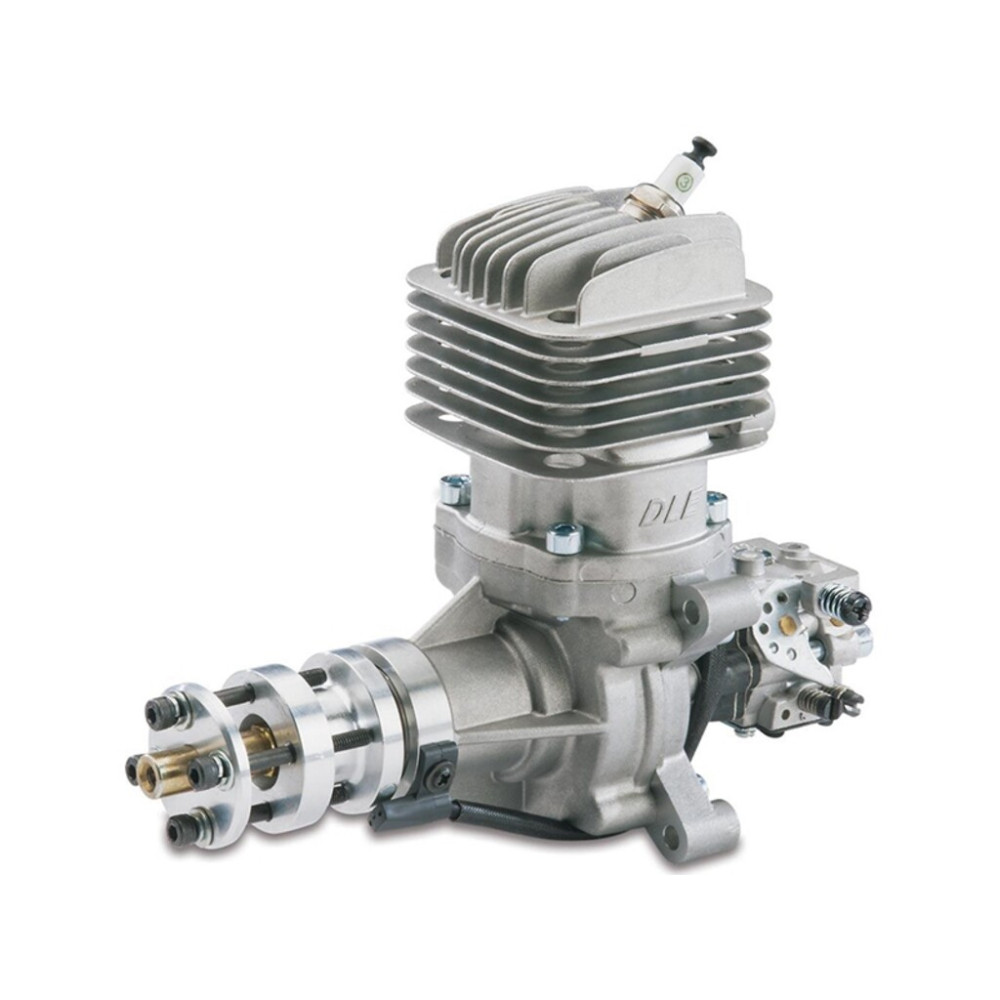

MOTOR DL ENGINE 35RA REAR EX WALBRO DLE35RA

Product Details

Description:

The DLE-35RA features a rear exhaust for the perfect tuned pipe setup. It also includes a newly designed piston with re-engineered skirt for less piston weight – resulting in such advantages as awesome throttle response, more power and longer engine life. Producing 400 more rpm than the DLE30, the DLE-35RA comes with engine standoffs, electronic ignition, spark plug and muffler.

In The Box

• (1) DLE 35-RA Gasoline Engine
• (1) Electronic Ignition
• (1) Muffler
• (1) DLE CM6 Spark Plug
• (4) Engine Standoffs with Mounting Hardware
• (1) Integrated Choke Rod Guide
• (1) Rear-mounted Carb
• (1) Product manual

Needed to Complete:

• Gasoline with at least 87 octane rating
  2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance
  4.8 - 8.4V battery for ignition (separate receiver pack can be used)
• Propeller and field equipment

NOTE: 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case.

Features:

• This engine is designed with a lighter piston skirt for lower weight, better throttle response, and increased resistance to wear.
• The customized, pumped DLE carburetor delivers consistent fuel flow, while the 2-stage muffler reduces back pressure and increases power.
• The advanced aluminum alloy crankcase is CNC-machined to exacting standards for high performance and long life.
• Fully automatic electronic ignition delivers easy starts and consistent runs.

Compatibilly:

• Tiger 30cc ARF, 90" - Hangar 9 - HAN2370
• Timber 110 30-50cc ARF, 110" - Hangar 9 - HAN2530
