BL700H ALIGN HV BRUSHLESS SERVO HSL70001

Descriptions:

• Utilizes brushless motor design for fast speed, high efficiency. And with no brush wear, servo longevity is greatly increased. Supports 7.4v high voltage to provide optimal speed and torque performance of the brushless servo.
• Specifically designed for helicopters, with the highest specifications on the market: 0.065sec/60° of ultra-fast speed and 20kg-cm of monstrous torque, allowing helicopter to perform faster and higher accurately. Ultra-high 12-bit resolution for excellent signal accuracy and smoothness. Hardened high-strength superalloy gears that increase lifespan.
• Aluminum alloy mid case construction for instant heat dissipation, high efficiency servo maintenance.
• It supports both analogue and digital control signals.
• Suitable for T-Rex cyclic 550/600/700 and rudder use.

Specification:

• Blocking torque: 15.0kg.cm (6.0V) / 20.0kg.cm (7.4V)

• Movement speed: 0.085sec/60° (6.0V) / 0.065sec/60° (7.4V)

• Voltage: DC 4.8-7.4V

• Temperature range: -20°C to +60°C

• Dimension: 40.3 x 20.1 x 38.7 millimeters

• Weight: 69g

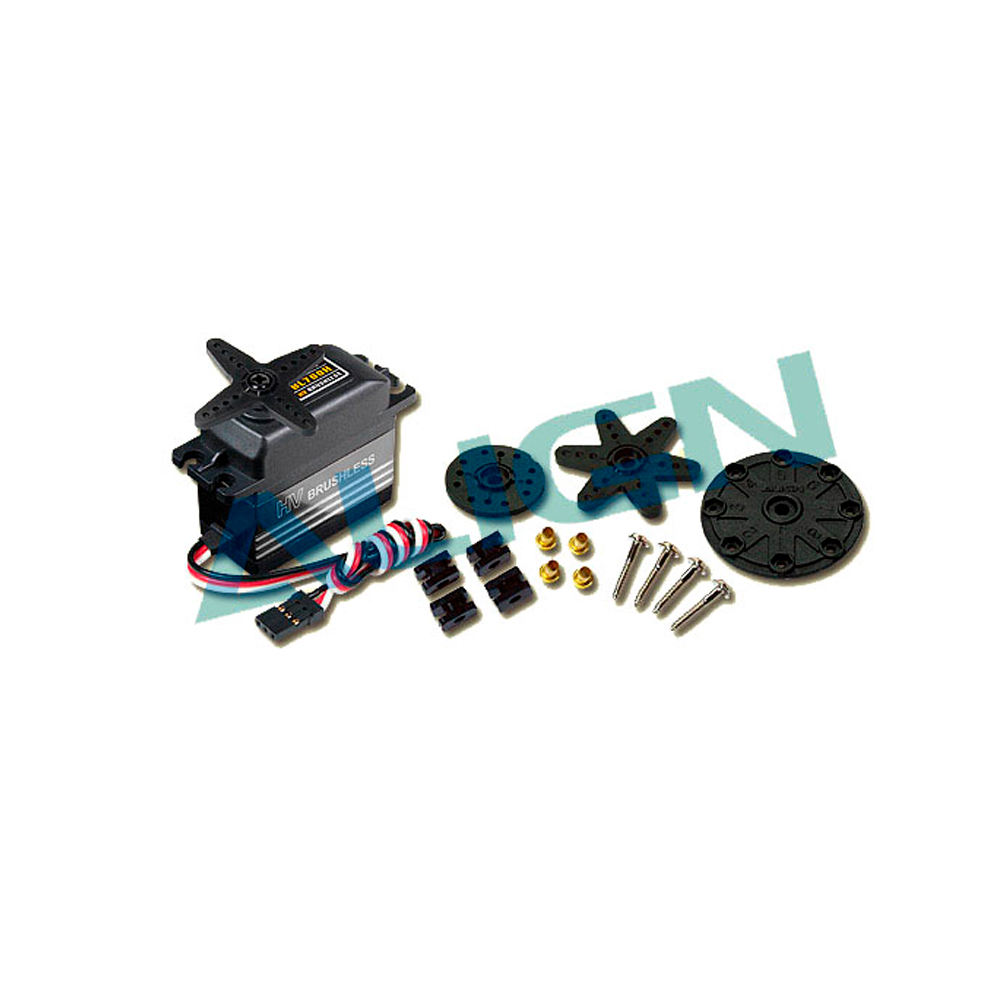

Included Items:

• 4-Part servo rudder

• 1-Adjustment screw

• 4-Buffer rubber

• 4-Brass insulating ring

• 4-Spinner for servo
