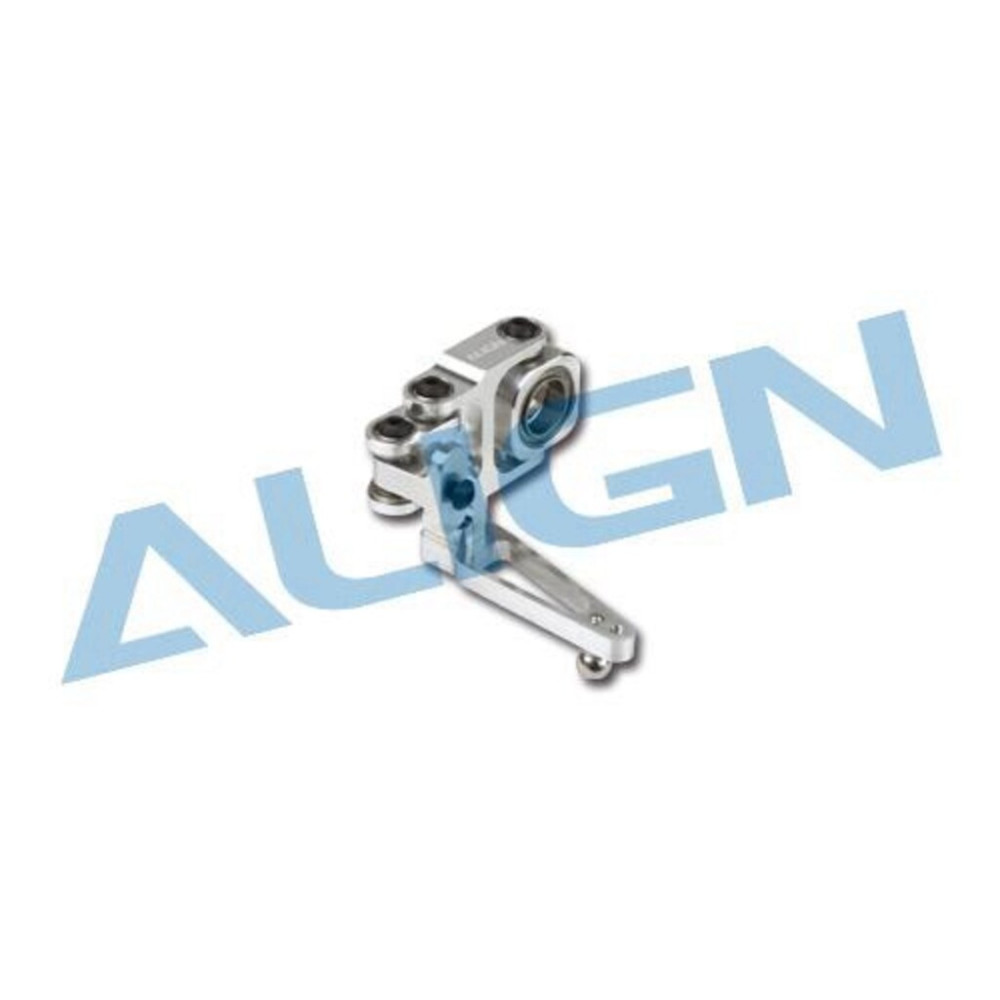

TR700E METAL TAIL PICTH ASSEMBLY H70097T

Instruction:

- Utilizes dual point attachment design for zero play and higher precision control feel.

- Constructed with CNC aluminum alloy, with precision ball bearing at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth.

- Suitable for all 700 class machines.

- 6061-T6 Aluminum alloy material and CNC processed.

Specification:

- I-shaped Arm × 1

- Mount Link × 1

- Mount × 1

- Collar × 1(Φ8×Φ9.4×4mm)

- Bearing holder × 1

- Bearing MR128ZZ × 2(Φ8xΦ12x3.5mm)

- Linkage ball C(M2x4) × 1(Φ5x9mm)

- Tail control arm × 1(37.5×10.7×4mm)

- Bearing F682XZZ × 6(Φ2.5×Φ7.1Φ2.6mm)

- Socket button head screw × 1(M3x5mm)

- Socket button head screw × 6(M2.5x5mm)

- Socket button head screw × 1(M2.5x6mm)
