SEMI-TRUCK TAMIYA 1/14 RC MAN TGX 26.540 6X4 XLX KIT BLACK 56325

Description

This is a MAN Truck!

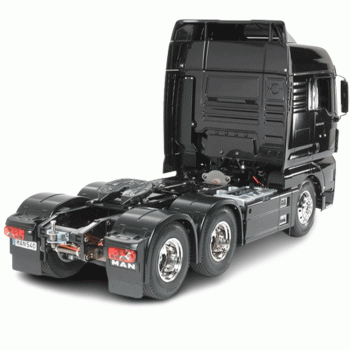

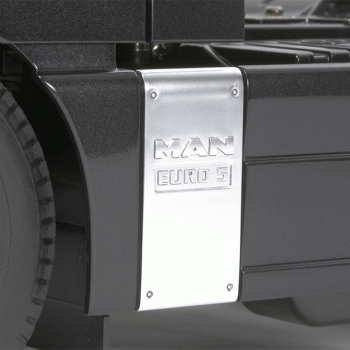

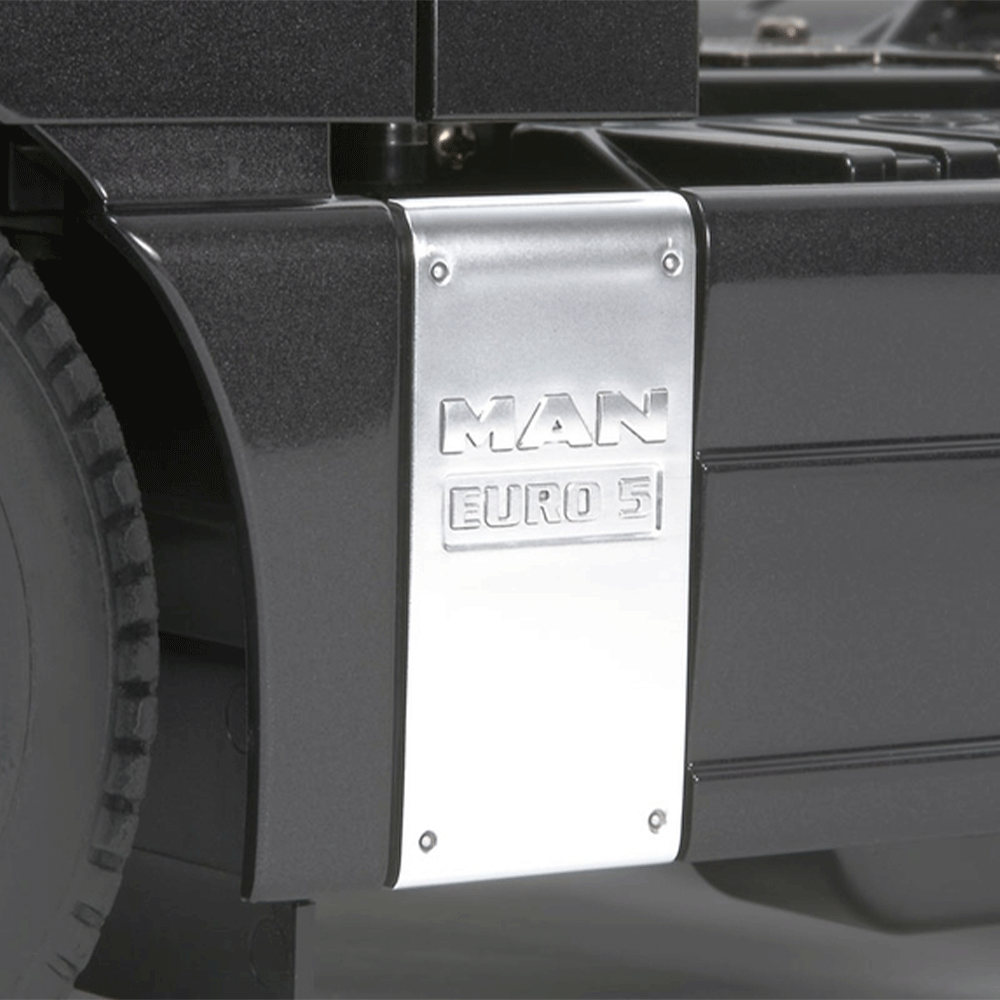

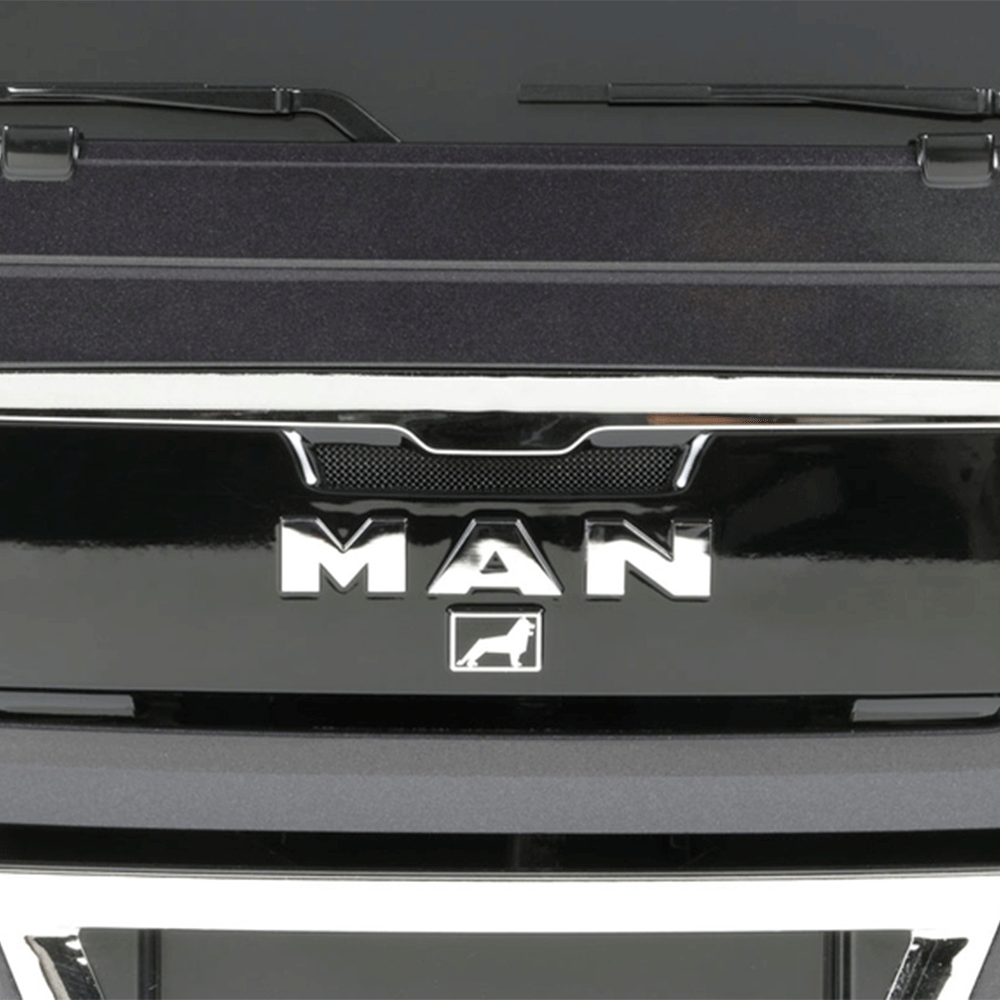

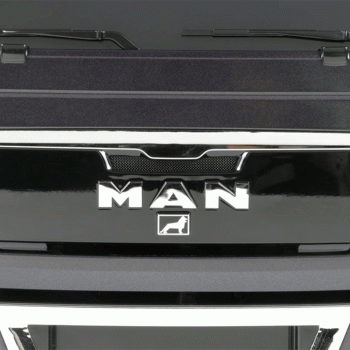

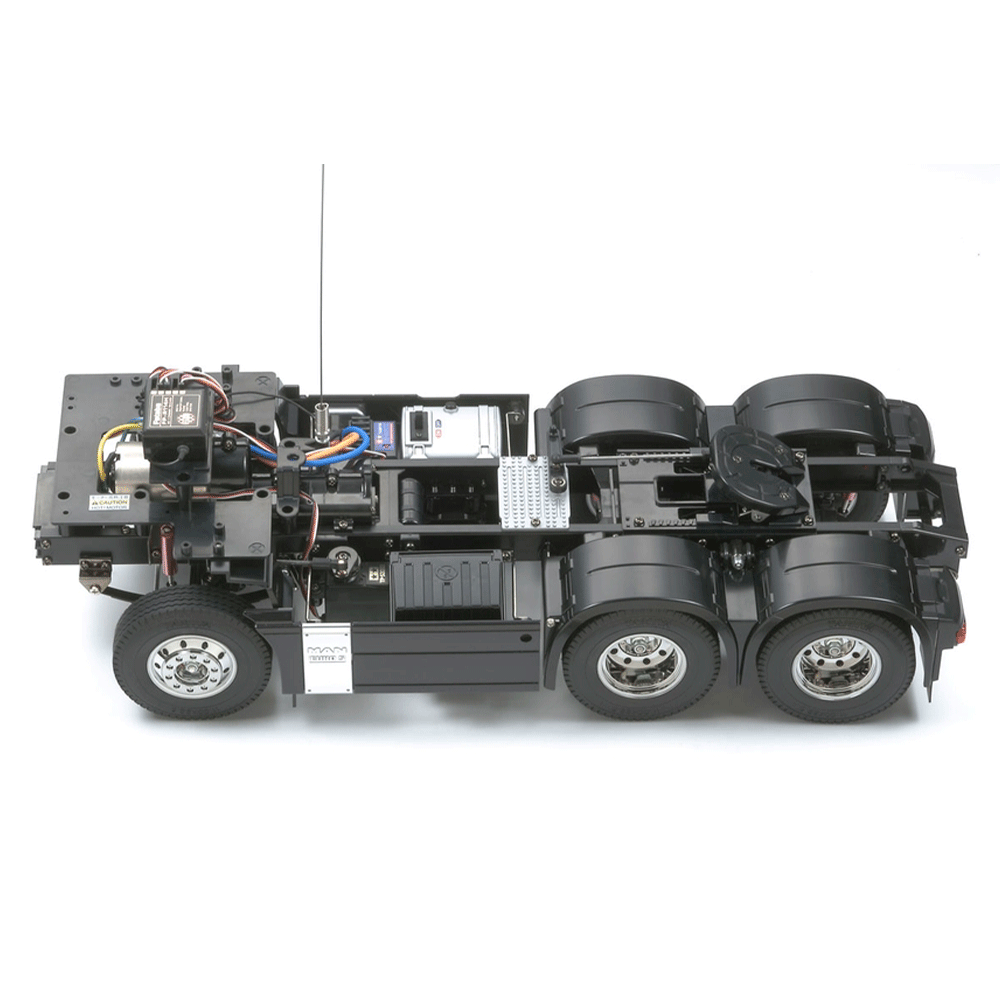

Also known as transporters that are used by F1 teams today, MAN Company's tractor truck the TGX 26.540 6x4 XLX was awarded “The 2008 Truck of the Year.” This award winning truck comes reproduced as a 1/14 scale electric R/C model. The model features a ladder frame chassis with aluminum channels, suspension with metal leaf springs and friction dampers, and rear axles equipped with differentials. Providing this truck with a realistic scale finish are parts which feature two kinds of metal-plating and metal transfers to beautifully depict details such as the front grille's emblem. Furthermore, the chassis features a 3-speed transmission which allows gear shifting while driving via transmitter, with the sound and lighting actions reproduced by the separately available Multi Function Control (MFC-01) unit.

Realistic Lights, Sounds, and Vibration

• Multi-Function Control Unit (MFC-01) (SOLD SEPERATELY) offers light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from the actual truck, and together with air horn, gear shifting, and many other realistic sounds, lets you feel like you are driving the real thing. Headlights, brake lights, and turn signal operations are also available at your fingertips.

Features

• Length: 526mm,
• Width: 193mm,
• Height: 301mm,
• Weight (without options): Approx. 3.8kg
• Wheelbase: 237＋103mm
• Tread: 156mm (Front), 138mm (Rear, Double Tire)
• Chassis: Aluminum & Polycarbonate Resin Ladder Frame
• Suspension: Front/Rear Leaf Springs
• Caster Angle (Front/Rear): 0°/0°
• Camber Angle (Front/Rear): 0°
• Toe Angle: 0°(Front & Rear)
• Dampers: Aluminum Dummy Dampers (Front & Rear)
• Drivetrain: Rear Double Axle Drive　
• Transmission: 3-gear transmission (gear shifting operated via transmitter)
• Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
• Diff. Gear: 3-bevel diff
• Motor: Type RS540
• Tire Width: 22mm (Front & Rear)
• Tire Diameter: 83mm (Front & Rear)
• (REQUIRED TO COMPLETE): 4-channel transmitter & receiver, MFC-01, 2 servos, 7.2V battery pack & charger (sold separately).

Specifications

• Adjustable Gear Ratio 3-speed transmission
• Bearings Metal and Plastic Bushings
• Body Material ABS Plastic
• Chassis Material Aluminum and ABS plastic
• Chassis Type Semi-Truck
• Construction Type Assembly Kit
• Differential Type Gear
• Drive Type 2WD
• Electronic Speed Control (esc) Sold Separately
• Led Light Buckets yes
• Led Lights Not Included, but sold separately
• Motor 540-brushed type
• Required To Complete 4-Channel Radio (Tamiya Attack), 2 servos, ESC, 7.2volt battery with compatible charger, and Tamiya TS & Acrylic-Lacquer Bottle Paints
• Scale 1/14
• Shock Damper Friction damper
• Special Feature 1 Length: 526mm Width: 193mm Height: 301mm
• Special Feature 2 Wheelbase: 237+103mm
• Special Feature 3 Tread F/R: 156/138mm
• Special Feature 4 Tire Width: F/R both 22mm
• Special Feature 5 Diameter: F/R both 83mm
• Special Feature 6 Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
• Suspension leaf spring
• Terrain Use On-Road
