LIFE SOURSE AC/DC BALANCE HOB HCAM6375

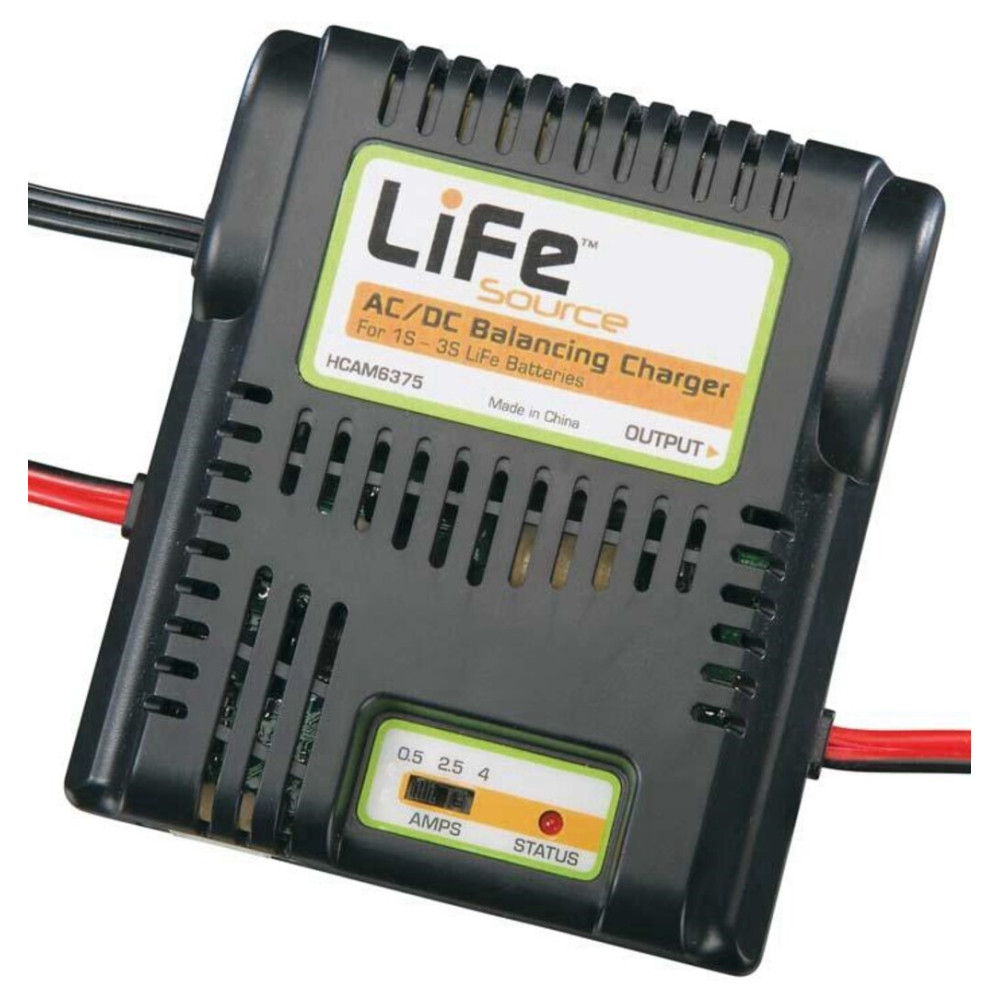

This is the Hobbico LiFeSource AC/DC Balancing Battery Charger.

FEATURES:

Charges the entire line of Hobbico LiFeSource Lithium-Iron Phosphate (LiFe) batteries

Uses the cc/cv (Constant Current/Constant Voltage) charge method with voltages customized for LiFe batteries

Selectable charge currents for use with various size batteries

Setting up and usage is easy with an auto-start function with status

LED and audible tones

Built-in socket for connecting batteries with Futaba J or universal receiver connectors

110V AC or 12V DC inputs with alligator clips for home or field use

Built-in 3S balancing connector with 2S adapter included-balancing ensures all cells are charged to optimum voltage every time

Solid state reverse polarity and current overload protection

Five year limited warranty through Hobby Services beginning at date of purchase

INCLUDES:

Hobbico LiFeSource AC/DC Balancing Battery Charger with AC and DC Power Leads 2S Adapter and Instruction

REQUIRES:

Connecting to power source and battery

SPECS:

AC Input: 110V AC 60Hz, U.S. type AC connector (18W max.)

DC Input: 11-15V DC, built-in lead with alligator clips (40W max.)

Battery Types: 1-3S LiFe Packs (3.3-9.9V)

Battery Capacity Range: Up to 5000mAh

Fast Charge Current: 0.5, 2.5, 4.0A (15W 2.5A limit on AC)

Fast Charge Termination: cc/cv, based on nominal voltage 3.3V per cell

Fast Charge Safety Timer: 90 minutes

Controls: Auto-start, switchable current selector

LED Indicator: Red

Audible Indicator: Charge completion

Output Connections: Built-in lead with Deans Ultra male connector built-in Rx connection

Lithium Balancing Connector: ElectriFly type 3S connection (2S adapter included)

Lithium Balancing Accuracy: 8mV per cell

Lithium Max. Node Current: 100mA

Protective Devices: Solid-state reverse polarity, current overload

Case size: 4.1 x 3.5 x 1.1" (104 x 90 x 29mm)

Weight: 9.17 oz. (260g)
