SBUS SBE-1 SBUS PWM ADAPTER FUTM4194

Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.

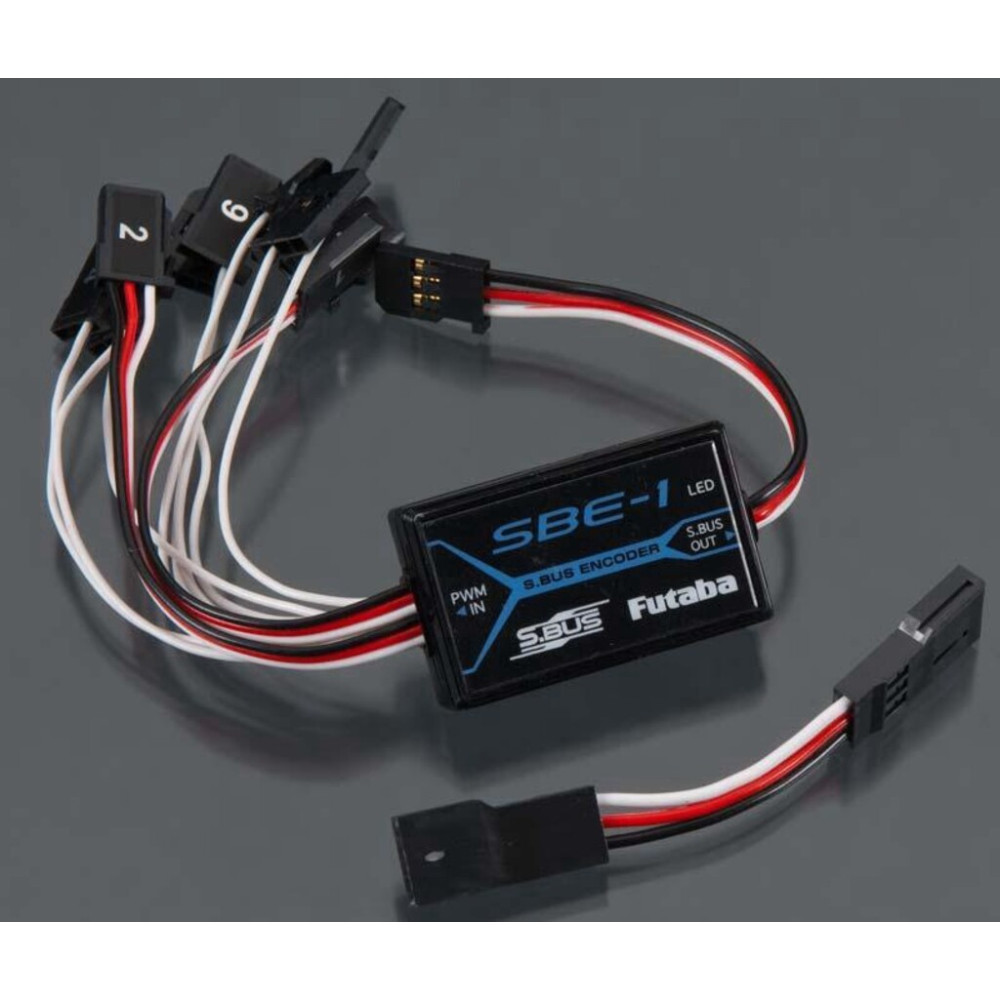

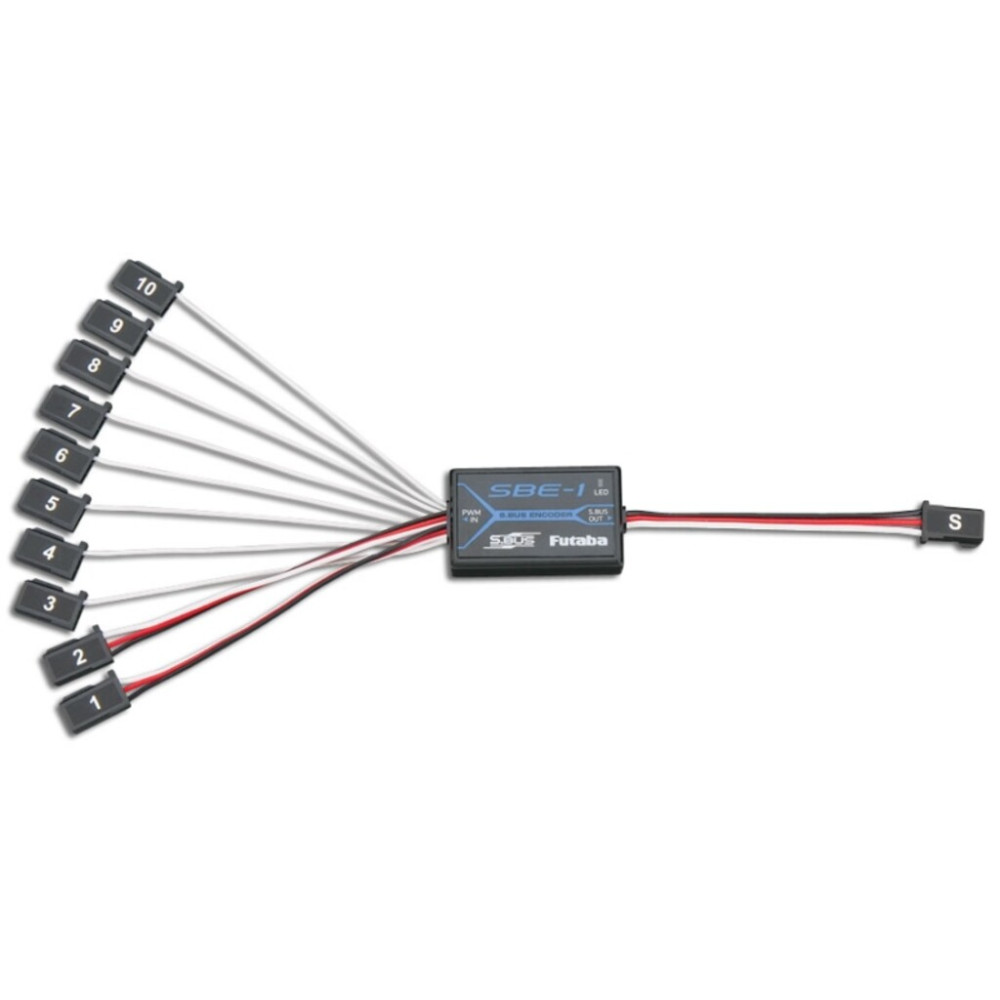

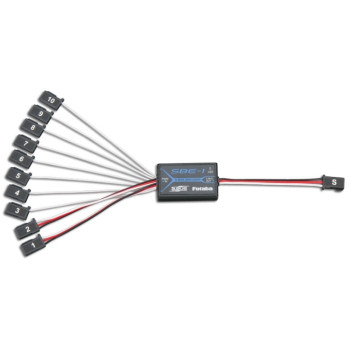

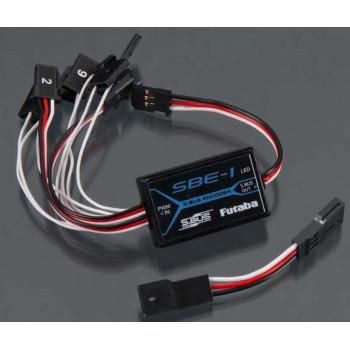

This is the Futaba SBE-1 S.Bus PWM Adapter.

Makes almost any receiver instantly compatible with S.Bus programmable servos as well as the CGY750 gyro and other S.Bus capable equipment

Converts input from up to 10 PWM channels into a single S.Bus output

One year limited warranty through Hobby Services beginning at date of purchase

Futaba SBE-1 S.Bus PWM Adapter with ten Servo Connectors, S.Bus

Output Connector and Instruction Manual

PWM Input: Max 10chs

Input Pulse Width: 805-2235uS

Input Frame Rate: 3-27.3ms

Output Signal: S.BUS

S.BUS Data Rate: 100kbps

Output Frame Rate: Approx. 7mS

Operating Voltage Range (rated): 4.8 - 7.4V

Dimensions: 0.92 x 1.3 x 0.37" (23.5 x 33.5 x 9.5mm) excluding cable

Weight: 0.53oz (15g) including cables

Operating Temperature Range: -10 - +45°C

Storage Temperature Range: -20 - +60°C

$79,00
