FLYPACK FUTABA R617FS 4 X S3004 FUTL1170

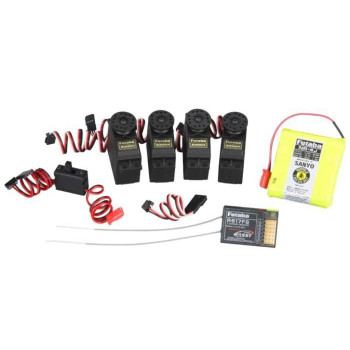

This is the Futaba FASSTPak-A with the R617FS Receiver, NR-4J 600mAh Receiver Battery and four S3004 Servos.

**Compatible only with Futaba 2.4GHz FASST radio systems.**

FEATURES:

Designed for modelers who want to use a single radio transmitter to fly several different model aircraft

One year limited warranty

INCLUDES:

R617FS 7-channel Receiver

NR-4J Receiver Battery

Four S3004 Ball Bearing Servos w/Universal Connector

Four 0.82" (20.9mm) diameter Round Servo Horns

One 1.53" (38.9mm) diameter Four Point Horn

Four 1.25" (31.8mm) diameter Six Point Horns

9" (229mm) Servo Extension

Switch Harness and Charge Cord

Mounting screws, grommets and eyelet

REQUIRES:

Installing in aircraft

SPECS:

Receiver-

Size: 1.6 x 1.1 x .35" (40 x 27 x 9mm)

Power Requirement: 4.8 - 6V

Current Drain: 80mA (at no signal), 74 mA(w/ signal no servos on 4.8)

Weight: 0.34oz (9.8g) with case, 0.25oz (7g) without case

NR-4J Receiver Battery

Length: 2.25" (57mm) Weight: 3.3oz (93g)

Width: 1.97" (50mm) Voltage: 4.8

Thickness: .56" (14.2mm) mAh Rating: 600mAh

Cell Size: AA

Servos-

Speed: .23 sec/60° @ 4.8V .19 sec/60° @ 6.0V

Torque: 44 oz-in (3.2 kg-cm) at 4.8V 57 oz-in (4.1 kg-cm) at 6.0V

Length: 1.6" (41mm)

Width: .8" (20mm)

Height: 1.4" (36mm)

Weight: 1.3 ounce (37.2 grams)

Connector: Universal type with approx. 5" (127mm) wire
