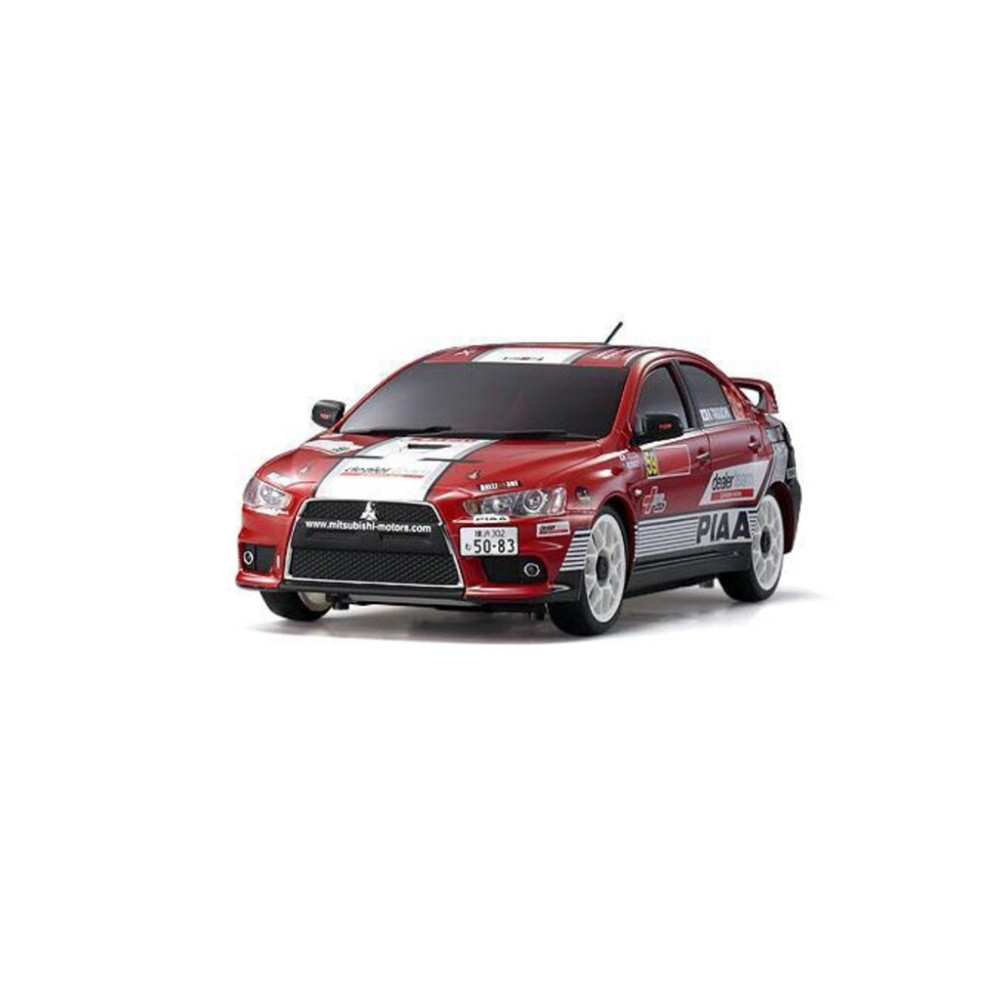

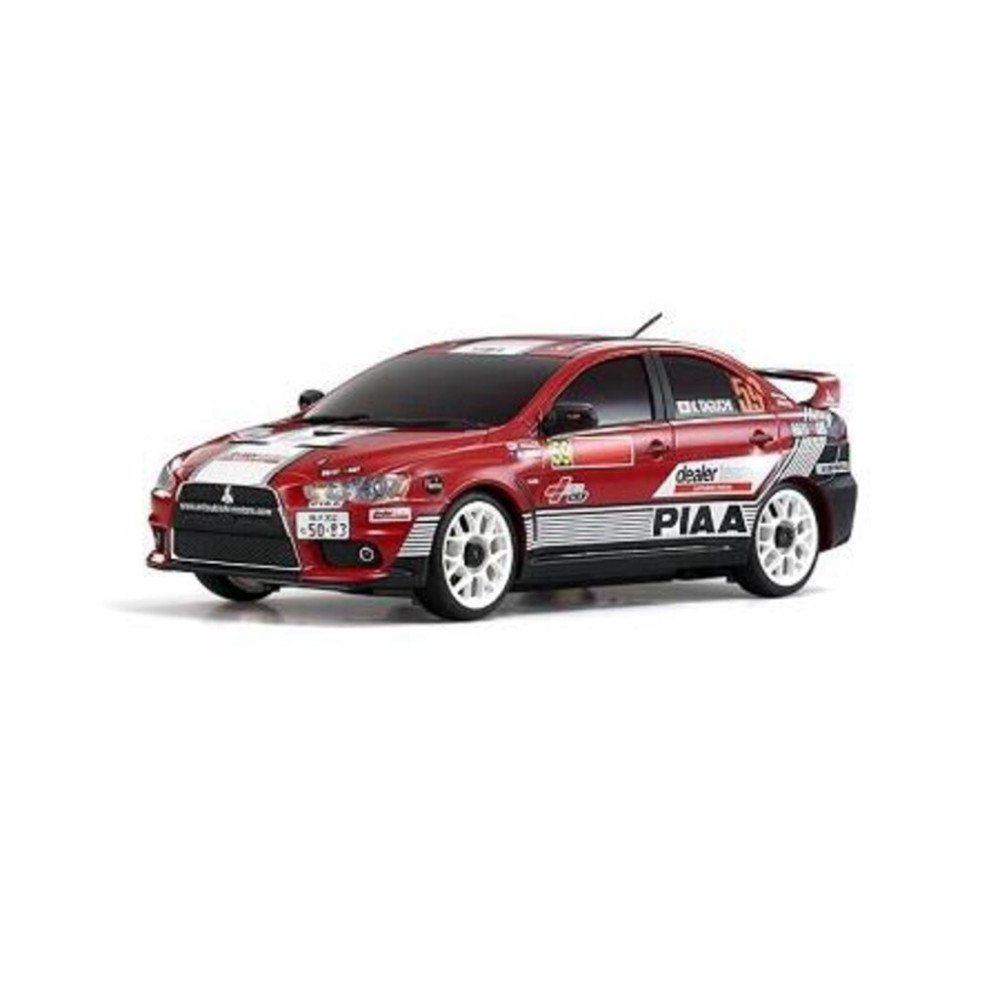

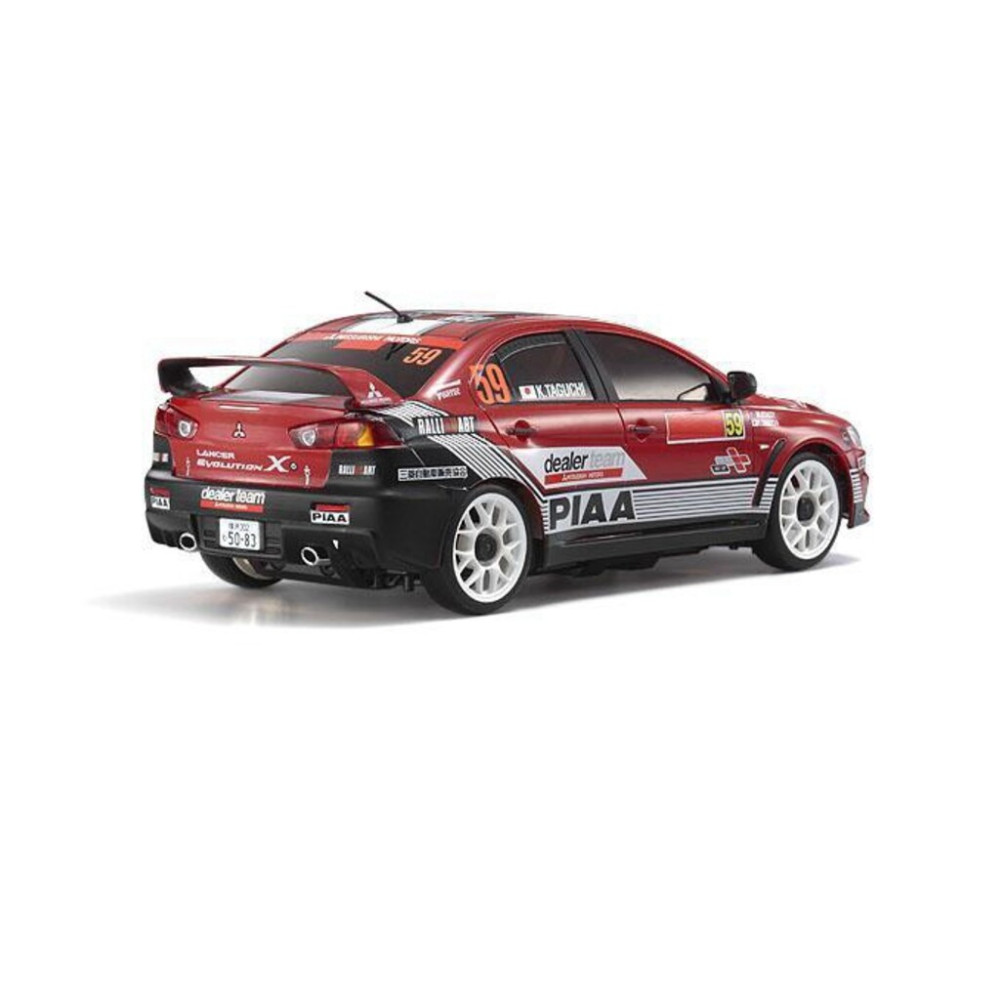

KYOSHO MINI Z LANCER EVO ARR 30569ZM-B

• Optimal Balance - Midship motor mount with shaft driven AWD for optimal balance.
• Independent Suspension - 4-wheel independent suspension with king-pin strut system realizes excellent running stability & performance.
• Fully Assembled - Factory assembled chassis comes with R/C unit installed and features new Skyline body.
• Universal Swing - Equipped with precision manufactured universal swing shafts on all wheels to communicate drive power with maximum efficiency and allow smooth movement of suspension system.
• True 4 Wheel Drive - All Wheel Drive system features diff gear unit with precision 3-bevel gears and specially shaped cogs on crown and pinion gears.
• Endless Adjustments - One-touch removal/attachment of optional tie-rods allow easy adjustment of toe angle. Includes collars that enable chassis height to be adjusted to low down setting.
• Finished Body - Factory finished body is complete with coloring and decals.
• Maximum Efficiency - Equipped with 4 precision ball bearings for high drive efficiency.
• Bump Stop - Bump stop fitted to front to regulate suspension stroke and prevent tire and body contact.
• Easy Diff Access - Easy-access diff unit can be removed/installed by simply loosening 4 screws on the front and 6 on the rear.
• Full Control - AWD lets you enjoy a controlled driving posture as you drift through turns.
• Power Transfer - Drive energy is transferred to the ground through high strength resin universal swing shafts with metal core.
• Adjustable Wheelbase - Wheelbase can be easily adjusted to the Mini-Z Racer M and L sizes so you can use those exquisite Mini-Z bodies you already own. (Some ASC Body Shell may not be compatible).
• Fine Hand Polish - A new surface-finishing technology that provides a hard glossy finish in bright lustrous colors. The hardened surface protects the paintwork from marks and dirt so the beautiful car body is easily maintained in all its original glory.
• 2.4GHz - New ASF 2.4GHz system automatically scans for open frequencies to guarantee control safe from radio interference. Simply conduct the pairing of the PERFEX KT-18 (sold separately) with the chassis to complete preparation.
• Ultra Fast Response - Ultra fast signal processing speed results in almost instantaneous control response. One transmitter can be registered to multiple 2.4GHz chassis.
• LED Indicator - Features LED indicator that lights to show power status.
• FET Speed Doubled - Ultra fast signal processing speed results in almost instantaneous control response. One transmitter can be registered to multiple 2.4GHz chassis.

What is ARR Chassis Set?

• An ARR(Almost Ready to Run) Chassis Set is a semi-assembled chassis model that includes nearly everything you need to run. A Pre-painted body is included, so only consumables like batteries and a KT-18 transmitter #82001 are required so you can start operating the model without delay.

ARR Chassis Set Contents

• Factory assembled chassis with installed R/C Unit
• Equipped with 2.4GHz RA-19 receiver
• Painted plastic body complete with markings
• Pinion Gear 4-types, Spur Gear 3-types (combines for 3 different wheelbase settings)
• Spare Nuts
• Chassis height adjustment collars
• Wheel Wrench

Required To Complete

• PERFEX KT-18 2ch 2.4GHz Transmitter #82001
• AAA-sized batteries X 4 for transmitter, AAA-sized batteries (alkaline or Ni-MH) X 4 for chassis are sold separately

Auto Scale Body

• MZP409EA-B - ASC MA-010 ENDLESS ADVAN CS-X
• MZP409M-B - ASC MA-010 MITSUBISHI LANCER Evo.X Dealer Team
• MZP409MB-B - ASC MA-010 MITSUBISHI LANCER Evo.X Metalic Blue
• MZP409MR-B - ASC MA-010 MITSUBISHI LANCER Evo.X Metallic Red
• MZP409PW-B - ASC MA-010 MITSUBISHI LANCER Evo.X Pearl White
