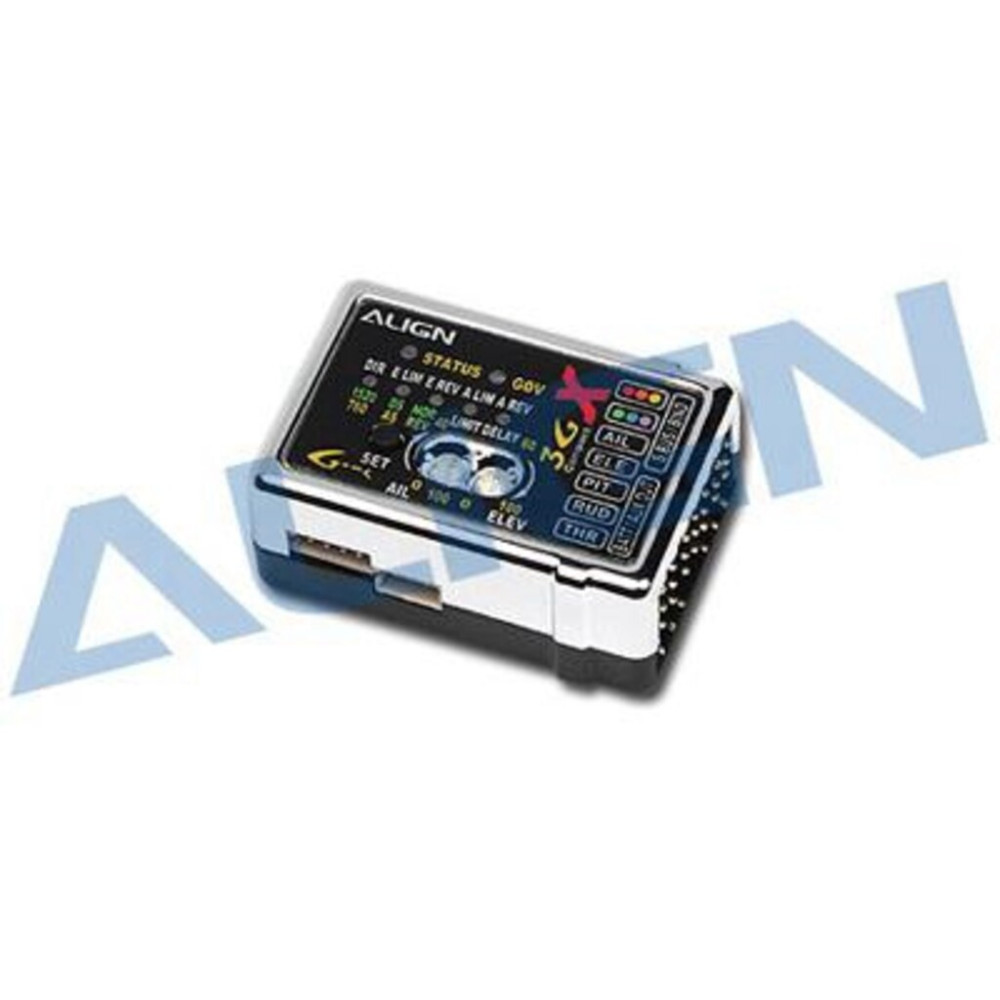

GYRO 3GX FLYBARLESS ALIGN HEG3GX01T

Instruction:

• Brand new redesigned 3GX represents a new generation of multi function flybarless system. The dramatically improved performance will create immediate impact on any enthusiasts.
• 3GX is currently the smallest and lightest flybarless system on the market. Two ports to directly connect Spektrum and JR satellite receivers, along with full support of Futaba's S-BUS system.
•  Based on the 3G FL760 manual setup process, the 3GX can be setup in a few minutes through a simple process. In addition, the 3GX can support all of the CCPM swashplate system currently on the market including 90, 120, 135, and 140 degrees swashplates.
•  Graphical illustrated instruction on the computer setup software directs the user
• through a step by step setup process, allowing for quick setups without omitting any steps.
• Support Bluetooth connectivity. With the soon to be released Bluetooth connectivity kit, 3GX can be programmed wirelessly from a PC. Eventually there will also be smartphone apps allowing live adjustments to 3GX without powering down.
•  With 3GX's built in Align RCE-G600 governor function, no external governor is needed to reduce electronic wire clutters.
•  A library of pre-configured 3GX settings specifically available for T-Rex series of helicopters, allowing pilots to achieve the most optimal setup for their helicopters.
• Three levels of flight mode is available on the 3GX to provide different feels from beginners to advanced pilots.
•  Custom parameters have been opened up in 3GX to allow pilots to fine tune numerous settings for swashplate and rudder. Settings export feature allows custom settings to be shared amongst friends.
• 3GX utilizes brand new gyroscope sensors of the highest specifications when compared to other flybarless systems currently on the market, allowing it to be used under harsh conditions. Dual axis plus rudder sensor dramatically improves swashplate and rudder correction precision compared to last generation 3G. This is clearly noticeable in stable hover as well as highly aerobatic routines.
• Suitable for helicopter of all class from 200 to 700, glow engine or electric powered. The superior vibration resistant characteristic is evident even when mounted with harder double sided mounting tape.
• 3GX utilizes 16 bit processor which is 4 times faster than previous generation, along with a completely re-written firmware. The result is a dramatic stability improvement from previous generation, with stability that rivals a flybarred helicopter, yet posses explosive agility.
•  With built in pirouette compensation function, 3GX is able to stabilize the helicopter on a fixed point during pirouetting maneuvers. Pirouetting flips type of maneuvers are easily accomplished with precision.
• 3GX's rudder control is similar to the high end GP-780 gyro in that rudder sensitivity is catered specifically for the helicopter's rudder response characteristics, allowing consistent rudder feel even under high speed conditions. This excellent control feel will allow pilot of all skill levels to experience the perfect integration between 3GX and helicopter.
•  Additional peripherals planned for the 3GX includes 3-axis accelerometer, 3-axis.
• magnetic compass, and GPS positioning system. While the commonly available position hold gyro system utilizes only 6 sensors, 3GX’s total of 10 sensors ensure positioning of helicopter with superior accuracy, providing the ultimate solution for aerial photography or other special purposes.

Specification:

•  Operating Temperature:-10~60 degree
• X and Y axis Operating Angle Range:-300~+300 degree
•  Z axis Operating Angle Range:-600+600 degree
•  Size:36.5x25.2x15.6 mm Size
• Weight11g Weight
•  Supports Wide/Narrow Bandwidth Digital and brushless servos
• Spektrum and JR Satellite antennas support (Replaces original factory receiver)
•  Futaba S.BUS system support
•  Built in governor function
•  Maximum working voltage:8.5V
• Compatible with 1024/2048 resolution Spektrum receivers
•  Supports 90/120/135/140 CCPM swashplates
• Field setup without the use of a PC
•  Compatible with 2 to 5 blades rotor heads
• Support up to 6 servos
•  Automatic servo type recognization

Accesories:

•  USB Link cable set x 1
•  USB extension cable x 1
•  Signal wire x 3
•  Bind Plug x1
• 3GX Sticker x1
•  Installation CD x 1
