CARRO TAMIYA COPPEMIX NISMO SILVIA 57765

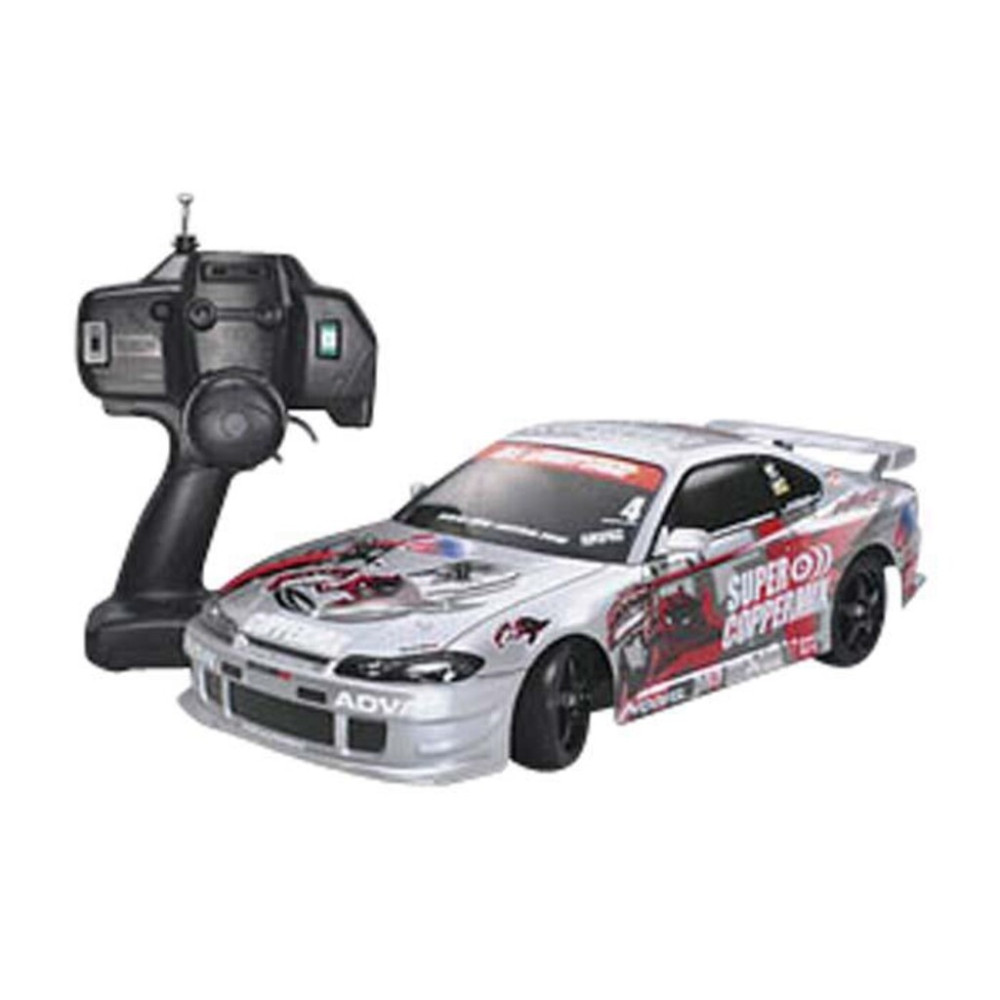

This is the electric powered Ready To Run 1/10 scale Tamiya Drift Spec NISMO Coppermix Silvia On-Road Drift Spec Car.

This vehicle is part of Tamiya's XB (Expert Built) series.

FEATURES:

• Chassis: Plastic bathtub TT-01 design
• Drive: Four wheel shaft drive
• Radio: Tamiya Expec TTU-03 AM pistol-grip w/servo reverse, steering and throttle trims and standard servo
• Electronic Speed Control: TEU-101BK with reverse, TAMM3194
• Motor: 540 motor with pre-attached leads
• Lights: LED head and tail lights turn ON when car is switched ON, see COMMENTS
• Ball Bearings: Installed in differentials, bushings in wheel hubs
• Shocks: Friction, plastic body
• Gearbox: Sealed, front and rear
• Differentials: Bevel gear, ball bearing equipped
• Transmission: Single speed
• Body: .03" (.8mm) thick polycarbonate, painted and trimmed
• Tires: Drift spec
• Wheels: Five spoke, Black in color 2.5" (63mm) outer diameter
• Bumper: Front foam
• Suspension: Independent double wishbone
• Camber Tie Rods: Fixed, non-adjustable
• Steering Tie Rods: Fixed, non-adjustable
• Steering: Bell-crank type with servo saver

INCLUDES:

Tamiya NISMO Coppermix Silvia Drift Spec Car, pistol-grip transmitter, receiver, 540 motor, ESC, painted body, tires, foam bumper, spoke wheels, 19 tooth pinion gear, 61 tooth spur gear,
decals and instruction

REQUIRES:

• Radio Batteries: 8 AA size (for transmitter)
• Battery: 6 flat pack with standard connector
• Charger: AC/DC Timed or Peak for 6-cell battery
• Misc. Items: Building and track equipment

SPECS:

VEHICLE-

• Length: 17.4" (444mm)
• Width: 7.4" (187mm)
• Height: 5.2" (132mm)
• Weight: Approx. 3.1lbs (1400g)
• Wheelbase: 10"

Tread: Front- Rear- Tires, F&R:

• Overall Diameter 2.5" (63mm)
• Overall Width 1" (25.4mm)
• Inner Bead Diameter .5" (12.7mm)
