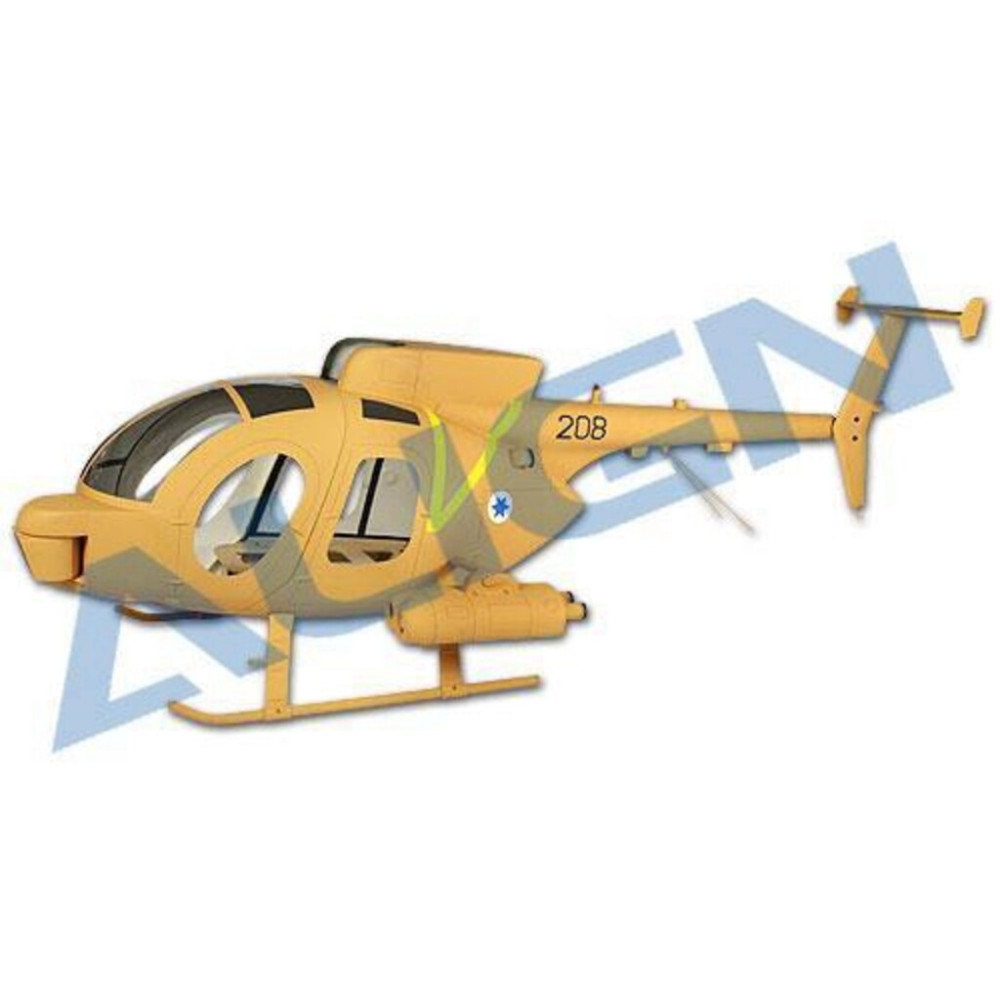

TR600N SCALE FUSELAGE 500MD HF6003T

Instructions:

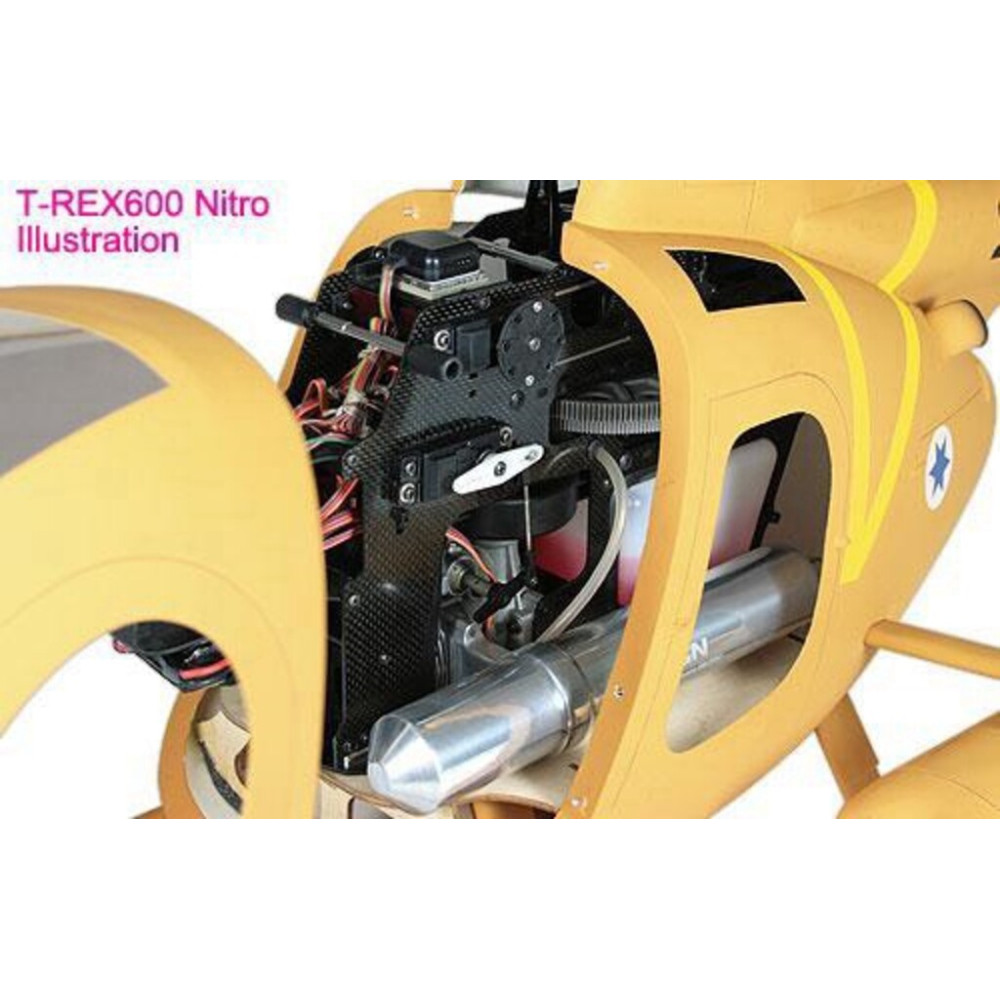

Suitable for ALIGN T-REX 600 Nitro / 600E.

Movable radar

High scale missile launcher

Install hole in the alert light, can add a LED light to increase the enjoyment to fly in

the night.

Magnetic adhered design. Make it easier for battery disassemble, maintenance and repair.

Specification:

Body length:1290mm

Body width:500mm

Body high:450mm

Weight:1560g

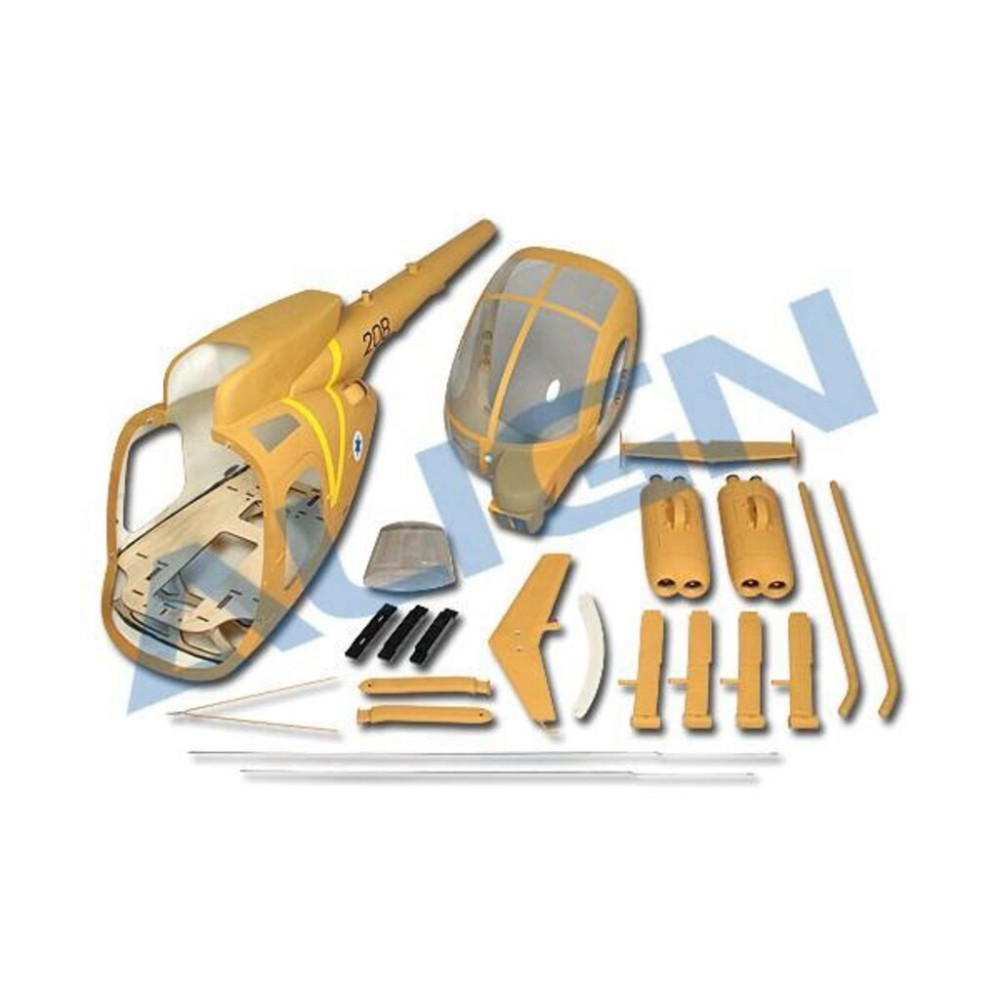

Accessory:

500D Canopy x 1

500D Fuselage x 1

500D Top window x 1

Vertical stabilizer x 1

Horizontal Stabilizer x 1

Landing skid x 4

Skid pipe x 2

Fuselage frame 600E(Front) x 1

Fuselage frame 600E(Rear) x 1

Fuselage frame 600N(Rear) x 1

Missile mount(L) x 1

Missile mount(R) x 1

Missile launching pad x 2

Pipe mount x 1

Light Cover x 2

Exhaust guide(Φ11.5xΦ17x230mm) x1

Servo pole x 4

Washer(Φ3.2xΦ10x0.8mm) x 4

Washer(Φ3xΦ8x1mm) x 4

Socket button head screw(M3x6mm) x 8

Socket collar screw(M3x16mm) x 2

Socket collar screw(M3x35mm) x 2

Socket screw(M3x12mm) x 4

Socket screw(M3x14mm) x 2

Self-tapping screw(T3x10mm) x 8

Set screw(M3x3mm) x 4

Ball link x 2

Tail control guide x 1

600N Rudder control rod x 1

600E Rudder control rod x 1

Nylon strap(2.5x160mm) x 2
