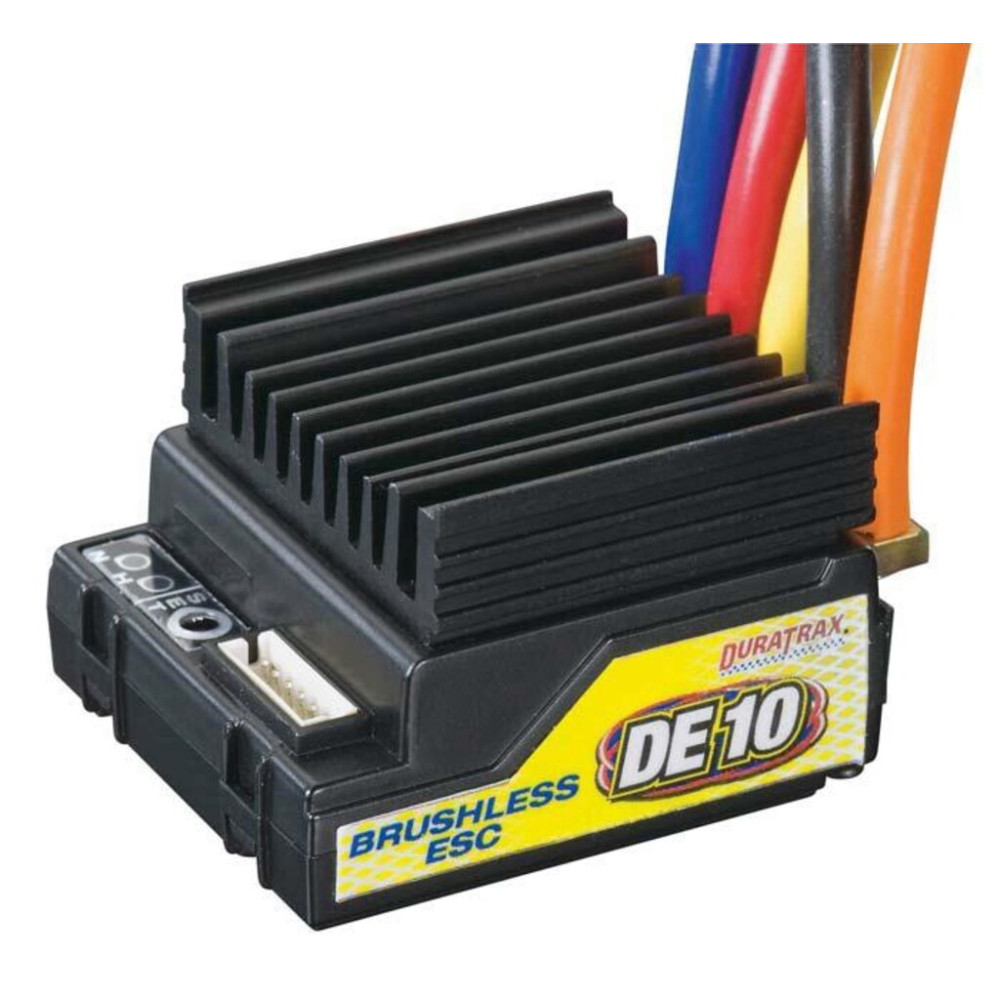

SPEED DURATRAX BRUSHLESS DE10 DTXM1300

FEATURES:

• Ideal for many 1/10 scale applications, regardless of motor type- sensored and sensorless brushless, and brushed motors
• Adjustable parameters such as Power Curve, Timing Advance, Start Power, ABS, Auto Brake and many more allow this ESC to be used in on and off-road cars and trucks, as well as crawlers 6 volt, 3 amp linear BEC allows the use of high-torque digital steering servos
• Compatible with the DuraTrax Digital Programmer, DTXC1350 (not included), that allows easy adjustment of parameters, fine tuning, and allows user to view post-run data downloaded from the ESC
• Multi-color LEDs and audible tones for easy manual set-up
• Three 13 gauge, silicone insulated wire motor leads
• 180 day Limited Warranty beginning at date of purchase, valid in the USA and Canada only

INCLUDES:

Duratrax DE10 Brushless Programmble Electronic Speed Control with Motor and Battery Wires, Traxxas Male and Dean's Ultra Battery Connectors, Universal Receiver Connector, and Instruction Sheet

REQUIRES:

Installing in vehicle and connecting to battery, motor and receiver

SPECS:

• Motor Types: Sensored and Sensorless Brushless down to 5.5 Turns Brushed Motors down to 4 turns (6 turns w/reverse activated)
• Input Voltage: 4-6 Cell NiCd NiMH 2S LiPo, LiFe Operating Frequencies: 32kHz sensorless brushless 8kHz sensored brushless 2kHz brushed
• Direction: Forward, Brake, Reverse BEC: 6.0V, 3.0A linear
• Manual Setup: Pushbutton with LEDs and Audible Motor Tones
• Programmable Options: 19 Features (can set manually, or with optional DuraTrax Digital Programmer, DTXM1350)
• On-Resistance: 0.0013 Ohms per phase, brushless 0.0002 Ohms brushed (0.001 with reverse activated) (at 25°C transistor temperature)
• Rated Current: 80A Continuous (160A for 10 seconds) (at 25°C transistor temperature)
• Super Prog. System: Yes
• Protections: Low Voltage Cutoff, Over-Current, Over-Temperature at 248°F (120°C) measured at semiconductor junction
• Battery Connections: 13AWG, Traxxas Male Connector (Dean's Ultra also included) silicon insulation
• Receiver Connector: Universal
• Dimensions: 34 x 38 x 25.5mm (1.3 x 1.5 x 1.0")
• Weight: 83g (2.9oz)
