GYRO GY701 FUTABA GYRO & GOVER FUTM0822

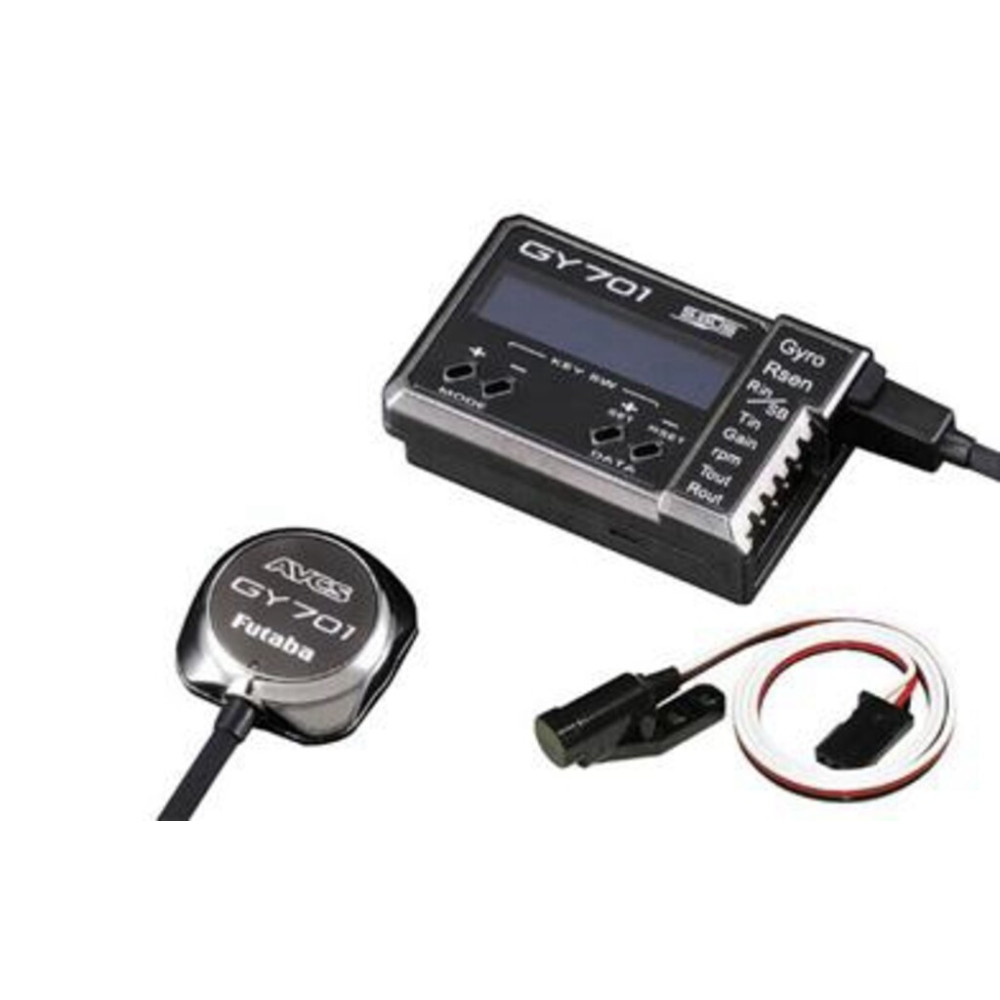

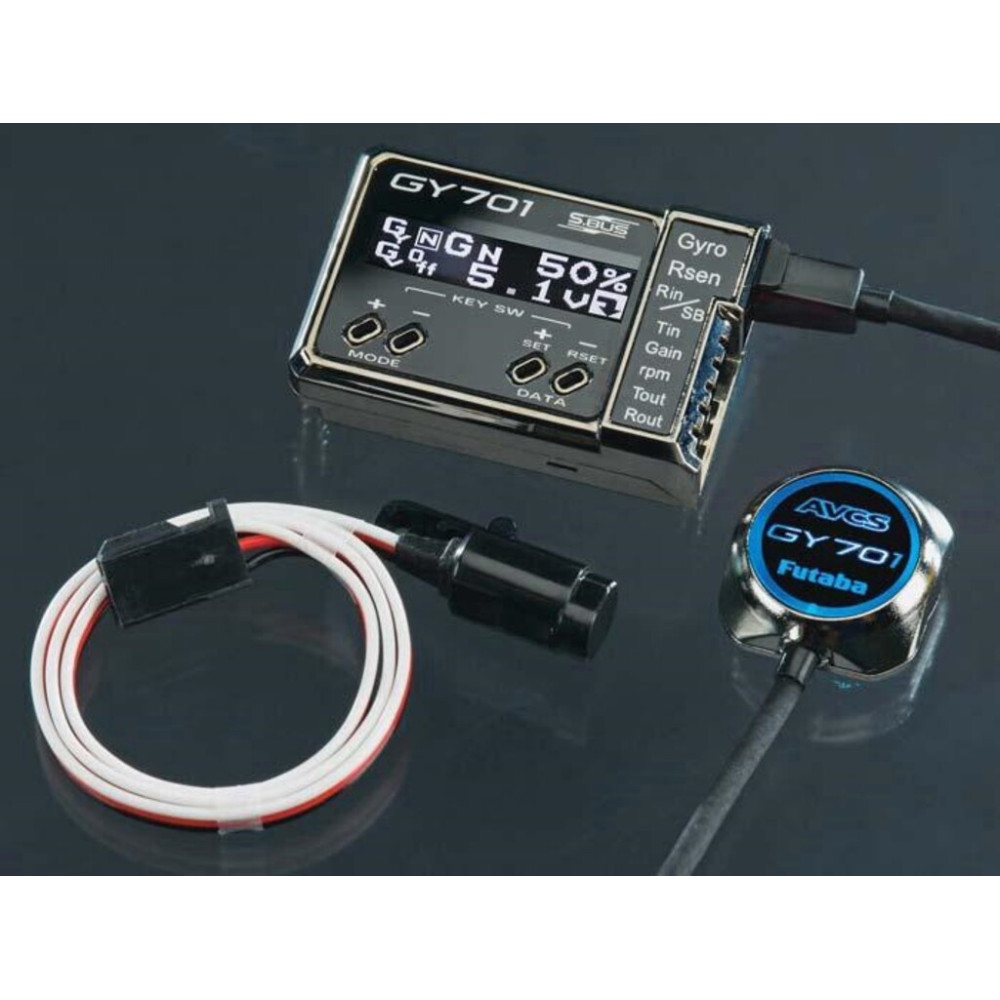

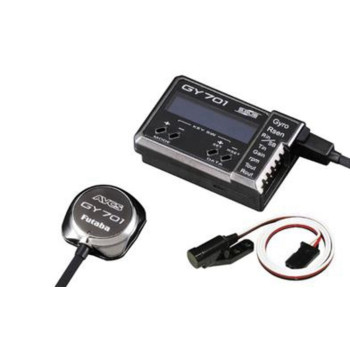

   This is the Futaba GY701 Gyro and Governor.

FEATURES:   GY701 Gyro-
          Utilizes MEMS (Micro ElectroMechanical System) technology to ensure
            ultra high-speed processing
          S.Bus capable, a single cable connection to receiver
          Internal mixing through S.Bus for no latency or tail offset
          Sensor has aluminum alloy case and 2-color mode indicator LED
          3D and F3C mode selectable
            Governor-
          Organic Light Emitting Display (OLED) 128 x 36 dot graphical display
            for easy outdoor viewing in bright sunlight
          Advanced PID control algorithm and consistent pirouette rate and yaw
            control
          Mode selectable for governor or rev limiter
          Easy for anyone to program with both Basic and Expert menus
          Updatable firmware and software using the CIU-2 PC Interface-not
            included, order FUTM0951
          Compatible with analog or digital servos
          One year limited warranty through Futaba on both components
            beginning at date of purchase.

INCLUDES: Futaba GY701 Governor with Instruction Manual, three Sensor Mounting
            Stays, Adjustment Screwdriver, Governor Sensor, Red and Black
            Extensions, two Magnets, Sensor, TX and Governor Labels, GY701
            Gyro

REQUIRES: Installing in heli, connecting to receiver and mounting magnets and
            sensor

SPECS:      Gyro-
          Size: 0.83 x 0.83 x 0.31" (21 x 21 x 8mm)
          Weight: 0.33oz (9.4g)
          Operation Range: +/- 1,200 deg/sec
          Supported Servo Types: Digital 1520µS
                                 Digital 760µS
            Governor-
          RPM Range: 1,000 - 3,000 RPM
          Length: 1.73" (44mm)
          Width:  1.14" (29mm)
          Height: 0.47" (12mm)
          Weight: 0.459oz (13g)
          Maximum Operating Voltage: 3.8 - 8.4V DC
          Current Drain: 80mA
          Selectable Servo Frame: 70Hz, 280Hz and 570Hz (gyro only) rate
          Flight Mode: User selectable F3C or 3D (gyro)
          Center Pulse Width: 1520µS (70Hz and 280Hz frame rate)
          Control Resolution: 0.1Hz (6RPM) engine speed
          Speed Stability Accuracy: 1%
          Speed Control Range: 1,000 - 3,000 RPM rotor speed
          Operating Temperature: 14° - 113°F (-10° - 45°C)
          Control System: Digital Advanced Control
          Sensor: Vibrating structure gyro/magnetic sensor (gyro/governor)
          Angular Velocity Range: +-1,200° per second
