CR-2000 BATTERY CHARGER FUTABA .4160

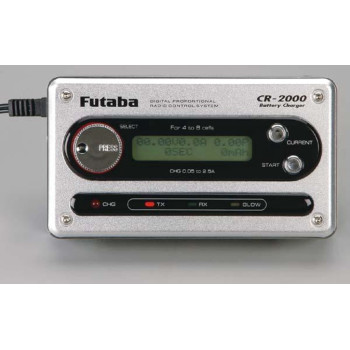

This is the Futaba 12V DC Battery Charger.

Charges NiCd and NiMH transmitter and receiver batteries, and glow plug igniters.

FEATURES:

Peak charge detection, auto cut-off and audio alert LCD screen displays input and output voltage, charge current, peak voltage, charge time, and amount.

INCLUDES:

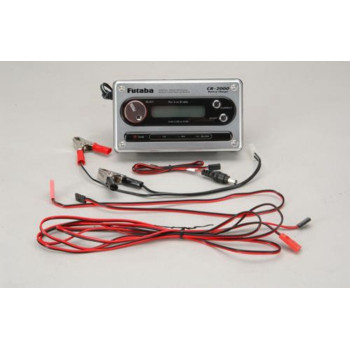

One Futaba 12V Battery Charger with cigarette lighter adapter, alligator clips, 28" (711mm) transmitter charge cord, and two 20" and 80" (508mm and 2032mm) receiver charge adapter cords.

REQUIRES:

11-15V DC power supply having an output capacity of 6A or more. (HCAP0250)

SPECS:

Battery Range: Tx: 6-8 cells, 500-2000mAh
Rx: 4-6 cells, 50-2000mAh

Glow Plugs: 1 cell, 2000-3000mAh

Input Voltage: DC11V-16V

Operation Voltage: 10.5V
Charging Current: Tx 0.5A-2A
Rx 0.05-2A

Cut Off: Delta Peak

Trickle charge rate: at .05 to .45A rate is 5 mils
at .5 to 2.5A rate is 70 mils

Length: 6" (152mm)

Width: 3.4" (86mm)

Height: 1.4" (36mm)

Weight: 355g (12.5oz)

COMMENTS:

For use with NiCDs or NiMH batteries only.

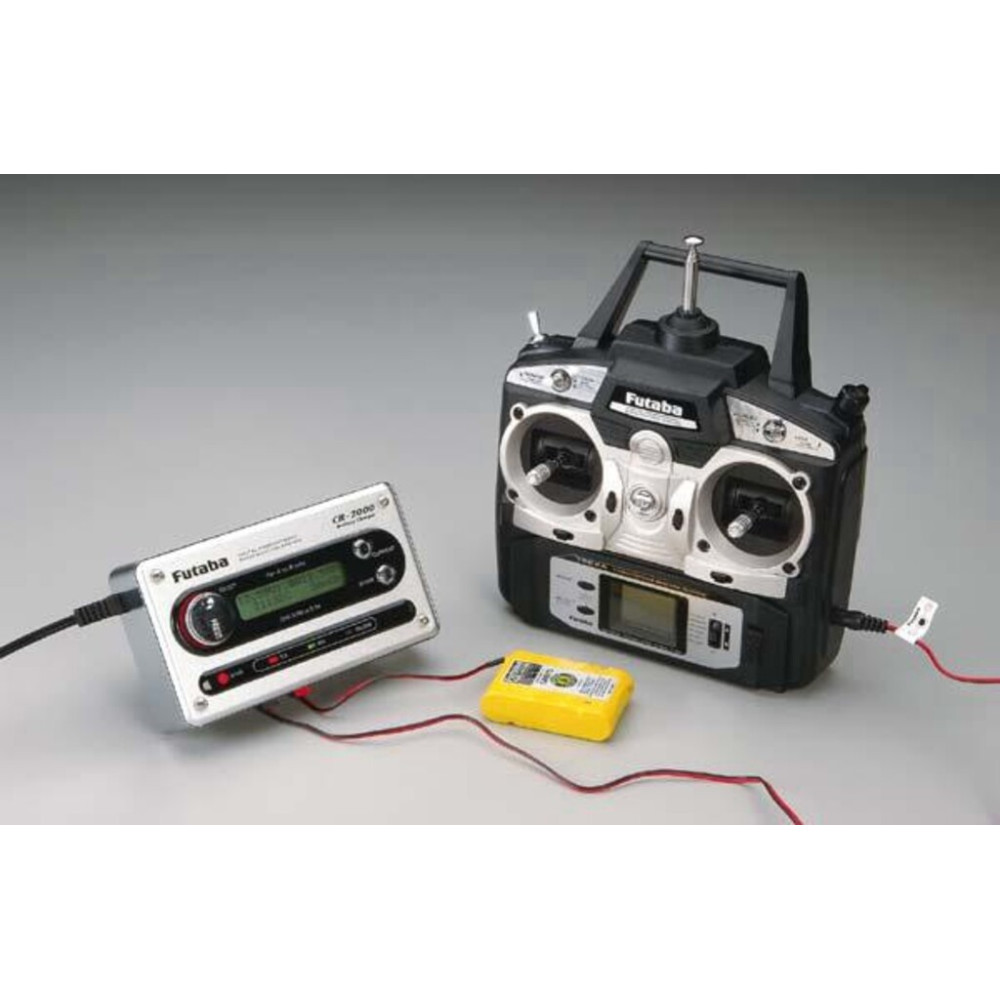

TX and RX can be charged simultaneously.

Don't short-circuit or reverse connect battery.

Avoid places where the charger will be exposed to direct sunlight.

Perform charging within the 41-104F°(5-40C°) temperature range.

Do not charge radio batteries and glow starter simultaneously.
