MOTOR DL ENGINE 170CC GAS DLE170

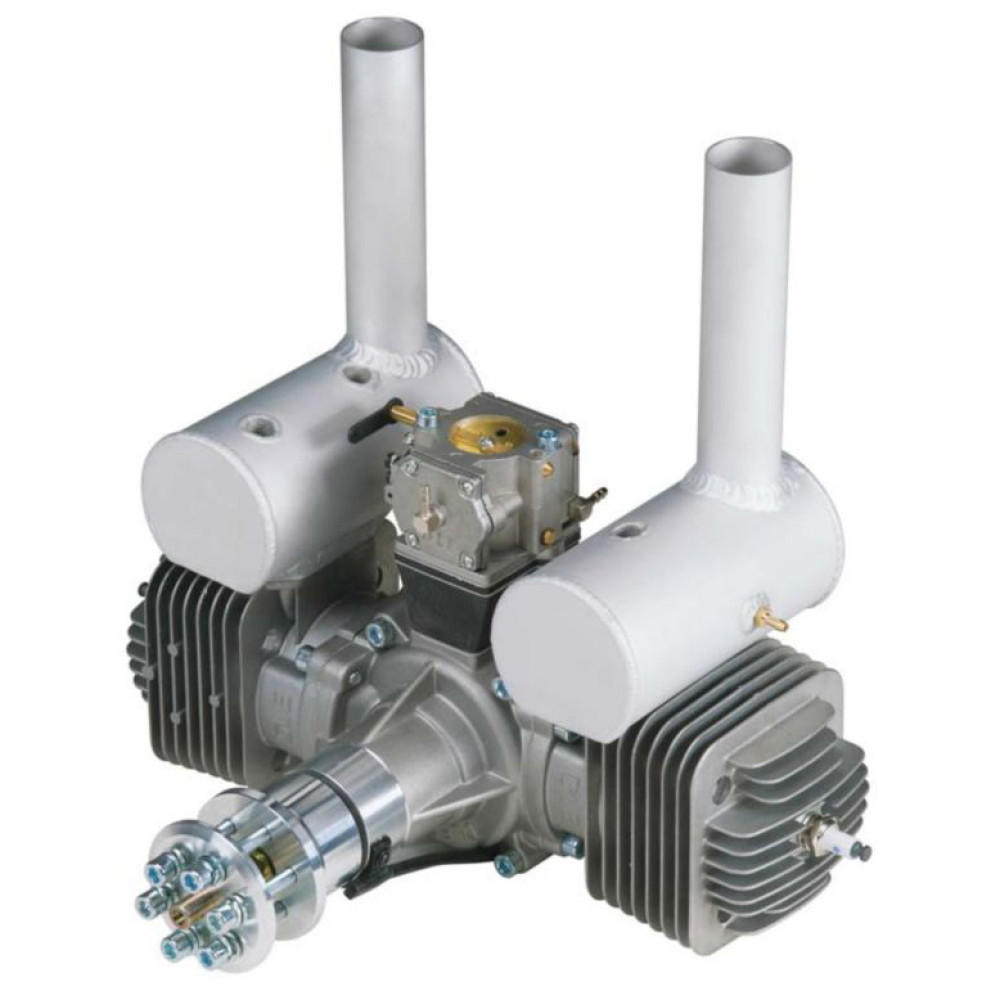

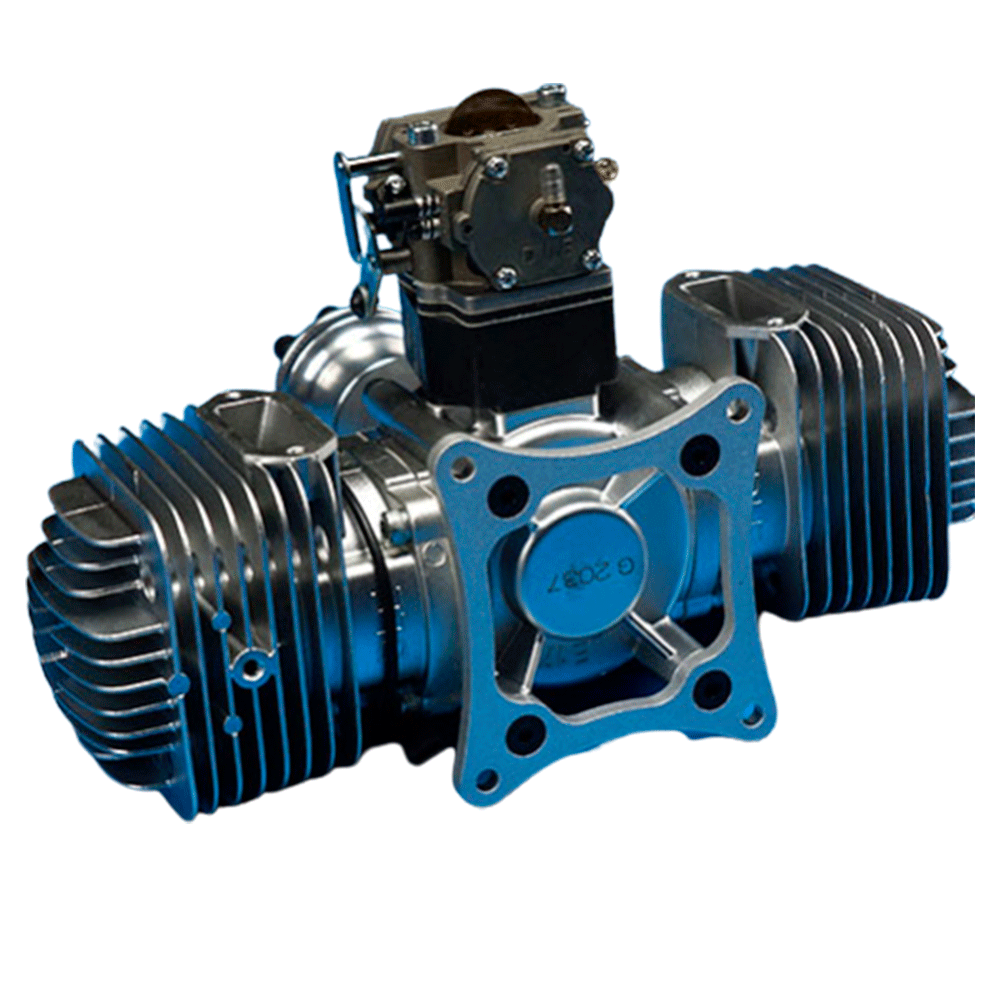

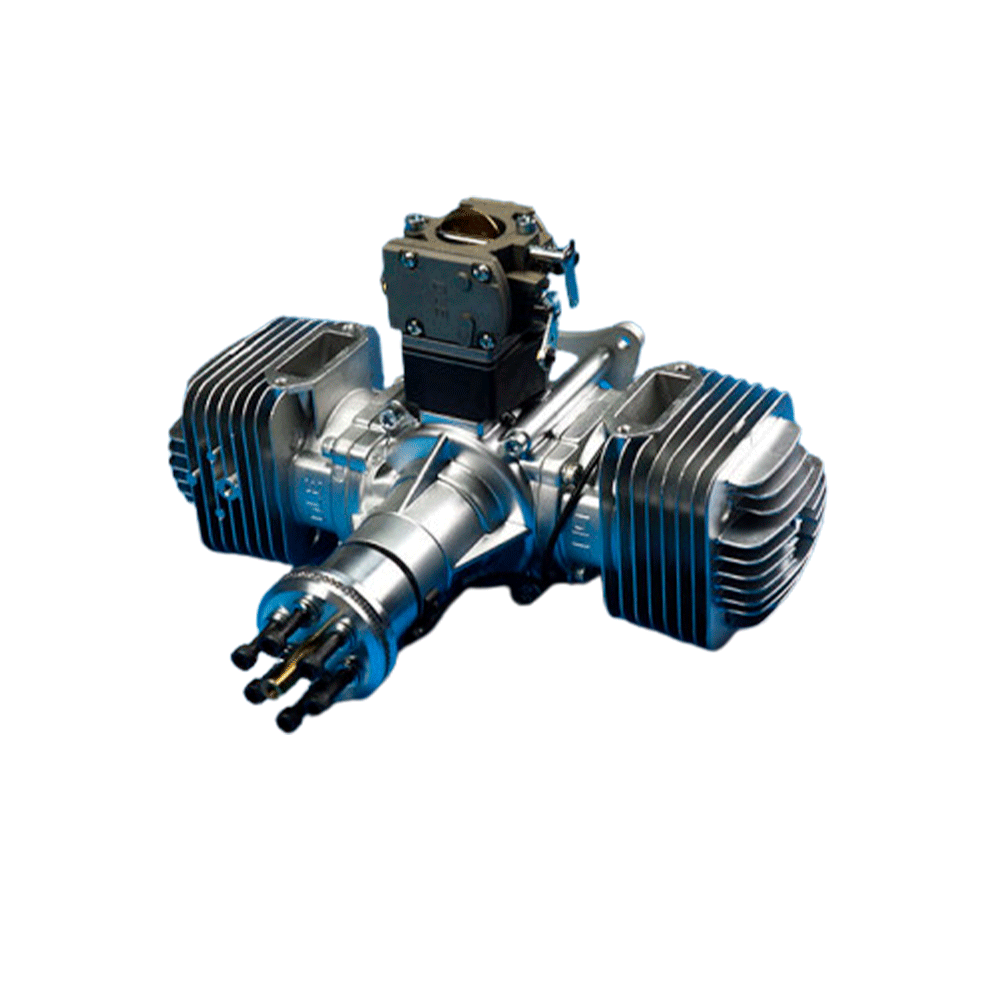

THIS IS THE DLE-170CC GASOLINE POWERED ENGINE WITH ELECTRONIC IGNITION.

FEATURES:

• Horizontally opposed twin cylinders for low vibration operation
• Special aluminum alloy crankcase
• Electronic ignition for simpler starts, higher performance and minimal RF noise
• Sealed ball bearings
• Double V-type reed valves, bottom induction
• Two year limited warranty through Hobby Services beginning at date of purchase

INCLUDES:

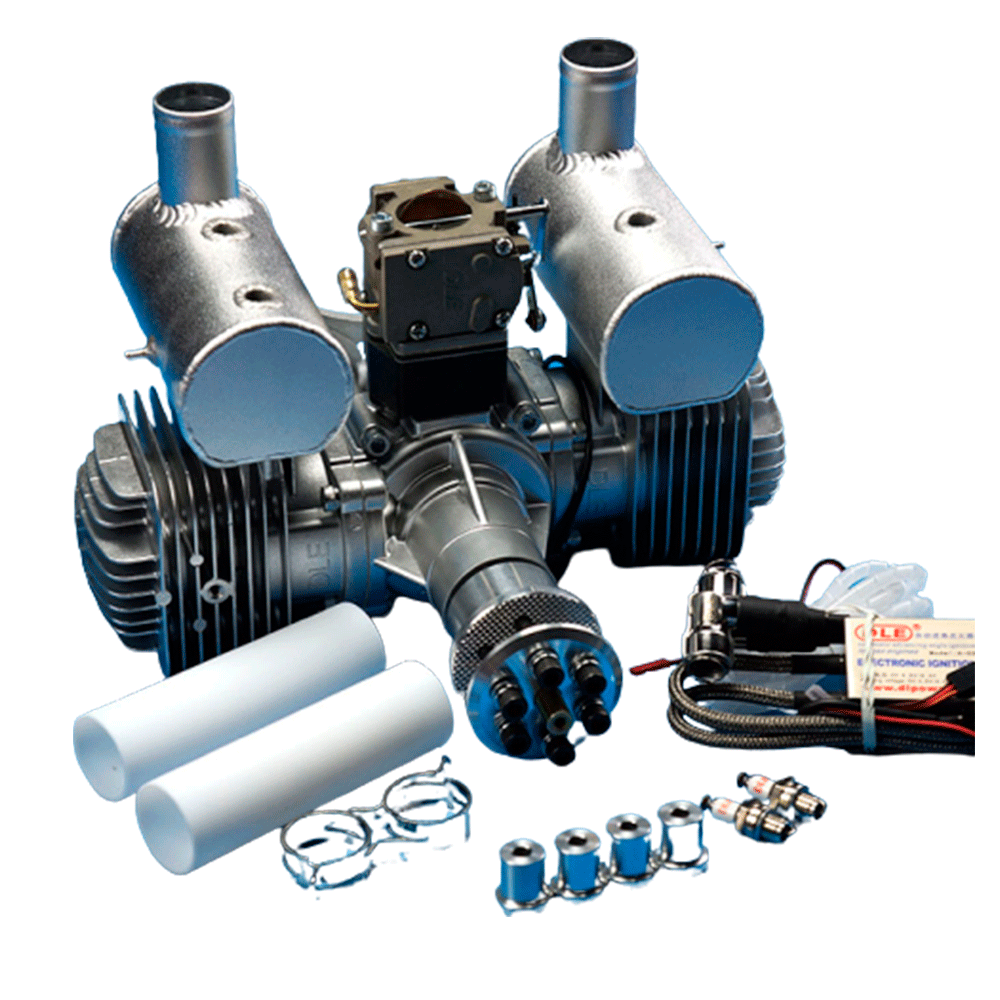

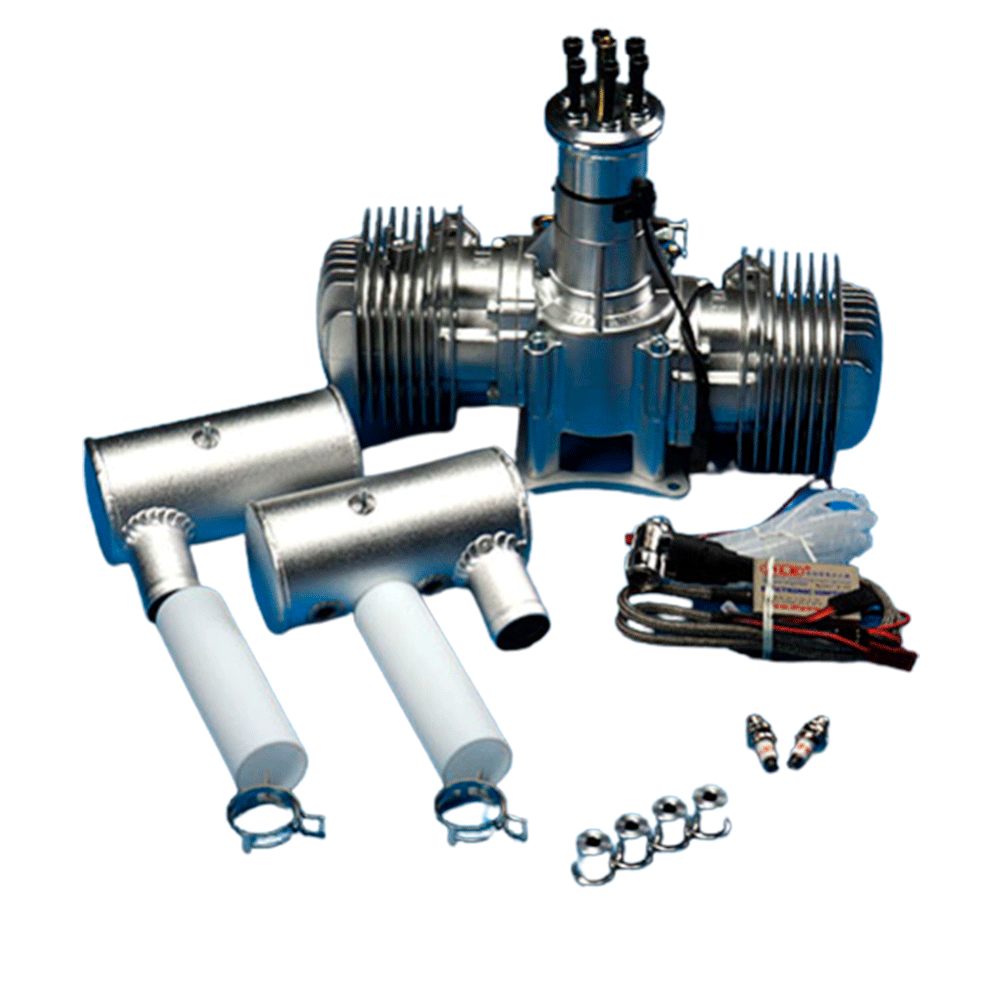

• DLE-170cc Gasoline Engine with two Mufflers with Gaskets and Mounting Hardware, two Spark Plugs, Electronic Ignition, Mount, Throttle Arm Extension, four Machined Aluminum Standoffs, Mounting Template and Instruction Manual

REQUIRES:

• 87 octane gasoline
• 2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance
• Ignition Battery: Two 4.8 - 6V NiCd or NiMH batteries OR 7.4V LiPo Packs (LiPo use requires voltage regulator) (separate receiver style pack can be used)
• Propeller: 30x12 or 32x10

SPECS:

• Bore: 2.06" (52mm)
• Carb Type: Reed valve
• Crankshaft Type: Threaded
• Cylinders: Twin
• Displacement: 10.37 cu in (170 cc)
• Engine (Only) Weight: 7.83lbs (3,550g)
• HP: 17.5 hp @ 9,000 RPM
• Height: 4.9" (124mm) from center of crankshaft to top of carburetor
• Ignition Weight: 5.64 oz (160g)
• Length: 9.1" (232mm) from standoff to front of prop hub
• Muffler Type: 2-piece aluminum
• Muffler Weight: 7.05 oz (200g) combined weight
• Oil Type & Content: 30:1 2-cycle oil mixture
• Plug Type: NGK CM6
• Prop Range: 30 x 12 or 32 x 10
• Recommended Fuel: 87 - 93 octane gasoline
• Starter Type: Hand Held Starter
• Stroke: 1.19" (30mm)
• Total Weight: 9.1 lbs (4132 g)
• Type: Twin cylinder gasoline
• Width: 11.3" (288mm)
