TR500 SCALE FUSELAGE 500E HF5001T

Instructions:

- Suitable for T-REX500 Helicopter.

- Install hole in the alert light, can add a LED light to increase the enjoyment to fly in the night.

- Magnetic adhered design. Make it easier for battery disassemble, maintenance and repair.

Specification:

- Body length:890mm

- Body width:240mm

- Body high:420mm

- Weight:700g

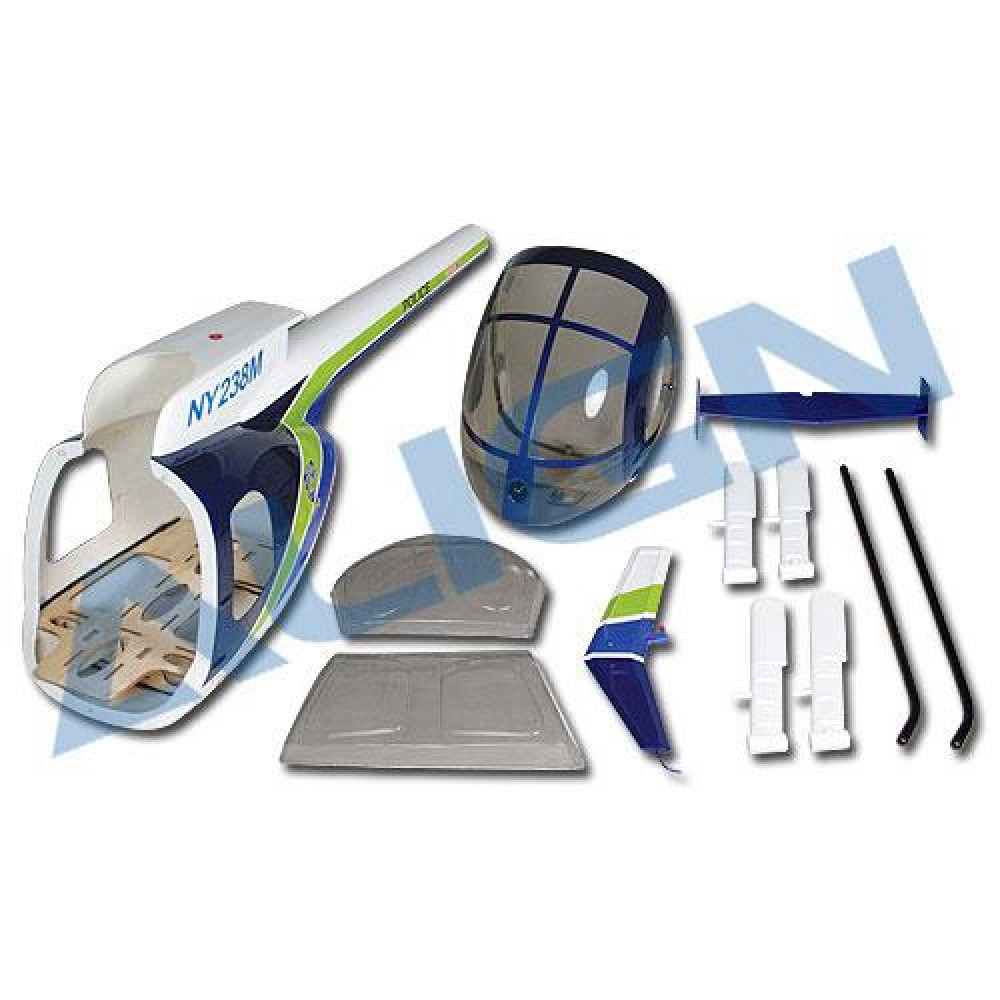

Accessory:

- 500E Canopy x 1

- 500E Fuselage x 1

- Vertical stabilizer x 1

- Horizontal stabilizer x 1

- 500E Front window x 2

- 500E Rear window x 2

- Pipe mount x 1

- Servo block x 2

- Skid pipe x 2

- Front landing skid x 2

- Rear landing skid x 2

- Height retainer x 2

- Ball link x 4

- Linkage rod(D)(Φ1.96x39.5mm) x 2

- Light Cover x 2

- Vertical stabilizer bolt x 2

- Socket collar screw(M2.5x30mm) x 2

- Socket button head screw(M2.5x20mm) x 4

- Socket button head screw(T2.6x6mm) x 2

- Screw(M2x16mm) x 4

- Washer side self tapping screw(T2x8mm) x 4

- Set screw(M3x3mm) x 4

- Washer(Φ5xΦ2x1mm) x 4

- Washer(Φ6xΦ2.5x0.6mm) x 6
