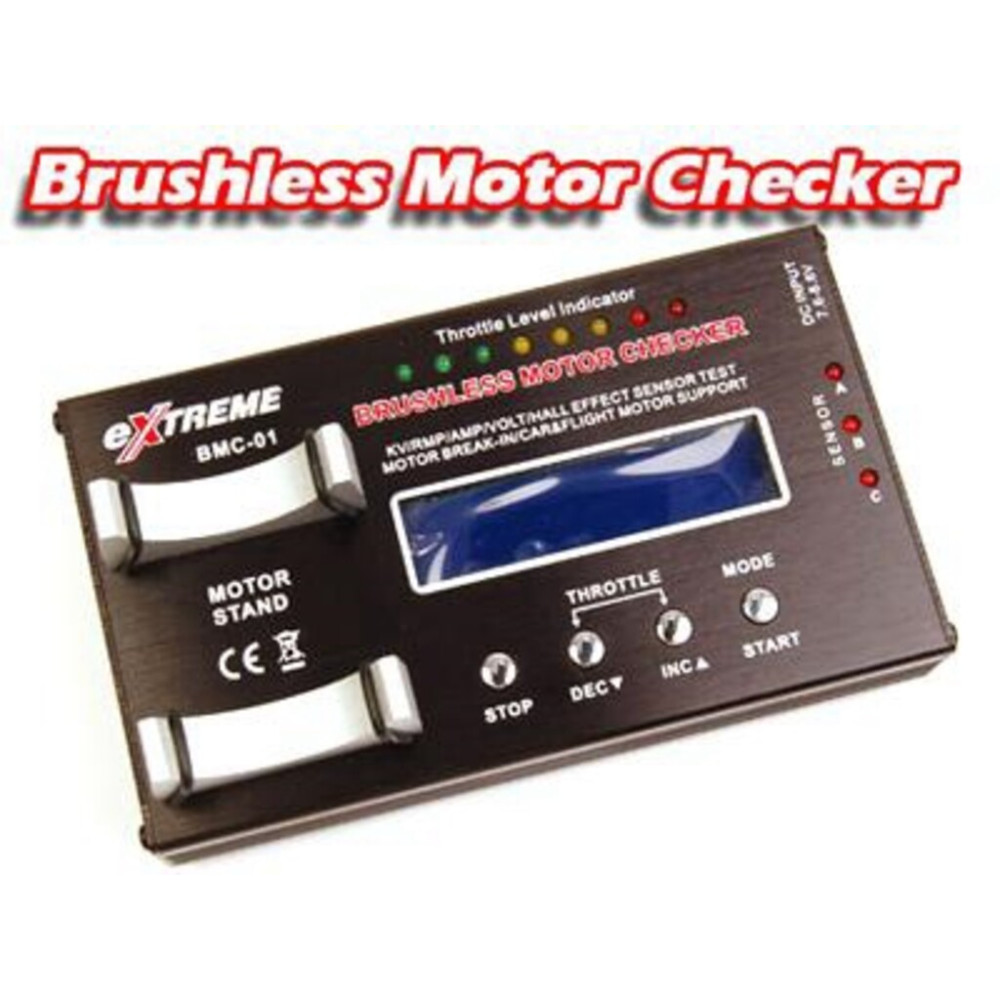

IMAX MOTOR CHECKER BMC-01 MET2C100

Brushless Motor Checking (RC Car or Flight Motors)

• KV Measurement
• RPM Measurement
• Ampere Measurement

Hall Effect Sensor Test

• Brushless Motor with Sensors Only.

Motor/Car Diff Break-in

• Fix Voltage from 2.5V to 7.2V or 10 Steps Cycle with Variable Voltage
• Setting From 2.5V to 7.2V

Specification

• Input Voltage : 7.4-8.6V (Suggested to use a 7.4V 2S1P LiPo Battery)
• LCD Display Screen : Blue Backlight Background, White Text, 16 Characters X 2 Lines
• Dimension : 136.5mm x 80.6mm x 47mm
• Net Weight : 290gram
• Supported Motor : Sensor or Sensor-less Brushless Motor
  (a) Standard 540 Size RC Car Motor : 2.5 Turn or Over, 2 Poles(In-runner Motor)
  (b) Flight Motor : Support Sensor-less Brushless Motor, 6 Poles(Out-runner Motor)
  Current Drawn Less Than 18A at 8.4V Without Loading

.

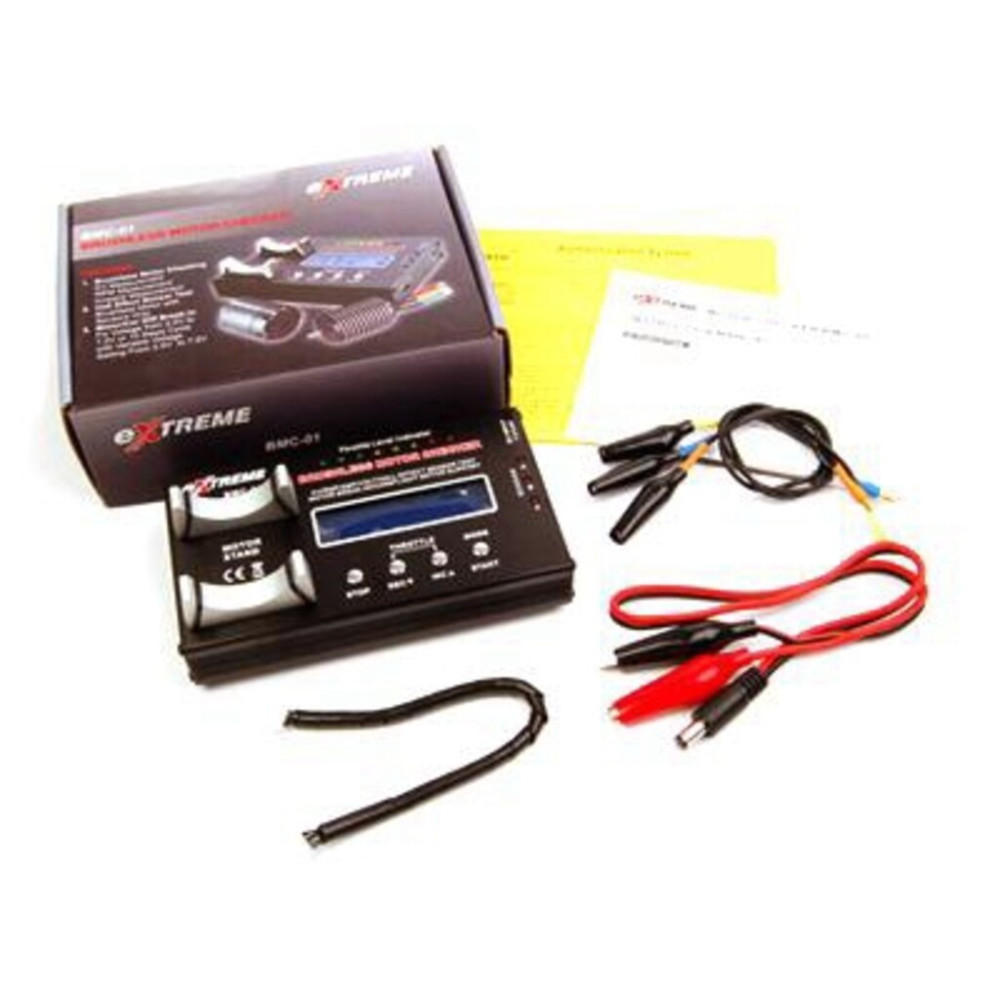

Power Cable

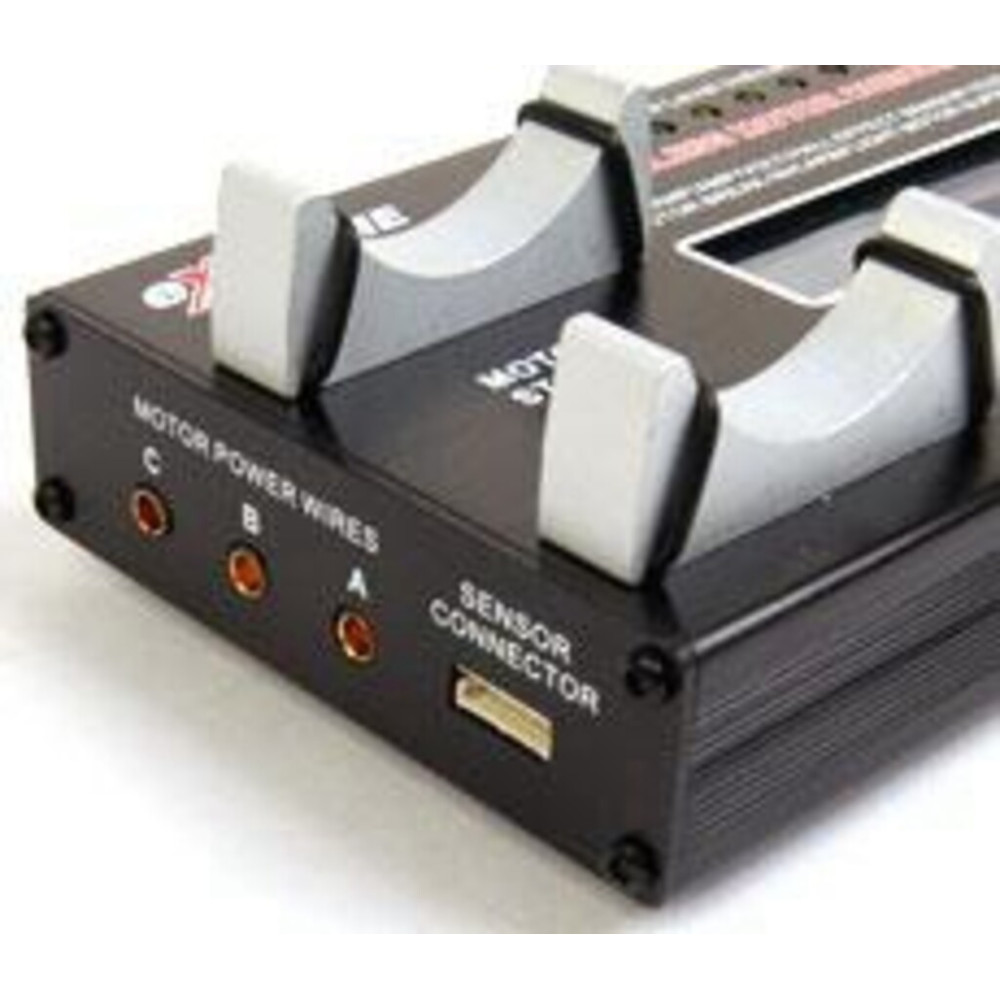

• Motor Power Wires
• Sensor Harness
