MOTOR OS FT-160 4T GEMINI160 W/FF CARBURADOR 2-CYLINDER 36108

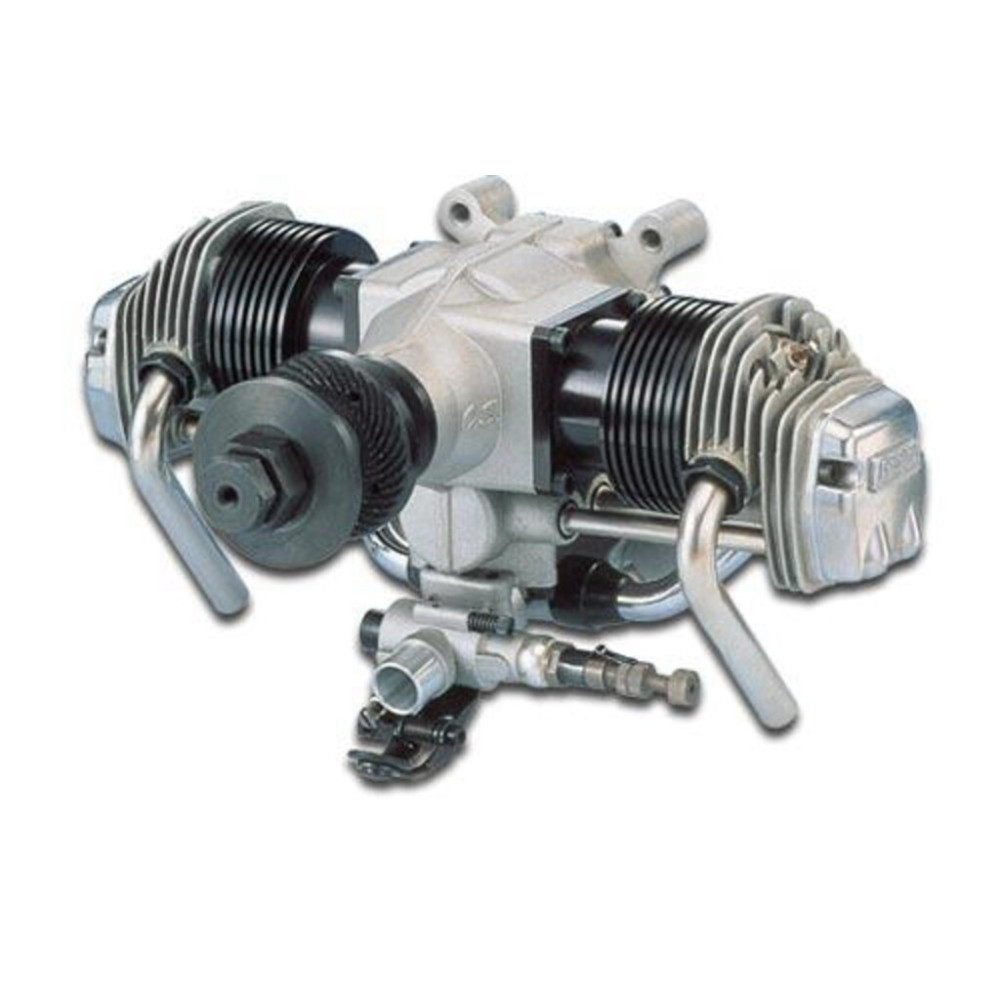

This is a FT-160 Twin-Cylinder 4-Stroke Engine from O.S. Max.

This Engine is a Flat (Opposed) Twin-Cylinder Engine, called the "Gemini-160".

It is Scale-Like in Appearance when Installed in a Piper Cub or Citabria.

FEATURES:

• 3-Crankshaft ball bearings
• 2-Camshaft ball bearings
• Twin opposed cylinders
• Ringed piston
• Geared camshaft (geared timing)
• New Two needle carb
• Two-year warranty

INCLUDES:

• One Assembled FT-160 Twin Engine
• One Motor Mount with mounting hardware
• One Instruction Manual w/Decals and Poster
• One Dual Glow Plug Extension Cable
• One Locking Prop Nut Assembly
• Two #F Glow Plugs (installed)
• One gauge tools set
• One choke valve extension (rod)

SPECS:

Construction: Aluminum and Aluminum alloys

Displacement: 13.26cc (x2) or .809 cu in (x2)

Bore: 27.7mm (1.09")

Stroke: 22.0mm (.866")

Power Output: 2.0 BHP at 10,000 RPM

Weight: 1100g (38.8oz)

Practical RPM Range: 2,000 - 10,000 RPM

Length: 120mm (4.72") from backplate to front of the drive washer

Width: 196mm (7.72")

Height: 80mm (3.15")

Crankshaft Thread Size: 5/16-24

Suggested Props: 15x8, 16x6, 18x6, 18x7, 18x8, 20x6

Needle Settings:

• High Speed: 3.5 turns out from fully closed
• Mixture Control (low speed): Flush with carb body, then 2 turns in

REQUIRES:

• Glow fuel with at least 16% lubricant content

COMMENTS:

• No longer includes needle valve extension, knob and hook, M3x32 propeller slippage screws, motor mount template, or spare Woodruff key.
