MODULO 2.4GHZ SPECTRA C/2 RX 9CH 29430

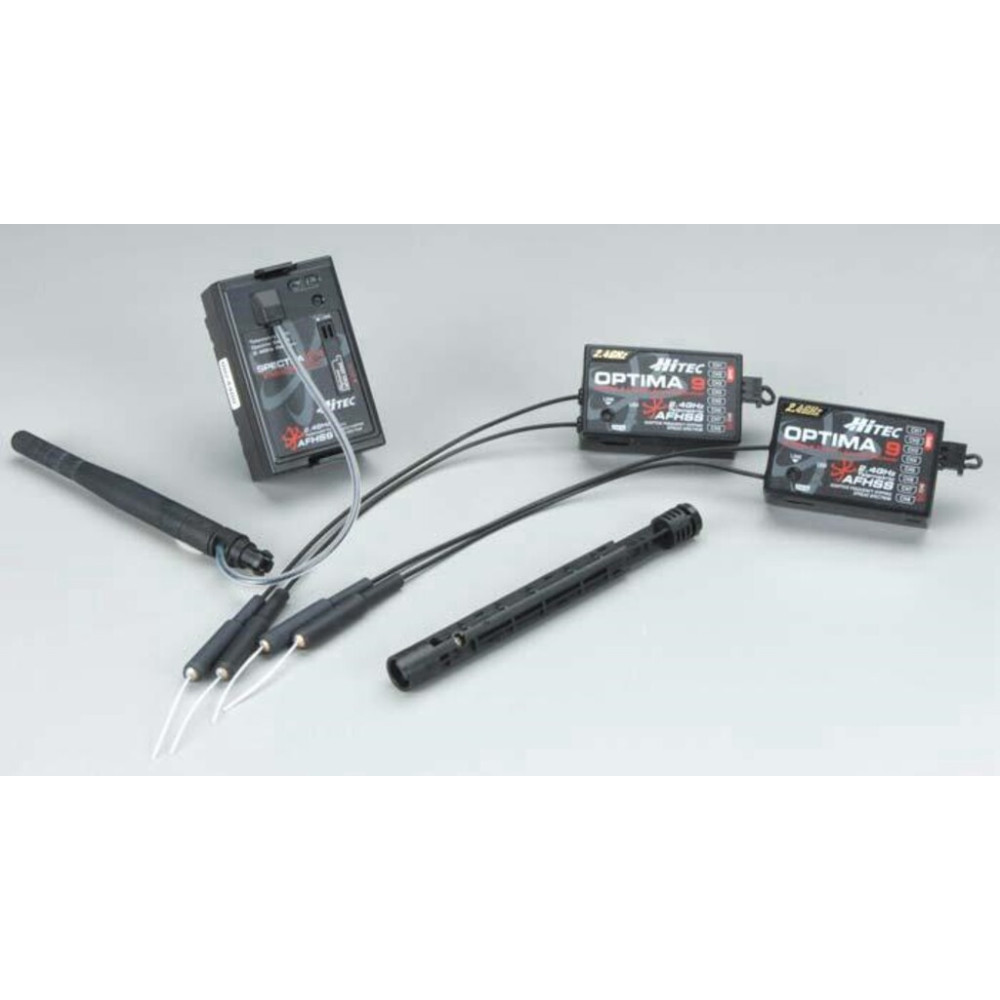

This is the Spectra 2.4GHz Module and two Optima 9 9ch 2.4GHz Receivers from Hitec.

FEATURES:

Receivers-

Dual LED status indicator with low battery warning

SPC (Supplemental Power Connection)

Telemetry functions (with Hitec Spectra 2.4 module) include

Temperature (4) RPM (2) Fuel Gauge, GPS (speed, altitude, coordinates)

Fail safe and hold mode

Compatible with Transmitters using Hitec AFHSS (Adaptive Frequency

Hopping Spread Spectrum) 2.4 GHz system

Dual BODA (Boosted Omni-Directional Antenna)

Smart Scan mode selectable selects between normal and scan mode 2.4 signal types

Module-

Smart Link

Sensor data output and system upgrade connector port, when used with the PC Interface  this port serves to upgrade the software and downloads info from receiver's onboard sensors

Two year limited warranty through manufacturer on both components beginning at date of purchase

INCLUDES:

Two Optima 9 2.4GHZ receivers with two BODA antenna holders, Spectra 2.4GHz Module with two antennas and instruction sheet

REQUIRES:

Hitec AFHSS 2.4GHz transmitter

SPECS:

Optima 9 Receiver

Dimensions: 1.89 x 1.12 x 0.44" (48 x 28.4 x 10.6mm)

Weight: 0.77oz (22g)

Operating Voltage: 4.8-7.4V from receiver battery power or ESC

4.8-35V using SPC function

Max Current Consumption: 190mA

Spectra 2.4GHz Module

Dimensions: 1.5 x 2 x 0.88" (37.5mm x 59mm x 22.4mm)

Weight: 1.2oz (35g)
