CARRO EVADER EXT RTR DURATRAX DTXD29

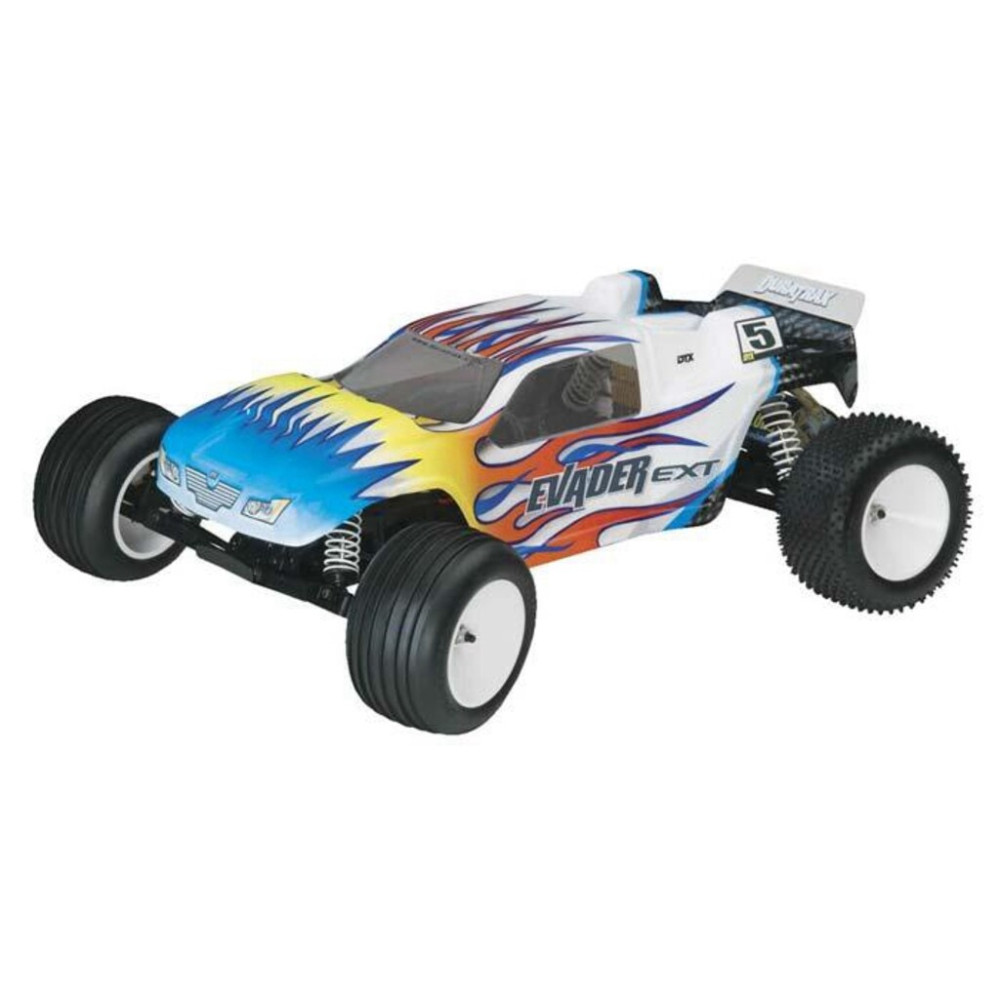

This is the 1/10 scale electric powered, radio controlled, Ready To Run DuraTrax Evader EXT Off-Road Stadium Truck.

FEATURES:

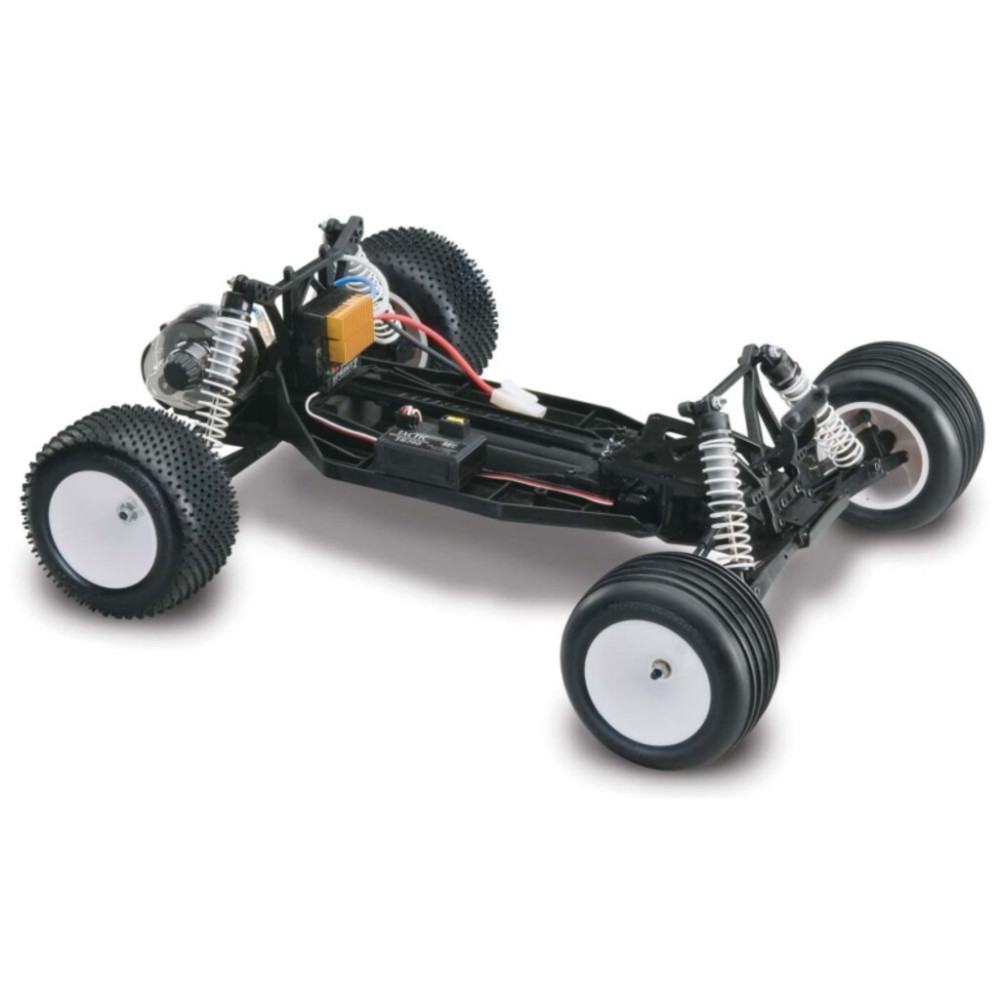

• Chassis: Composite tub
• Drive: Rear wheel shaft type
• Motor: DuraTrax Photon Speed 2
• Radio: 2-channel Tactic pistol grip 27MHz AM, with steering and throttle trim and reverse, (transmitter does not have charge jack) TS200 steering servo
• Electronic Speed Control: DuraTrax Sprint 2 with reverse and automatic set-up
• Body: Trimmed and painted stadium truck
• Shocks: Oil-filled, plastic body
• Gearbox: Closed rear
• Differential: Gear type
• Transmission: Single speed
• Slipper Clutch: Adjustable, matches power delivery to the track surface, for better traction and speed. Protected from debris by a cover, and has a removeable cap to easily access for adjustments.
• Tires: Front, ribbed 3.8" (94.5mm) diameter, 2" (51mm) wide
• Rear, pin spike 3.8" (94.5mm) diameter, 2" (51mm) wide
• Wheels: Dish type nylon construction, 2.2" (56mm) diameter, 2" (51mm) wide
• Spur Gear: Nylon 88 tooth, 48 pitch
• Pinion Gear: Steel 18 tooth, 48 pitch
• Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
• Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
• Suspension: Adjustable, includes steel turnbuckles that are factory-set, but adjustable to various driving conditions
• Steering: Bell-crank type with servo saver

INCLUDES:

DuraTrax Evader EXT assembled Stadium Truck with motor, radio, ESC, decal sheet, painted body and manual

REQUIRES:

• AA Batteries: 8 for radio transmitter
• Battery: 6-cell 7.2V stick pack with standard connector
• Charger: AC/DC Timed or Peak for 6-cell battery
• Misc. Items: Track equipment

SPECS:

Vehicle-

• Length: 16.1" (409mm)
• Width: 12.9" (327mm)
• Height: 6.6" (168mm)
• Weight: 3.6lb (1.63kg)
• Wheelbase: 11.6" (294mm)
• Front Tread: 11.5" (292mm)
• Rear Tread: 11" (279mm) wheels on-center side-to-side
• Front Track: 12.4" (314mm)
• Rear Track: 12.8" (325mm) wheels at outer edges
• Ground Clearance: 1.4" (36mm)

Body-

• Length: 15.3" (390mm)
• Width: 6" (152mm) at front wheels, narrowest point
• Width: 6.7" (170mm) at rear wheels, widest point
• Height: 4" (103mm)

COMMENTS:

The DuraTrax Evader EXT is available with the following radio channels and body colors;

AI WHITE/GREEN DTXD29A1
A2 WHITE/BLUE DTXD29A2
A3 WHITE/RED DTXD29A3
A4 WHITE/ORANGE DTXD29A4
A5 WHITE/BLACK DTXD29A5
A6 WHITE/PURPLE DTXD29A6

For replacement ball bearings or to upgrade from bushings use:

Qty. Size Location Qty. Bearing Set

4 5x10mm Rear Hubs 2 DTXC1535
4 3/16x3/8" Front Hubs 2 DTXC1423
2 5x10mm Top Shaft 1 DTXC1535
2 5x11mm Idler Gear 1 DTXC1547
2 10x15mm Diff Gear 1 DTXC1595
