RADIO 4YF FUTABA 2.4GHZ R2004GF 4CH 01004361-3

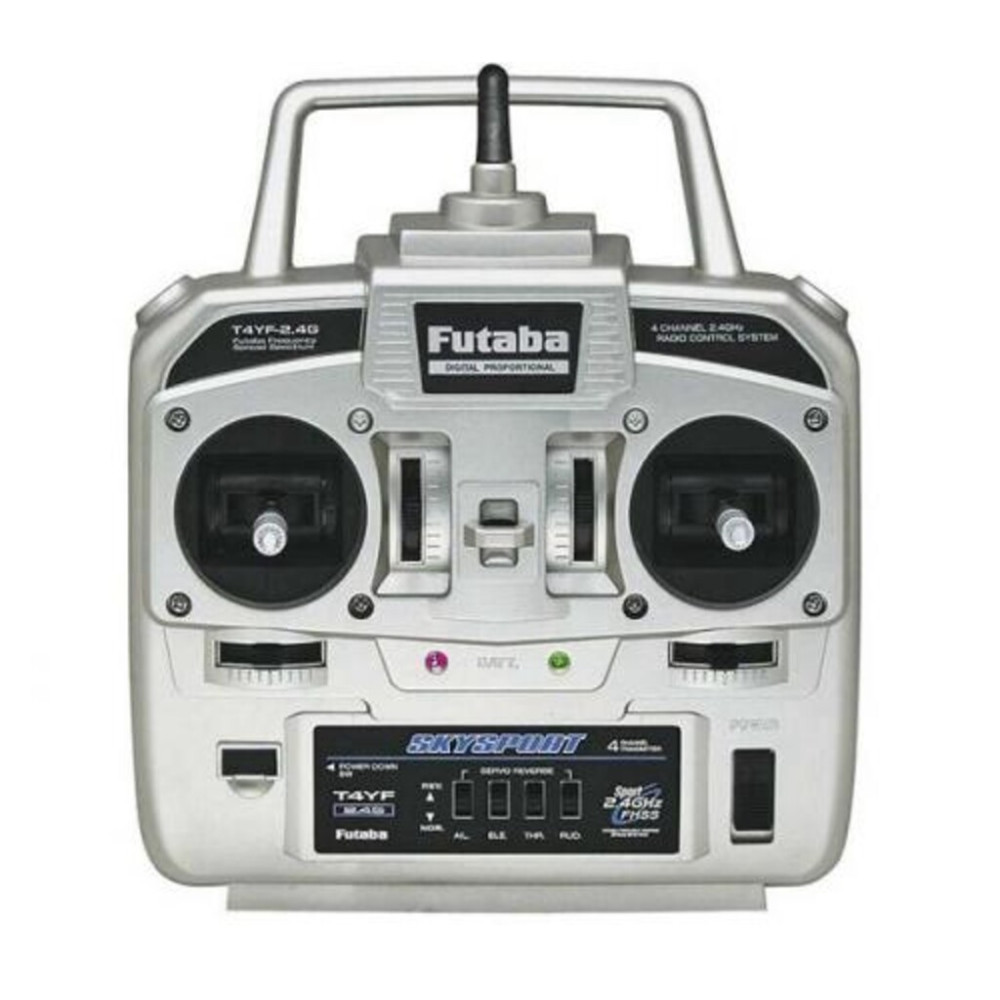

This is the 2.4GHz FHSS Futaba 4YF 4-Channel Radio System with the R2004GF Receiver. Transmitter and Receiver only, Servos not included

FEATURES:

FHSS (Frequency Hopping Spread Spectrum) eliminates frequency pins and signal interference-pushbutton transmitter/receiver linking with no binding plugs R2004GF receiver has coaxial antenna that can be positioned inside model for optimum reception

Power Down Mode - reduces RF power for 90 seconds, simplifying ground checks for interference All-channel servo reversing for more installation options Power and servo reversing switches are located down and out of the way for convenience and to avoid accidental changes Battery meter features one Green and one Red LED for easy-to-read GO/NO GO status Elevon mixing Spring loaded trainer toggle switch for instant "OFF" Gimbals have knurled tops for a better "feel" on the sticks and to prevent finger slippage One year limited warranty through manufacturer beginning at date of purchase

INCLUDES:

2.4GHz FHSS Futaba 4YF 4-Channel Transmitter R2004GF Receiver, FUTL7617 On/Off Switch Harness and Charge Cord Neck Strap Instruction Manual

REQUIRES:

AA Batteries: Four for transmitter NOTE: A RX NiCd or battery box is NOT included because radio system is designed for Park Flyers and thus power will be provided to the RX via the BEC Electronic Speed Control (ESC)

SPECS:

Transmitter;

Transmitting Frequency: 2.4GHz band

Power Requirement: Four AA cells

Current Drain: 90mA

Trainer Port: Micro

Receiver;

Power Requirement: 4.8 - 6V shared with servo

Current Drain: 30mA at no signal

Size: 1.54 x 1.02 x 0.39" (39 x 26 x 10mm)

Weight: 0.49oz (14g)

COMMENTS:

2.4GHz FHSS is not compatible with FASST systems, and the R2004GF receiver is compatible only with electronics created specifically for 2.4GHz FHSS systems.

4YF 2.4GHz FHSS

An affordable step up for sport pilots to 4-channel 2.4GHz control

Futaba quality, FHSS technology and an economical price make the 4YF 2.4GHz FHSS radio an excellent choice for cost-conscious modelers wanting an interference-free spread spectrum system for sport flying. The 4YF has always been a great value, and now we’ve enhanced it with cutting-edge 2.4GHz performance and security!

Frequency Hopping Spread Spectrum (FHSS) eliminates signal interference and frequency pins

The included R2004GF receiver features a flexible coaxial antenna that can be easily positioned inside the model for optimum reception

Easy, convenient push-button transmitter/receiver linking, with no binding plugs

Power Down Mode - reduces RF power for 90 seconds, simplifying ground checks for interference.

All-channel servo reversing for more installation options

Power and servo reversing switches located out of the way to prevent accidental changes

Battery meter with green and red LED for instant “go/no-go” status
