MULTI TESTER GWS MT-1

Left Side size: 70x20mm (2.76” x 0.79”) Right side size: 70x20mm (2.76” x 0.79”)

The three great functions reported by users

Size: 140 x 70 x 20mm ( 5.51 x 2.76 x 0.79” )

Left Side size: 70x20mm (2.76” x 0.79”) Right side size: 70x20mm (2.76” x 0.79”)

The three great functions reported by users

ITEM:GWRMT001

MT-1, the Multi-Tester
A more advanced tester for servos and rotating propeller.
MT-1 (GWRMT001) is the newly designed/made multi-tester. It comes with more advanced functions than what on the old Servo Tester.

Size: 140 x 70 x 20mm ( 5.51 x 2.76 x 0.79" )
Weight: 110g / 3.89 oz (Batteries not included)

Functions and applications:

To measure the Pulse Width transmitted by Transmitter for up to 9 channels.
To measure the Pulse Width sent from Receiver.

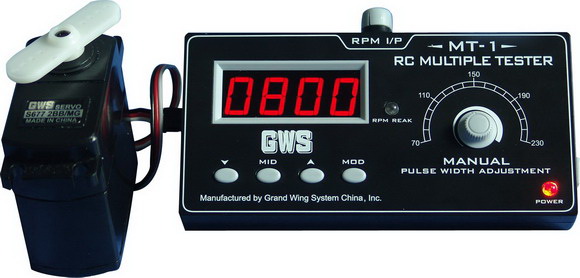

To test the rotations of Servo automatically – at the pulse widths of top, medium and low points set by user already.
To test the automatic rotations of Servo.
To test the rotations of Servo by turning the knob on the tester manually .
To test the sensitivity of Servo (1μS per step minimum).

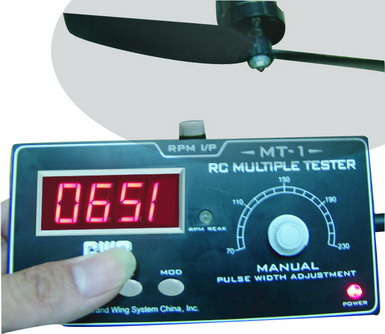

To measure RPM of a spinning propeller – for 2 – 6 blades ones, real time RPM value shown/to set the peak RPM value up to 99990 per minute.
Shiny 4 digits red LED's to display the values measured.
Power source can be from UM-4 / AAA cell x4, or an adapter with 7-15V or BEC (5V) from an ESC.
An output port for applying Positive/Negative signals of Pulse Width from this tester.

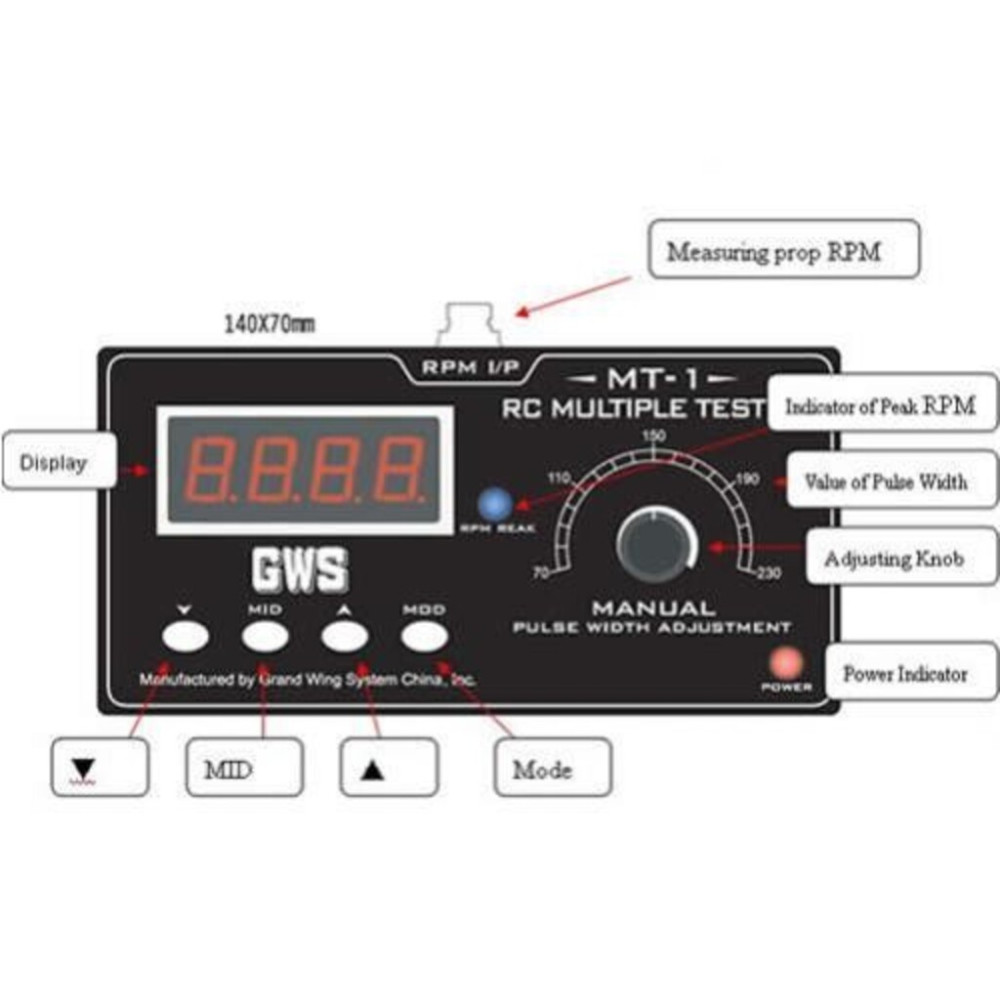

Four buttons for setting up functions and modes.
Refer to MT-01 MANUAL
