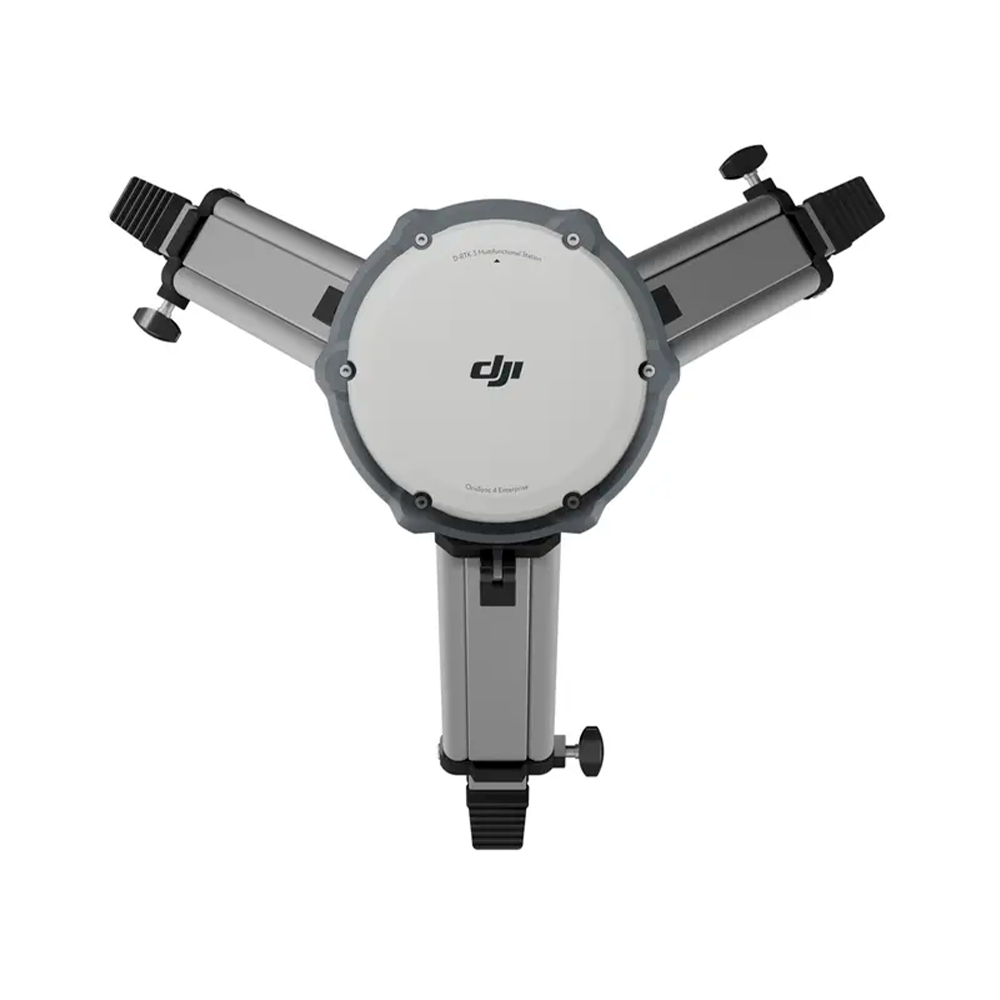

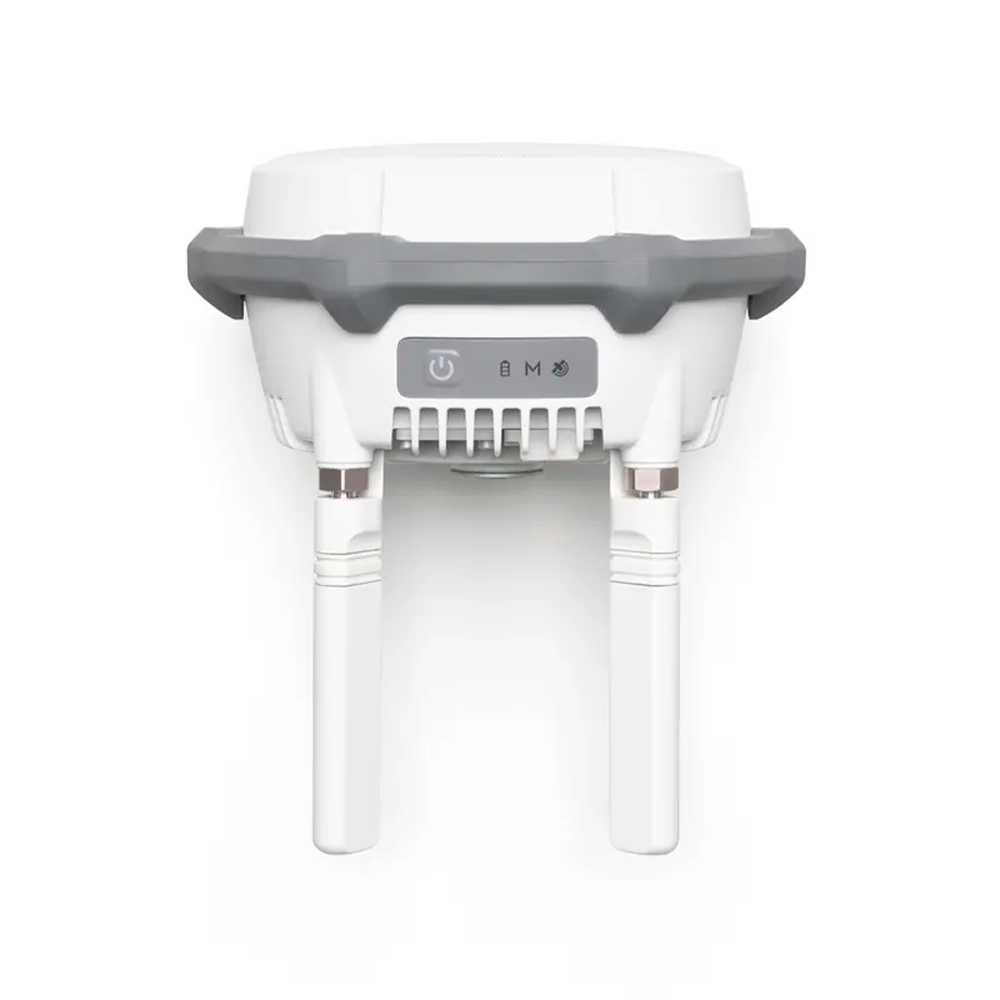

DJI D-RTK 3 MULTIFUNCTIONAL STATION

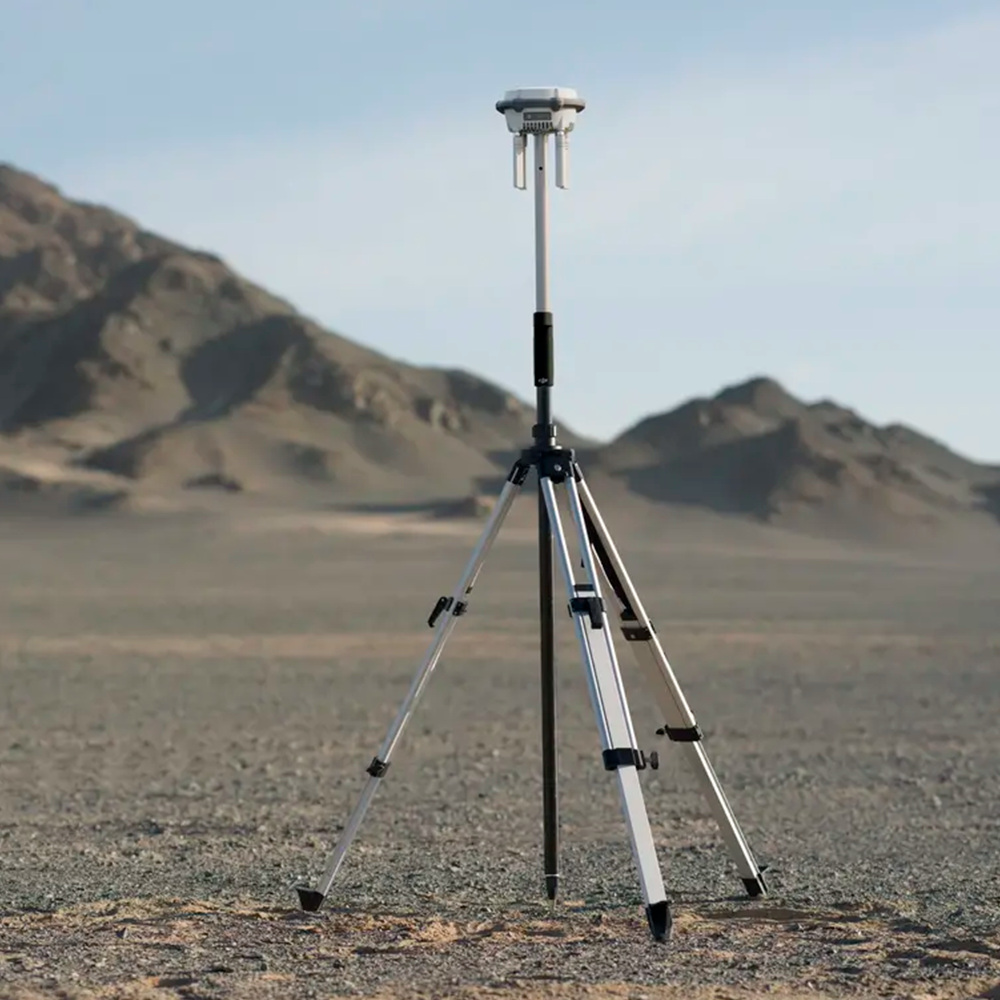

The new D-RTK 3 Multifunctional Station integrates high-performance antennas and receiver modules, capable of tracking and resolving data from major global satellite navigation systems. It supports multiple data transmission links and can analyze device position and orientation through its built-in high-performance inertial measurement unit. With these outstanding features, it can serve as a base station to provide centimeter-level positioning for multiple drones simultaneously, or extend the operational range of drones in relay station mode. Additionally, the new rover station mode, combined with the DJI ENTERPRISE app and DJI Terra, offers a one-stop solution for high-precision aerial surveying applications.

• Serves as a base station for centimeter-level positioning of multiple drones simultaneously, or as a relay station to extend drone range.

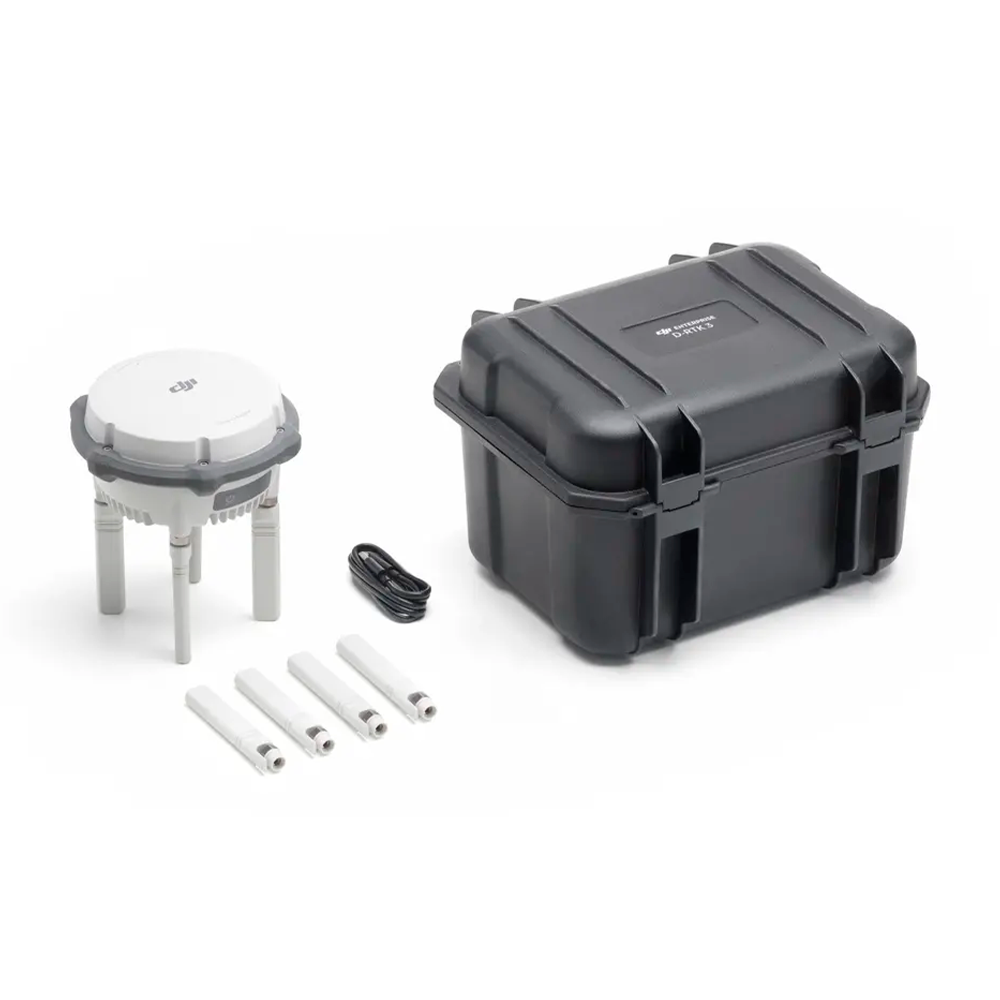

• D-RTK 3 Multifunctional Station × 1
• Spare OcuSync Directional Antennas × 4
• USB-A to USB-C Cable× 1

• GNSS Frequency
• GPS: L1C/A, L2C, L5
• BDS: B1I, B2I, B3I, B1C, B2a, B2b
• Galileo: E1, E5a, E5b, E6
• GLONASS: L1, L2
• QZSS: L1C/A, L2C, L5

L-Band

• Rover Station Mode Accuracy
• Static Measurement
• Horizontal: 0.8 cm + 1 ppm (RMS)
• Vertical: 1.5 cm + 1 ppm (RMS)
• Tilt Measurement
• Angle Range: 0°to 60°
• Horizontal: 8 mm + 0.7 mm/° tilt (accuracy <2 cm within 30°)
• Max Transmission Distance (in Relay Station Mode, unobstructed, free of interference)

FCC:

• 15 km between the aircraft and the relay station
• 1 km between the relay station and the remote controller

SRRC:

• 12 km between the aircraft and the relay station
• 1 km between the relay station and the remote controller

CE:

• 8 km between the aircraft and the relay station
• 300 m between the relay station and the remote controller
• Protection Rating: IP67 (station only)
• Diameter: 163 × 89 mm (without OcuSync Directional Antennas)
• Weight: 1.26 kg
