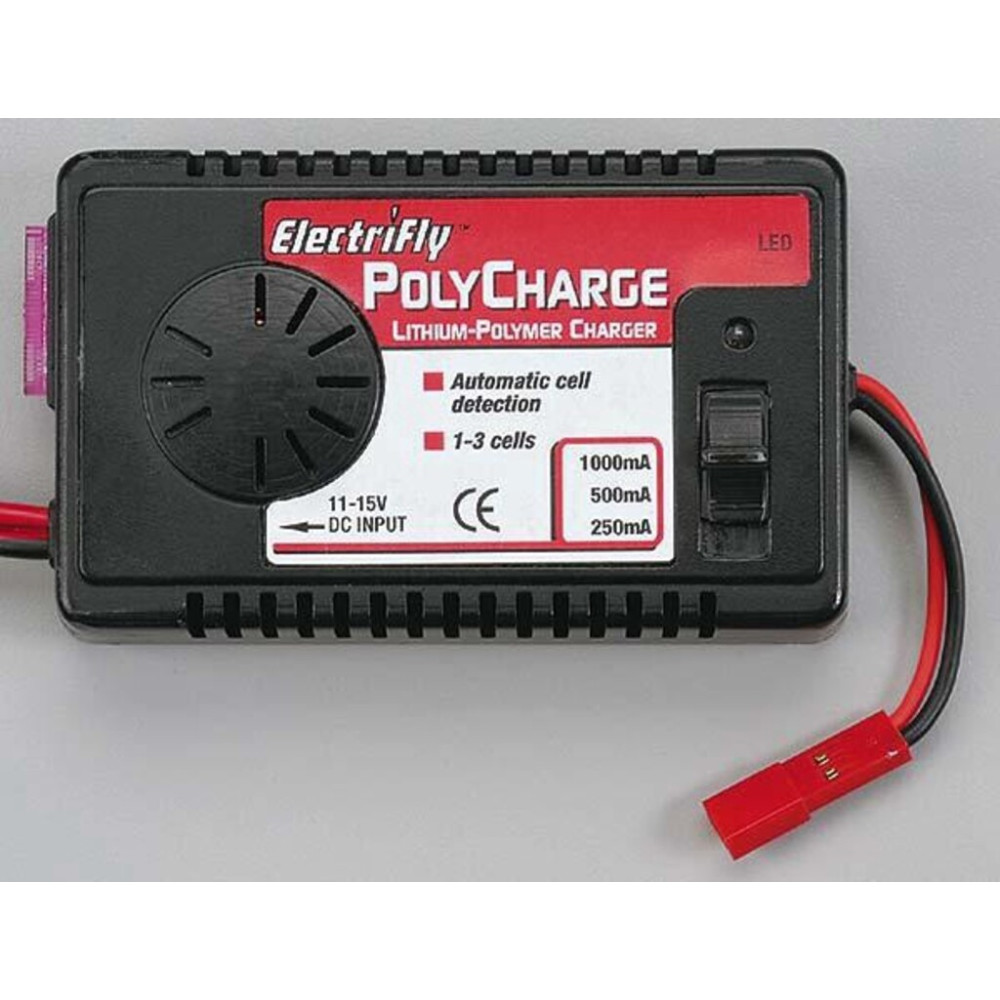

CARREG.POLYCHARGE 1-3 CELL LIPO GPMM3010

LiPo charging the way it should be: fast, easy & affordable!

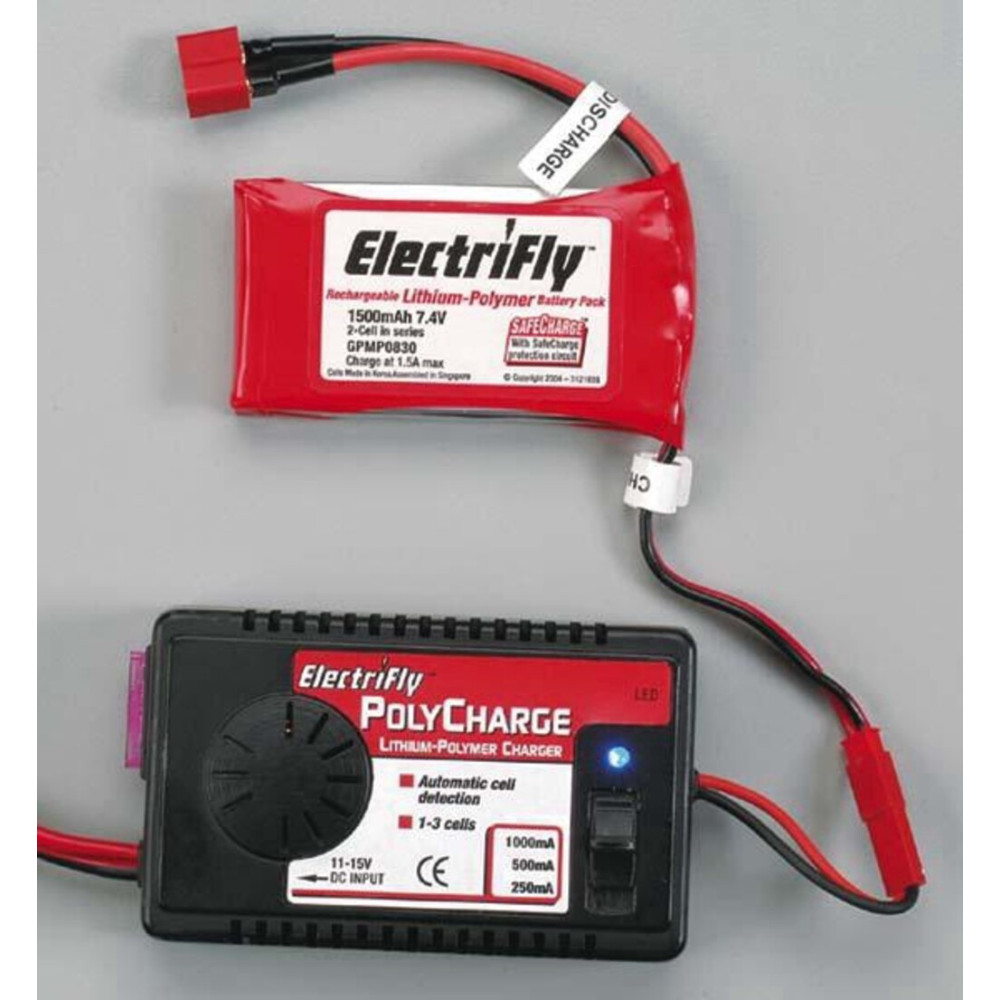

With the PolyCharge, the benefits of LiPo packs are easy to enjoy and afford. There's no complicated programming, no costly computer chips – just a no-frills design that offers the basics of LiPo charging at the least possible price. Add a plane, a few packs and a 12V battery, and you have everything needed for hours of non-stop flying.

Perfect for 1-3 cell LiPo power packs in park flyers, helis and smaller 3D aerobats.

Light and compact for easy carrying and storage – and super simple to set up and use.

Automatically starts charging when the pack is connected – automatically ends charging when the pack is fully charged.

Buzzer and high-intensity blue LED signal diagnostic alerts and changes in charging status.

Includes alligator clips on 30" lead for input and standard red 2-pin connector on output.

Vented for cooler operation and longer life.

Stock Number: GPMM3010

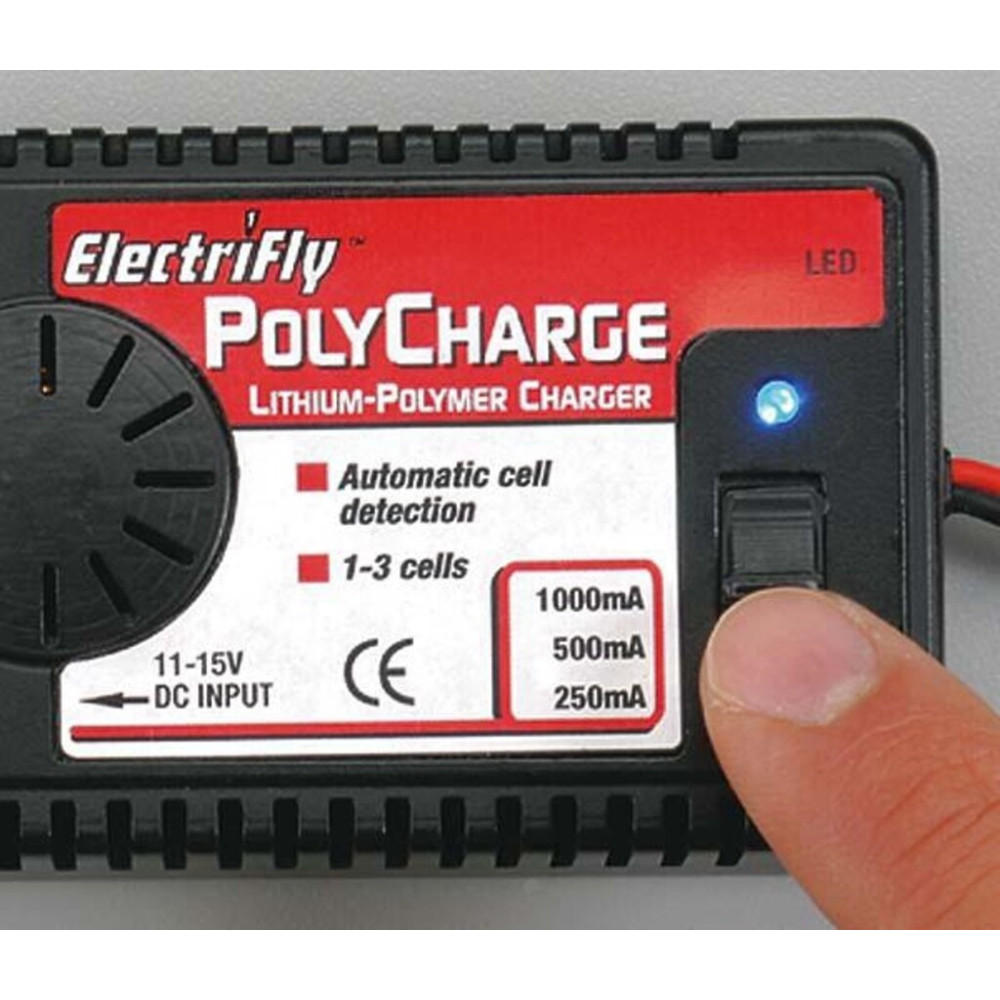

Adjusting charge rate to pack capacity takes only a moment and a touch on the selector switch. Choose from 250mA, 500mA or 1,000mA rates

PolyCharge Basics

Description: LiPo-only fast charger

Power source: 11-15V DC

For: 1-3 cell LiPo packs

Charge rates: 250, 500 and 1,000 mA

Charge termination: cc/cv (constant charge/constant voltage)

Sight/Sound alerts for: start/stop charge; high/low input voltage; reverse polarity (output) and loose/broken pack connection

Fuse-protected against overload

Dimensions: 2.2 in x 3.5 in x 0.9 in (55x88x23 mm)

Weight: 4.35 oz (123 g)

Compared to NiCds or NiMHs, LiPos:

Store more power per ounce.

Feature soft foil coverings (instead of heavy metal cans.)

Offer 3 times the voltage per cell. A 2-cell LiPo pack offers the same voltage as a 6-cell NiCd or NiMH pack – for less than half the weight.

This is the Great Planes ElectriFly PolyCharge DC Powered 1-3 Cell Lithium Polymer Battery Charger.

FEATURES:

Designed for 1-3 cell Lithium Polymer batteries ONLY (NOT for Lithium Ion batteries) Ideal for small electrics-Park Flyers, small to medium 3D airplanes, or helis 250 - 500 - 1000mA selectable Charge current Warning indicators for voltage input errors, output reverse polarity and open circuit errors High intensity Blue LED status indicator for voltage input errors, output reverse polarity, and open circuit errors One year limited warranty (USA and Canada only)

INCLUDES:

One Great Planes 1-3 Cell Lithium Polymer Battery Charger with 7.5A fuse, alligator input clips, Red 2-pin output connector and instruction sheet

REQUIRES:

12V Power Supply such as HCAP0250. Do not apply more than 15V to the charger input as permanent damage could result.

SPECS:

Input Voltage: 11-15V

DC Battery Types, # Cells: 1-3 Lithium Polymer cells (3.6-11.1V LiPo)

Fast Charge Current: 250, 500, 1000mA

Fast Charge Termination: "Constant Current/Constant Voltage"

Status Indicators: High intensity Blue LED, audible buzzer

Input Connectors: Alligator clips

Case Size: 2.2" x .9" x 3.5" (56x23x89mm)

Weight: 4.35oz (123g)

Length of Input Lead: 27" (686mm)

Length of Output Lead: 4" (102mm)

COMMENTS:

Important! Always Charge LiPo packs in a fireproof location, such as a metal container (like a metal ammo box) or on ceramic tile. Always monitor the area with a smoke or fire alarm Have an ABC type fire extinguisher available at all times NEVER leave the battery unattended during Charging

To use this charger with the ElectriFly BP and PS series LiPos wired for Balancing, one must use the Equinox (GPMM3160),and remove the Red 2-pin plug and install 4mm female bullet connectors (GPMM3115)
