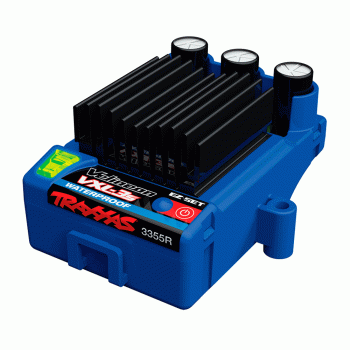

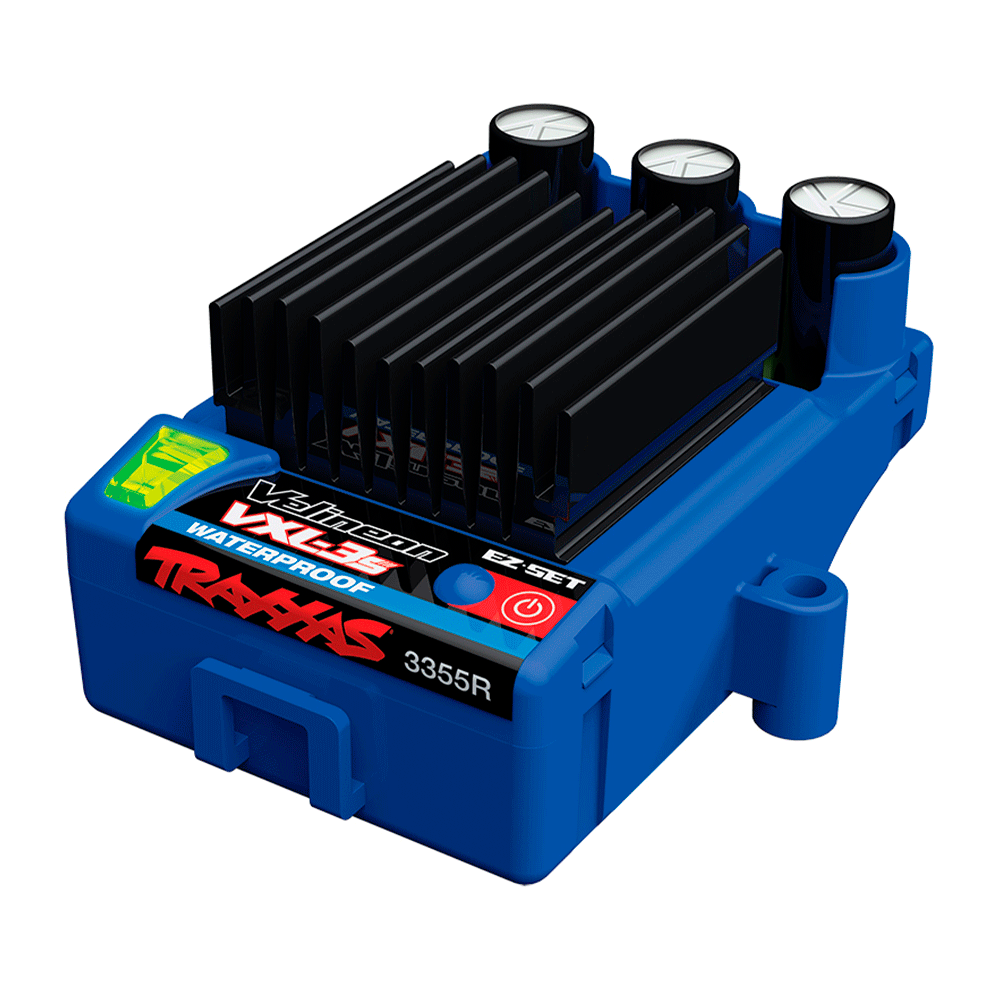

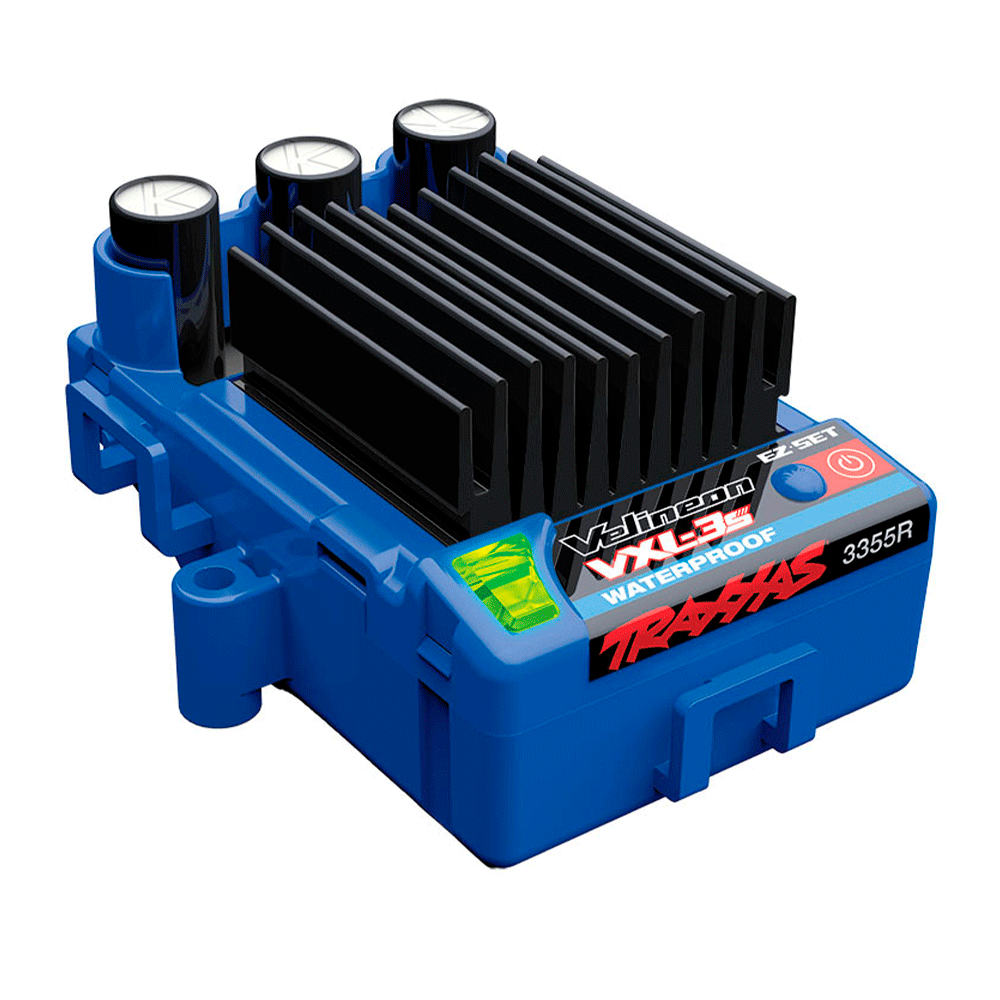

SPEED TRAXXAS VXL-3S WATERPROOF BRUSHLESS ESC 3355R

  • Código: 417969
  • Marca: TRAXXAS
  • Estoque: Disponível
  • $119,99

Compartilhar

Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.


The Velineon® VXL-3s forward/reverse electronic speed control simplifies brushless technology with easy, built-in profiles. It sets up, operates, and programs just like the Traxxas XL-5 family of ESCs so there's no tricky new procedures to learn. Traxxas' exclusive patented Training Mode™ is also included to limit full throttle to 50% for young or inexperienced drivers. For the most advanced users, the VXL-3s is equipped with two-stage low voltage detection to allow LiPo battery use, including powerful 11.1-volt 3s packs! The VXL-3s is manufactured by Traxxas to ensure the highest level of quality and support and is backed by the Traxxas Lifetime Electronics Warranty.

Traxxas High-Current Connector


Traxxas High-Current Connector
The VXL-3s ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.





Maxx Cable 12-Gauge WireAssembled with Maxx® Cable (12-gauge wire)
This super-flexible, high-current, low-resistance 12-gauge, wire acts like a series of giant pipes, flowing energy in and out of the VXL-3s electronic speed control and into the Velineon 3500 motor. The patented Traxxas Connector combined with Maxx cable is a better engineered solution for extracting all the power your battery has to give.

Velineon VXL-3s Waterproof Features:

  • Patented Traxxas High-Current Connector eliminates a common bottleneck and maintains pure, unrestricted power flow from the battery to the brushless power system.
  • Built-in two-stage low voltage detection for Lithium Polymer (LiPo) battery use provides a clear signal to the driver that the battery pack is nearing its minimum voltage threshold.
  • Widest range of battery options ranging from 4-cell NiMH packs all the way up to 3S LiPo battery packs (11.1 volt)
  • The patented Training Mode™ is an exclusive Traxxas feature that reduces the overall power output of the VXL-3s by 50%, making it easier for new or younger drivers to control their model. When they're ready, simply change profiles to unleash full-throttle action.
  • The EZ-Set® push-button setup operates and programs just like other Traxxas speed controls such as the XL-5. This eliminates the need to learn a new set of procedures.
  • The VXL-3s is programmable with three drive profiles:
    • Sport Mode – Fwd / Brake / Rev
    • Race Mode – Fwd / Brake
    • Training Mode**™ – 50% Fwd / Brake / 50% Rev
  • Multi-color LED provides clear feedback
  • Two-stage thermal shutdown protection protects the VXL-3s from overheating.
  • Locked Rotor Protection™ prevents system damage by cutting power if the vehicle is stuck or the motor is bound.
  • Battery Over-Voltage Protection™ causes the ESC to go into failsafe mode if the maximum input voltage is exceeded.
  • Water resistent case design uses rubber seals and o-rings to protect against damage caused by water and moisture.
  • Micro-fin aluminum heatsink dissipates heat.

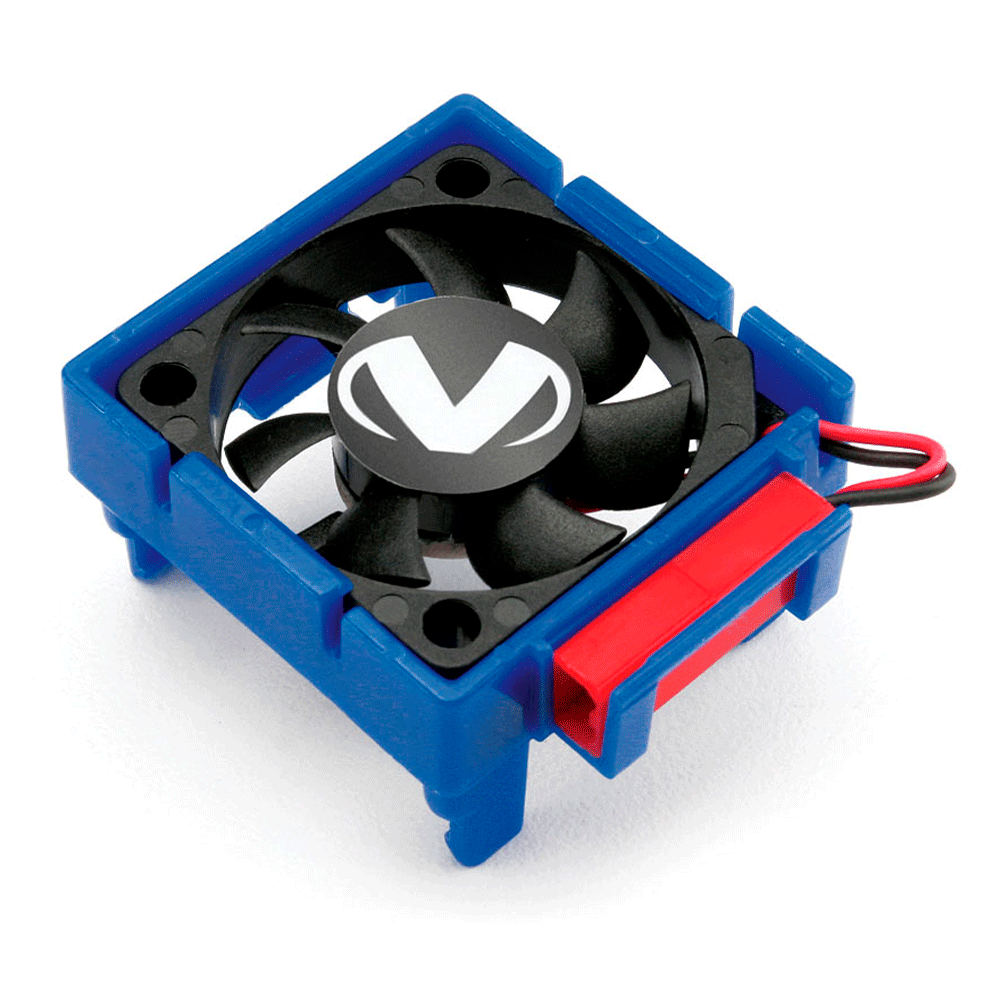

  • The built-in auxiliary fan output powers a snap-on accessory fan for increased cooling capacity during extreme use. A handy clasp on the speed control case keeps the wire neatly in place until you are ready to use it.
  • Gold plated 3.5 mm bullet connectors on 12-gauge Maxx® Cable flow full power to the Velineon 3500 brushless motor without performance strangling resistance. (Not compatible with Velineon 540XL motors)



VXL-3s Diagram

VXL-3s WATERPROOF ESC SPECIFICATIONS
Input Voltage: NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
Case Size: 39 mm W x 55 mm D x 33 mm H
Weight: 90 grams
Motor Limit (Brushless): No motor limit
On Resistance Forward: 0.00075 Ohms
On Resistance Reverse: 0.00075 Ohms
BEC Voltage: 6.0 V
BEC Current: 2.5A
Power Wire: 12-Gauge Maxx® Cable
Motor Connectors: 3.5 mm bullet
Input Harness Wire: 26 Gauge / 100 mm
Low Voltage Detection: 2-Stage indicators, switchable (on or off)
Thermal Protection: 2-Stage thermal shutdown
Profile selection: Sport Mode:
    100% FWD, 100% BRAKES, 100% REV
Race Mode:
    100% FWD, 100% BRAKES, NO REV
Training Mode:*
    50% FWD, 100% BRAKES, 50% REV
Single-Button Setup: Yes, Traxxas EZ-Set®
Battery Input Connector : Traxxas High-Current Connector
Motor Types : Brushless
Ports: RX Input, auxiliary fan
