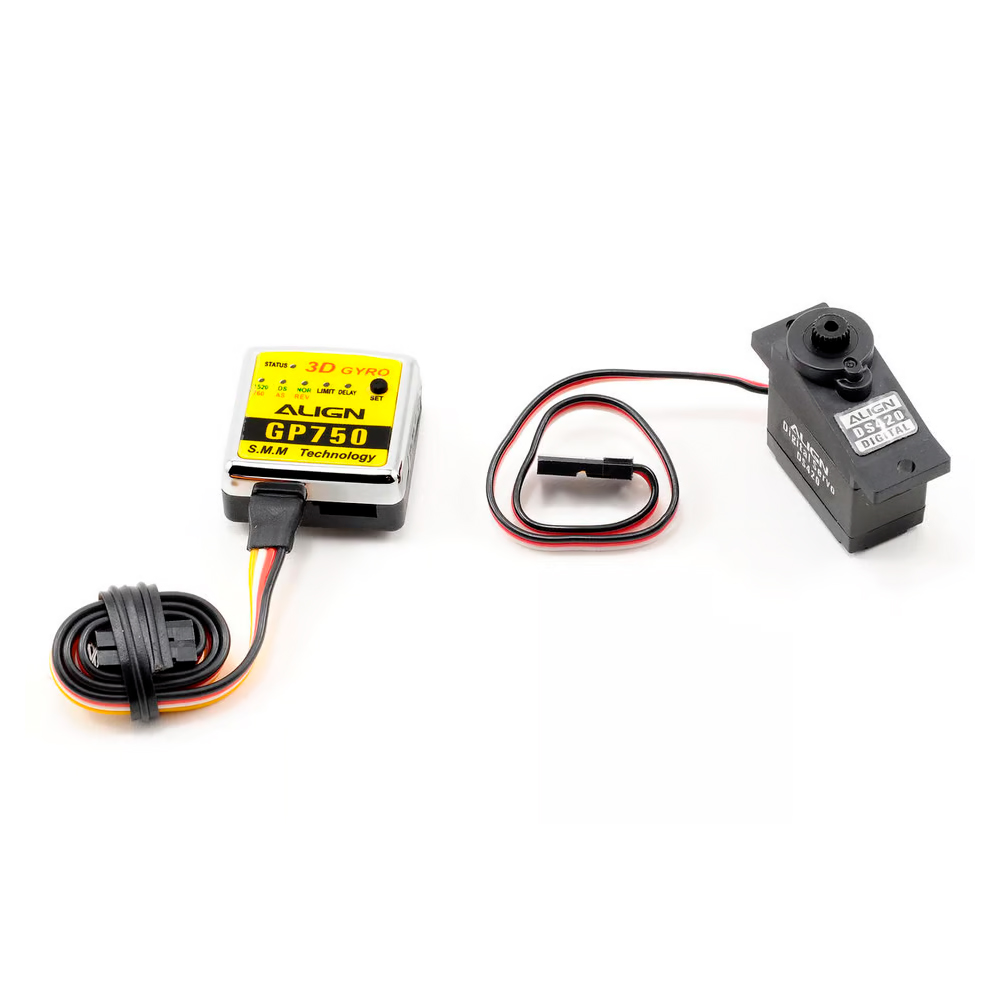

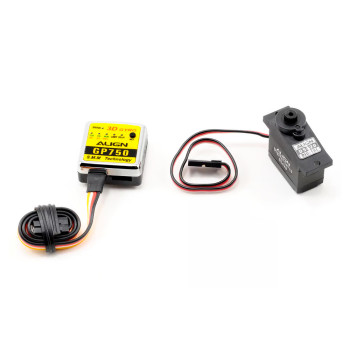

GYRO GP750 C/ SERVO DS420 ALIGN KX870017

  • Código: 41782
  • Marca: ALIGN
  • Estoque: Disponível

0 comentários / Escreva um comentário

  • $79,99

Compartilhar

Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
Linha de Brinquedos testados não possui Garantia.
Produtos em Promoção e abaixo do Custo não possuem Devolução.

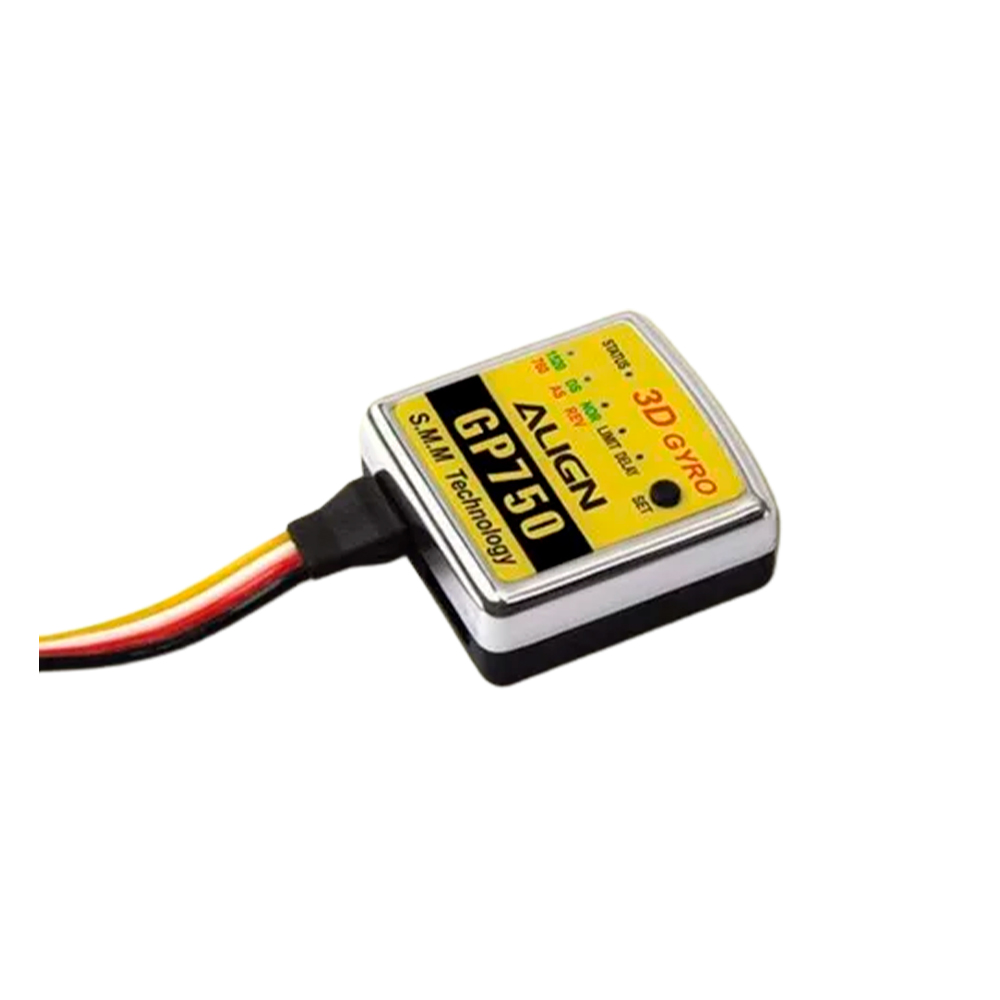

GP750:

  •  Utilizes Silicon Micro Machines (SMM) sensor with excellent stability to dramatically reduce in-flight tail drifts.
  •  Utilizes AHTCS (Active Helicopter Tail Control System) to compensate any drift caused by wind direction and force, as well as unintended yaw induced by helicopter itself during flight maneuvers.
  • Tailor made specifically for use with high speed digital rudder servos. This gyro
  • festures high sensitivity and minimal reaction time, fully utilizing the potential of modern high speed digital rudder servos.
  •  Suitable for all sizes of helicopters, from micro indoor to large 90 size glow helicopters.
  •  Metallic dampening plate built into bottom gyro casing, dramatically increasing anti-vibration and anti-interference abilities.
  • Features 1520μs pulse wide and 760μs narrow pulse wide frame rate.
  •  Digital/Analog servo switchable.
  • Reverse switch.
  • Rudder servo travel limit adjustment (ATV).
  • Mode switch for large/mini helicopter.
  • Delay adjustment.
  • Gyro locking mode and gain can be adjusted remotely from the transmitter.
1.Mini/Micro heli mode, suitable for T-REX250/450(“STATUS” Red);Medium/large heli mode, suitable for T-REX500/600/700(“STATUS" Green)

2.There are 3 kinds of 760μs narrow pulse wide servos on the market, including Futaba S9251, S9256, BLS251.

DS420:

  • Fast speed and high torque. High strength metal gears with high precision and durable structure characteristics.
  • Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
  • Supports digital & analog control signal.
  • Precise servo, suitable for T-Rex 250 rudder use.

Specification:

  • GP750 Ratings:
  • Operating Voltage:DC 4.5~7V
  • Current Consumption:<80mA @ 4.8V
  • Angular Detection Speed:500 degrees/sec
  • Operating Humidity:0~65
  • RoHS certification.
  • Operating Humidity:0%~95%
  • Size:26x25x11mm
  • Weight:14g

DS420 Ratings:

  •  Stall torque:0.75kg.cm(4.8V)
  • 1.0kg.cm(6.0V)
  •  Motion speed:0.08sec/60°(4.8V)
  • 0.06sec/60°(6.0V)
  • Rating voltage:DC 4.8-6V
  •  Temperature range:-20°C~+60°C
  •  Dimension:22.8 x 12 x 25.4mm
  •  Weight:12.7g

Accessories:

  •  Double sided tape x 2
  •  Servo rudder piece x 4
  •  Set screw x 1
  • Tapping screw for servo x 2
