MEET YOUR COMM NEEDS — AND MORE

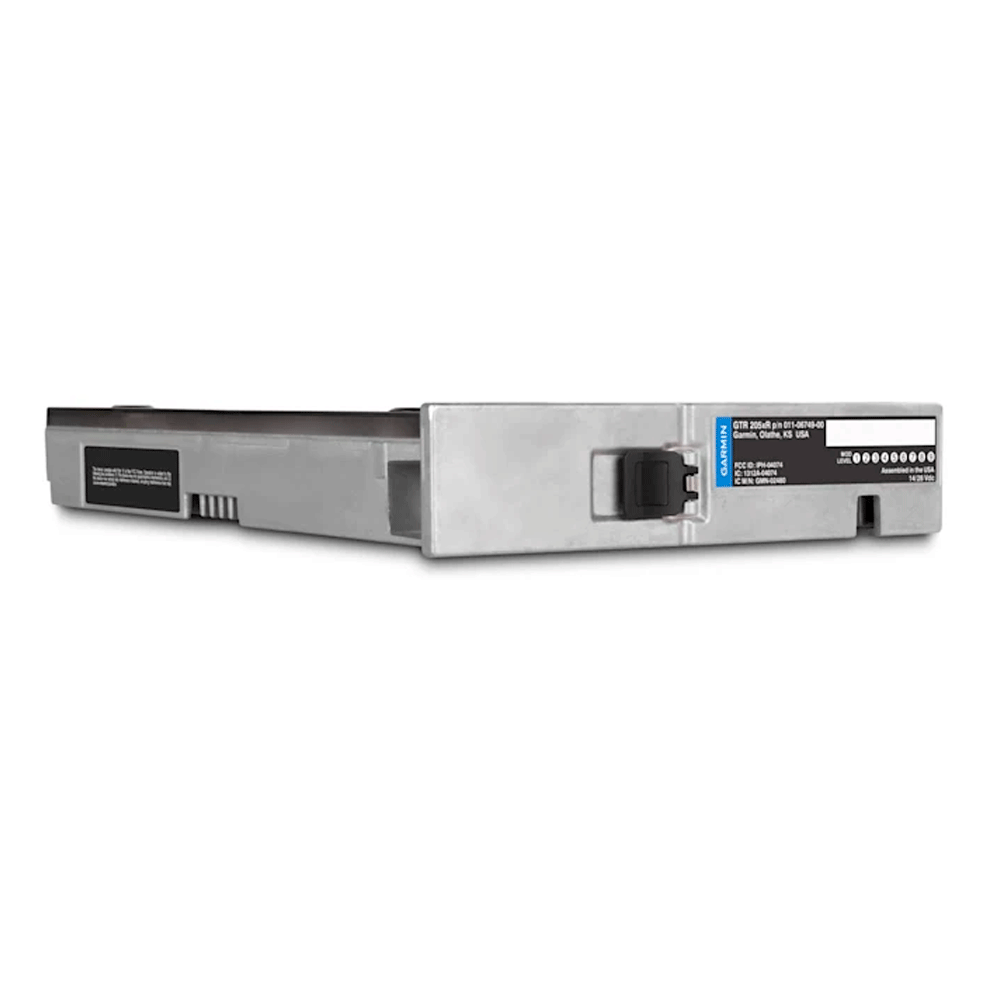

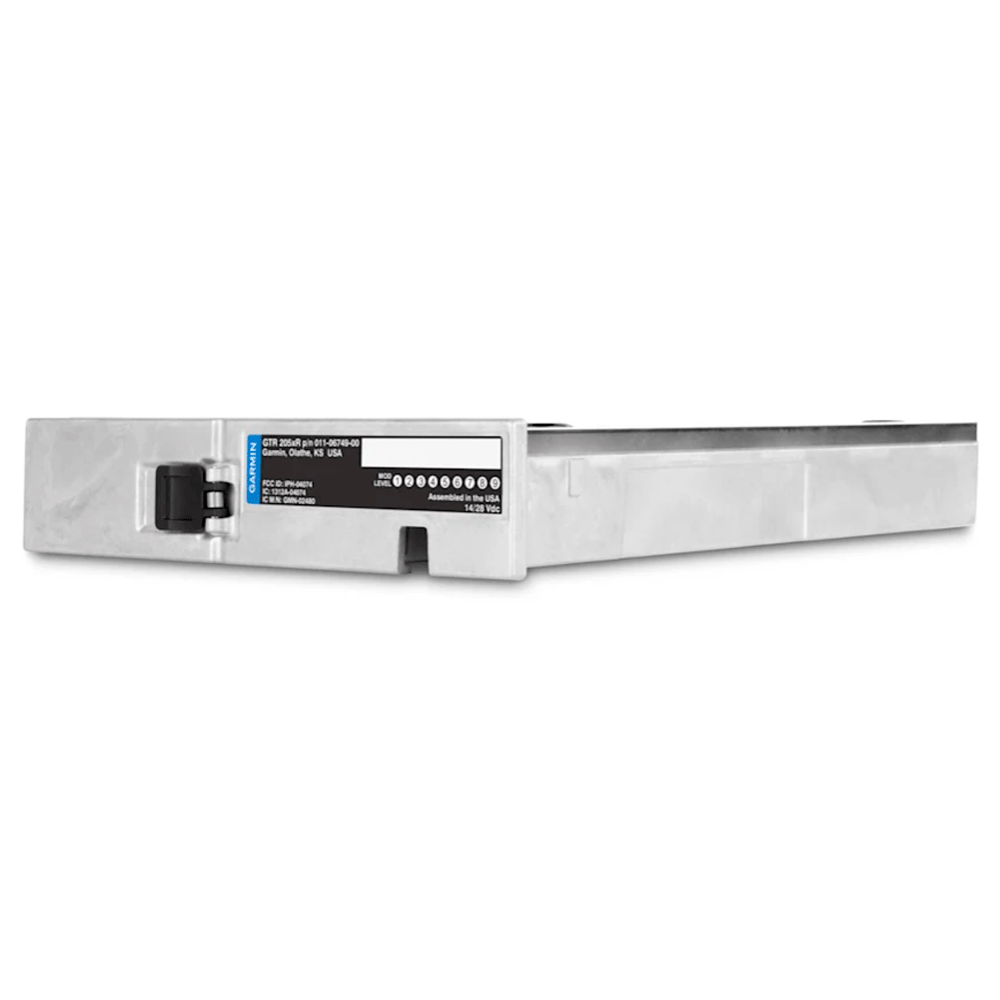

- Save space with the remote-mount GTR 205xR COMM radio, and add advanced communication and audio capabilities to your panel.
- Save valuable panel space with remote mounting.
- Control GTR 205xR with your G3X Touch™ flight display.
- Get a two-place intercom with this all-in-one COMM radio.
- Use your flight display’s database to find and select a facility frequency.
- Monitor your standby COMM frequency.
- Use 3D Audio processing to help differentiate between sources.
Features:
VHF COMM TRANSCEIVER
The 2,280-channel capable VHF COMM radio offers 10 watts of transmit power plus pilot-selectable 25 kHz or 8.33 kHz channel spacing. Simply tap the standby position to enter or find your frequency, then tap the active frequency to switch.
FIND A FREQUENCY
Enter an airport identifier into your G3X Touch to look up frequencies for that location (tower, ground, ATIS, clearance delivery, etc.) Then, send the selected frequency to the standby position on the 205xR radio.
FREQUENCY ID
The GPS on your G3X Touch enables frequency ID to show your tuned frequency’s identifier and type, including tower, ATIS, center and more. So you know who you’re talking to.
STANDBY COMM MONITORING
Listen to a standby frequency, such as ATIS, without leaving your active channel.
INSTANT RECALL
With frequency memory and recall, you can quickly tune your most frequently or recently used frequencies.
Specifications:
Performance:
- Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing
- Frequency range: 118.000 to 136.992 MHz
- Transmit power: 10 watts
- Input voltage range: 9 to 33 VDC
- Operating temperature range: -20 to +55 C
Physical:
- Dimensions: 1.35”H x 6.25”W (3.43 cm x 15.88 cm)
- Weight: 2.0 lbs (1 kg), unit only; 2.6 lbs (1.4 kg), with mounting rack and connectors
- Depth: 10.32" (26.21 cm) behind panel, including mounting rack and connectors
In the Box:
- GTR 205xR
- Installation rack
- Connector kit
