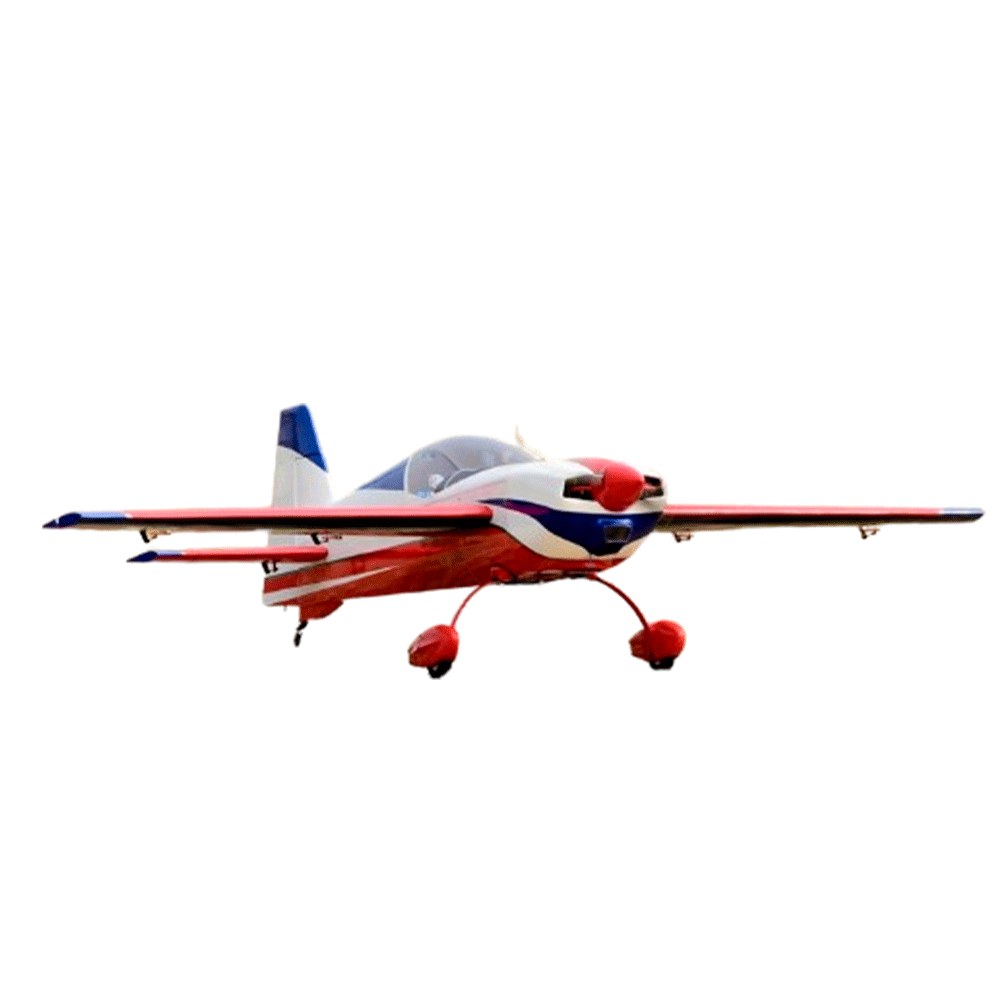

AVIAO SKYWING EXTRA-NG 116" 2.95M ARF A WHITE/RED/BLUE

Specifications:

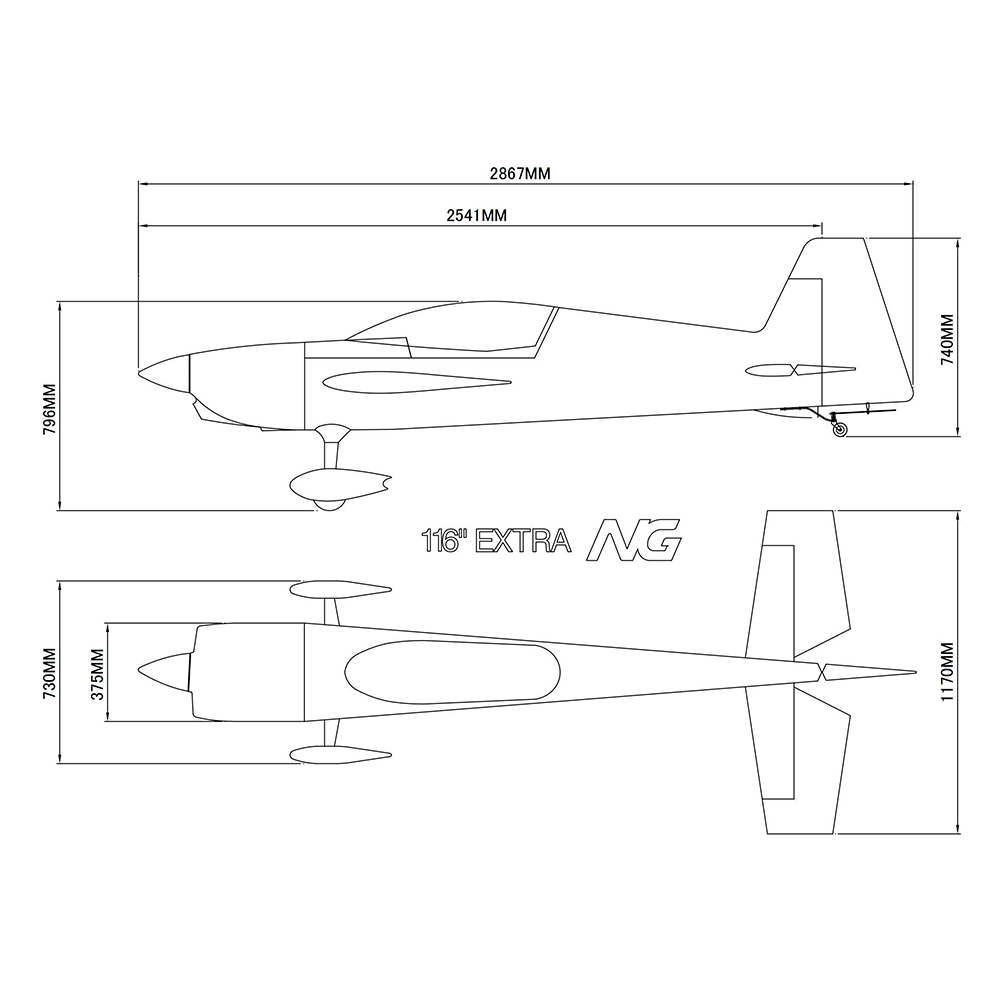

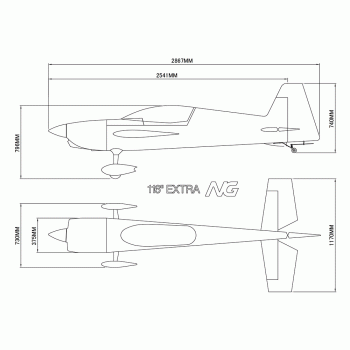

• Wingspan: 116" (2946 mm)
• Length: 112.6" (2862 mm)
• Wing Area: 145.7 dm²
• Weight: 17.5KG
• Setup (Tested):
• Engine: DLE 170
• Servos: BLS-H51B x 7 / CLI 130 x 1
• Propeller: 30x12
• Batteries：2S-3300MAH x 2
• Servo Arm: Elevator = 2" x2, Aileron = 1.75" x 4, Rudder = 2" x1

Requires:

• 150-170CC Gas Engine
• Digital High Speed ​​Servos x 1
• Digital High Torque Servo Metal Gear (38kg or more) 7-8pcs
• Servo arms for hardware 3mm (aileron 4x1.75”; elevator 2x2”; rudder 1 or 2 x 2”) x 7-8
• Carbon propeller 30x13, 31x12, 32x10
• Extensions: Throttle 500mm x 1, Ailerons: 150mm x 2; 700mm x 2
• Dual Servo Harnesses – Receiver, Batteries, Switches, etc

Product Information:

• 1) Advanced construction for demanding pilots;
• 2) Fast assembly time with pre-hinged and pre-sealed ailerons and elevator;
• 3) High quality extensions pre-installed;
• 4) Wing bag – Included
• 5) Spinner, Fuel tank, Fuel Dot, and hose – Included
• 6) Design Skywing PATENTED Quick Wing Assembly;
• 7) Factory assembled canopy interior details
• 8) Carbon fiber wing tube, landing gear and tail wheel assembly.
• 9) Removable rudder with single pin assembly.

Package Size / Package Weight:

• 225 X 56 X 48 / 16.5KG
• 144 x 77 x 22 / 8kg
• 49 x 47 x 45 / 3kg
