Product Information
1) Advanced construction for today's demanding pilots
2)Factory assembled detailed canopy interior
3)Pre-baffled cowling for maximum motor cooling
4)Fast assembly time with pre-hinged and pre-sealed ailerons and elevators
5)preinstalled high quality extensions.
6)Incredible value with carbon fiber wing tube, landing gear and tailwheel assembly.
7)Wing bag and electric spinner - INCLUDED
8)Skwying's PATENTED rapid assembly wing design!

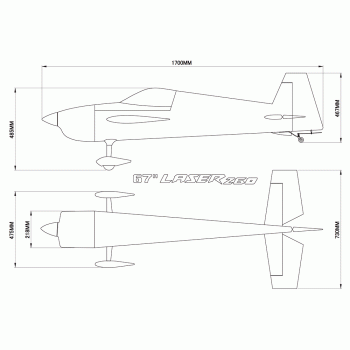

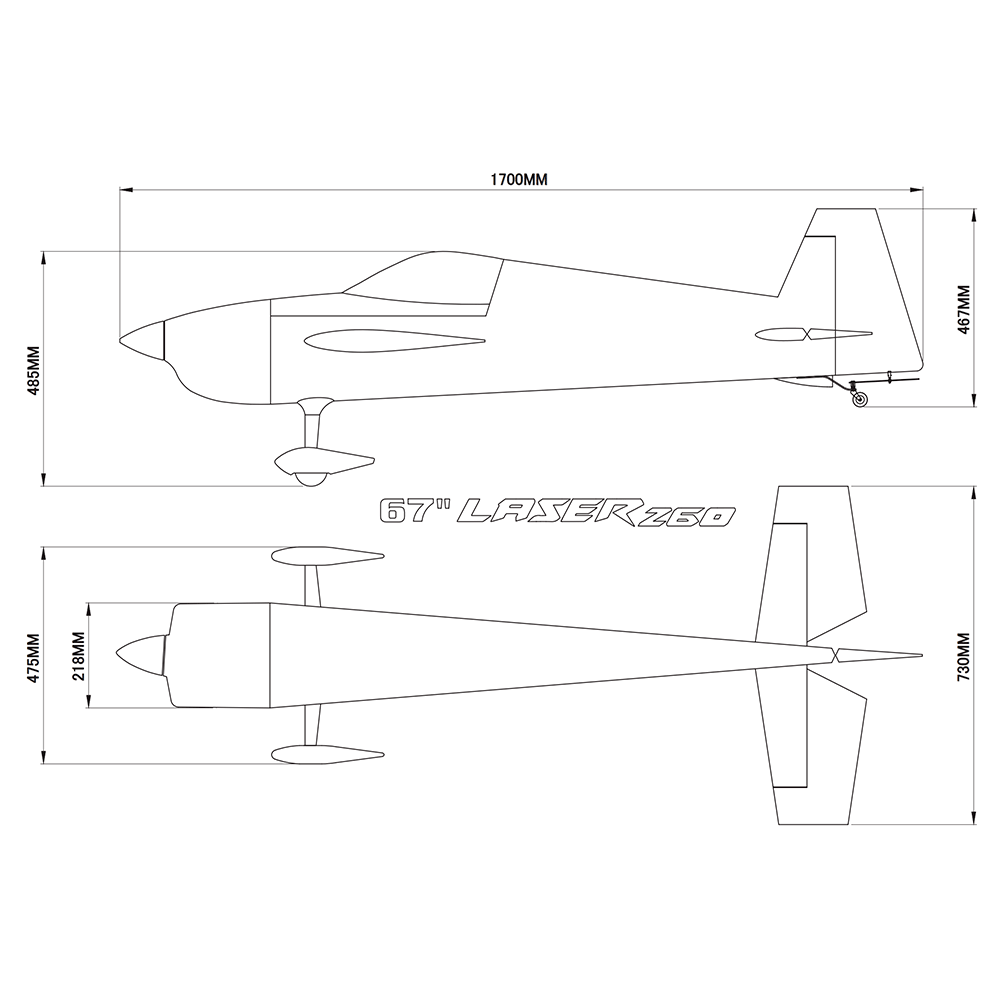

PRODUCT DATA
Wingspan(翼展); 60
Lenqth(机身长); 61.5
Wing Area(翼面积) ;
Packaging Size/ Weight (包装尺寸)
134*49*27cm/7 kg
Test device
【Motor 】:dualsky GA1500R
【ESC 】:Hobbywing Platinum 100A V3
【Servos 】:theta THM988 HV
【Propellor 】:16*8
【power supply 】:6S/3300-3700mah
【spinner 】:2.5“(63mm)
【servo Arms 】:Elevator =1" *1, Aileron =1.25" *2 , Rudder=1" *1
REQUIRED:
1) Brushless motor*1pcs
2) Carbon Propeller (16X8)*1pcs
3) 90A-120A ESC *1pcs
4) Digital High Torque Metal Gear Servos 35*15mm/10kg*4pcs
5) 1"-1.25" Arms - tapped for 2mm hardware (ailerons 1"x 2, elevator 1.25”x 1 rudder 1.25" x 1)
6) 6s 3000-4000mah LiPo battery*1

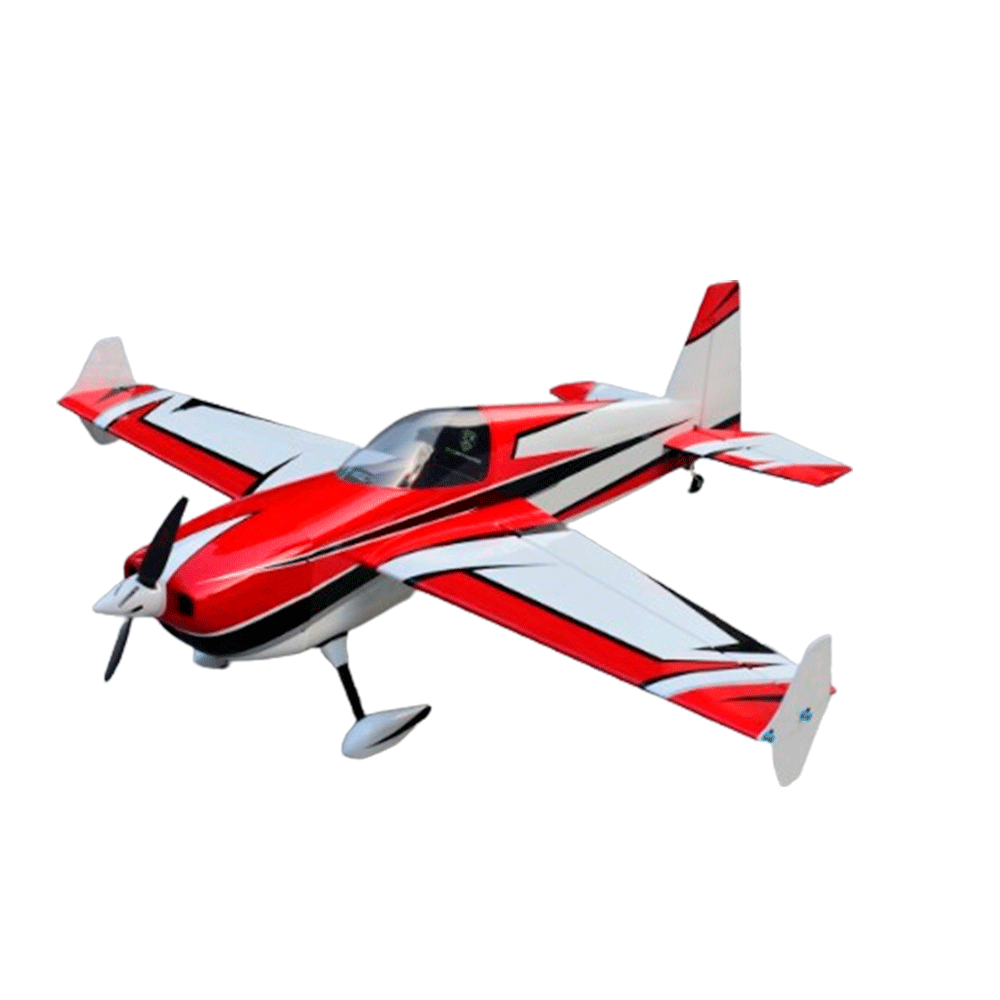

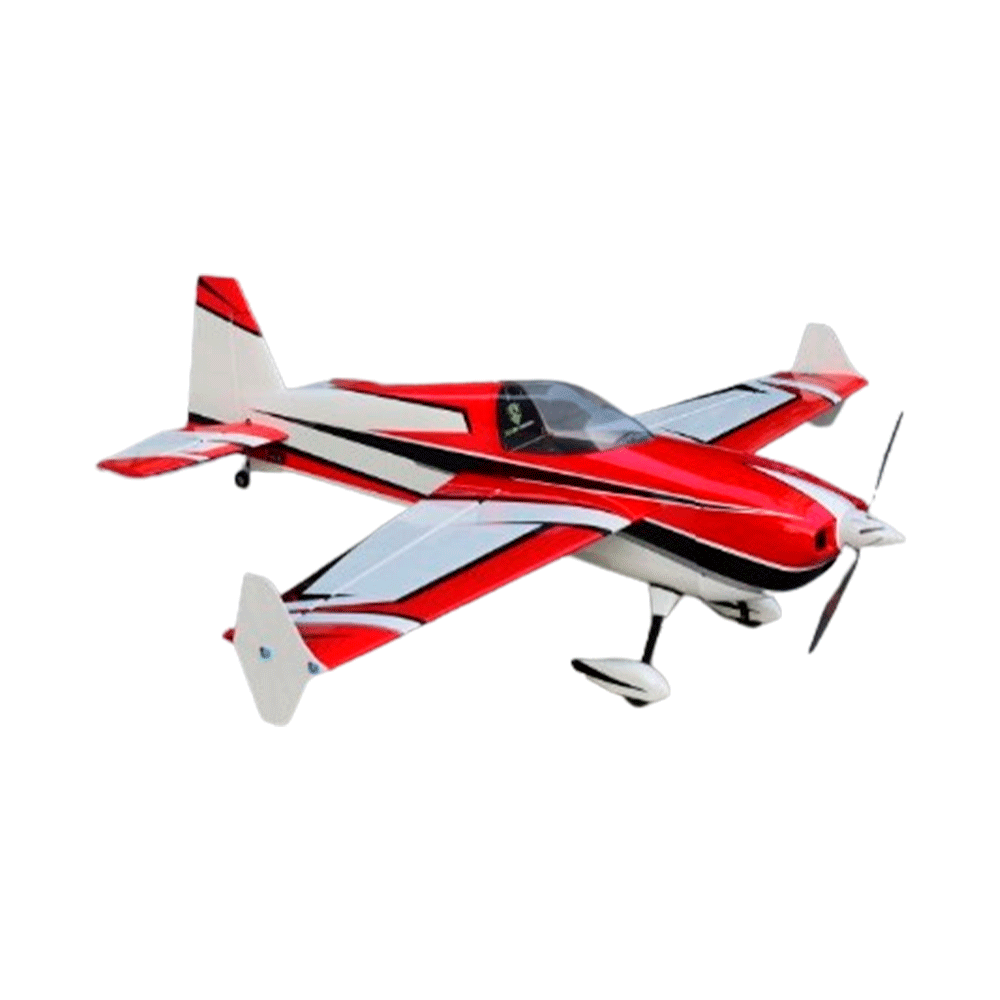

Product details photo

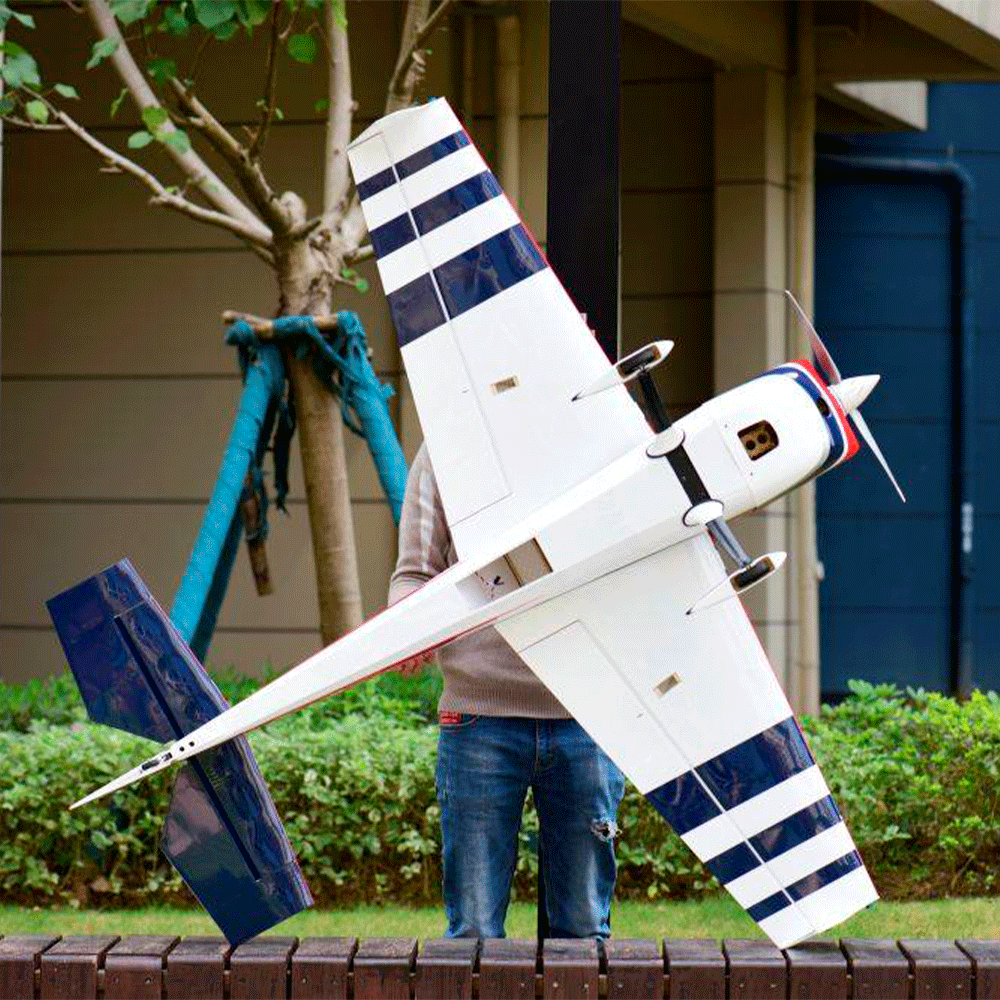

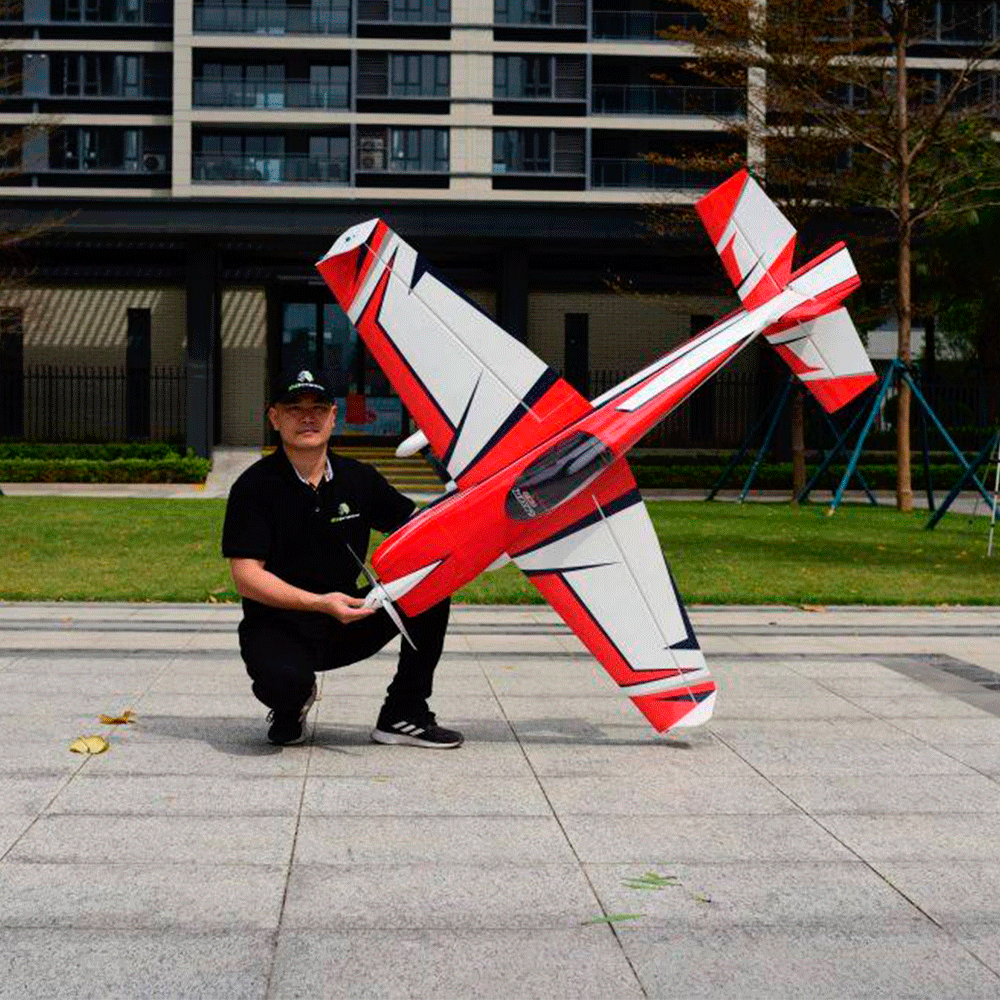

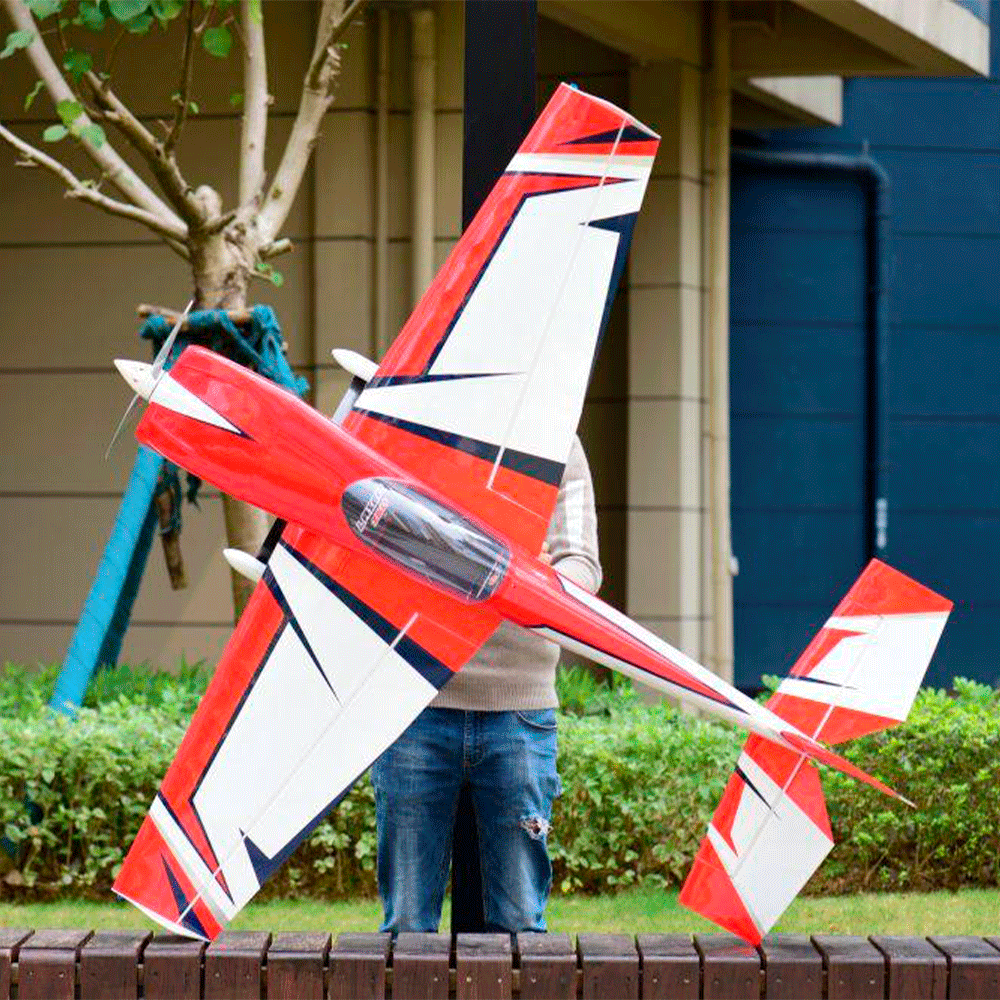

Appreciation of static pictures

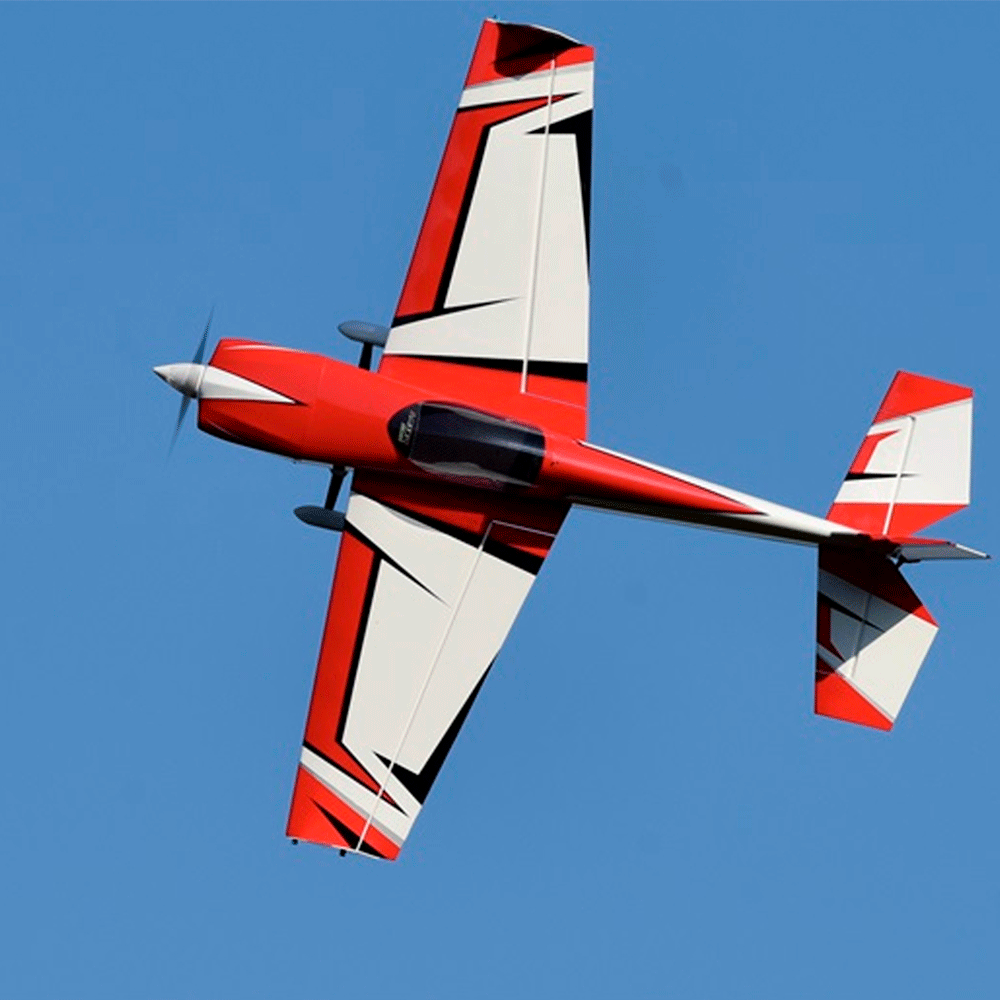

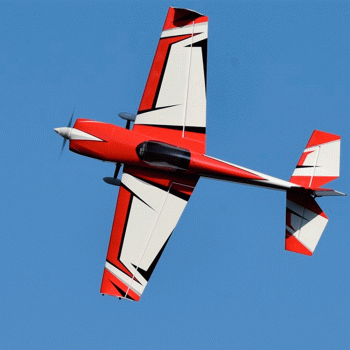

Flight appreciation
