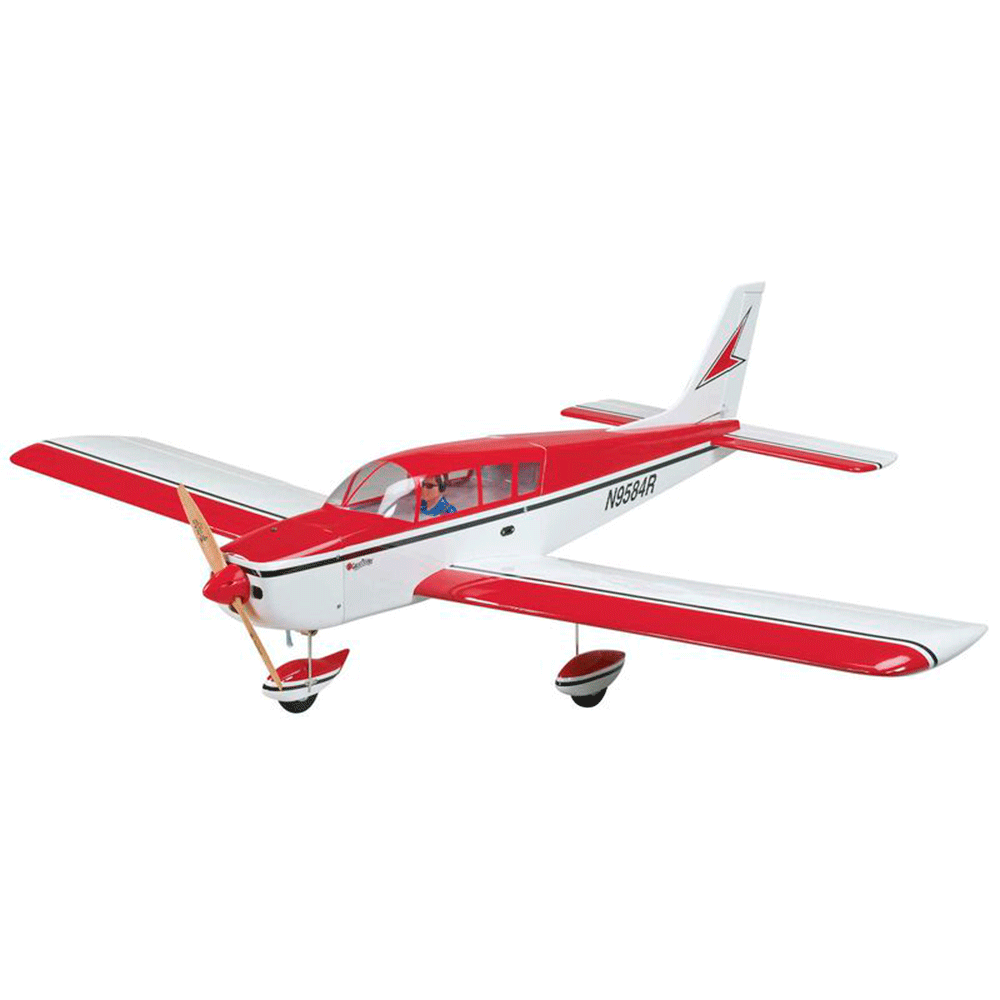

AVIAO GP CHEROKEE .40-.46 GP-EP ARF 60" GPMA1033

Product Details

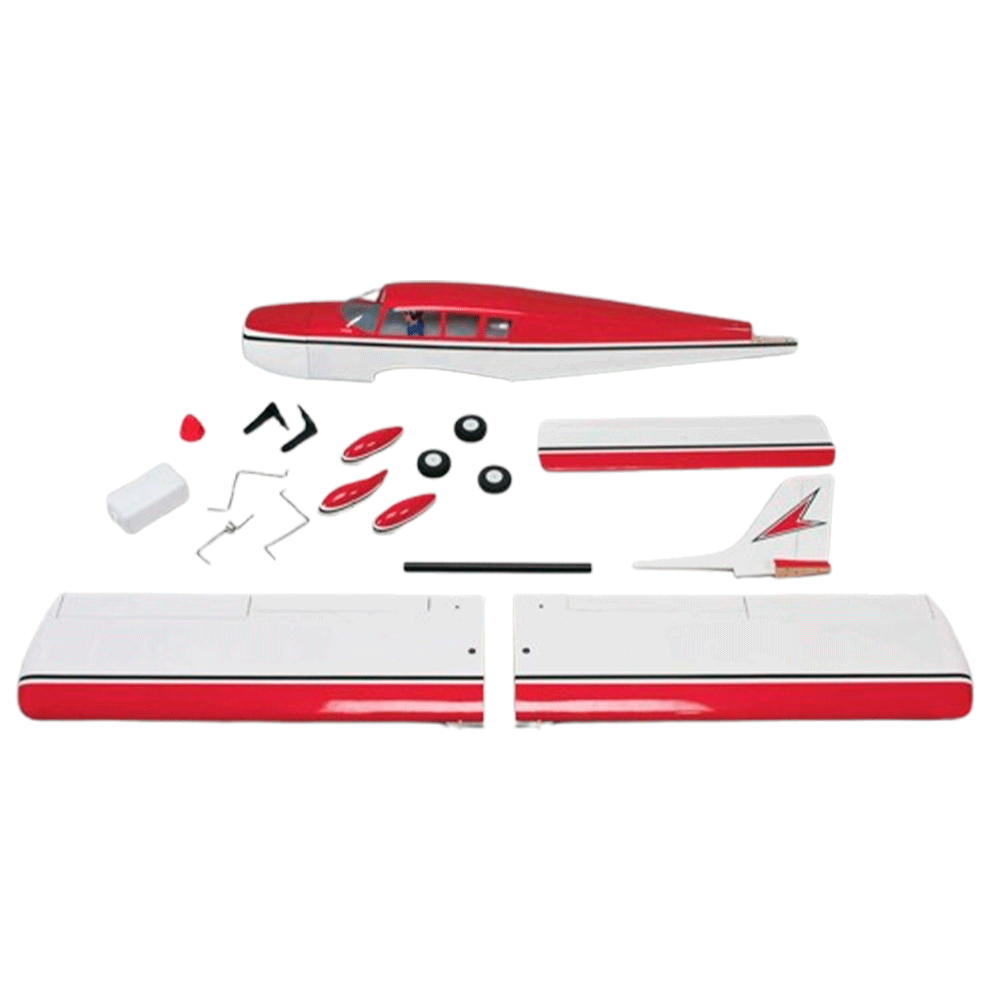

In The Box

• (1) Cherokee .40-.46 GP EP ARF

 Needed to Complete

• (1) 4+ Channel Radio System
• (4) Standard-Size 44 oz.-in.(3.2 kg-cm) Servos
• (2) 9" Servo Extensions
• (1) .40-.46 (7 - 7.5cc) 2-Stroke Engine OR .52 - .56 (8.5 - 9.2cc) 4-Stroke Engine (For Glow Power)
• (1) Pitts Style Muffler (For Glow Power)
• (1) 42-50-800kV Brushless Outrunner Motor (For Electric Power)
• (1) Receiver Battery (For Glow Power)
• (1) Electronic Speed Control (For Electric Power)
• (1) 11.1V 3S 3200mAh LiPo Battery (For Electric Power)
• (1) Battery Charger

Product Specifications

• Battery Sold Separately
• CG (Center of Gravity) 3-1/16" (78mm) Back from the wing's leading edge
• Charger Sold Separately
• Completion Level Almost Ready-To-Fly
• LiPo Compatibility 3S
• Material Wood
• Motor Size 42-50-800kV
• Motor Type Brushless
• Muffler Type Pitts Style
• Power Type Electric/Nitro
• Product Length 46" (1168 mm)
• Product Weight 6.75 - 7.25 lb (3060 - 3290g)
• Radio Sold Separately
• Receiver Sold Separately
• Servos Sold Separately
• Skill Level Level 3S
• Speed Control Sold Separately
• Wing Area 606 sq in (39 sq dm)
• Wingspan 60" (1524 mm)

Overview:

• After mastering a 4-channel trainer, a modeler is ready to move up to the next level, and this Cherokee ARF is the ideal offering. Pilots will find that not only is it sized for transportation ease, it also flies well with popular .46-sized engines – which makes it easier for you to support. Great Planes' Cherokee ARF also serves as a great transition into brushless electric power, along with the thrill of low-wing flight. And the sport-scale Cherokee profile is a great change-of-pace from Stiks and Cubs!

Features:

• Just 4-6 hours of final assembly are required to get this ARF flight-ready.
• Using a 5-channel radio, the Cherokee can be flown with optional flaps that add realism and allow the plane to come in super-slow for landings.
• The entire top canopy attaches and removes with two screws, for easy access to on-board gear and the LiPo flight pack (if flying with brushless power).

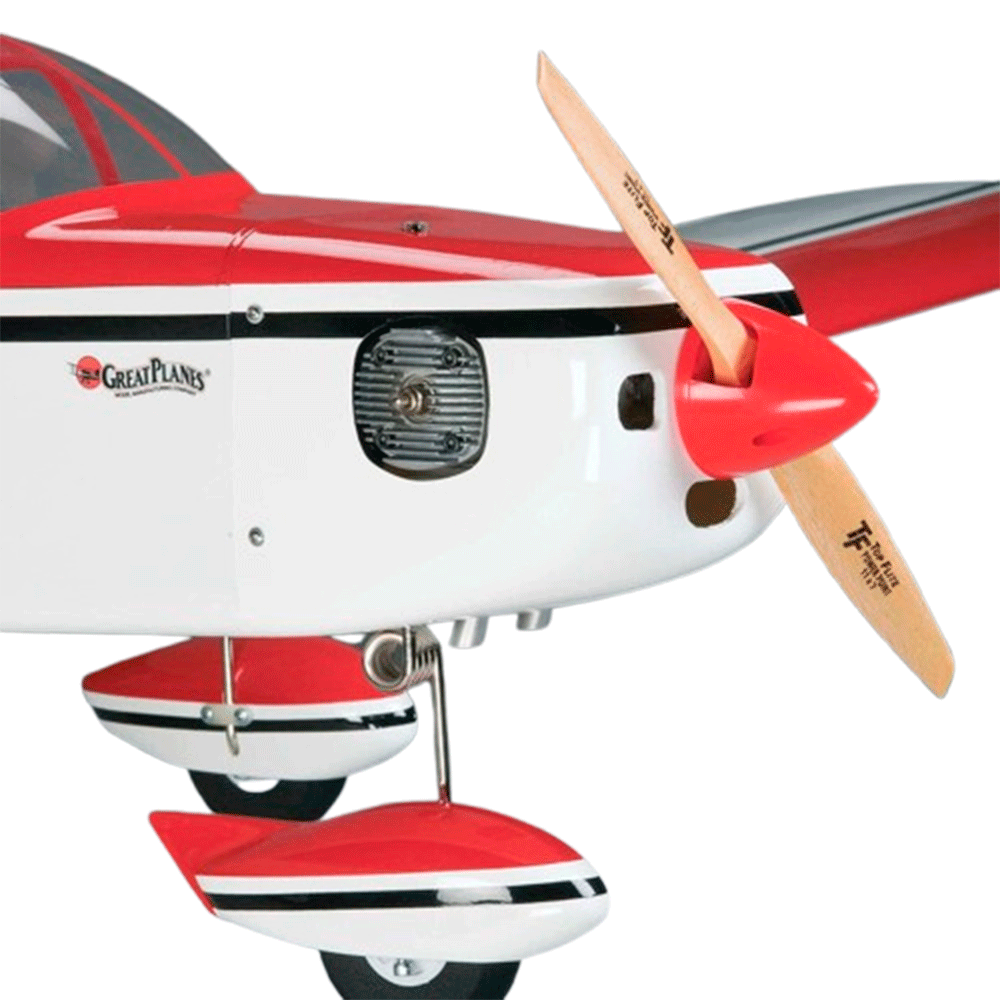

Glow or Electric

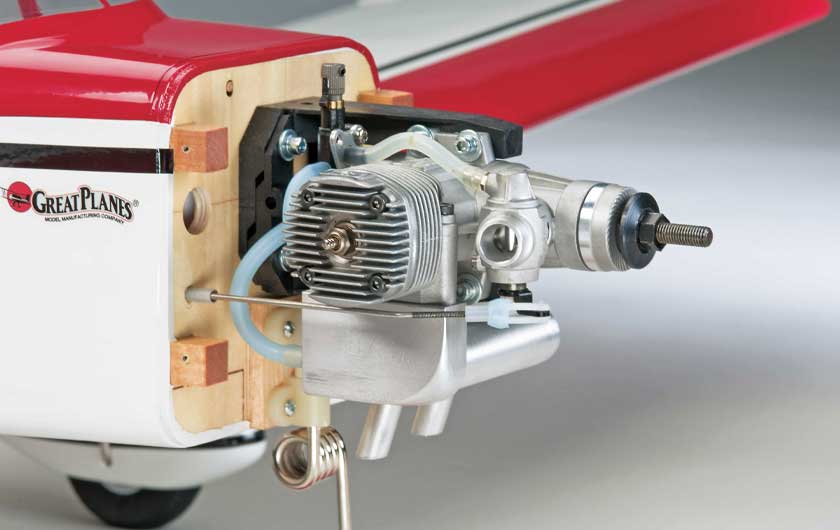

The Cherokee excels with 2- or 4-stroke glow or brushless electric power. Detailed instructions take you step-by-step through installation of either power choice.

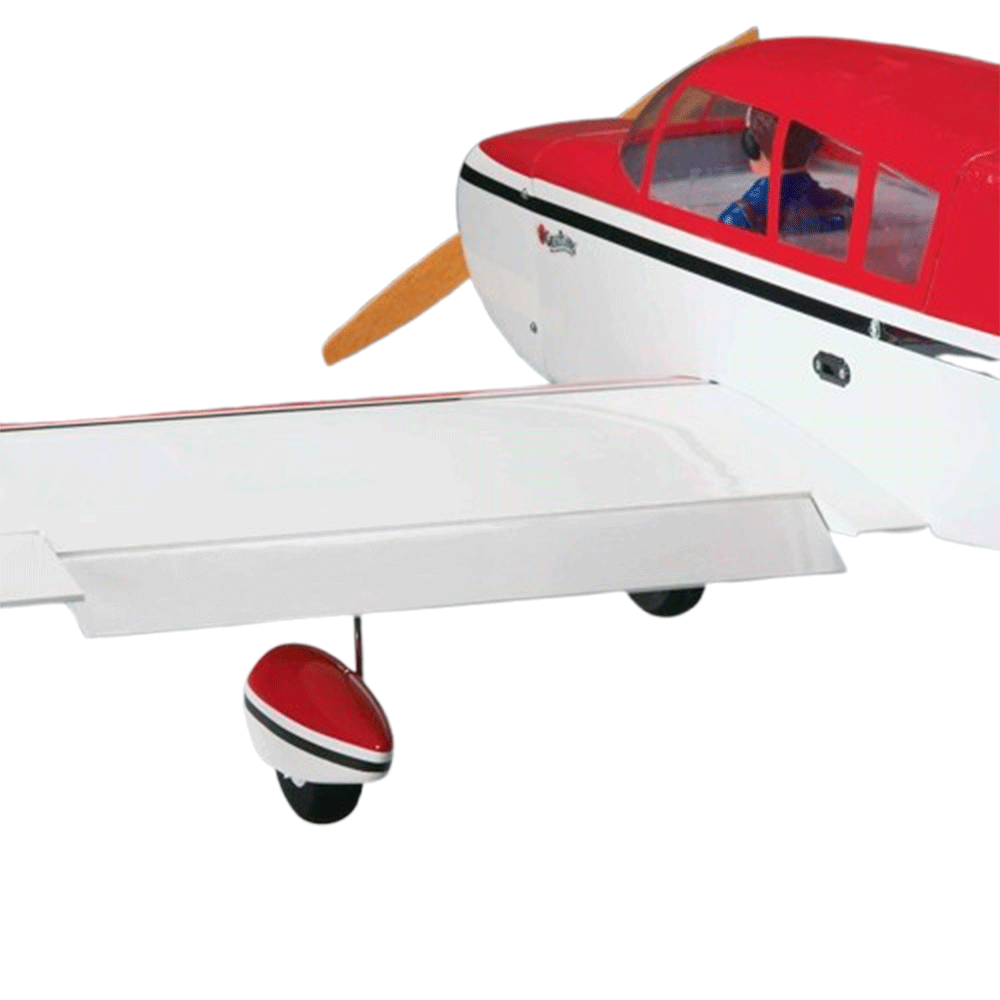

Control Surfaces

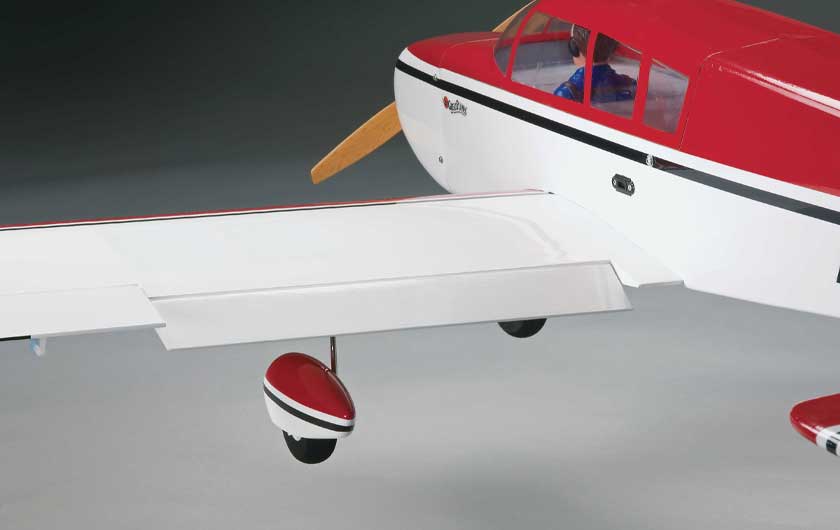

Separate standard servos control the pre-hinged ailerons and flaps. Flap operation requires 5-channels; a 4-channel radio can be used to fly without working flaps. Hardware for both setups is provided.



Easy Construction

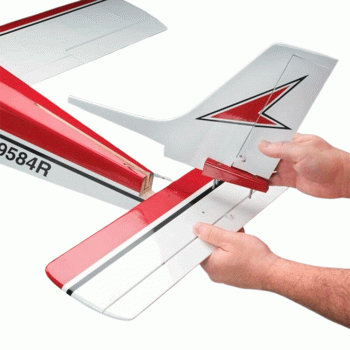

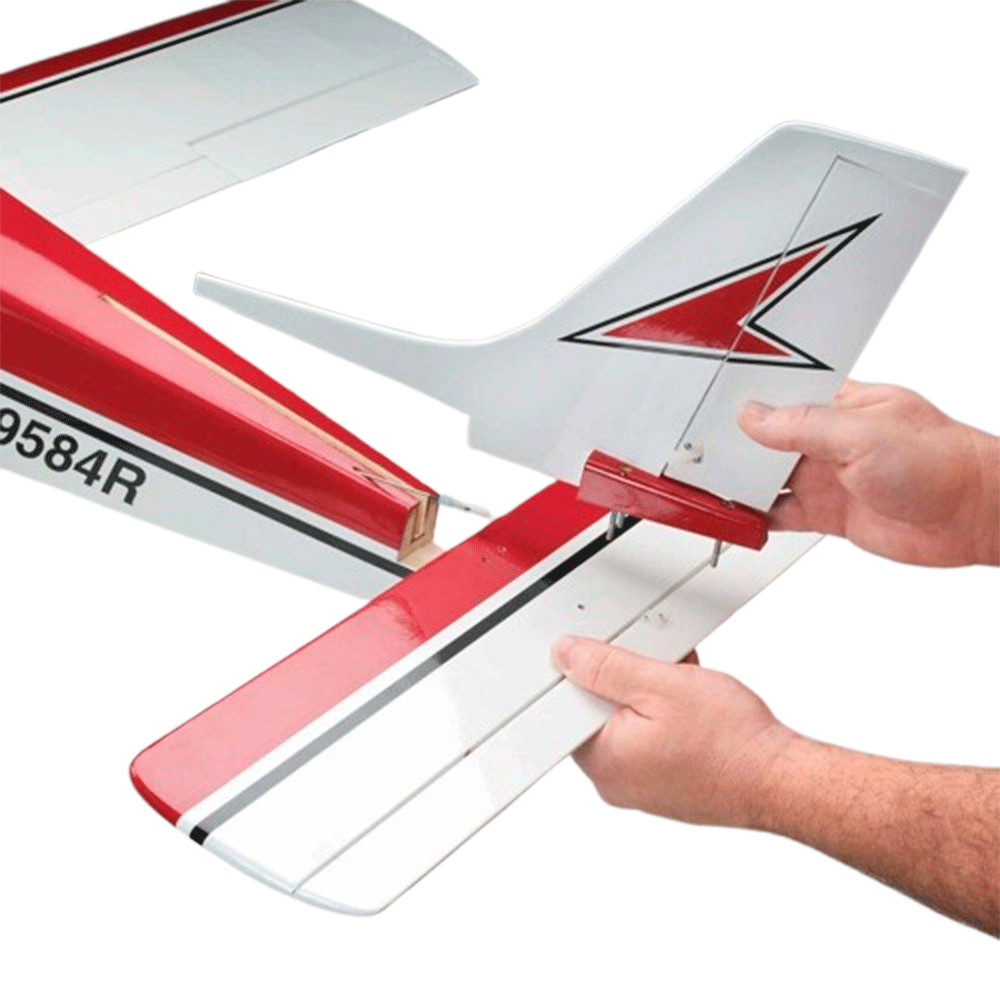

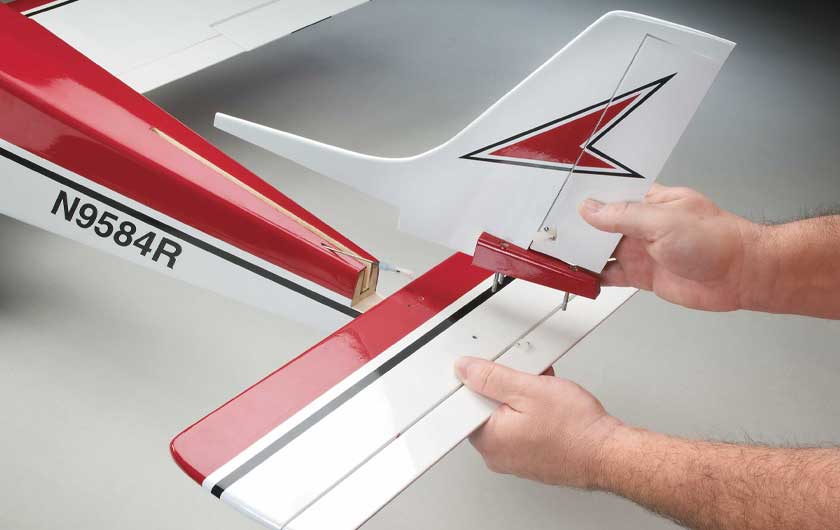

The horizontal and vertical stabilizers install quickly with screws, which align them automatically (no measuring or glue required!) and allow for easy removal of the surfaces for transport if desired.



Battery Hatch

The cockpit area – with installed pilot figure – doubles as a hatch that removes for easy access to batteries for an outrunner brushless motor system. The fuselage offers generous space for radio gear, allowing you to use standard-sized servos and receivers.
