- Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
- Power input voltage/rated input current: 4.1-5.7 V / 2.5 A
- Power rated output/input power: 14 W
- USB port input voltage/rated input current: 4-5.7 V / 250 mA
- Servo rail input voltage: 3.3 V / 5 V
- Not waterproof. External waterproof protection is needed
- Operation Temperature: -10 °C / 55 °C
- Cube Orange+ Housing Material: CNC Aluminum Alloy
- ADSB Carrier Board Housing Material: ABS Molding
Description
MPN: HX4-06222
Manufacturer: CubePilot
UPC (GTIN): 9359453000374
NDAA 2023 Compliant Autopilot
Description

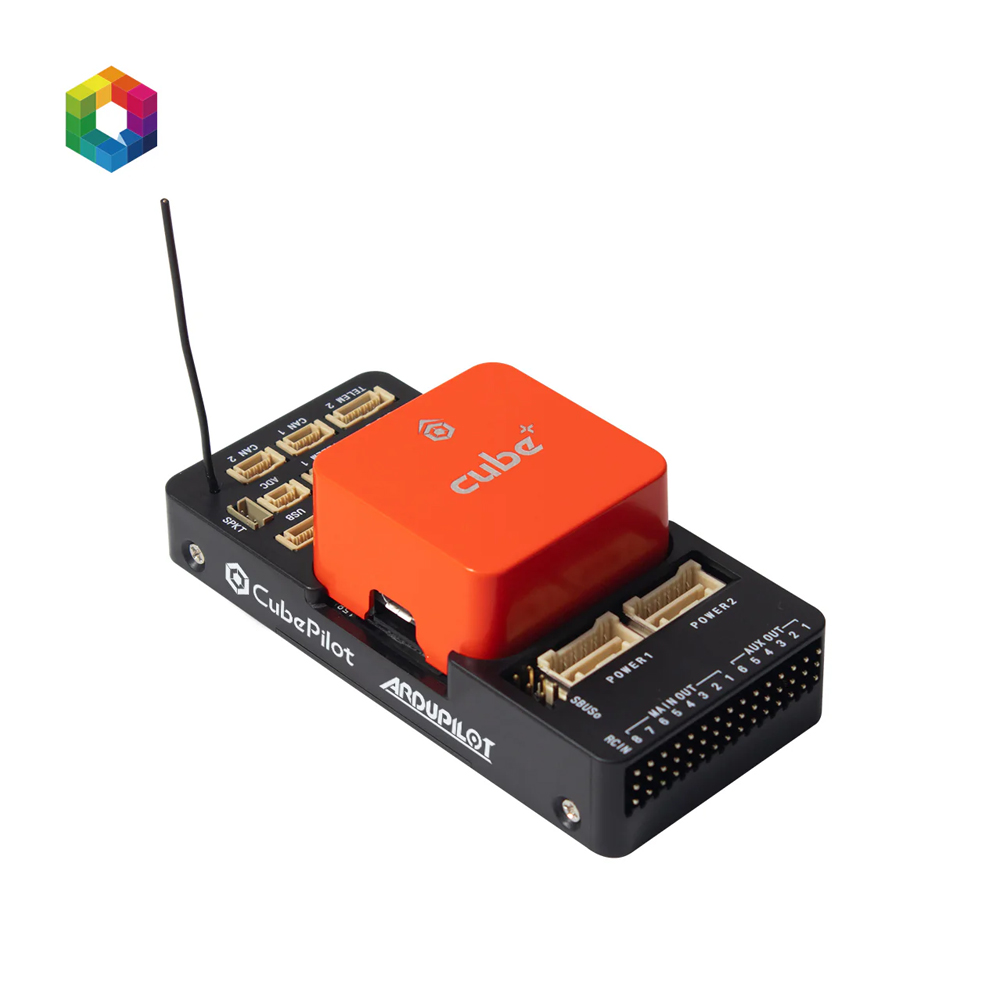

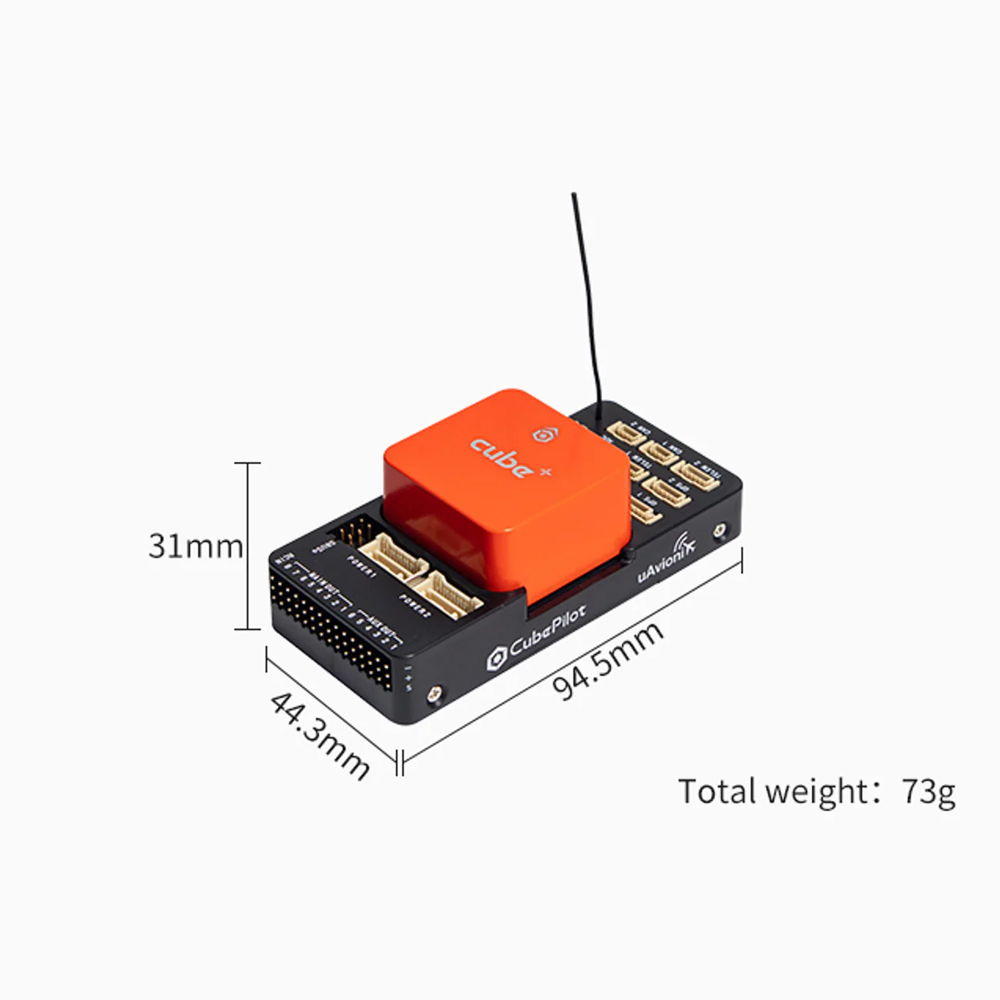

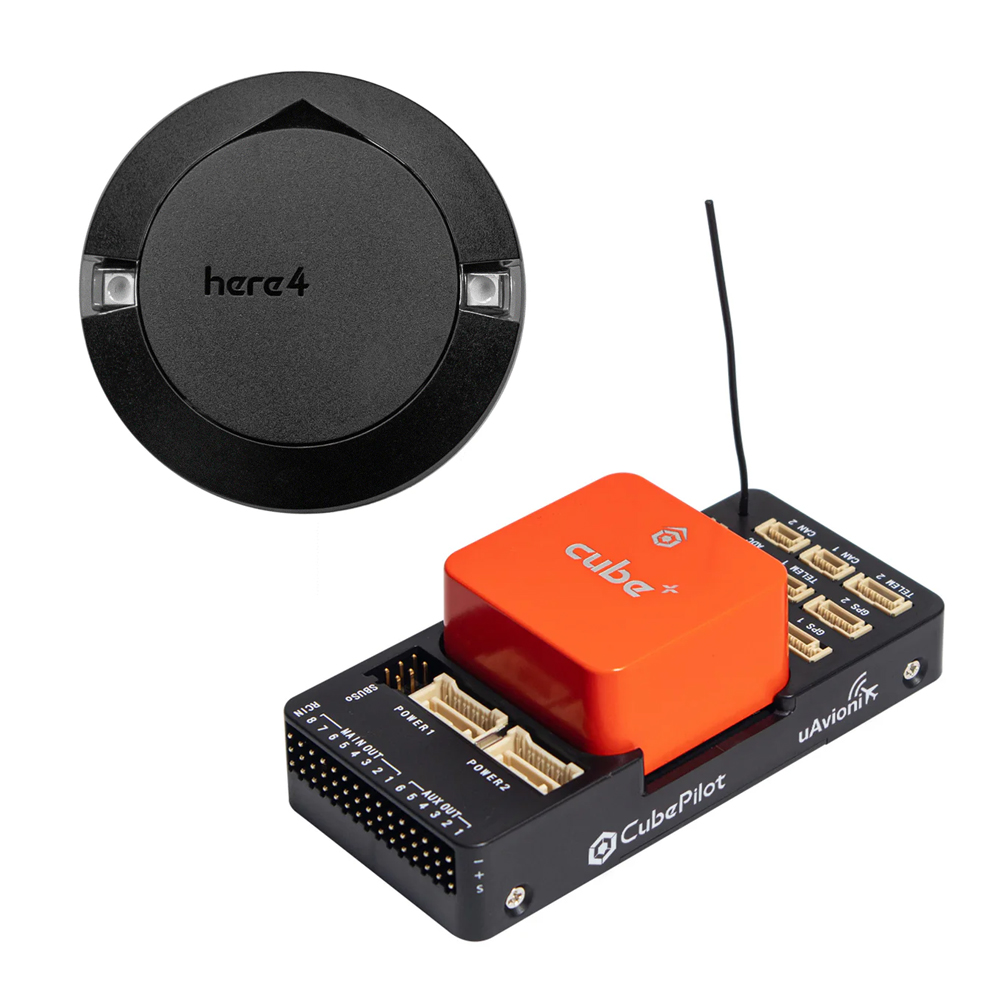

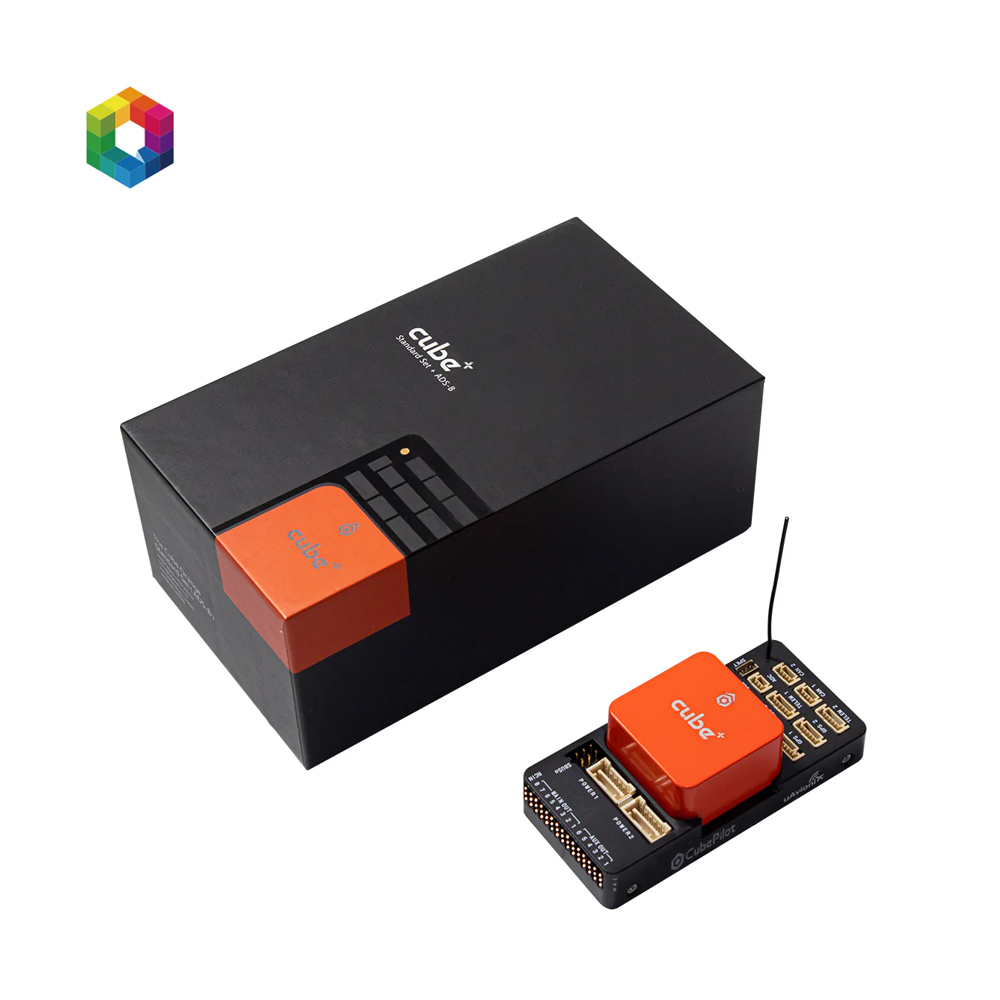

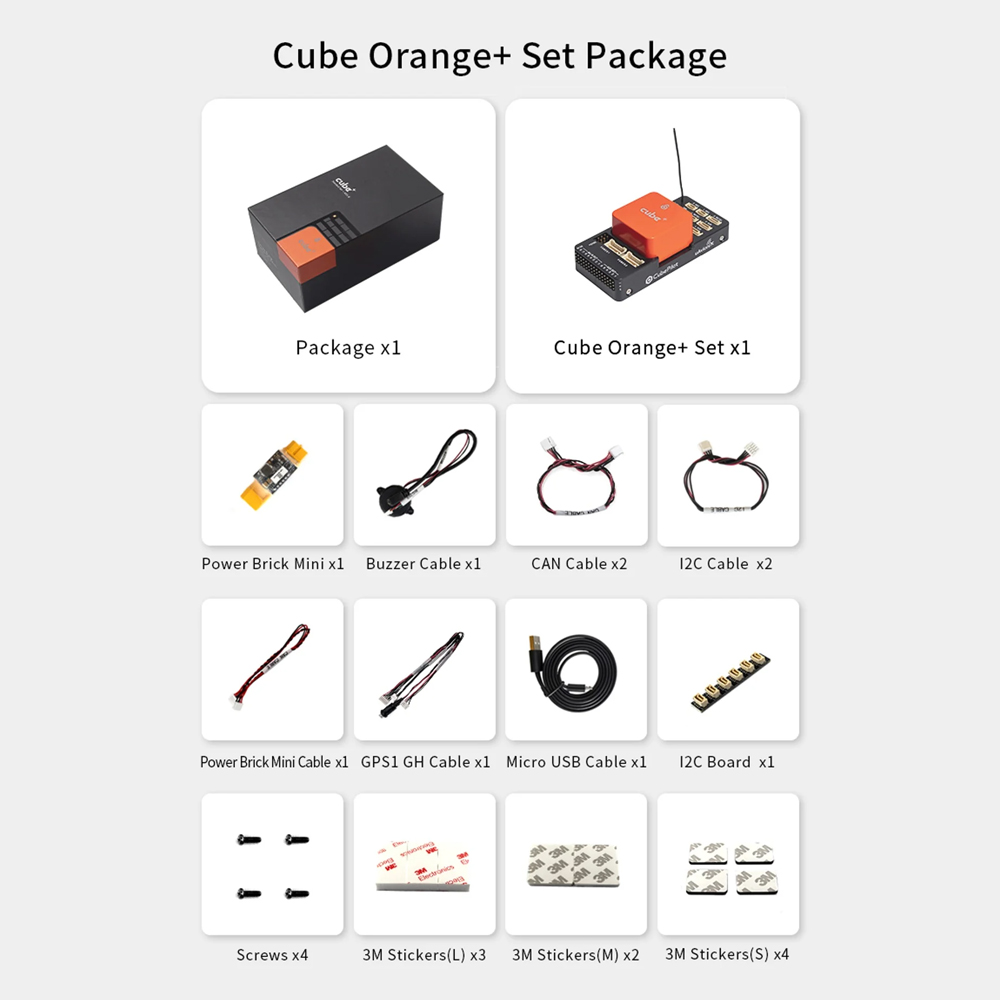

The Cube Orange+ Standard Set features a high-performance H7 processor and the 1090MHz ADS-B receiver from uAvionix. The Cube Orange+ has upgraded IMUs and the STM32H757 MCU. The autopilot can be set up to automatically avoid aircraft that are detected in an exclusion zone set by the pilot. Previously known as Pixhawk 2.1.
This product has the new Balanced Gyro (BG) sensors. Also, the Cube color is slightly darker now. For more details see the engineering change notice.
Features
Description
MPN: HX4-06248
Manufacturer: CubePilot
Overview

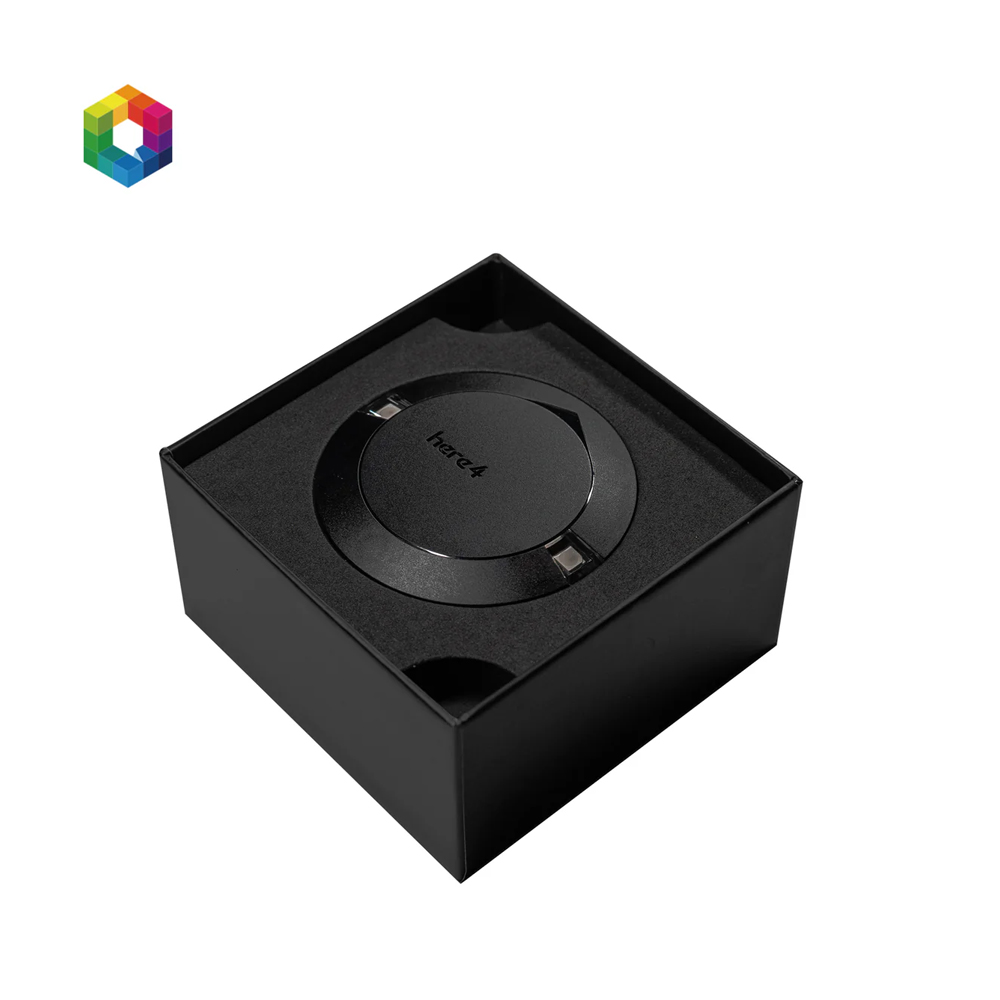

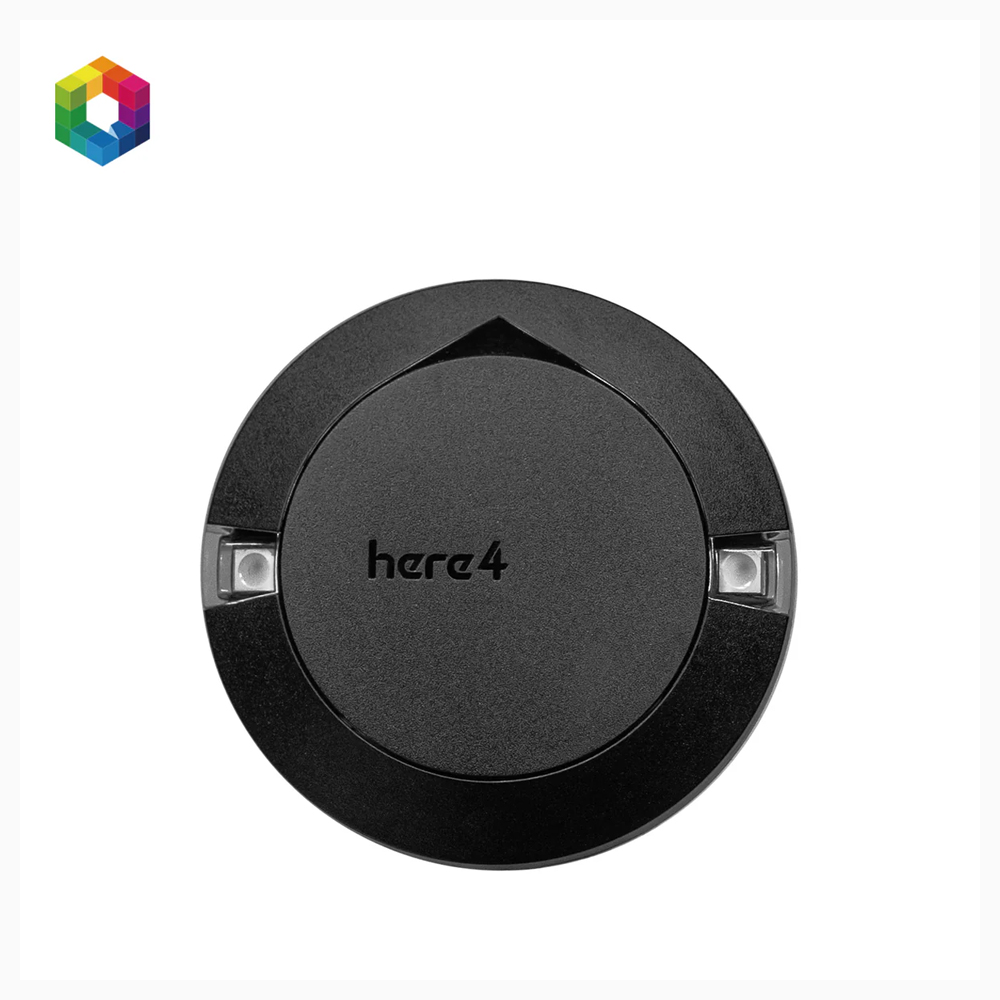

Here 4 is a professional High Precision Dual-band RTK Navigation module. It supports multiple GNSS options such as BeiDou, Galileo, GLONASS, GPS, QZSS.
The Here 4 utilizes advanced algorithms and multi-frequency DGNSS signals to quickly achieve an RTK Fix within seconds. This results in highly reliable positioning at an accuracy within centimeters.
The Here 4 goes beyond being a simple GNSS module. It combines flight control and navigation functionalities into a single device. With 8 PWM or BDSHOT outputs, an RCIN, Hotshoe, and camera trigger, it offers a self-contained solution for accurate mapping and precise control capabilities.
Features
1. Equipped with u-blox F9P, a professional high precision Dual-band RTK navigation module.
2. Powerful processing performance provided by a built-in STM32H7 chip. It offers real-time processing and data optimization, and Unmanned Industry standard AP_Periph Firmware.
3. The tailor-made Dual-band antenna from Taoglas supports L1and L5 frequencies. It features high gain, high sensitivity, and high stability.
4. *Blue version supports Drone-ID
5. Here 4 uses multi-frequency DGNSS signals with advanced algorithms. This allows fast convergence to an RTK Fix, achieving more reliable and stable centimeter level positioning.
6. The Here 4 module is 16 x 68mm and 60g.
7. LED embedded with ProfiLEDs. Built-in multiple display modes for notification or navigation signals. Display modes can be selected according to specific scenarios via parameters or onboard Lua Scripting.
8. CAN FD, real time, and high transmission rate.
9. Built-in IMU. Through future firmware updates, Here 4 can achieve tightly coupled DGNSS-INS-fusing solutions.
Documentation
https://docs.cubepilot.org/user-guides/here-4/here-4-manual

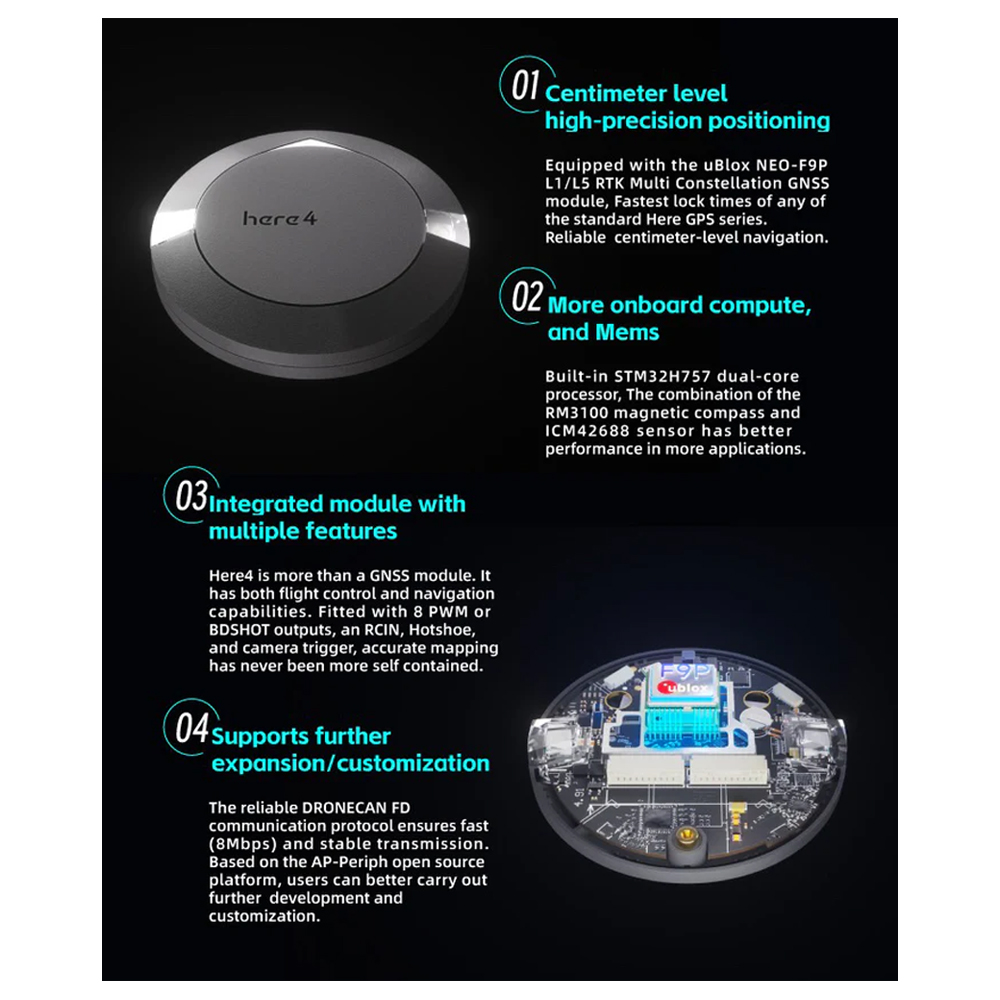

Centimeter level high-precision positioning: Equipped with the uBlox NEO-F9P L1/L5 RTK Multi Constellation GNSS module. Fastest lock times of any of the standard Here GPS series. Reliable centimeter-level navigation.
More onboard compute and mems: Built-in STM32H757 dual-core processor. The combination of the RM3100 magnetic compass and ICM42688 sensor has better performance in more applications.
Integrated module with multiple features: Here4 is more than a GNSS module. It has both flight control and navigation capabilities. Fitted with 8 PWM or BDSHOT outputs, an RCIN, Hotshoe, and camera trigger, accurate mapping has never been more self-contained.
Supports further expansion/customization: The reliable DRONECAN FD communication protocol ensures fast (8Mbps) and stable transmission. Based on the AP-Periph open source platform, users can better carry out further development and customization.
