DJI DOCK 2 (OVERSEAS EDITION)

• DJI Dock 2 integrates multiple sensors, including rainfall, wind speed, and temperature gauges, to perceive real-time weather changes. In conjunction with online weather forecasting, it can provide timely warnings or terminate flight tasks using DJI FlightHub 2 to effectively reduce flight risk.

Improved Landing Stability

• With next-gen image recognition technology, the aircraft accurately identifies positioning markers on the landing pad. Additionally, the landing pad's new slide-ramp centering design further facilitates precise landing.

Built-In Backup Battery

• In the case of an unexpected power outage, DJI Dock 2 can continue to operate independently for over five hours  with the built-in backup battery, leaving sufficient time for the aircraft to return and land.

Six-Month Maintenance Interval

• With its high level of protection and reliability, DJI Dock 2 only requires maintenance approximately every six months, effectively controlling human resource costs.

Abnormal Condition Notifications

• If DJI Dock 2 and the aircraft encounter task failures or emergencies, DJI FlightHub 2 will immediately send email notifications. This allows operators to accurately trace and troubleshoot problems based on the provided information.

High-Performance Aircraft Models

The all-new DJI Matrice 3D/3TD is specifically designed for DJI Dock 2. Matrice 3D is equipped with both a tele camera and a wide-angle camera with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks. Matrice 3TD, outfitted with a wide-angle camera, a tele camera, and an infrared camera, can depict both visible light and thermal images, making it suitable for security and inspection operations.

Steady Operation, Uncompromised Efficiency

• DJI Dock 2 integrates dual RTK antennas, allowing the aircraft to obtain accurate RTH location information without waiting for the RTK data to converge. It also performs a complete propeller inspection and takeoff in as short a time as 45 seconds, quickly entering operational status.

Quick Charging

• DJI Dock 2 charges the aircraft from 20% to 90% in just 32 minutes for efficient powering for consecutive operations.

Dual-Camera Monitoring

• DJI Dock 2 features an internal and an external fisheye camera to achieve real-time display. Close monitoring within and outside the dock allows the operator to remotely observe weather conditions, environmental circumstances, and the aircraft's takeoff and landing.

Specs DJI DOCK 2

• Product Name

• DJI Dock 2

• Total Weight

• 34 kg (without aircraft)

  The actual product weight may vary due to differences in batch materials and external factors.

• Dimensions

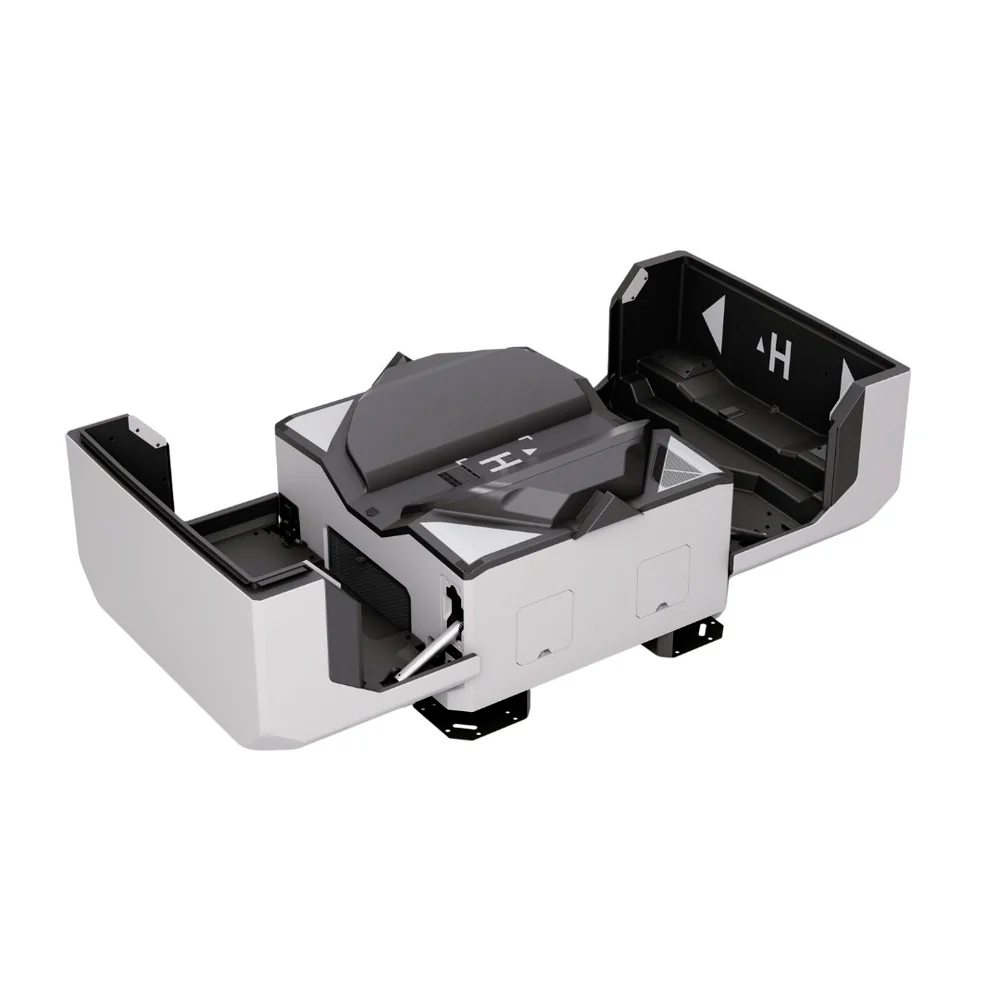

• Dock Cover Opened: 1228×583×412 mm (L×W×H)
  Dock Cover Closed: 570×583×465 mm (L×W×H)

  The above data does not include the height of the wind speed gauge (145 mm) but includes the height of the mounting base brackets (55 mm).

• Input Voltage

• 100-240 V (AC), 50/60 Hz

• Input Power

• Max 1000 W

• Operating Temperature

• -25° to 45° C (-13° to 113° F)

  When the ambient temperature is below -20° C (-4° F), the dock is in standby status, and the aircraft cannot perform flight tasks.

• Ingress Protection Rating

• IP55

• Number of Drones Accommodated

• 1

• Max Allowable Landing Wind Speed

• 8 m/s

• Max Operating Altitude

• 4000 m

• Receiving Frequency of RTK Base Station Satellite

• Simultaneously receive:
  GPS: L1 C/A, L2
  BeiDou2: B1l, B2l, B3l
  BeiDou3: B1l, B3l
  GLONASS: L1, L2
  Galileo: E1, E5B

• Positioning Accuracy of RTK Base Station

• Horizontal: 1 cm + 1 ppm (RMS)
  Vertical: 2 cm + 1 ppm (RMS)
