IMAX CHARGER B6AC V2 DUAL POWER BALANCE SK-100008-11

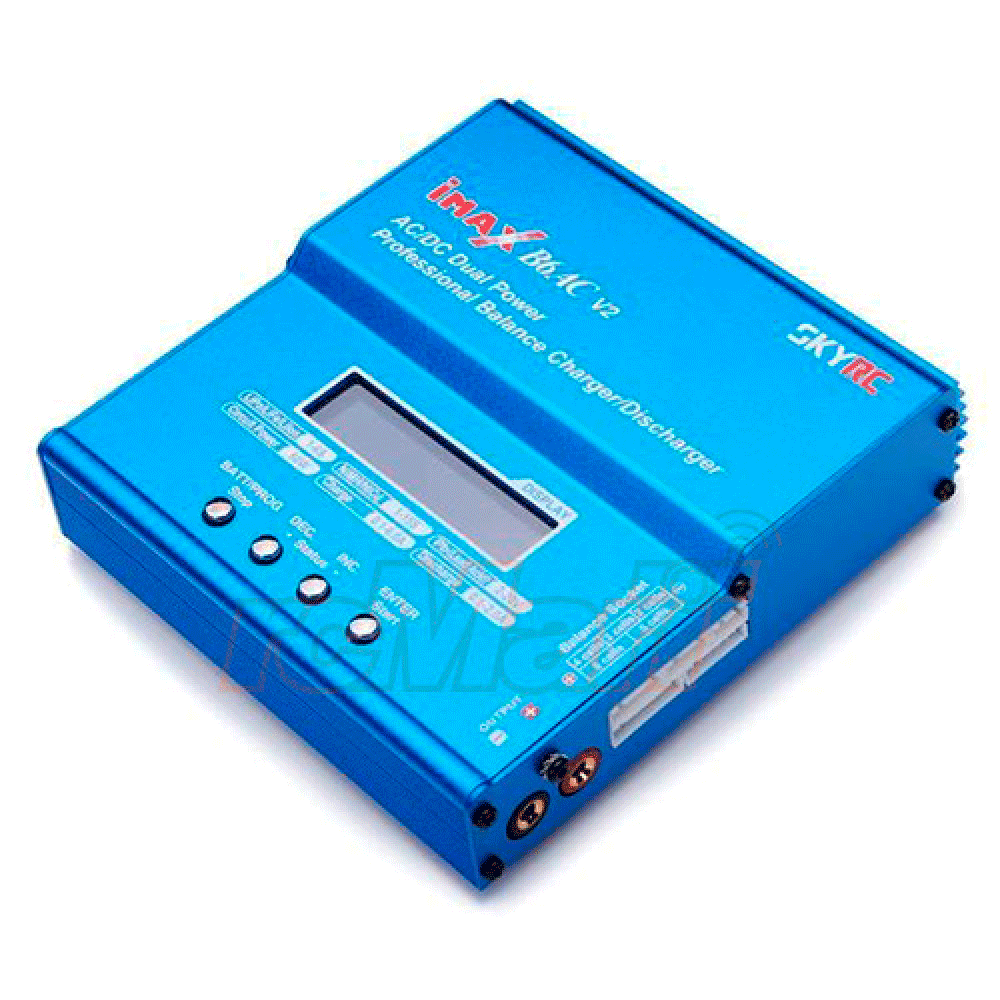

SKYRC iMAX B6AC V2 Professional Balance Charger

Description:

The latest version of the popular IMAX B6AC has arrived and now boasts some unique new features. The latest V2 Model now offers PC connectivity which allows the user to control the charger via your home computer and upgrade the firmware as and when necessary.

The B6AC V2 now gives you the ability to adjust the terminal voltage, which makes the charger the perfect charging solution for heavy duty batteries.

The B6AC V2 can also be used as a Lithium battery meter / internal resistance meter and boasts additional functions which include, automatic charging current limit, capacity limit and processing time limit, making the B6AC V2 one of the safest chargers available today.

Features:

• PC connectivity
• Microprocessor controlled
• Delta-peak sensitivity
• Individual cell balancing
• Li-ion, LiPo and LiFe capable
• Ni-Cd and NiMH capable
• Large range of charge currents and automatic charge current limit
• Store function, allows safe storage current
• Time limit function
• Input voltage monitoring (Protects car batteries at the field)
• Data storage (5 pack memory)
• Battery break in and cycling.
• Terminal voltage adjustment for heavy duty batteries

Specifications:

• AC Input Voltage: 100-240V
• DC Input Voltage: DC11-18V
• Circuit Power: Max Charge: 50W, Max Dischage: 5W
• Charge Current Range: 0.1-6.0A
• Discharge Current Range: 0.1-2.0A
• LiPo/LiFe/LiIon Cells: 1-6S
• NiMH/NiCd Cells: 1-15S
• Pb battery Voltage: 2-20V
• Net Weight: 632g
• Length: 144mm
• Width: 135mm
• Height: 36mm

Included:

• IMAX B6AC V2 Charger (1 pc)
• DC Jack plug to crocodile clips (1 pc)
• male T connector charge lead to 4mm banana plugs (1 pc)
• XT60 charge lead (1 pc)
• JST charge lead (1 pc)
• Crocodile clip charge lead (1 pc)
• Futaba style charge lead (1 pc)
• Mains power lead (1 pc)
