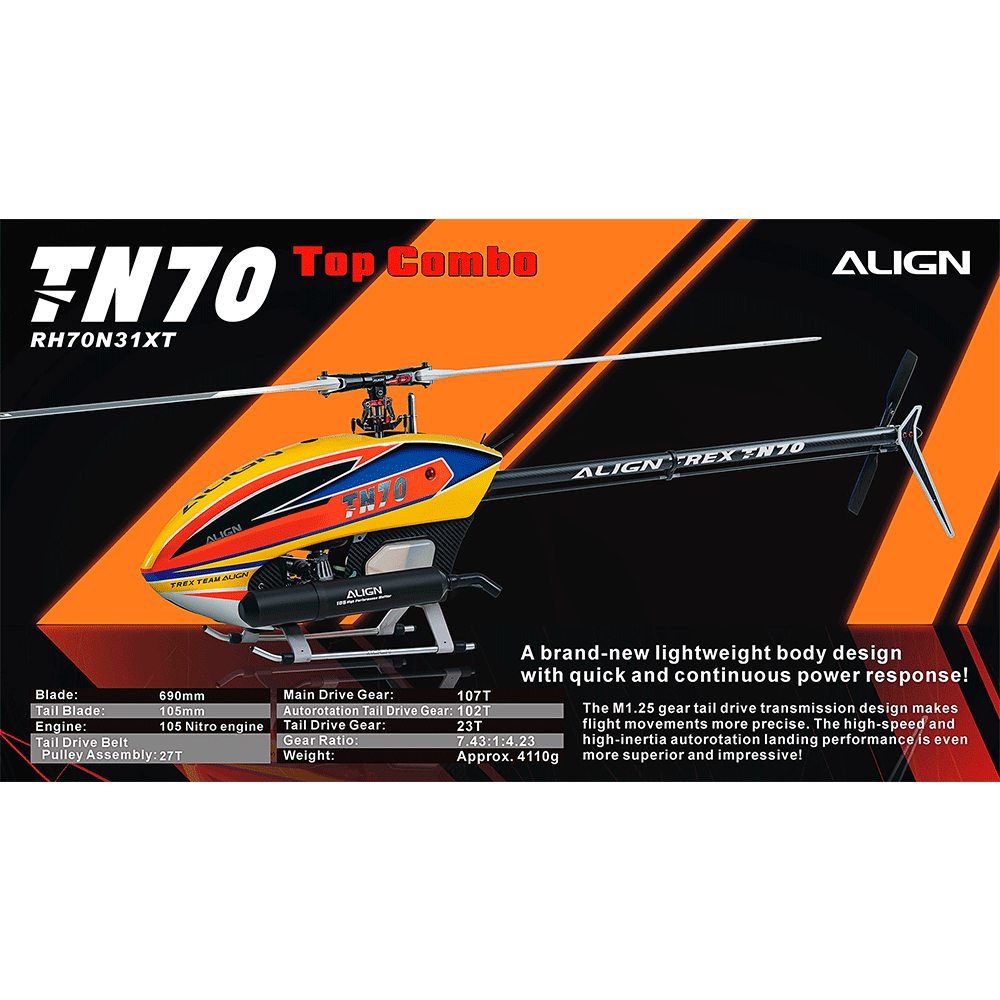

Specification

• Length: 1352mm
• Height: 397mm
• Width: 202mm
• Main Blade Length: 690mm
• Main Rotor Diameter: 1543mm
• Tail Rotor Diameter: 279mm
• Tail Drive Belt Pulley:27T
• Main Drive Gear:107T
• Autorotation Tail Drive Gear: 102T
• Tail Drive Gear: 23T
• Gear Ratio: 7.43:1:4.23
• Engine: 105 Nitro Engine
• Fuel Tank Capacity: 630cc.
  Takeoff Weight: Approx. 4110g

Accessories

• TN70 Kit Set x 1 set
• 690 Carbon Fiber Blades x 1 set
• 105 Carbon Fiber Tail Blades x 1 set
• ALIGN 105 High Performance Pipe x 1
• O.S. MAX-105HZ Engine x 1
• DS830M High Voltage Brushless Servo x 3
• DS835M High Voltage Brushless Servo x 1
• DS530 Digital Servo x 1
• B6M 2 In 1 Voltage Regulator Combo x 1
• MICROBEAST² Flybarless system x 1
• Governor Sensor x 1

Radio transmitter and electronic equipment required for assembly

• Transmitter(7-channel or more, helicopter system)
• Receiver(7-channel or more) or Remote Receiver
• Engine starter x 1
• Fuel pump x 1
• Engine fuel x 1
• Digital Pitch Gauge
• Multi-function Tester
• 2S1P 7.4V Li-Po 1900~2600mAh Battery x 1
