Product Specifications:
Gear Material
- Nylon/ABS
Operating Voltage Range
- 4.8V - 6V
Speed (4.8V)
- 3.5 sec @ 90 deg
Speed (6V)
- 3.2 sec @ 90 deg
Torque (4.8V)
- 13.0 kg/cm (180 oz/in)
Torque (6V)
- 15.5 kg/cm (215 oz/in)
Current Draw at Idle (4.8V)
- 130mA
Current Draw at Idle (6.0V)
- 150mA
Maximum Load Current (4.8V)
- 1900mA
Maximum Load Current (6.0V)
- 2300mA
Current Draw Operating (No Load)
- 10mA

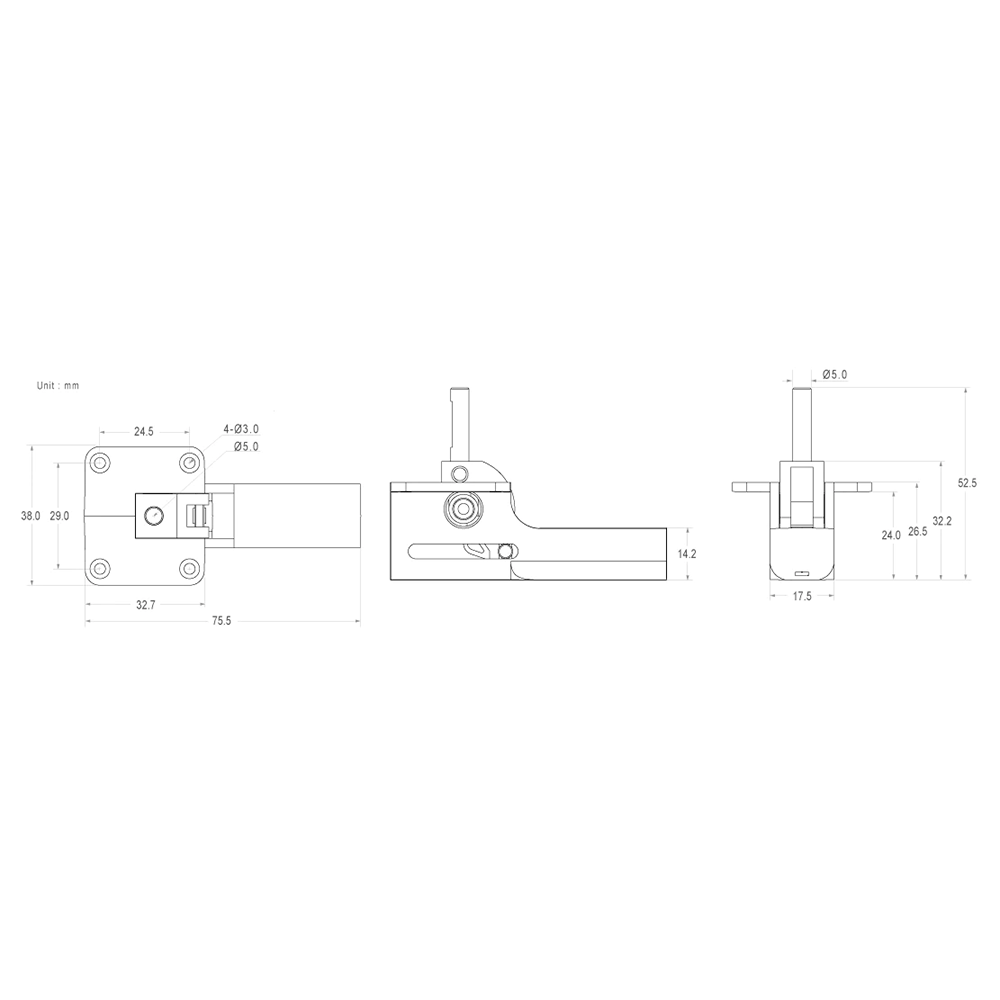

Dimensions (L x W x H)
- 75.5 x 38 x 50mm
Weight
- 66g (2.32oz)
Lead Length
- 710mm
Compatibility
For the nose retracts on the following Freewing and FlightLine aircraft:
- PJ50 70mm Twin EDF Jet
- A-10 80mm Twin EDF Jet
- F-14 80mm Twin EDF Jet
- T-45 90mm EDF Jet
- Zeus 90mm EDF Jet
- B-25J 1600mm
