MOTOR DL ENGINE 35HD GAS UAV(DRONE) DLE35HD
- Código: 405669
- Estoque: Disponível
-
$2.149,99
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
Linha de Brinquedos testados não possui Garantia.
Produtos em Promoção e abaixo do Custo não possuem Devolução.

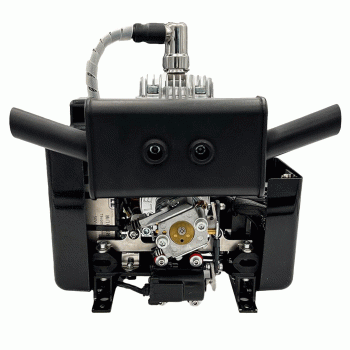

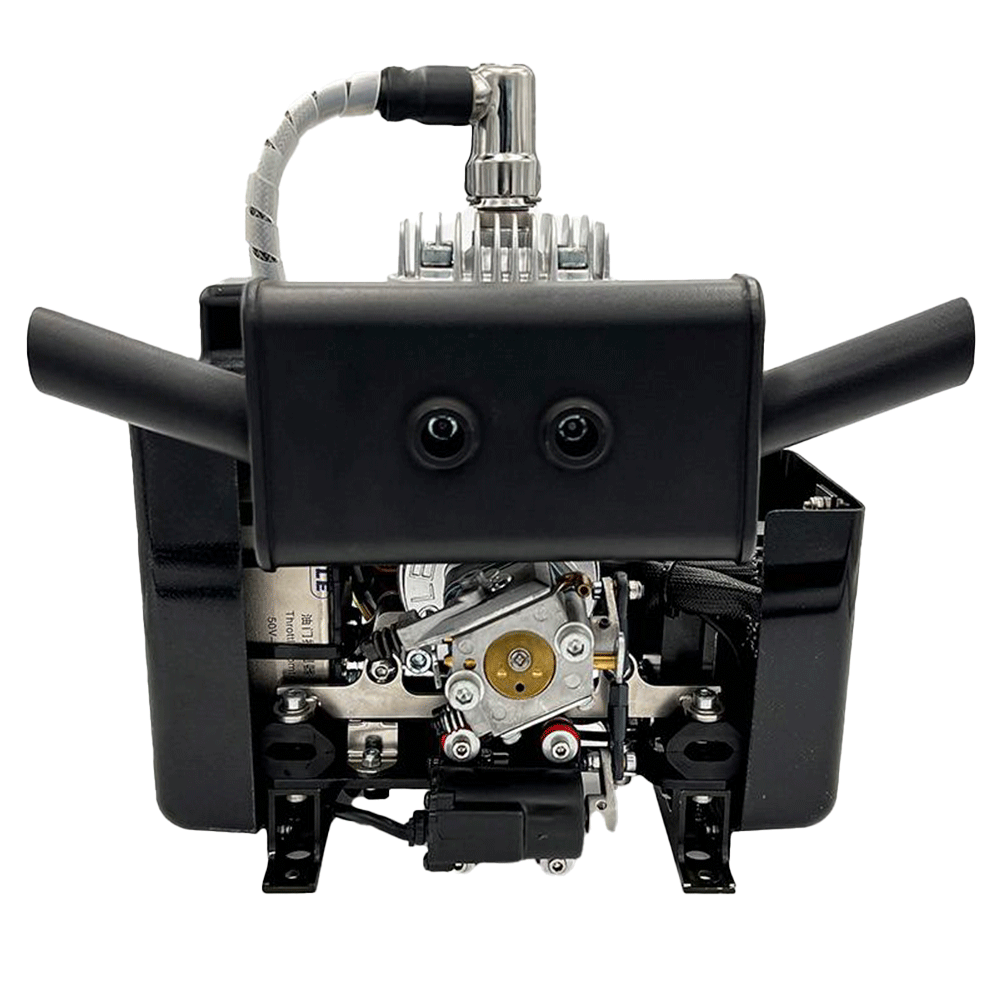

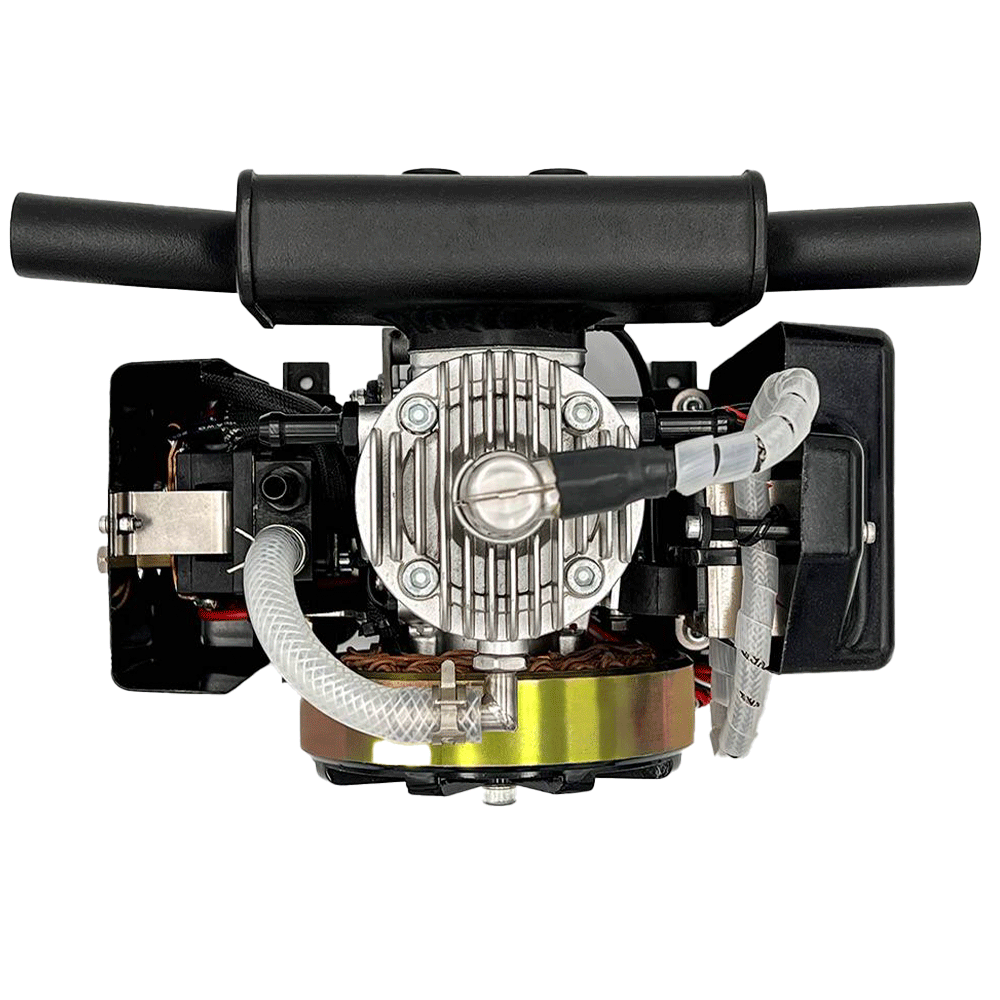

The DLE35HD hybrid engine, which was launched in April 2022, is a single cylinder two-stroke water-cooled piston engine. The efficient water-cooled cooling mode provides a more stable working mode for the engine.The engine is designed to provide power for aircraft. This power package is an independent and complete closed-loop system. It has nothing to do with the use and adjustment of remote control and flight control.
Generator parameters:

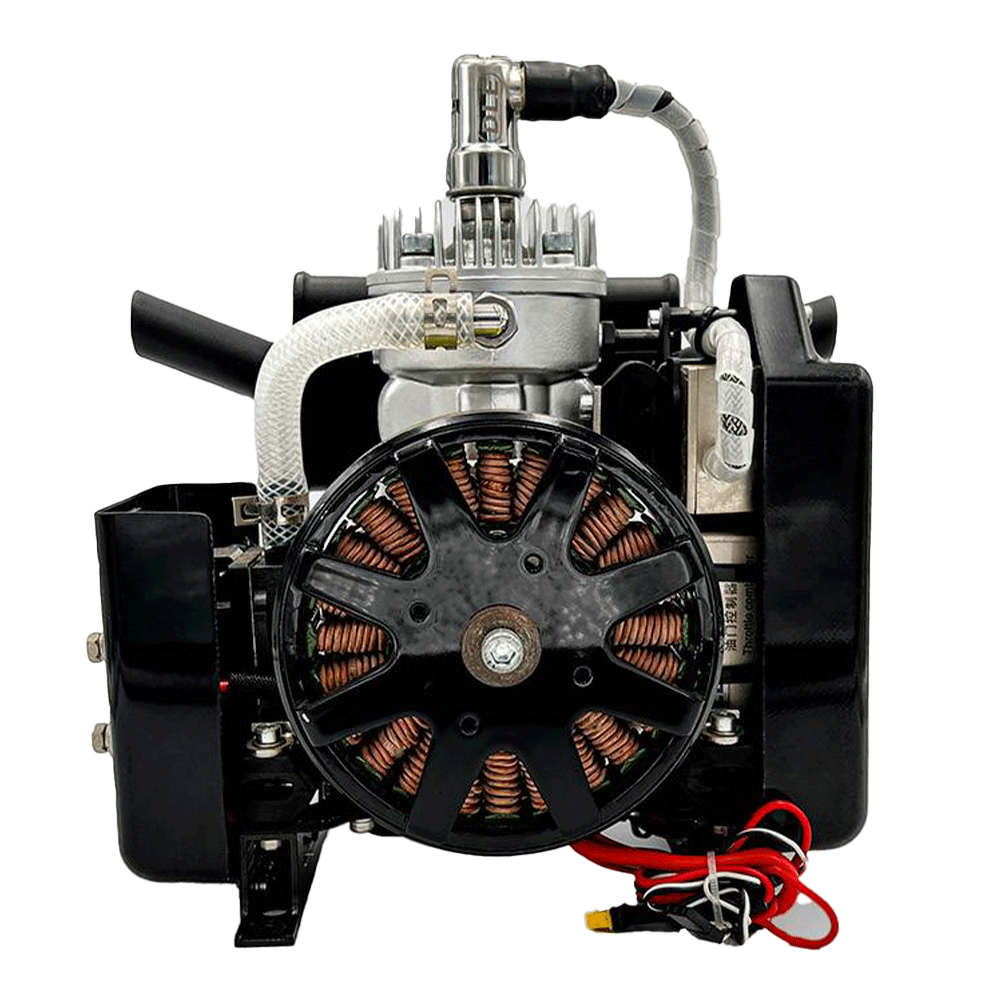

- Three phase permanent magnet generator
- Voltage: ac50v to dc50v
- Frequency: non constant frequency type, which changes with the engine speed
Engine parameters:
- Single cylinder water cooling
- Displacement : 35cm3
- Cylinder bore × trip：38.5mm×30mm
- Power: 3.5hp/8500 RPM power: 2.5kW (0 altitude)
- Idle speed: 5000-6000 rpm
- Engine weight: 3.3kg
- Weight of cooling system; 2kg (including 800ml coolant)
