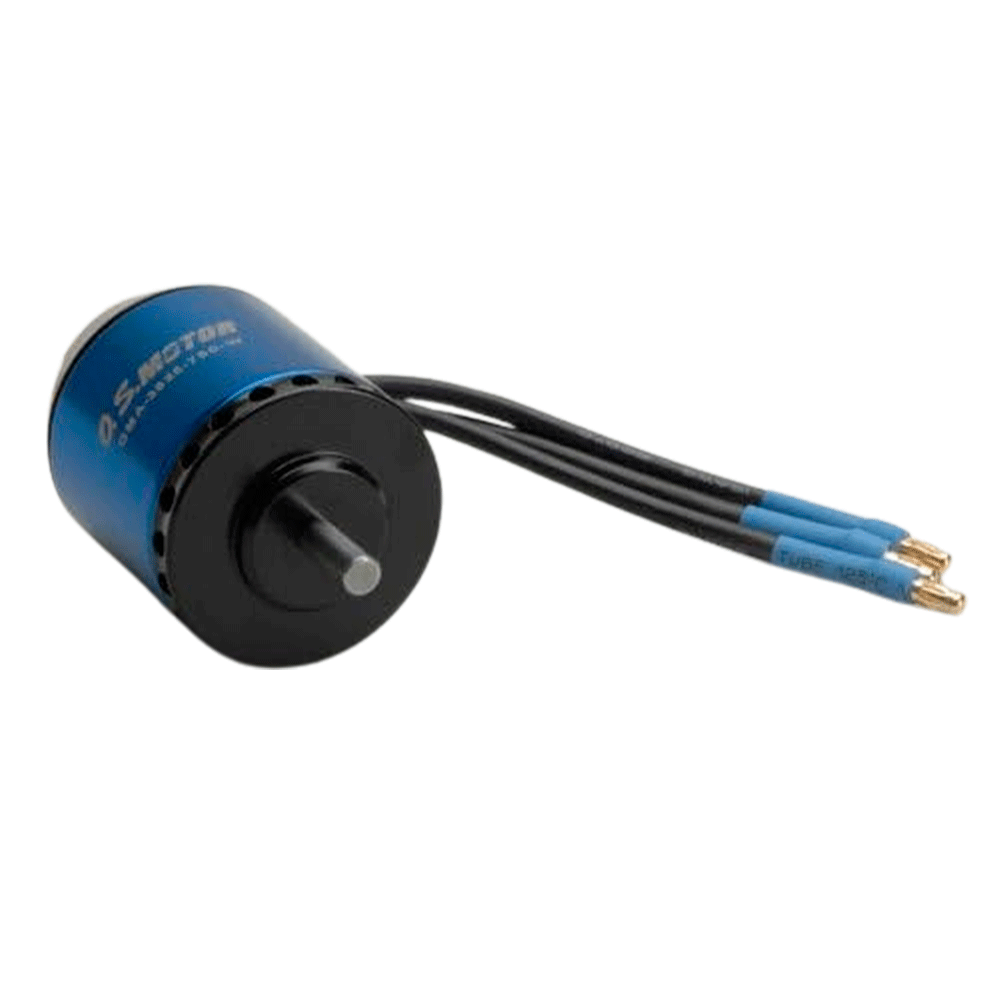

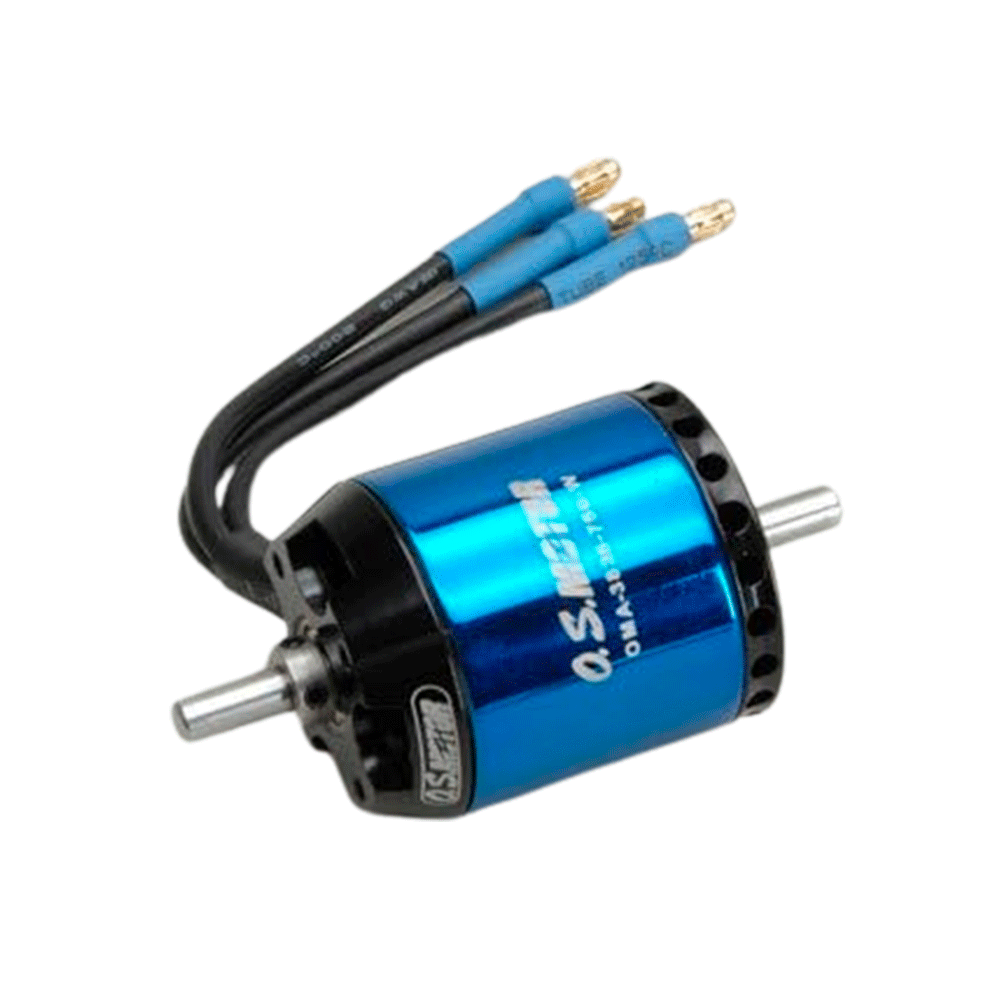

MOTOR OS BRUSHLESS OUTER OMA-3825-750-W 51012110

FEATURES

• For airplanes using a .25 - .30 size airplanes
• Centrifugal fan design with angled ventilation holes draws air through the motor and across the windings and magnets for improved cooling

INCLUDES

• 30 Brushless Electric Motor with Backplate,four Phillips Head Mounting Screws
• 3.5mm Gold Plated Male Plugs attached to leads,
  three 3.5mm
• Female Plugs with Shrink Wrap, Prop Adapter and Instruction Sheet

REQUIREMENTS

• 60A brushless ESC

SPECIFICATIONS

• Rated Power: 1110W
• Rated Voltage: 14.8
• Rated Current: 40A
• Maximum Current (5 sec): 75A
• No Load Current: 1.5A/10V
• Phase Resistance: 31.0 miliohms
• Maximum Efficiency: 85%
• kV: 750
• Poles: 12
• Shaft Diameter: 0.20" (5mm)
• Shaft Length: 0.45" (11.5mm)
• Weight: 6.9oz (195g)
• Lead Wire Length: 3.5" (900mm)
• Lead Wire Gauge: 15 AWG
• Length of Motor Can to Backplate: 1.9" (48.3mm)
• Diameter of Motor Can: 1.5" (37.5mm)
• Length/rear of Motor Can to Prop Washer: 2.7" (69mm)
• Prop Washer Diameter: 1.06" (27mm)
• Thickness of Motor Mount: 0.12" (3mm)
• Width of Motor Mount: 1.9" (50mm)
• Height of Motor Mount: 1.9" (50mm)
• Prop adapter threads: 1/4 x 28
