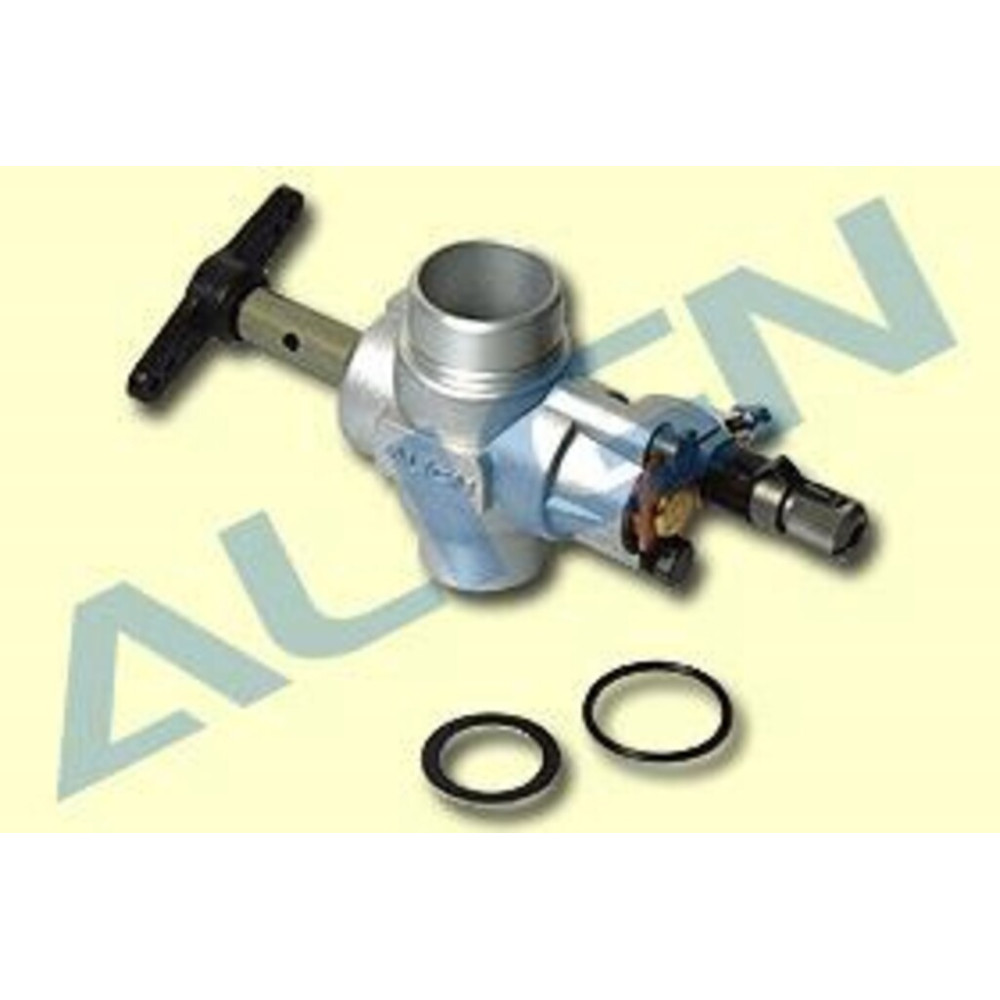

HE50H20T CARBURATOR COMPLETE 50 (60LH)

This is the Complete 60LH Carb used on the O.S. Max .50SX-H Ring Hyper Engine

Features:

Genuine O.S. Engines replacement parts

Natural aluminum construction

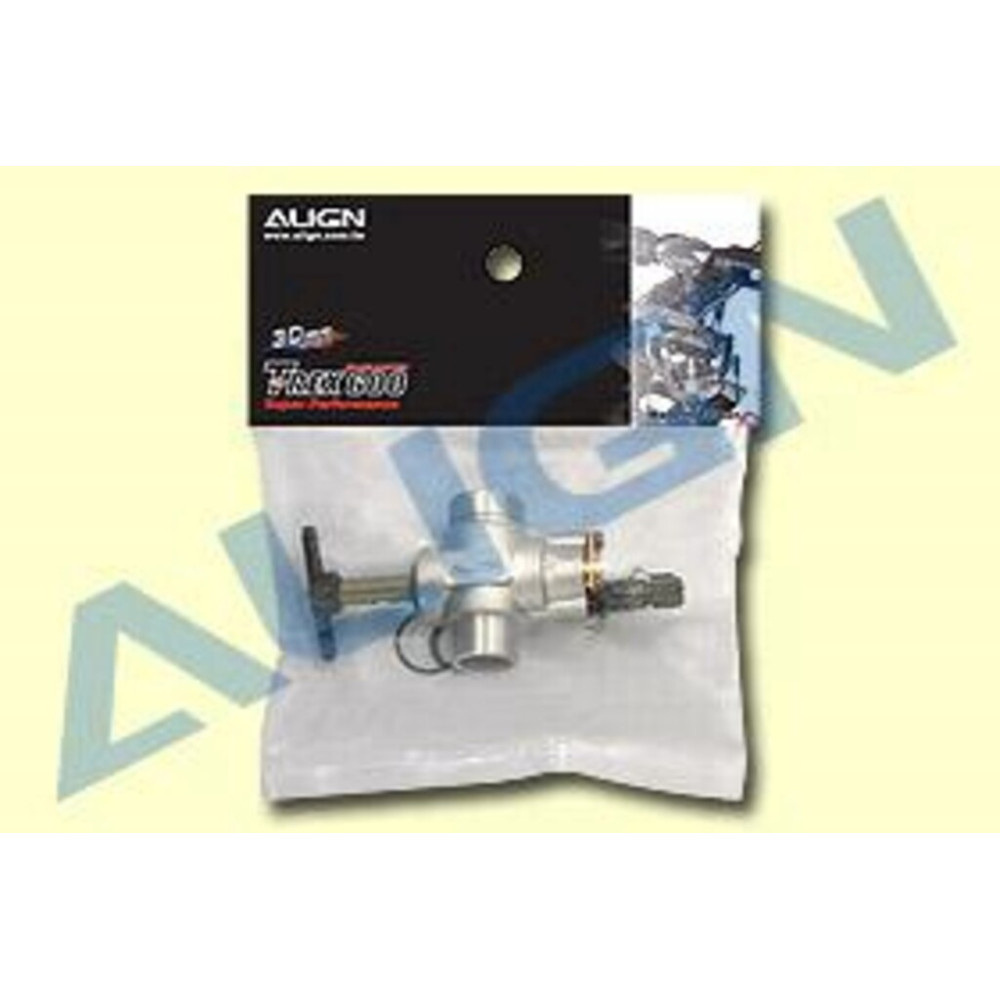

Includes:

One completely assembled carb

One rubber carb gasket

One carb sealing washer

Requires:

Installing on the engine w/Carb Retainer Assy

SPECS:

Length: 35.5mm

Width: 82.5mm (including throttle arm and needle)

Height: 38.4mm

Diameter: 17mm OD of intake (throat)

13.5mm ID of intake @ widest point (top)

10.1mm ID of intake @ narrowest point (bottom)

11.6mm ID of neck at widest point (bottom)

10.1mm ID of neck at narrowest point (top)

The neck is the part that inserts into the crankcase
