DJI ACC LIDAR RANGE FINDER (RS) TO DJI TRANSMISSION CABLE HUB

Overview

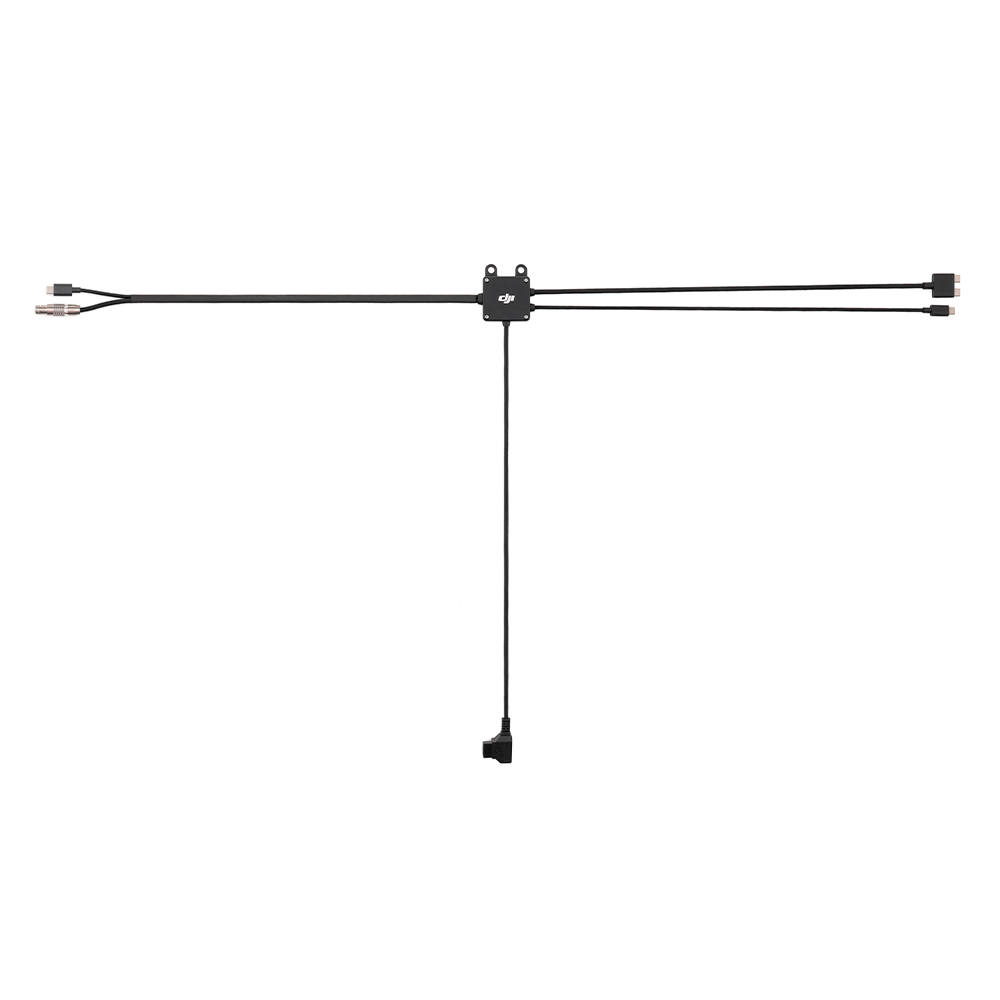

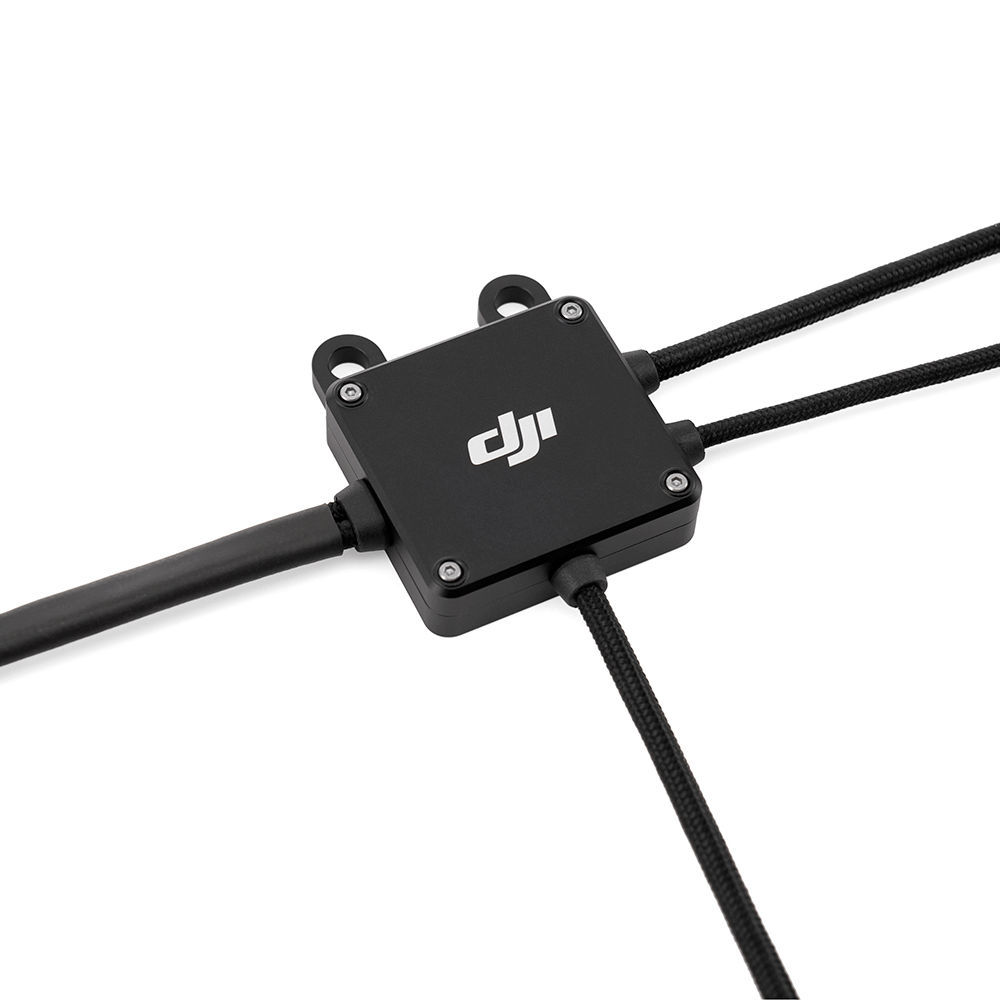

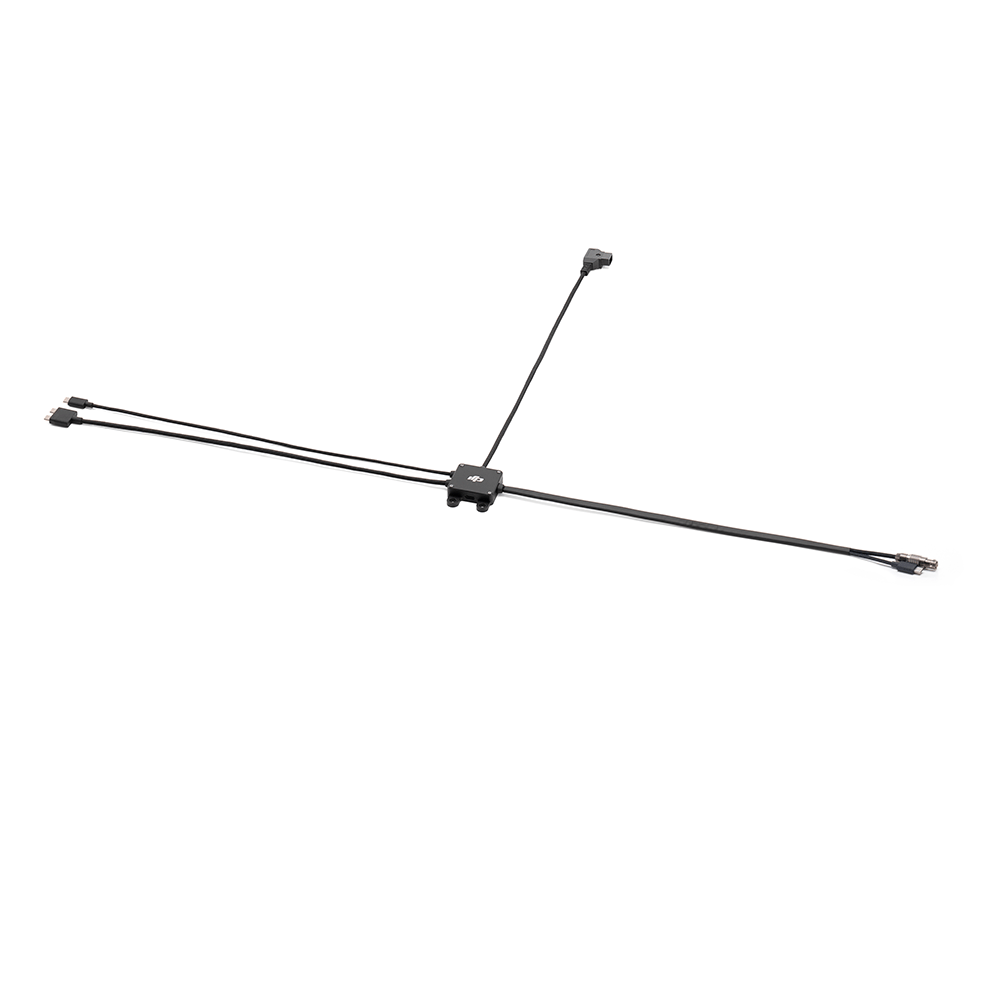

The DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub incorporates four cables that respectively connect to DJI LiDAR Range Finder (RS), DJI Video Transmitter, DJI RS Focus Motor (2022), and a power supply.

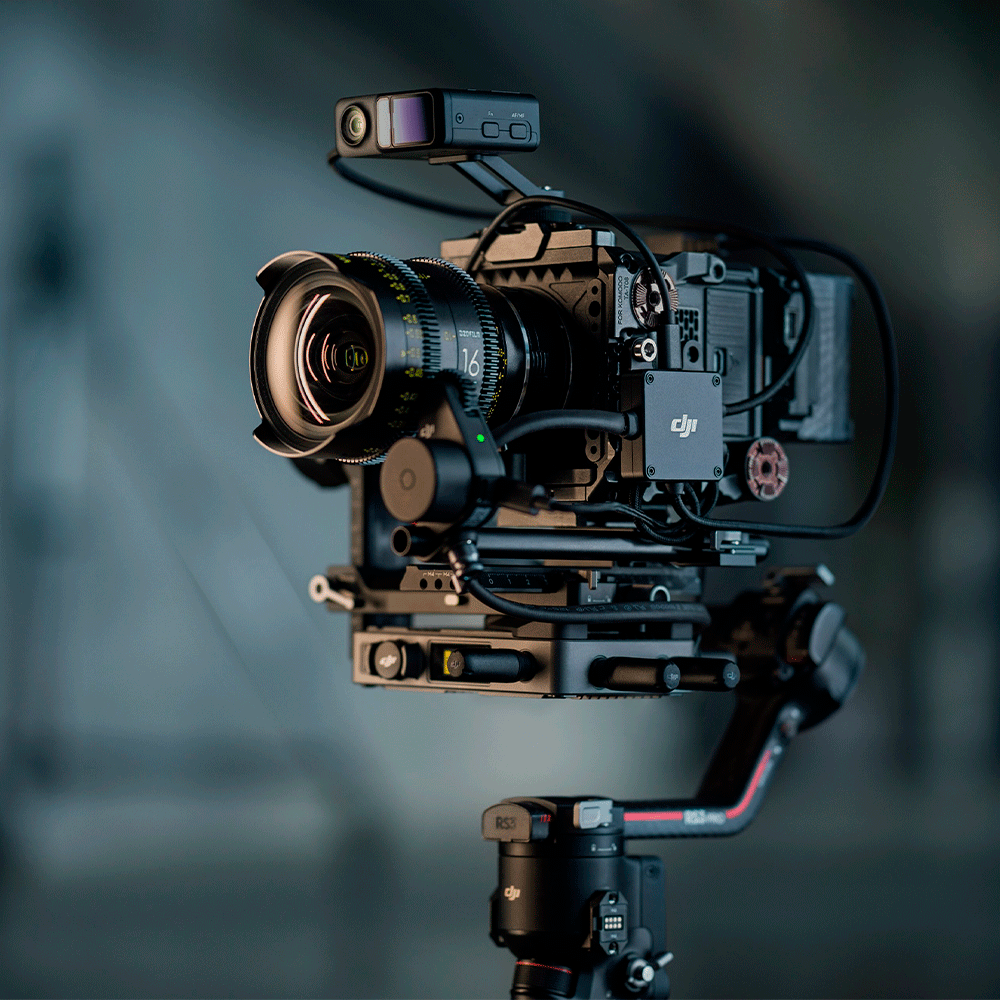

By connecting the DJI LiDAR Range Finder (RS) with the DJI Video Transmitter and other accessories, you can get a complete focusing and monitoring system for any combination of camera and manual lens, and achieve lens calibration and autofocus with a manual lens.

By connecting the USB-C Communication Port of the cable hub with DJI RS 3 Pro via a DJI R Multi-Camera Control Cable (USB-C), you can build inter-connection among DJI RS 3 Pro, DJI Transmission, and the LiDAR Range Finder (RS) for stabilization, remote monitoring and control, and autofocus.

In The Box

• DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub × 1
• Screw 1/4-20 × 2
• M4 Screw (10 mm) × 2

Specifications

• Cable and Port Type:

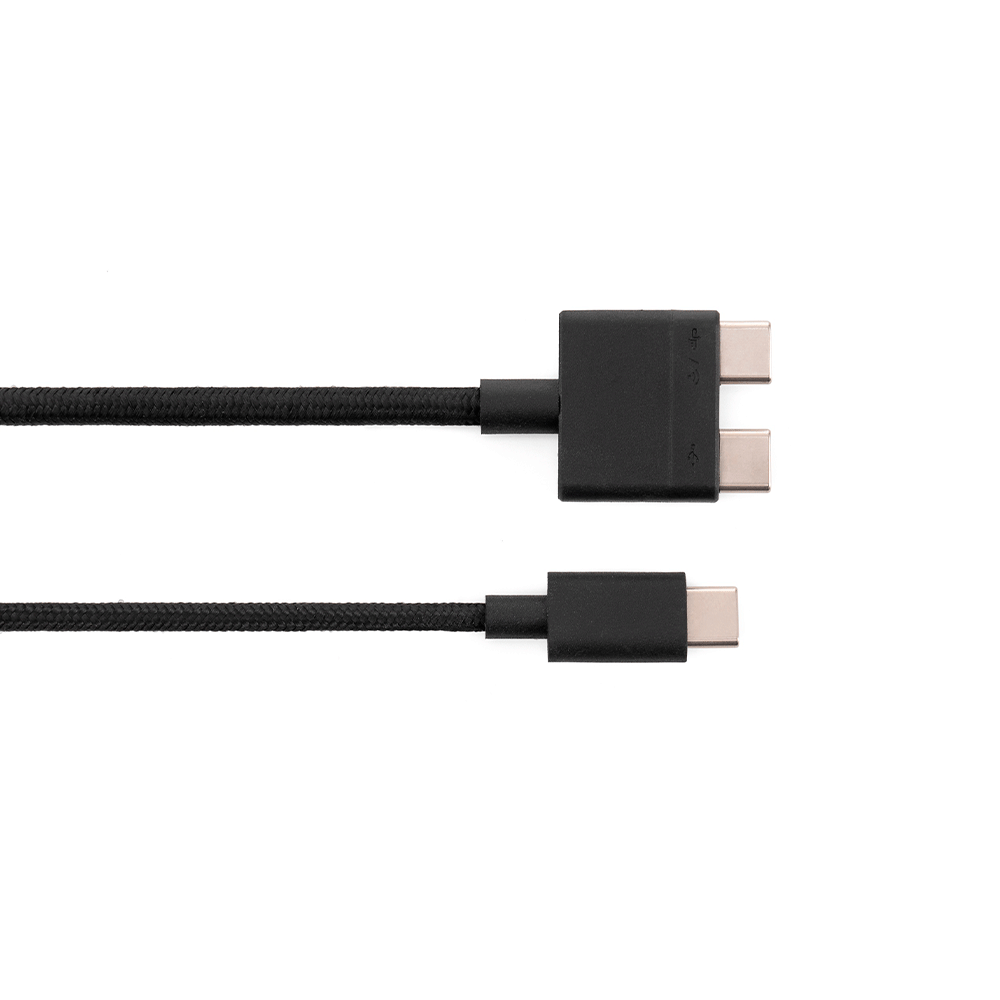

• Dual USB-C LiDAR Connection Cable (40 cm)
• USB-C Focus Motor Connection Cable (40 cm)

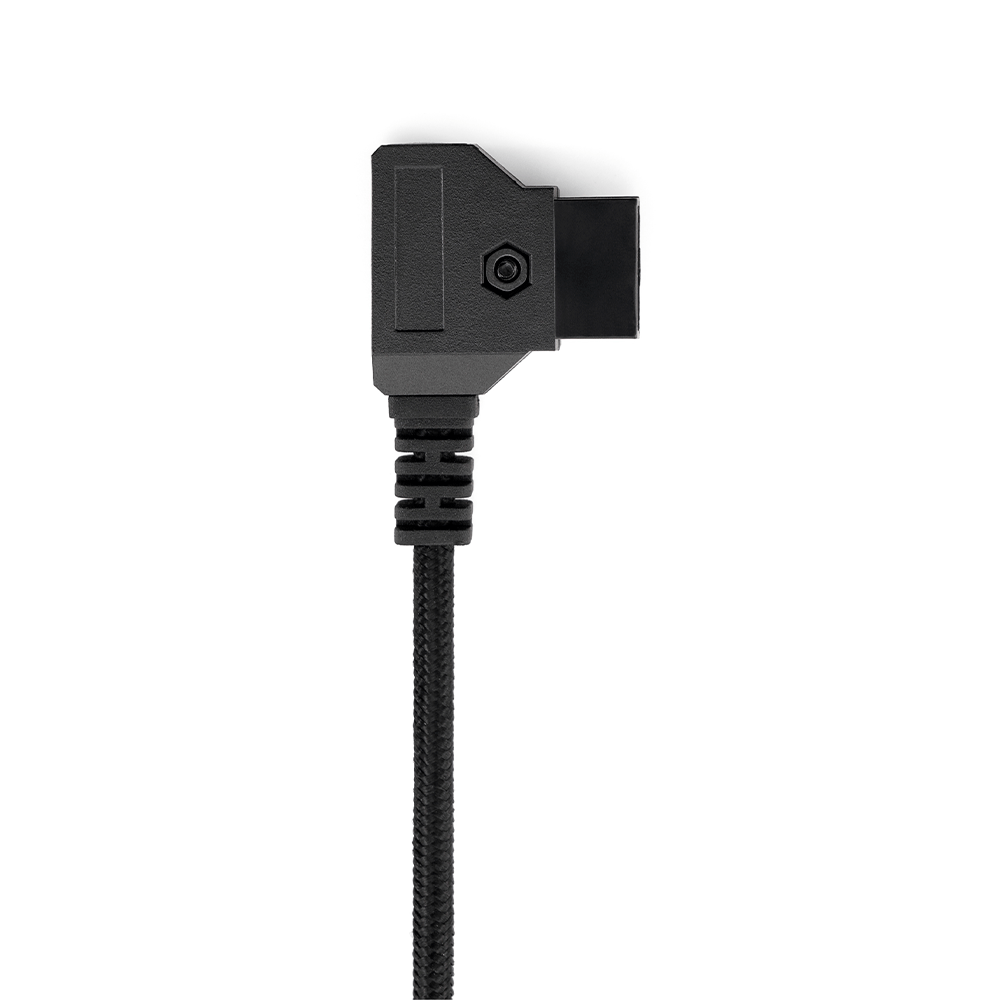

• P-Tap Power Cable (40 cm)

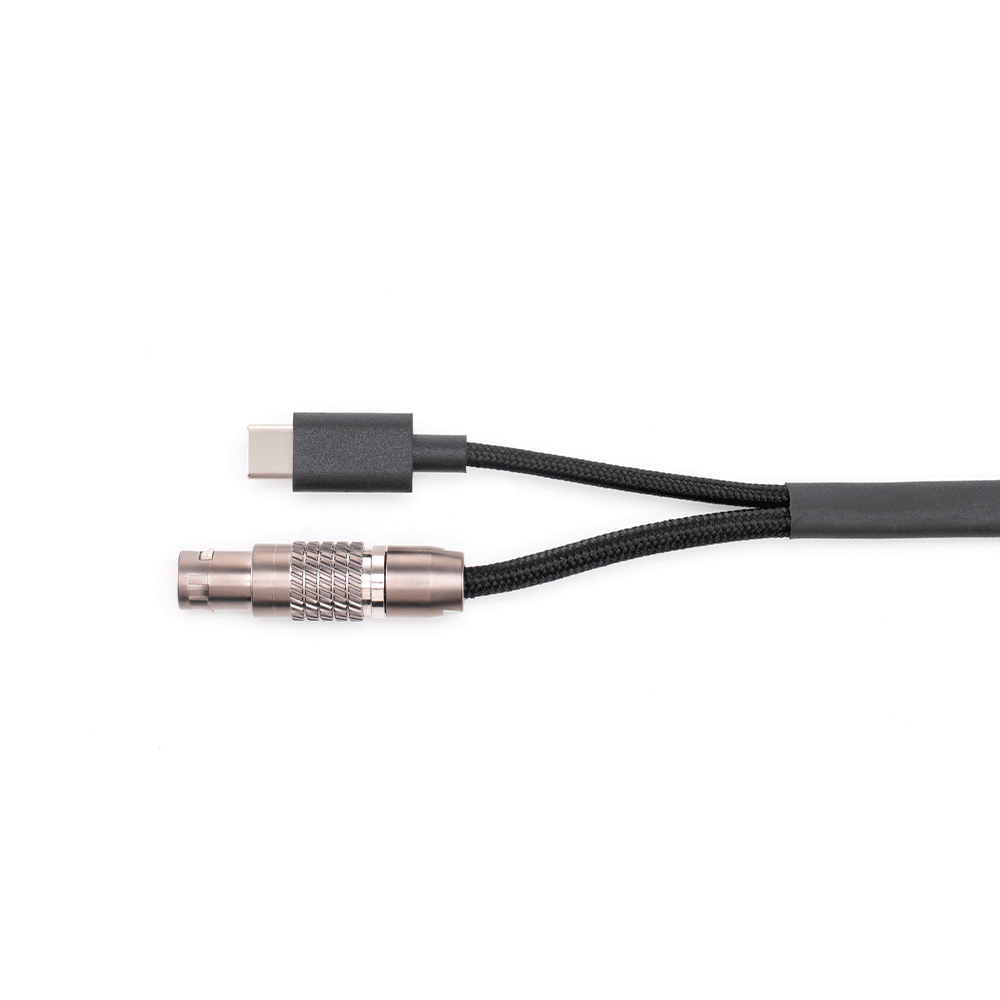

• DC-OUT and USB-C Splitter Cable (40 cm)
• USB-C Communication Port
• Operating Voltage:

• 12 to 17 V


Compatibility

• DJI LiDAR Range Finder (RS)
• DJI RS 3 Pro
