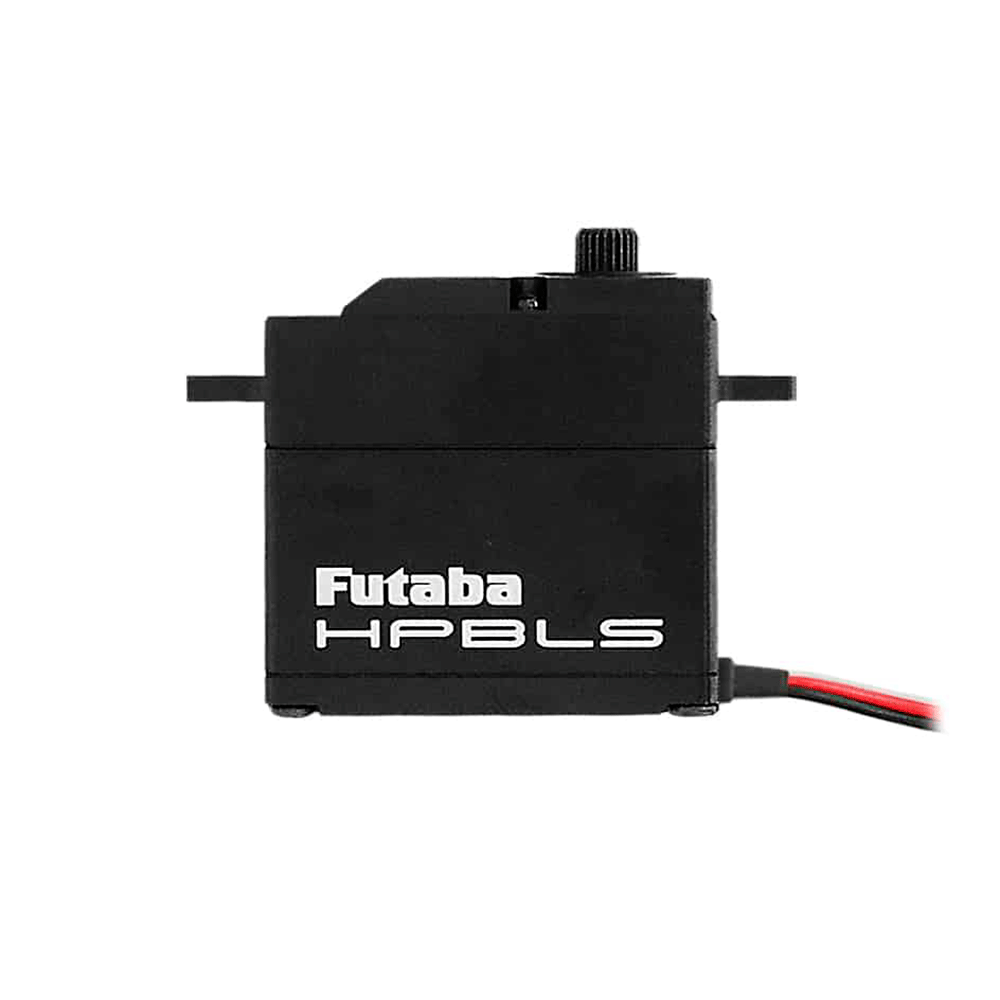

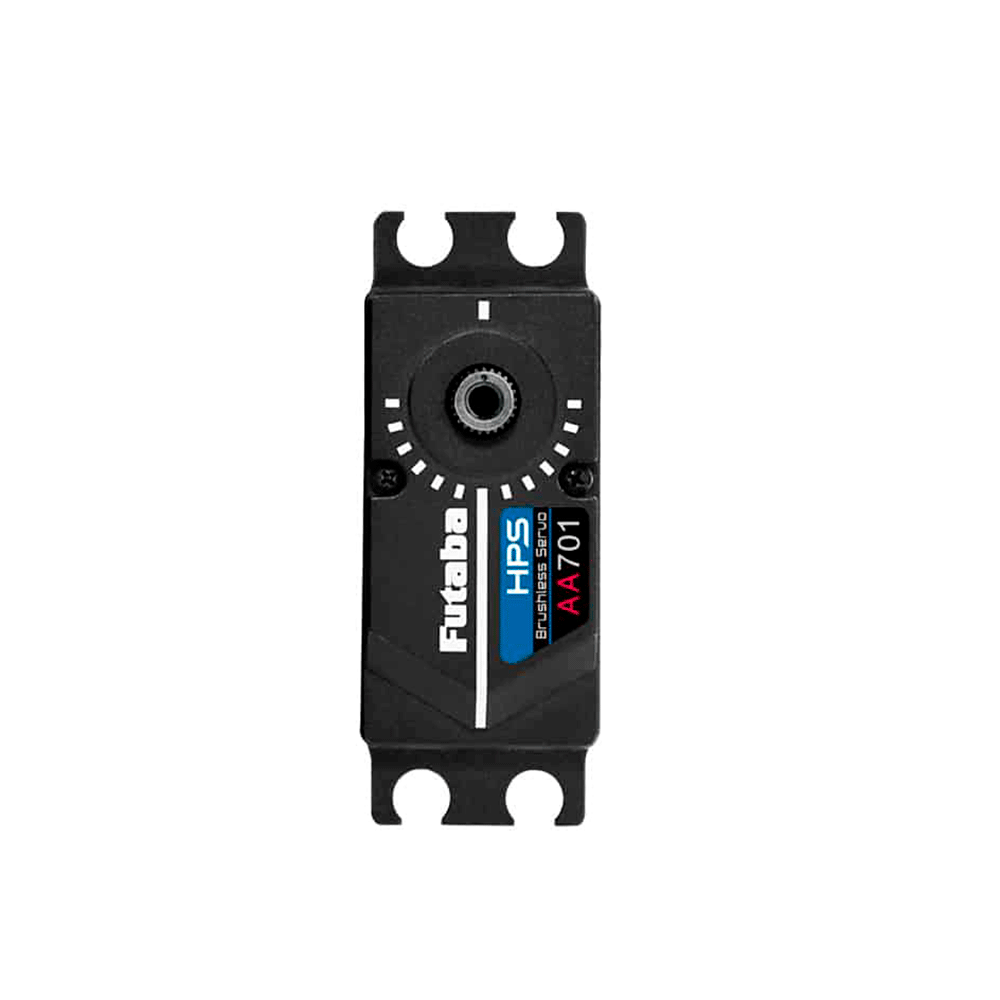

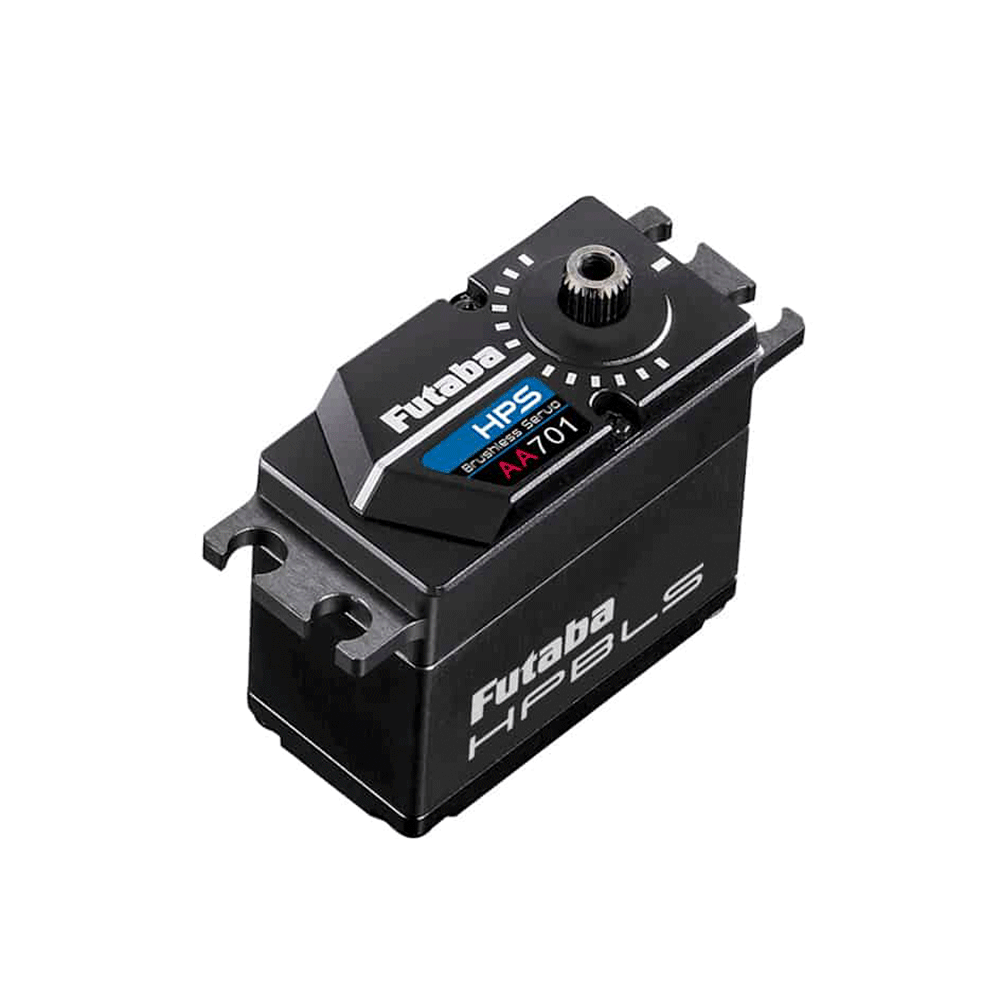

HPS-AA701 BRUSHLESS SERVO FUTABA (S.BUS2) 01102370-3

Description

HPS-AA701– S.Bus2 High-Voltage Standard Airplane Servo

High Performance Servo with Brushless Motor (01102370-3)

FEATURES:

•  For all-purpose giant scale airplanes.
• Programmable/HV Brushless Servo.
• Custom New high power Brushless Motor.
•  Suggested upgrade for BLS172SV/177SV/AA700
•  Programmable and compatible with S.Bus and S.Bus2 systems.
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
• Final gear material is Stainless Steel.
• Upper/middle/bottom: Aluminum Case

SPEED:

• 0.08 sec/60°at 6.6V
• 0.075 sec/60° at 7.4V

TORQUE:

• 45.0 kgf/cm at 6.6V
• 625.0 ozf/in at 6.6V
• 49.0 kgf/cm at 7.4V
• 680.5 ozf/in at 7.4V

SIZE:

• 40.5 mm x 21 mm x 39.4 mm
• 1.59 in x 0.83 in x 1.55 in

WEIGHT:

• 80 g
• 2.82 oz

RATED VOLTAGE:

• DC 6.0V-7.4V

OPERATING VOLTAGE:

• DC 4.8-8.4V
