EMCOTEC LONGGO BALANCER 7.4V LIPO AEBCC

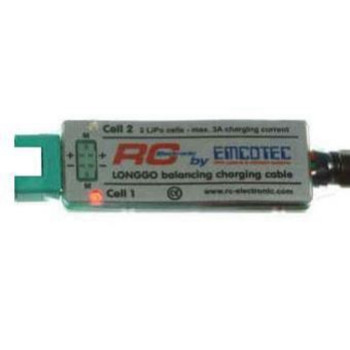

Balancer from Emcotec, LONGGO Balancer charging cable

ng the LONGGO balancer cable, LONGGO receiver batteries (2S1P or 2S2P, LONGGO "N" as well as LONGGO "S") are automatically balanced during charging. The voltages of the single cells are identical after charging which increases the lifetime and charging cycles of the batteries.
The LONGGO charging cable is usable for all LONGGO receiver batteries of the "Serie 2005" series (respectively for LONGGO batteries containing a charging connector with center tab "M" on board).

Balancing is done in two steps: depending on the voltage of the single cell, balancing current is either low or high. If the maximum charging current is set to less than 400 milliamps at the charger, the battery can not be overcharged, even when a wrong number of cells is selected, because in this erroneous case the total charging current is drained by the balancer.
Technical Data of the LONGGO Balancer Charging Cables:

• Current Consumption: 10 µ amp in quiescent state
• Balancing Current 1. stage: 250 milliamps
• Balancing Current 2. stage: 400 milliamps
• Connection to Charger: gold plated 4mm (0.16") banana jack
• Charging Connection: MPX high current connector
• Allowable Voltage: +4.2 volts bis +9 volts
• Threshold: < 2.7 volts, > 4.20 volts, >=4.23 volts
• Maximum allowable charging current: 3 amps
• Dimensions: 0.92" x 3.28" x 0.36" (Width x Length x Thickness)
• Length of the charging cable: 32"
