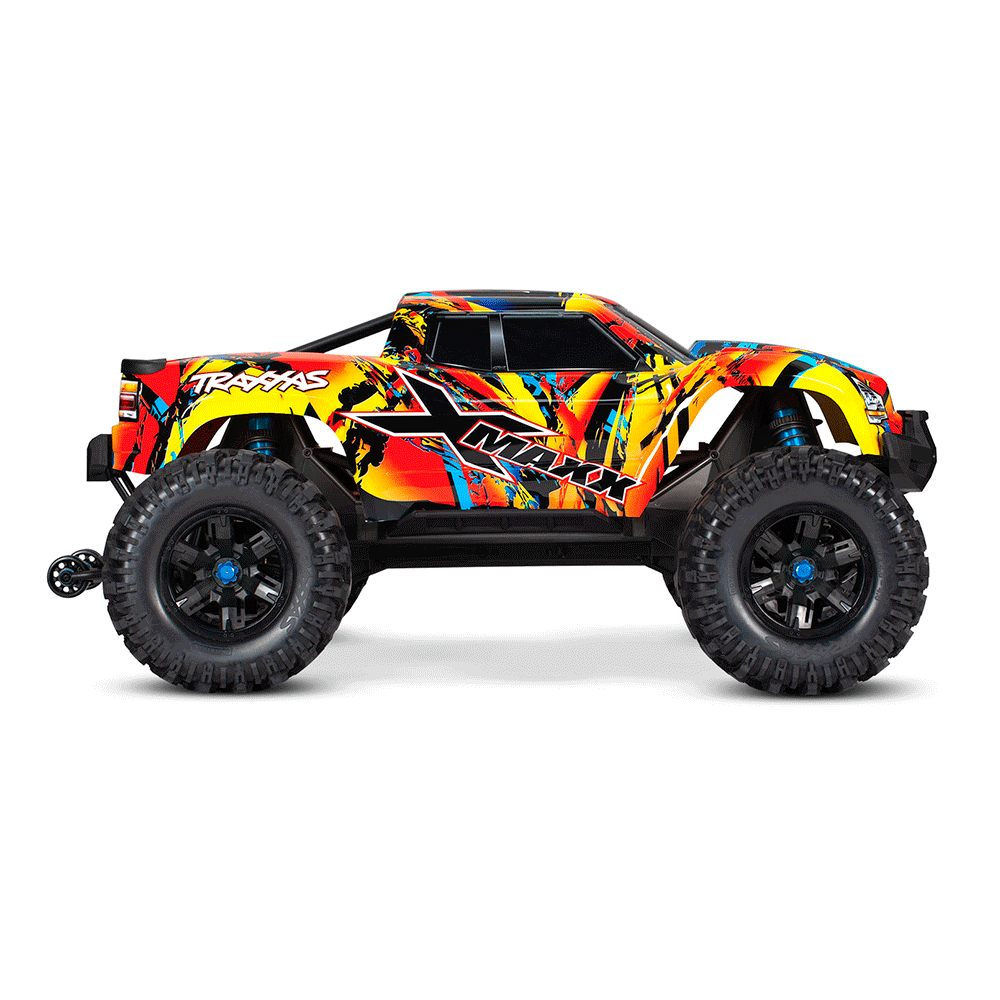

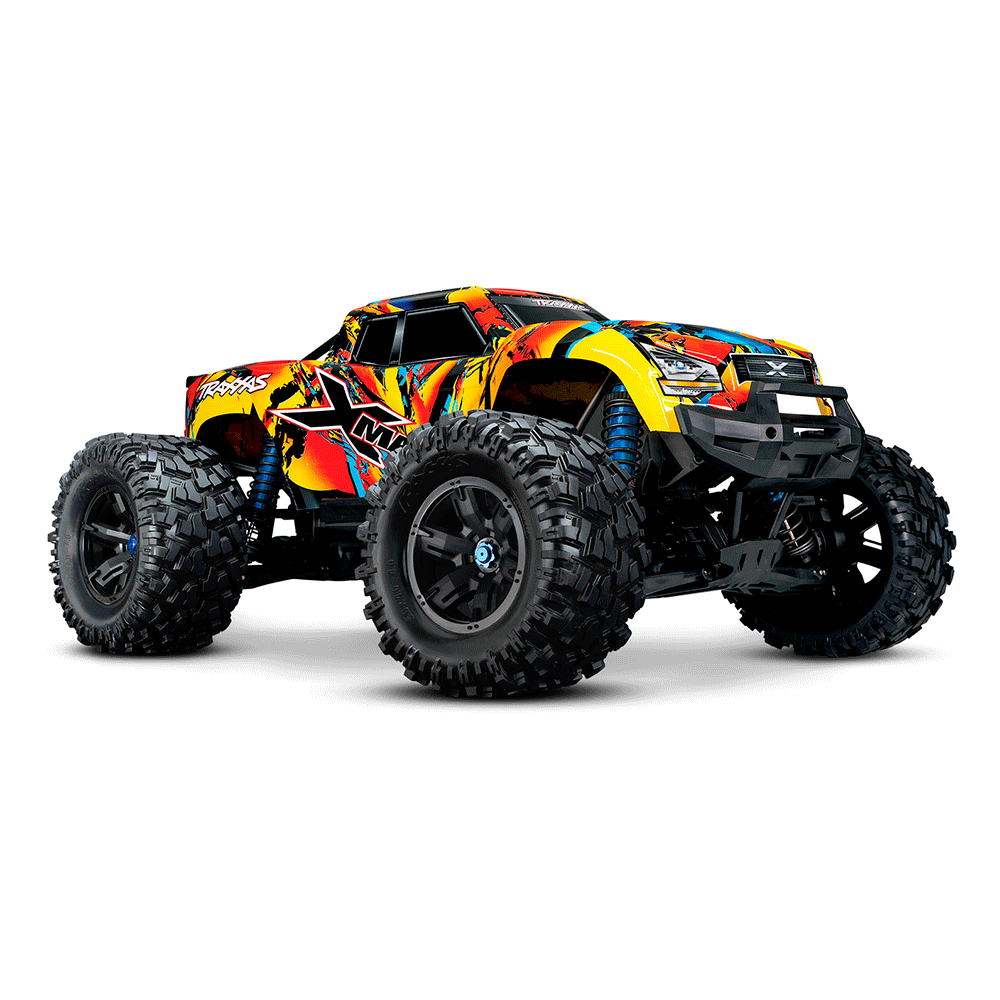

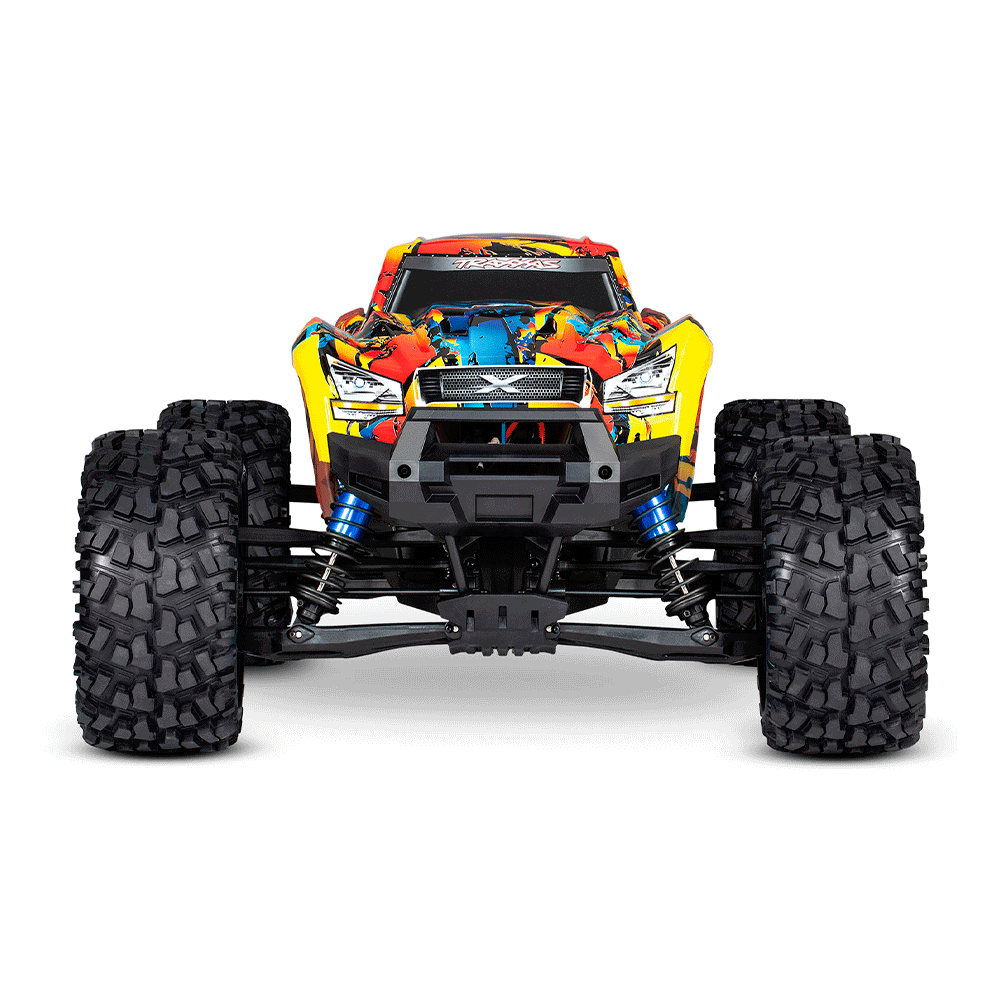

CARRO TRAXXAS X-MAXX BLX 8S 4WD TQI TSM SOLAR FLARE 77086-4

Unrelenting 4X4 power, mammoth size, and award-winning innovation make X-Maxx the ultimate monster truck. With 30+ volts of extreme 8S power, X-Maxx defies physics, unleashing jaw-dropping acceleration and 50+mph speeds. Engineered to conquer the most extreme terrain and take brutal real-world punishment in stride, X-Maxx is the definition of Traxxas Tough^™.

MODEL 77086-4: Fully assembled, Ready-To-Race®, with TQi™ 2.4GHz Radio System, VXL-8s Brushless Power System, and ProGraphix® painted body.

What’s In The Box:

• X-Maxx, Ready-To-Race® model with Traxxas Big Block™ brushless motor
• VXL-8s waterproof electronic speed control with integrated telemetry
• Quick Start Guide

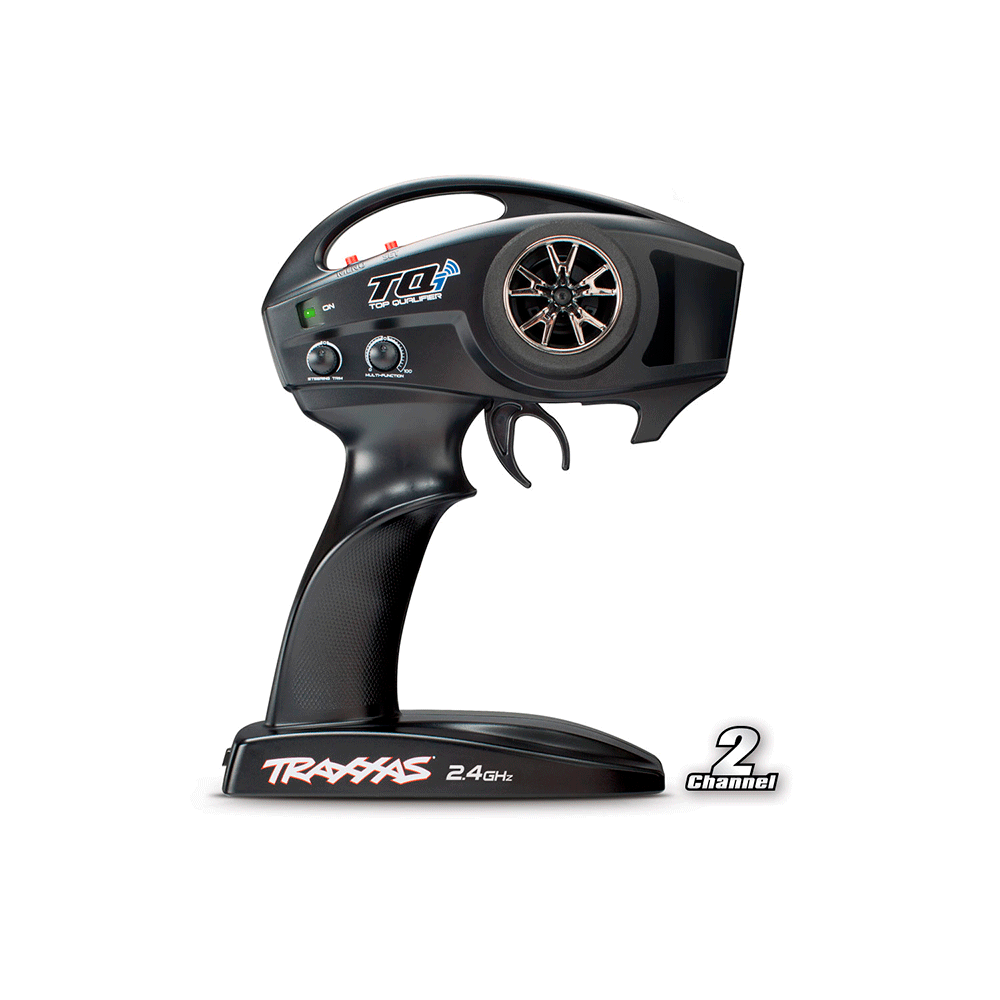

• TQi™ 2.4GHz radio system
• High quality maintenance tools

What You’ll Need:

Batteries
IMPORTANT: X-Maxx requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh or greater, Power Cell LiPo batteries with iD are recommended (part #2890X).

LiPo Balance Charger with iD
Traxxas EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.

SIZE WINS

At the end of the day, size always wins. X-Maxx plows over obstacles and muscles through extreme terrain that leaves lesser trucks stranded. Mammoth 8-inch tall tires, long-arm suspension, and huge ground clearance dwarf the surroundings for virtually unstoppable monster truck fun.

EXTREME POWER

At Traxxas, too much power is never enough! The durability of the new VXL-8s is matched only by the sheer ferocity of its 8s 30+ volt dual LiPo muscle. The speed-tuned 1200XL Big Block^™ motor propels X-Maxx with brutal authority and exacting quickness that warps your senses. No matter what you have driven in the past, nothing will prepare you for X-Maxx.

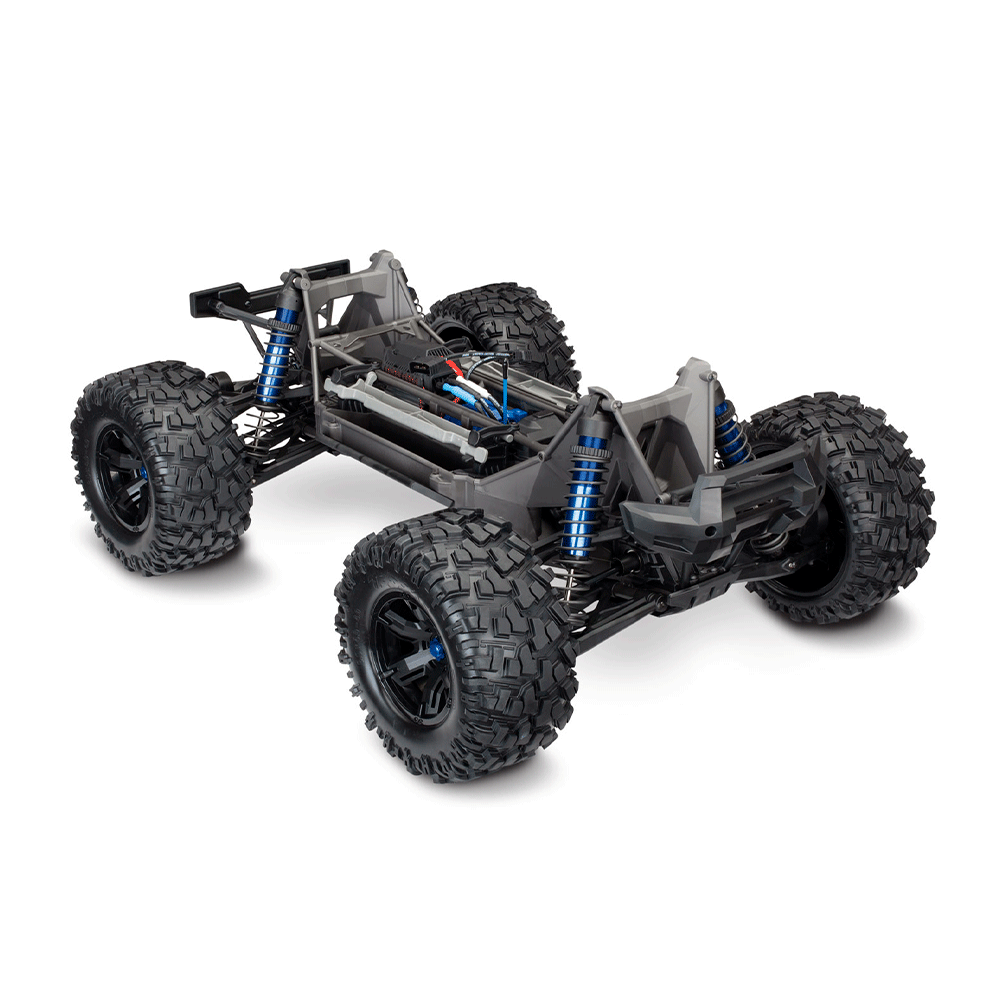

MAXX-DUTY DRIVETRAIN

X-Maxx puts the power to the ground through tough all-steel drivetrain gears, the revolutionary Cush Drive system, and our strongest driveshafts ever. The all-new Torque-Biasing Center Drive improves driveline durability and drives larger module ring and pinion gears on the toughest differentials we have ever produced.

INNOVATION

Insightful engineering and precise integration of innovative solutions set X-Maxx in an all-new category of superior performance. It’s as satisfying and rewarding to use as it is fun and exciting to drive.

DETAILS

The full X-Maxx experience of strength, power, and agility relies on all the carefully engineered details that begin to emerge when you peel back the layers. Old conventions were discarded as every system and dimension was examined and taken to a level worthy of the Maxx^® legacy.

Truck Specs

• Length: 30.67 inches (779mm)
• Front Track: 21.3 inches (540mm)
• Rear Track: 21.3 inches (540mm)
• Ground Clearance: 4 inches (102mm)
• Weight: 19.1lbs (8.66kg)
• Height (ride): 13.79 inches (350mm)
• Wheelbase: 18.92 inches (480mm)
• Shock Length: 7.4 inches (187mm)
• Tires (pre-glued): 8.0x4.0 inches (203mm)
• Wheels: 4.3x5.7 inches (110x145mm)
• Wheel Hex Size: 24mm splined hex
• Speed Control: Velineon VXL-8s
• Motor (electric): Velineon 1200XL
• Transmission: Single-Speed
• Overall Drive Ratio: 8.11 (stock, out-of-box)
• Differential Type: Sealed, Hardened Steel Bevel, Limited Slip
• Gear Pitch: 1.0-Pitch
• Chassis Structure/Material: Composite Nylon Tub
• Brake Type: Electronic
• Drive System: Shaft-Driven 4WD
• Steering: Bellcrank
• Radio System: TQi™ 2.4GHz Transmitter with TSM® receiver™
• Servo: Torque: 365oz. Speed: 0.17 sec/ 60 degrees(6.0V)
• Top Speed: 50+ MPH with two 4s LiPo batteries and optional gearing
• Skill Level: 6
• Battery Tray: 197mm x 51.5mm x 44mm
• Required Batteries: 4 “AA” (transmitter) and 3-cell LiPo battery (x2) or 4-cell LiPo battery (x2)

Motor Specs

• Type: 1275 kv Sensorless Brushless
• Weight: 665g (23.44oz)
• Length: 4.32 inches (110mm)
• Diameter: 1.88 inches (48mm)
• Connector Type: Traxxas 6.5mm Bullet Connectors

ESC Specs

• Input Voltage: 8s LiPo (Max 33.6 Volts)

• Case Size: 2.23in (58mm) / 2.83in (72mm) / 1.81in (46mm)

• Weight: 215.5g (7.60oz)

• BEC Voltage: 6.0 V

• BEC Current Continuous: 10 A

• BEC Current Peak: 20 A

• Motor Connectors: Traxxas 6.5mm Bullet Connectors

• Battery Connectors: Traxxas High-Current Connectors

• Power Wire: 10-gauge Maxx Cable

• Ports: RX Input, Auxiliary Fan, Traxxas Accessory Port

This product is not recommended for children and under 14 years old. Persons under 18 years of age must have a responsible adult accompanying them during operation and maintenance of the stroller.
