F-5 Tiger II Camo High Performance 9B 80mm EDF Jet from Freewing - PNP - FJ20813P
Version Info: This is the High Performance version of the Freewing F-5 Tiger II. This version includes a powerful 3658-1920Kv inrunner motor with 9-blade fan, 100A ESC and hybrid metal gear servos.
Introducing the fifth jet in Freewing's 80mm EDF Jet Series, the iconic F-5 Tiger II. This RC airplane proudly wears the livery of the CAG’s jet of the VFC-111 “Sun Downers”, an adversary training squadron in Key West, Florida. Freewing’s rendition incorporates a thicker airfoil to enhance the lifting body design of the original F-5, imparting the stability of an RC model with the standoff scale looks of the real jet. This exciting F-5 model provides speed and scale agility in a stable platform that also looks great!

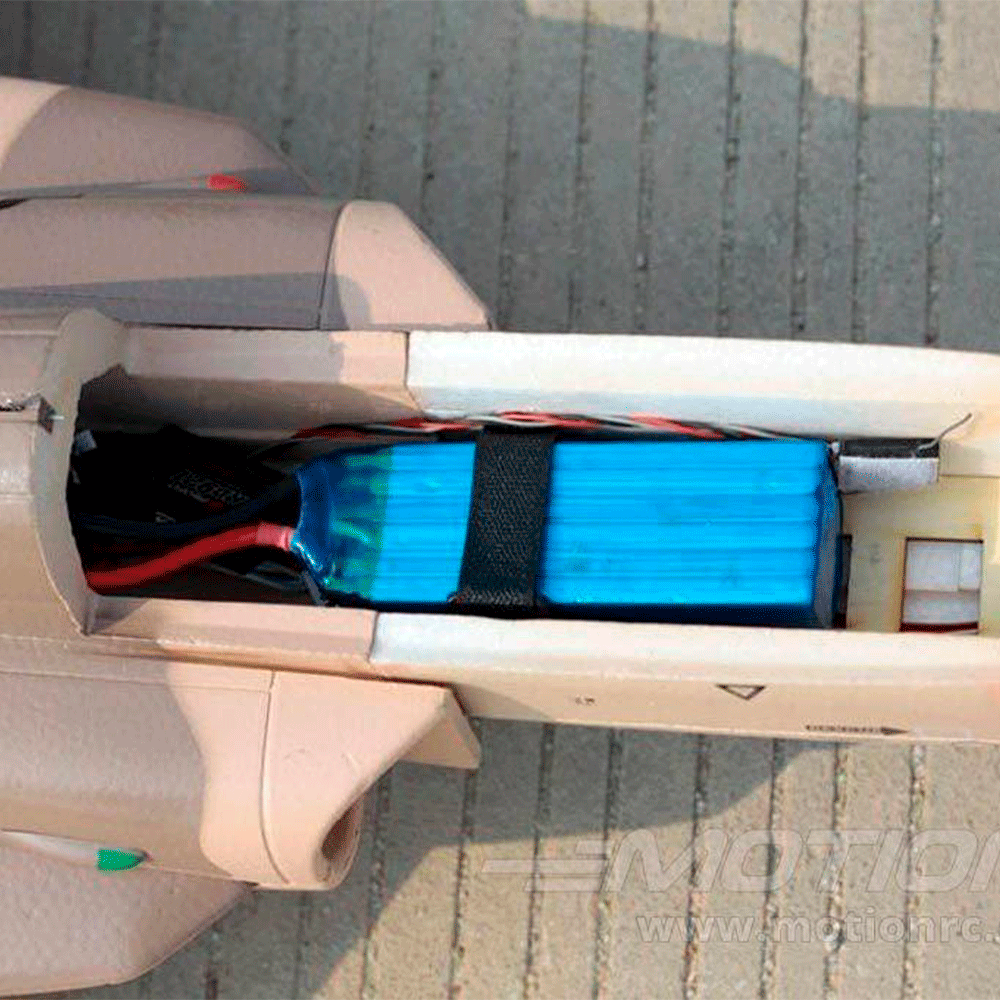

Freewing's 80mm F-5 Tiger II is the perfect size for easy transport without the need for disassembly. Optimized to fly our common Admiral 6s 4000mAh or 5000mAh lipo battery with an EC5 connector, the Freewing F-5’s pre-installed electronics and control hardware minimizes assembly time to about one hour.
Powerful and Fast
Fly above 100mph with the F-5’s 9-Blade factory balanced EDF with metal housing combined with a powerful brushless 3658-1920Kv inrunner motor, 100A ESC and 5A BEC.
Precise Control
Hybrid metal gear servos on the full flying stabilizers and other control surfaces provide precise control throughout the F-5’s flight envelope.
Officially Licensed
Freewing’s F-5 is proud to be officially licensed by Northrop Grumman.
Highly Detailed
Thoughtful scale details include a hand painted pilot, full instrument panel decals.
Armed for Action!
Fully painted AIM-9 Test Missiles quickly mount onto the wingtip rails.

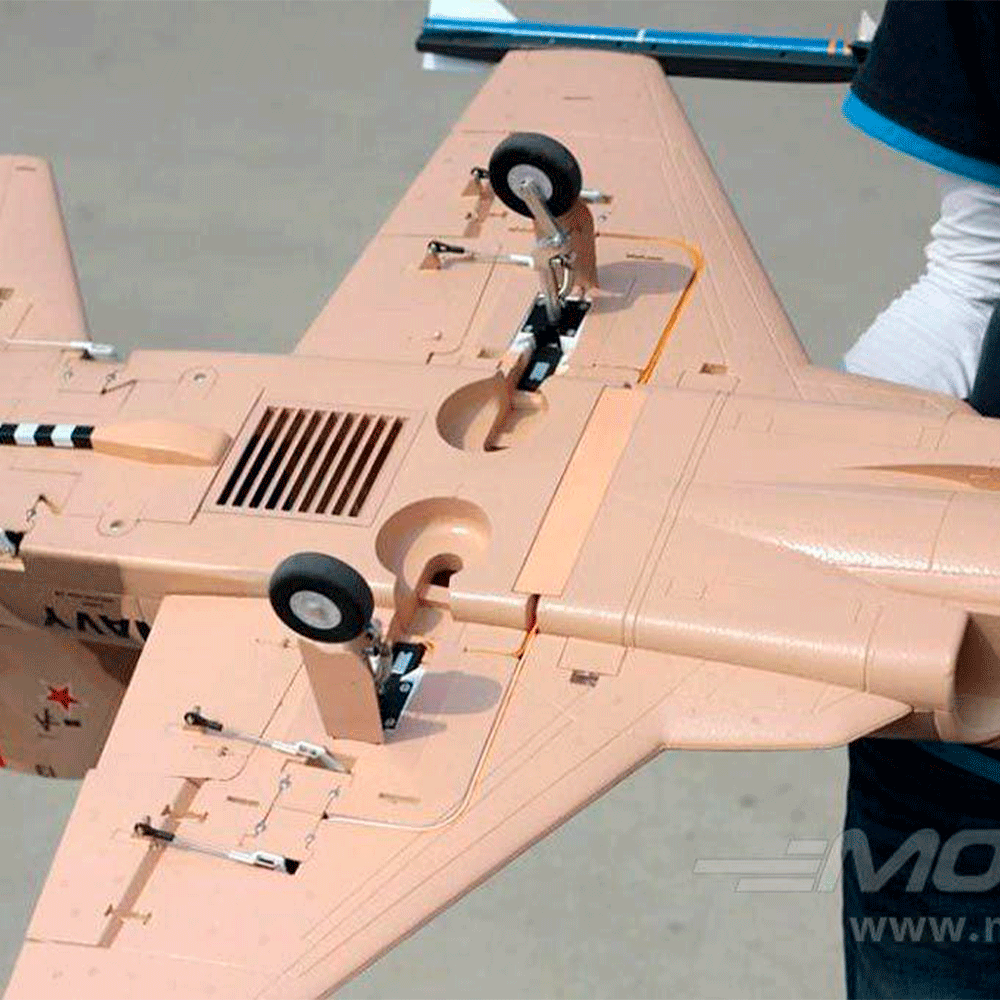

Electric Retracts
Electronic retractable landing gear with all metal shock-absorbing struts help soak up bumpy landings.

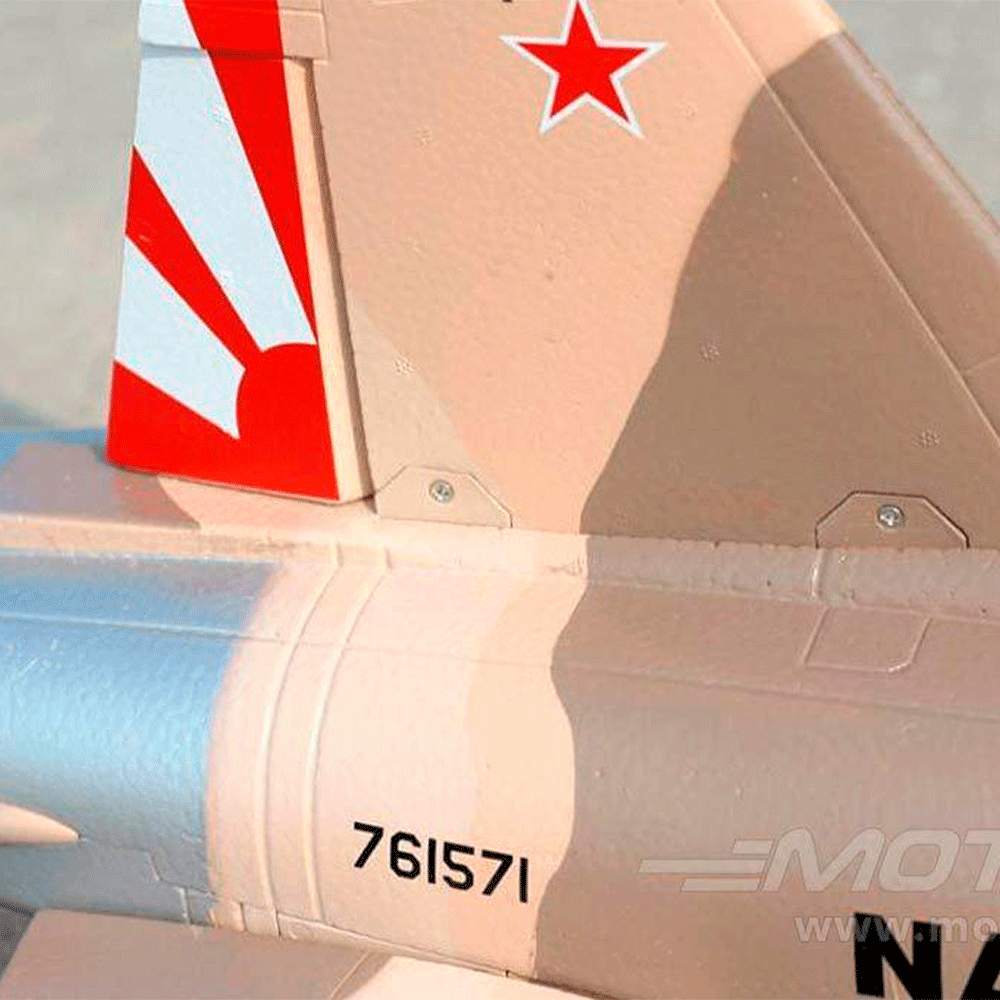

Honor Aviation History!
Factory-applied paint and decals honor the CAG’s livery of the VFC-111 “Sun Downers” Squadron.
High Strength
Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility.
Quality Hinges
Nylon hinges are used on all control surfaces, which provides longer lifespan than foam hinges.
Easy To Transport
Removable wings and stabilizers attach with screws for convenient transport and storage.
Features:
- NEW! 9-Blade factory balanced EDF with metal housing combined with a powerful brushless 3658-1920Kv inrunner motor
- NEW! 100 Amp Hobbywing ESC with 5A BEC
- NEW! Hybrid metal gear servos throughout
- Model officially licensed by Northrop Grumman
- Composite fan blades combined with metal EDF housing make the Super Scorpion AMA compliant
- Super scale details include hand painted, scale-sized pilot and full instrument panel
- Proudly displaying the livery of the CAG’s jet of the VFC-111 “Sun Downers”
- Electronic retractable landing gear with all metal shock-absorbing struts
- Steerable, shock absorbing nose gear for enhanced ground maneuverability
- Spring operated nose gear door
- Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility
- Nylon hinges on all control surfaces (superior to foam hinges)
- Gapless flap hinges
- Inrunner motor, servos, ESC and EDF come pre-installed for your convenience
- Removable wings and stabilizers for convenient transport
Includes:
- Freewing F-5 Tiger II Camo High Performance 9B 80mm EDF Jet - PNP
Requires:
- 6 Channel Radio - Select a minimum 6 channel radio
- 6 Channel Receiver - Select a minimum 6 channel receiver
- 6 Cell 22.2V 4000 mAh LiPo Battery with EC5 connector
Wingspan | 800mm / 31.49in |
Length | 1250mm / 49.21in |
Flying Weight | 2200g / 78oz |
CG (Center of Gravity) | Please refer to the manual |
Power System | 3658-1920Kv Brushless Inrunner Motor |
Electronic Speed Control | 100A ESC, 5A BEC, EC5 Connector |
Propeller / EDF | 80mm Metal EDF with 9-Blade Fan |
Servos |
|
Landing Gear | Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts |
Required Battery | 6S 22.2V 4000mAh-5000mAh LiPo (required) |
Required Radio | 6 Channel |
Ailerons | Yes |
Elevator | Yes |
Rudder | Yes |
Flaps | Yes |
Lights | No |
Hinge Type | Nylon hinges |
Material | EPO Foam |
Skill Level | Advanced |
Build Time | 30 Minutes |
Recommended Environment | Outdoor |
