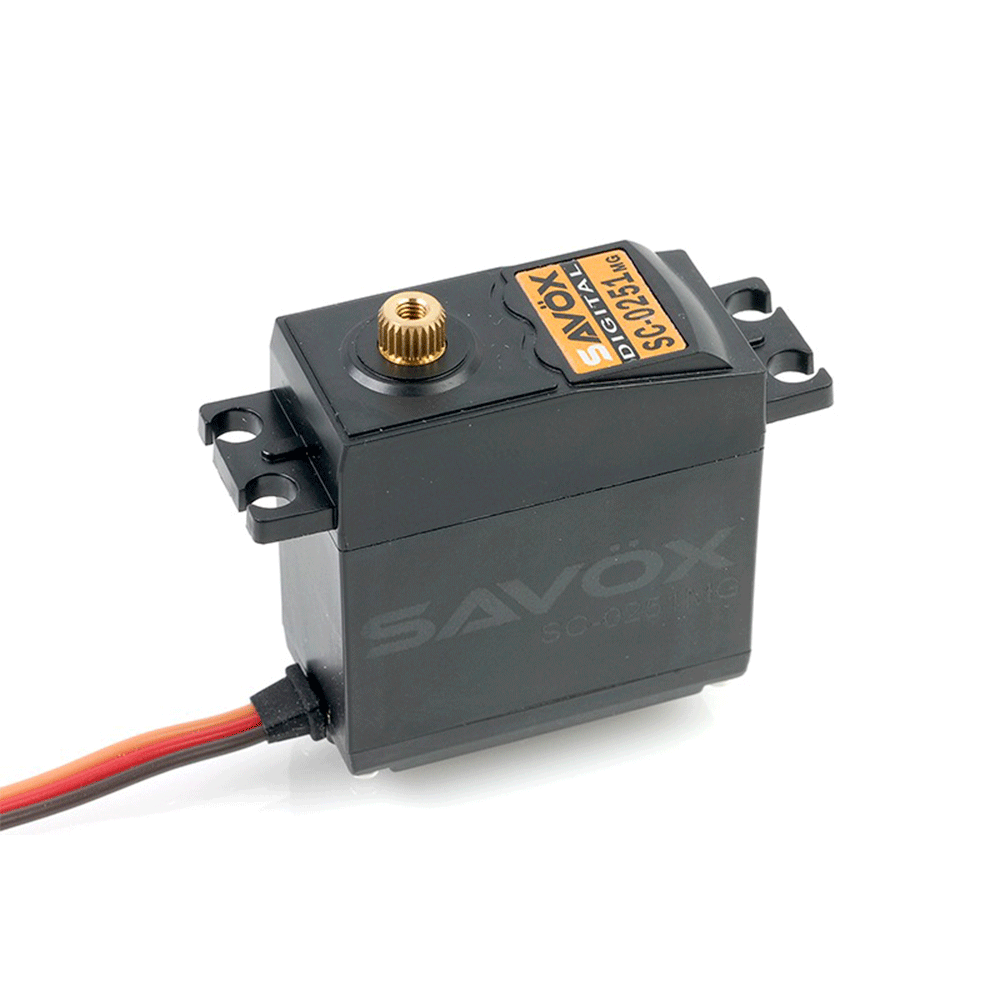

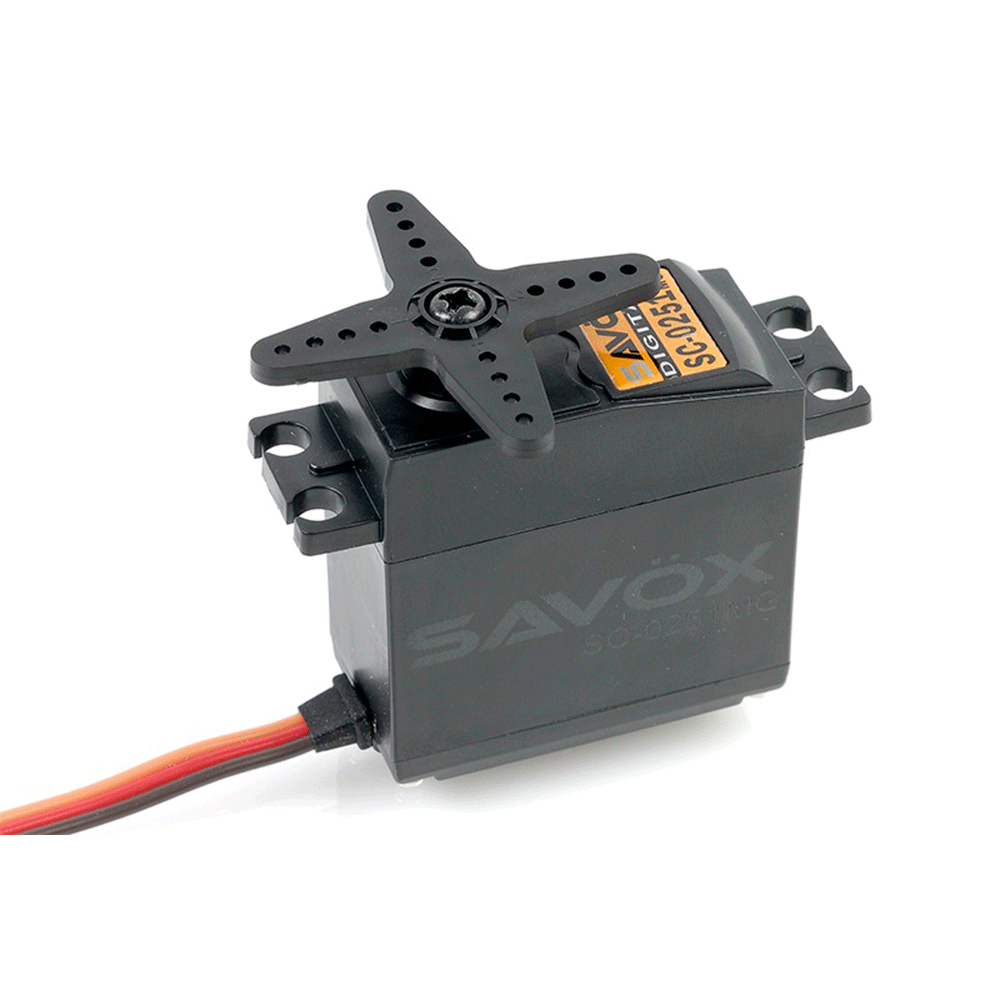

The Savox SC-0251MG is a high torque, metal-geared, digital servo which is suitable for many applications.
Features:
- Metal gear train ensures durability under harsh situations
- Slightly taller case design
- Ideal for aircraft and some 1/8 off road car applications
Specifications:
- Torque @ 4.8V: 13kg/cm
- Torque @ 6V: 16kg/cm
- Speed @ 4.8V: 0.20 sec/60 deg
- Speed @ 6V: 0.18 sec/60 deg

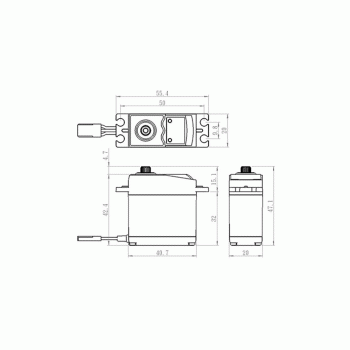

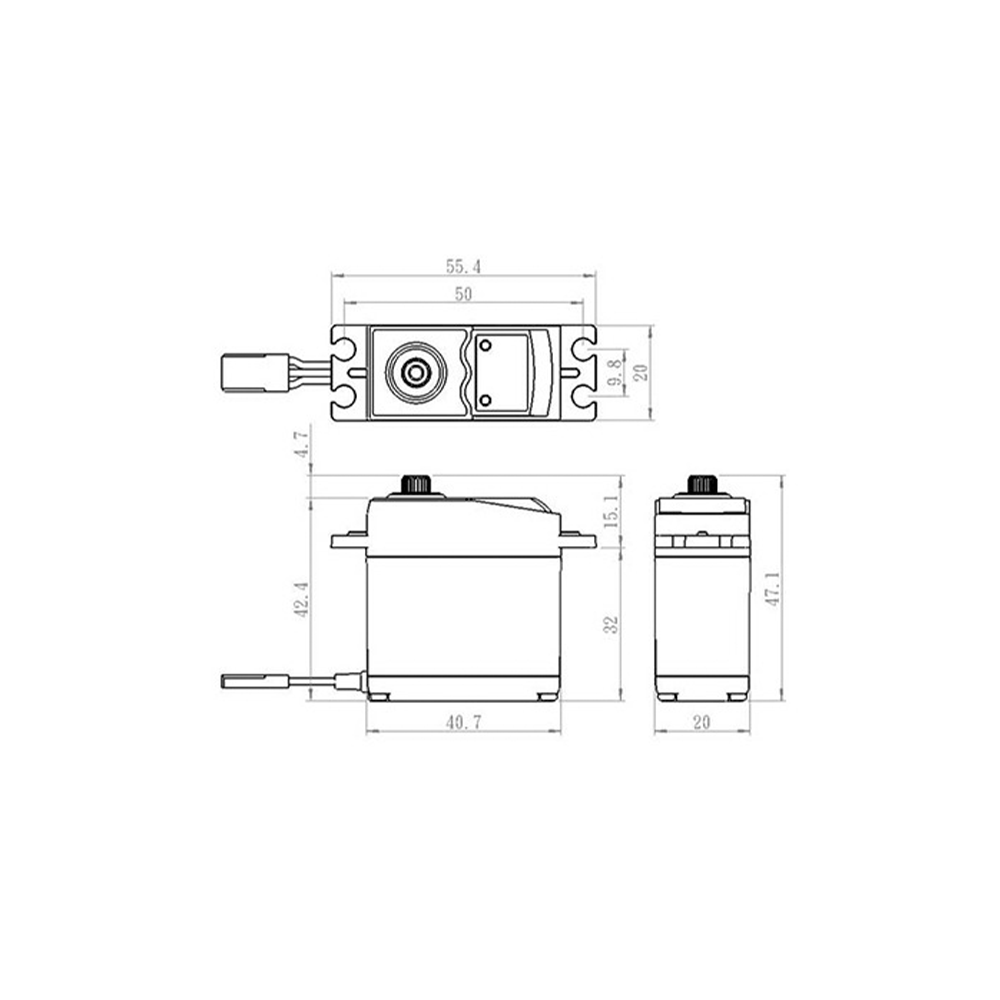

- Dimensions L x W x H: 40.7 x 19.6 x 42.4mm
- Weight: 61g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 300mA @4.8V, 350mA @6.0V
- Stall Current (at locked): 2600mA @4.8V, 3200mA @6.0V
- Idle Current: 5mA @4.8V, 6mA @6.0V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 120° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 164° (800 → 2200 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
