Overview:

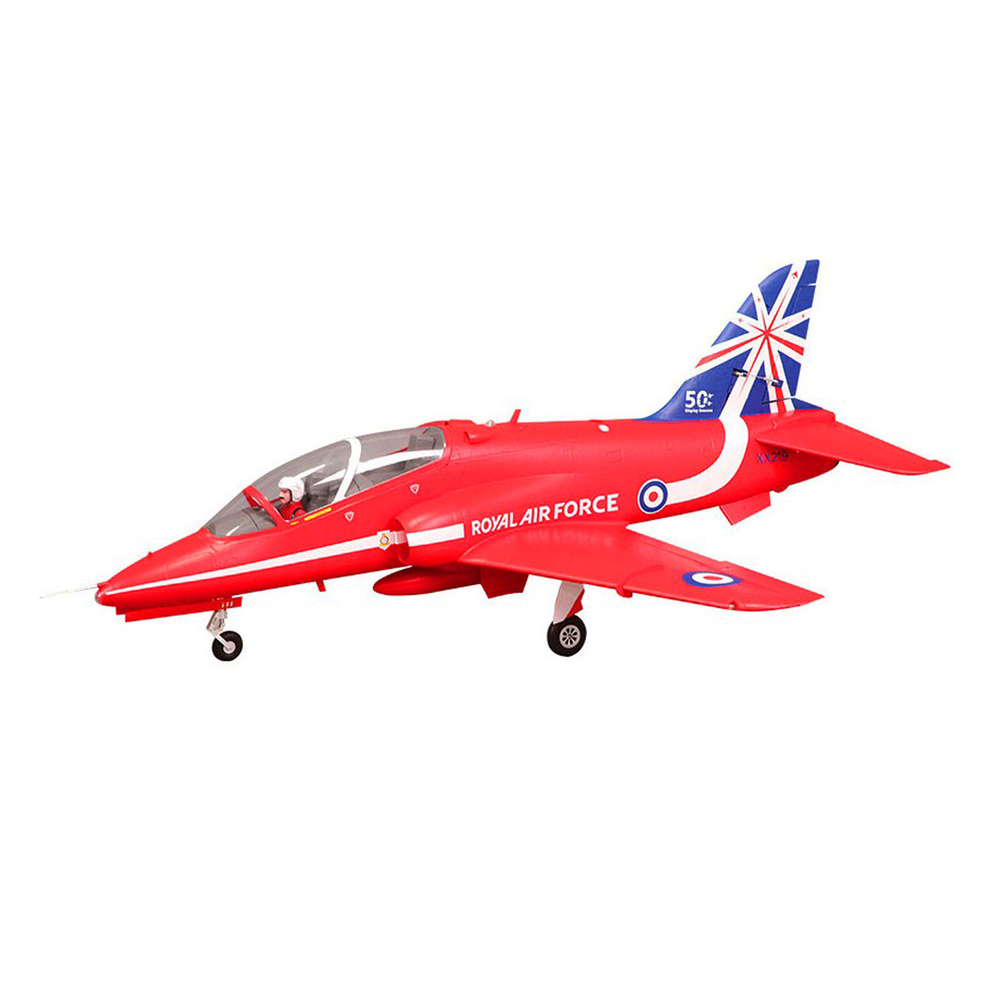

- FMS has created a brilliant replica of the BAE Hawk for the popular 80mm EDF class. Beautifully finished in red and white trim, the outline of the BAE Systems marvel is unmistakable with detail that features a well-appointed cockpit, an array of intake scoops, antenna, bright LED lighting, scale sub-fins and a removable ferry tank.
- The remarkable undercarriage includes reliable electric retracts with durable metal CNC-construction, shock-absorbing actuation with scissor linkages—all neatly concealed with automatic gear door enclosures. The flight controls are full-featured including functional flaps that help you make takeoffs shorter and landings as slow as possible. All seven control surfaces plus the nose wheel are individually linked with a dedicated metal-gear micro servo. Precision ball-link equipped linkages for initial setup and easy flight trimming.
- The FMS 80mm BAE Hawk features a rigid one-piece wing that easily bolts to the fuselage, as do the horizontal stabilizers—no glue is required which makes basic assembly super-fast. Lightweight EPO foam construction means you can count on a high-level of durability, intricate surface detail and a light wing loading that translates naturally into incredible flight performance. The water-based paint minimizes blistering from sun and provides a vibrant appearance. The power system utilizes a powerful 80mm 12-blade EDF system driven by a 3270-size, 1930Kv brushless motor and 100A ESC combination for tremendous acceleration and speed when coupled with your high-C, 6S LiPo battery.
Features:
- CNC Machined Metal Shock Absorbing Retracts
- 12 Blade 80mm EDF Sound for an Enhanced Jet Experience
- LED Lights
- Functional Flaps and Steerable Nose Wheel
- Detailed Cockpit with Pilot Figure
- Easy six-screw bolt-together assembly-no glue required
- 80mm EDF with a brushless 3270-size, 1930Kv inrunner motor
- High-quality Predator 100A ESC with 8A BEC
- Durable all-metal shock absorbing electric retracts
- 12-blade EDF sound delivers an enhanced jet experience
- 6-Channel control with functional flaps and steerable nose wheel
- Metal-gear servos provide precision and reliability
- Removable one-piece wing with optional ferry tank
- New ball-style control horns and linkages for greater precision
- Brilliant LED lighting system installed
- Vivid trim scheme with environmentally friendly water-based paint
Video Overview
Complete System Upgrade - Reflex V2 is Compatible with Most FMS Aircraft
- The Reflex V2 is a user-upgradeable flight controller. Reflex V2 can be reprogrammed easily with different model files via a simple software - allowing pilots to use the same flight control unit as they progress to different aircraft. Flying is simple when you have your very own “co-pilot” — the Reflex V2!
Reflex Functions:
- Three flight modes are available: Stabilized, Optimized or Off. This is controlled with a two or three position switch on the transmitter. When assigned to a two position switch, the Reflex system changes between stabilized and optimized modes.
- Stabilized mode: Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released - giving pilots absolute peace of mind. Note: The aircraft will maintain level flight with 50-60% throttle, and the aircraft will climb under full throttle.
- Optimized mode: Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets - for gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!
- Off: Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.
Reflex V2 Overview
Software Installation
Product Specifications:
Power Type - Electric
Servos - Included
Trim Scheme Colors - Red, white and blue
Wingspan - 41" (1041 mm)
Flaps - Yes
Material - EPO
Retracts - Included
Fan Size - 80mm EDF
Landing Gear - CNC machined metal electric retracts
Speed Control - Included
Wing Area - 318.68 sq in (2056 sq dm)
Minimum Required Radio - 6-channel
Radio - Sold Separately
Charger - Sold Separately
Receiver - Sold Separately
Battery - Sold Separately
Motor Siz - 3270
Product Weight - 5.5lbs (2500g)
Wing Loading - 0.28 oz sq/in
CG (Center of Gravity) - 3.3 - 3.7" (85 - 95mm) back from leading edge of wing with battery installed - Completion Level
Plug-N-Play - Recommended Motor Battery
