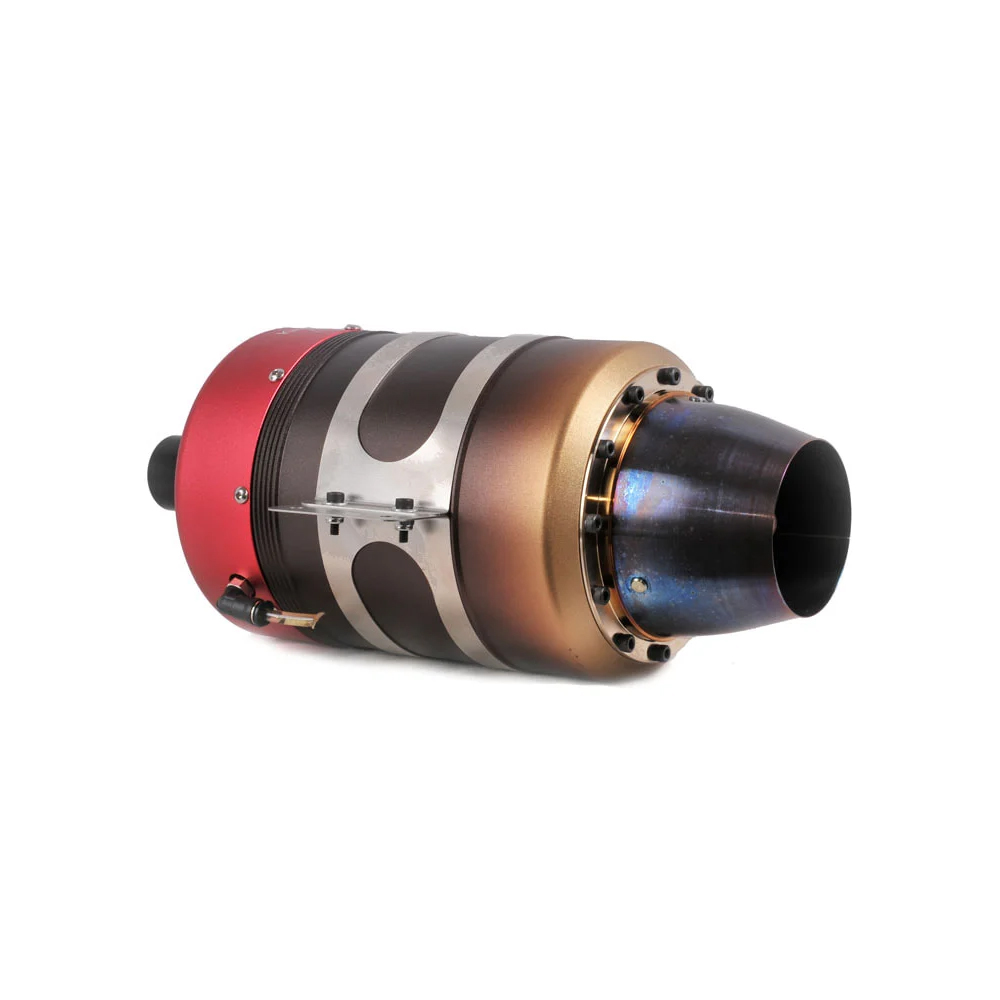

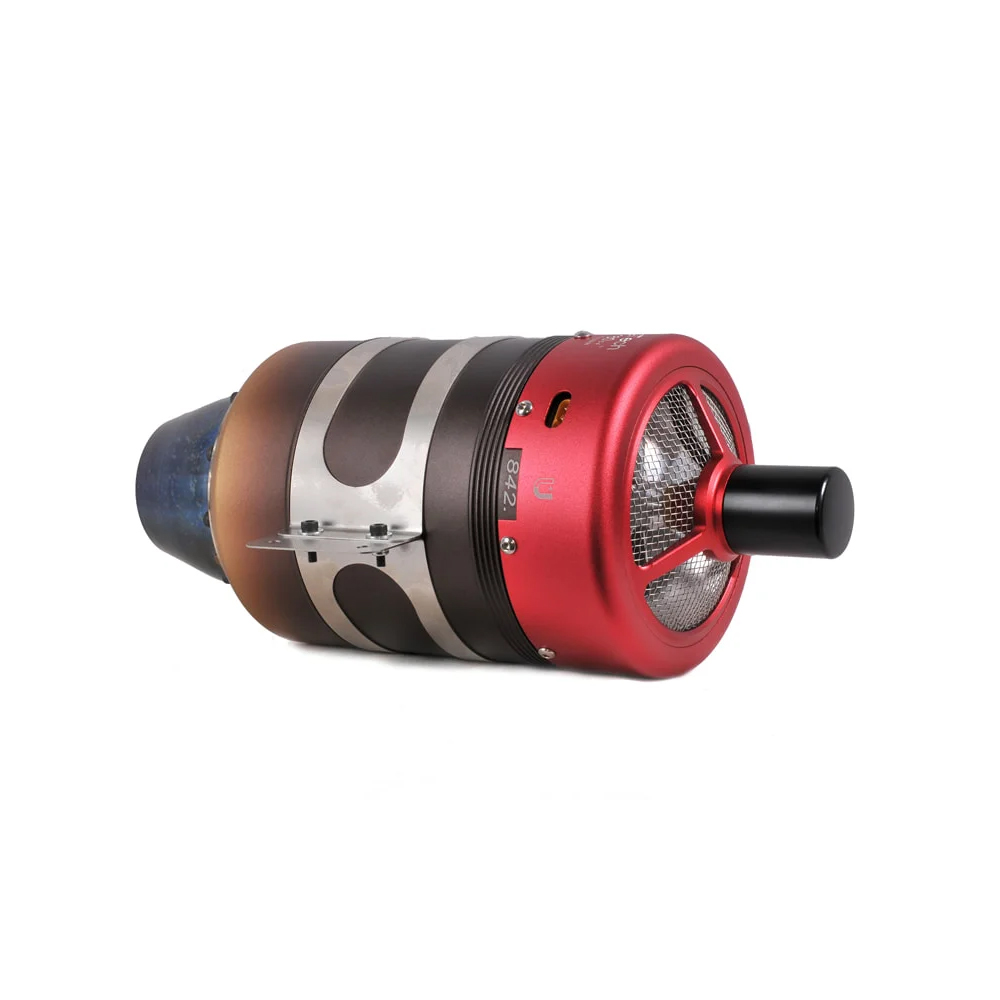

TURBINA KINGTECH K-160G4+ KERO START

• KingTech G4 utilizes SBus data transmission.

• Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.

• The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.

• Pump: digital sbus brushless pump

• A micro USB connector is present for a future connectivity of wireless mobile apps.

• The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.

• After a run cycle and receiver switched off, GSU will remain on only until cool down completes.

K-160G4 SPECIFICATIONS

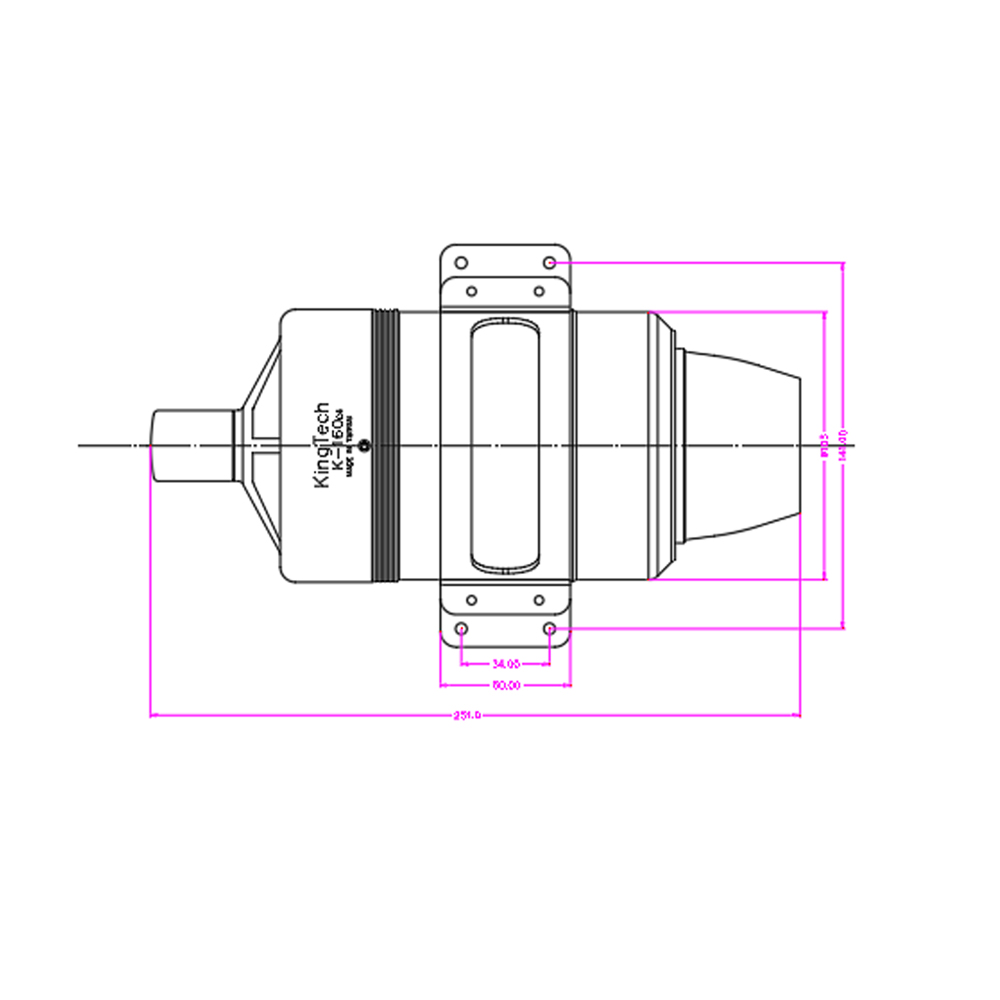

Diameter: 103mm ( 4.055” )

Length: 251mm ( 9.88” )

Weight: 1540g ( 3 lb 6.3 oz )

Maximum RPM: up to 130000

Thrust: 16 kg - 15°C ( 35 lb @ 59°F )

EGT: 700°C max

Fuel consumption: 490g / min ( 17.28 oz / min )

Fuel: Diesel, Jet A1, Kerosene

Lubrication: 5%

Maintenance cycle: 25 hr US$300

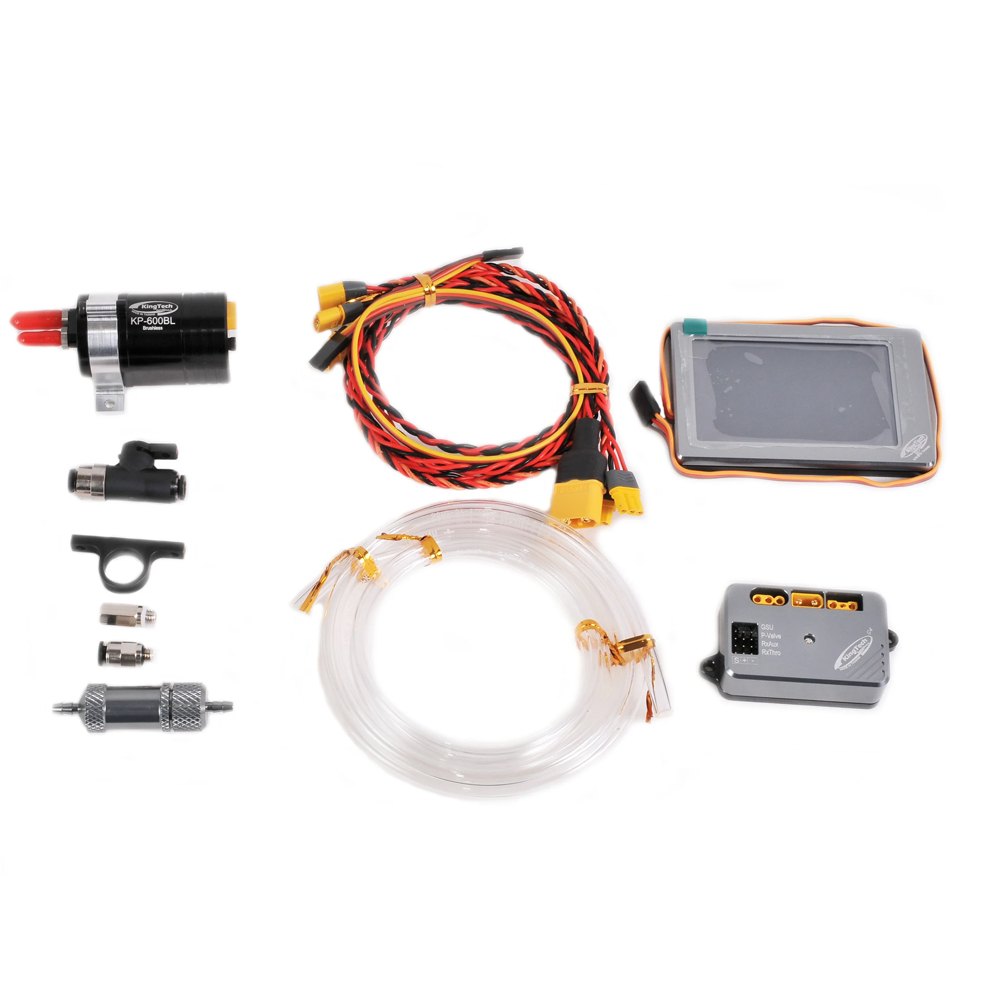

G4 MODEL COMPONENTS LIST

• Engine

• Data Relay Module (DRM)

• Ground Support Unit (GSU)

• Wire Harness and Tubing Set

• Fuel Pump, Filter and Shout-off Valve

• Fuel Inlet Attachments

• Instruction Manual
