MOTOR DURATRAX G-27CX SG BY ST DTXG0256

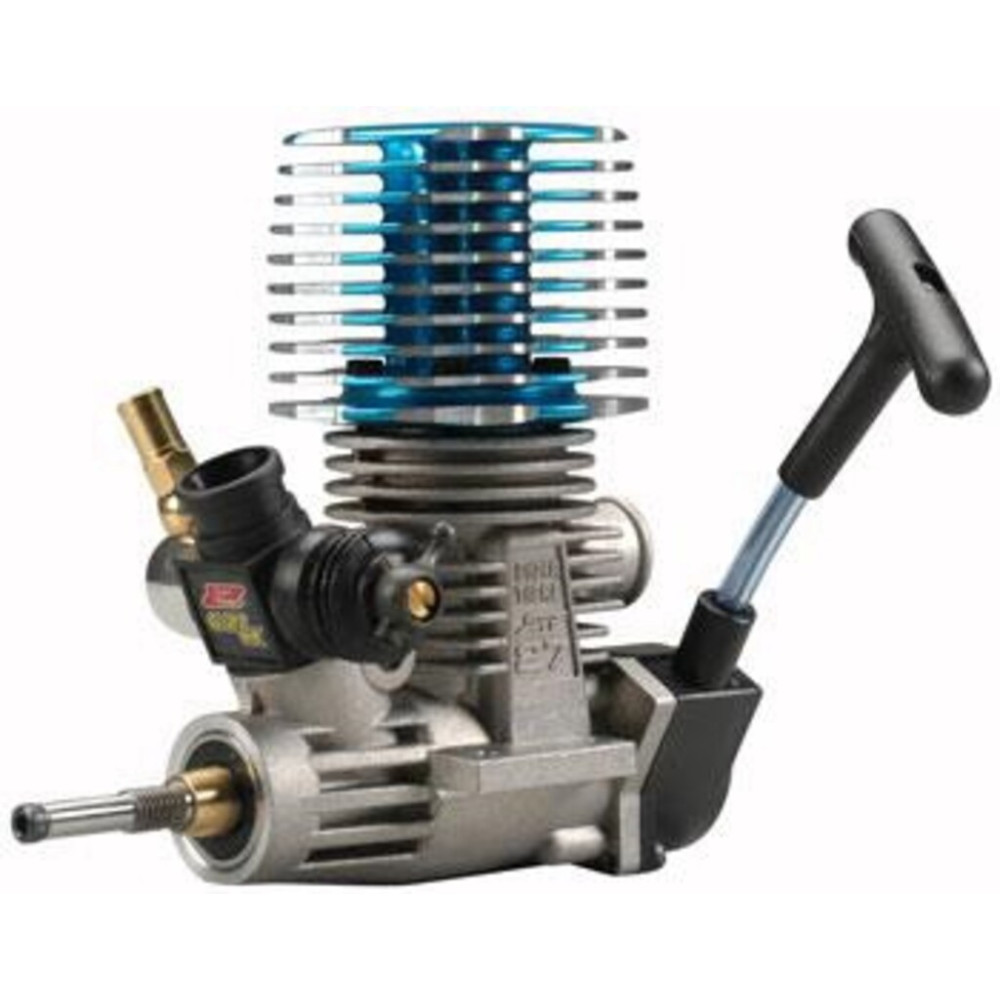

This is the DuraTrax/SuperTigre G-27CX Pull Start Racing Engine for the DuraTrax Raze, DTXD76**.

FEATURES:

ABC cylinder construction-"A"luminum piston,"B"rass cylinder liner that is "C"hrome plated Dual ball bearing-supported crankshaft Dual needle Slide Valve Carburetor Machined aluminum blue cylinder head Rear exhaust SG (pilot) Crankshaft Three year limited warranty

INCLUDES:

DuraTrax/SuperTigre G-27CX Pull Start Racing Engine with glow plug

REQUIRES:

Fuel:

• Car fuel blend with 20% nitromethane content (ODOP3520)
• Glow starter, plug wrench and track equipment

SPECS:

• Displacement: .27 cu in (4.4cc)
• Bore: .72" (18.2mm)
• Stroke: .67" (17mm)
• Output: 2.5 hp @ 30,000 rpm
• Practical RPM Range: 3,000-35,000
• Weight: 14.1oz (400g)

• Distance Between Mounting Holes Same Side: .83" (21mm)
• Distance Between Mounting Holes Opposite Side: 1.4" (37mm)
• Height from Bottom of Mounting Tabs/Top of Cylinder Head: 3.6" (92mm)
• Height from Bottom of Crankcase to Top of Cylinder Head: 4.2" (107mm)
• Width at Mounting Tabs: 1.8" (46mm)
• Distance from Pull Start to Front Bearing: 3.3" (84.5mm)
• Distance from Pull Start to End of Crankshaft: 3.9" (99mm)
• Diameter of Exhaust Opening: .59" (15mm)
• Diameter of Carburetor Opening: .56" (14.2mm)

Factory Needle Settings:

• High Speed Needle: 4.5 turns OUT from closed
• Low Speed Needle: 12.5 turns OUT from closed (1 turn OUT from flush with ball link body)

COMMENTS:

This engine is intended for use in the DuraTrax Raze and does not include an instruction manual. Refer to engine installation and maintenance sections in the Raze manual.

EEW 4/18/07 ir/jxs updt lmm 3/26/09
