MOTOR OS .18CV-RX W/RECOIL 11880

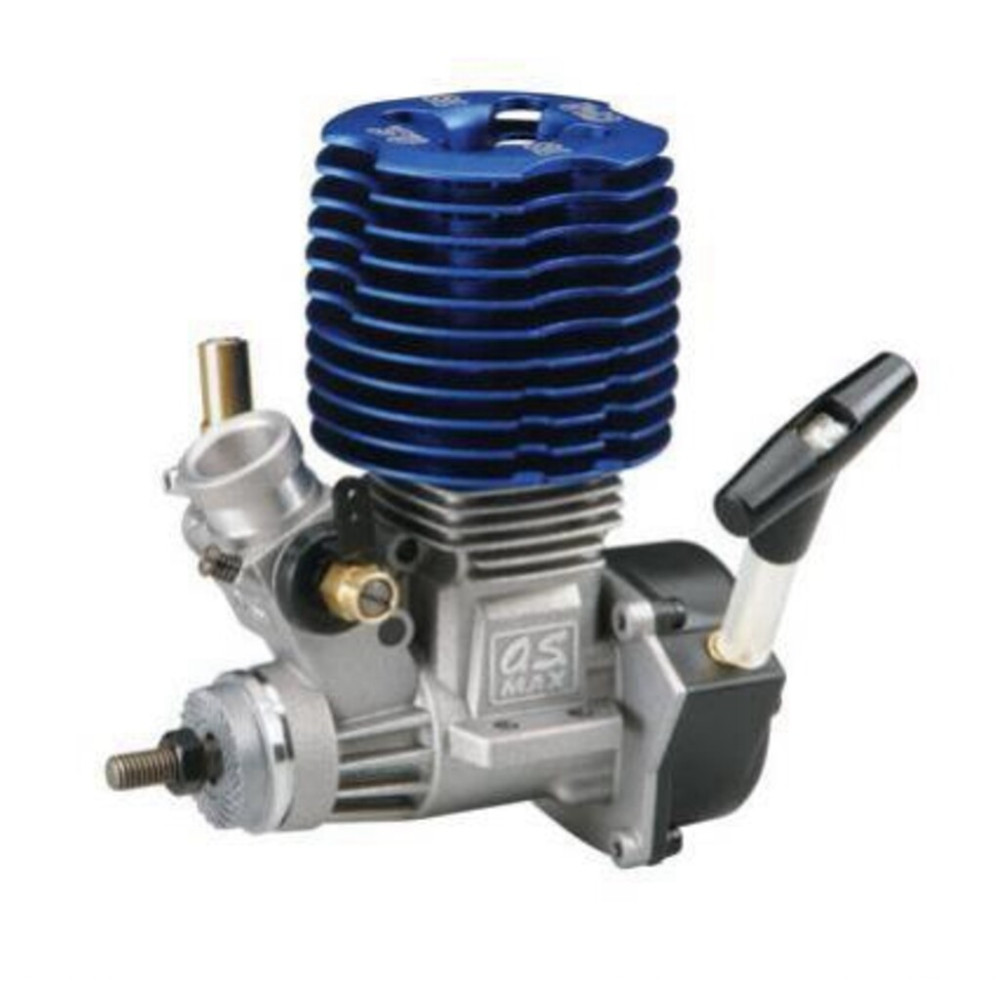

This is the O.S. Max .18CV-RX Side Exhaust Engine with 11J rotary carburetor and pull starter.

Good for all ready-to-run 1/10 scale cars & trucks that require a pull-start power plant. Especially suited for off-road trucks.

Fits Kyosho® Inferno TR-15 Stadium Force3, DuraTrax® Evaders, Tamiya Terra Crusher and HPI Nitro RS4 3 Series.

FEATURES:

• Larger displacement and more power in a .15 size crankcase
• Rotary carburetor with two screwdriver-adjustable needles, mixture control screw, 360° fuel inlet, and big 6.5mm bore for more torque
• True ABC construction with CAD designed 3-port liner Machined, aluminum piston boosts performance and enhances durability
• Standard ball bearing suppported crankshaft with enlarged fuel ports for smoother air and fuel flow Larger, thicker rear bearing handles racing loads with ease High volume
• #203 air filter assembly with two pre-oiled foam elements
• Two year warranty

INCLUDES:

• One O.S. Max .18CV-RX engine with
• 11J carb
• pull starter
• #8 glow plug
• air filter assembly with two elements
• mounting spacers
• four 3 x 14mm phillips head screws
• instruction manual

REQUIRES:

• Glow fuel for vehicles with 5%-30% nitromethane and no less than 18% lubricant content
• Most of the fuels we carry meet or exceed the lubricant content required for optimum performance and maximum engine life.  In the past, the conventional lubricant content used in fuel was 18%. But with new advanced technologies, fuels like Red Alert and O'Donnell for example, have a better quality of lubricants even though the percentages of lubricant content are lower. These high-tech lubricants provide exceptional cooling and protection. Fuel filter Medium fuel tubing

SPECS:

• Bore: 0.63" (16.0mm)
• Stroke: 0.59" (15.0mm)
• Displacement: .18 cu in (3.0cc)
• Practical RPM: 3000-32,000
• Power Output: 1.35 PS/28,000
• RPM Weight: 10.4oz (295.5g)
• Width between mounting holes same side: 0.4" (11mm)
• Width between mounting holes opposite side: 1.2" (31.4mm)
• Crankcase width: 1.6" (40mm)
• Distance from starter to drive hub: 2.9" (74.8mm)
• Distance from starter to end of crankshaft: 3.4" (87.8mm)
• Distance from center of crankcase to drive hub: 1.6" (41mm)
• Height/bottom of crankcase to top of cylinder head: 4" (100.9mm)
• Height/center of crankshaft to top of cyinder head: 3.2" (80.9mm)

Needle Settings:

• High Speed: 2.5 turns out from fully closed
• Metering Needle (low speed): .5 turn in from flush with carb body
• Throttle Stop Screw: 1mm open from fully closed
